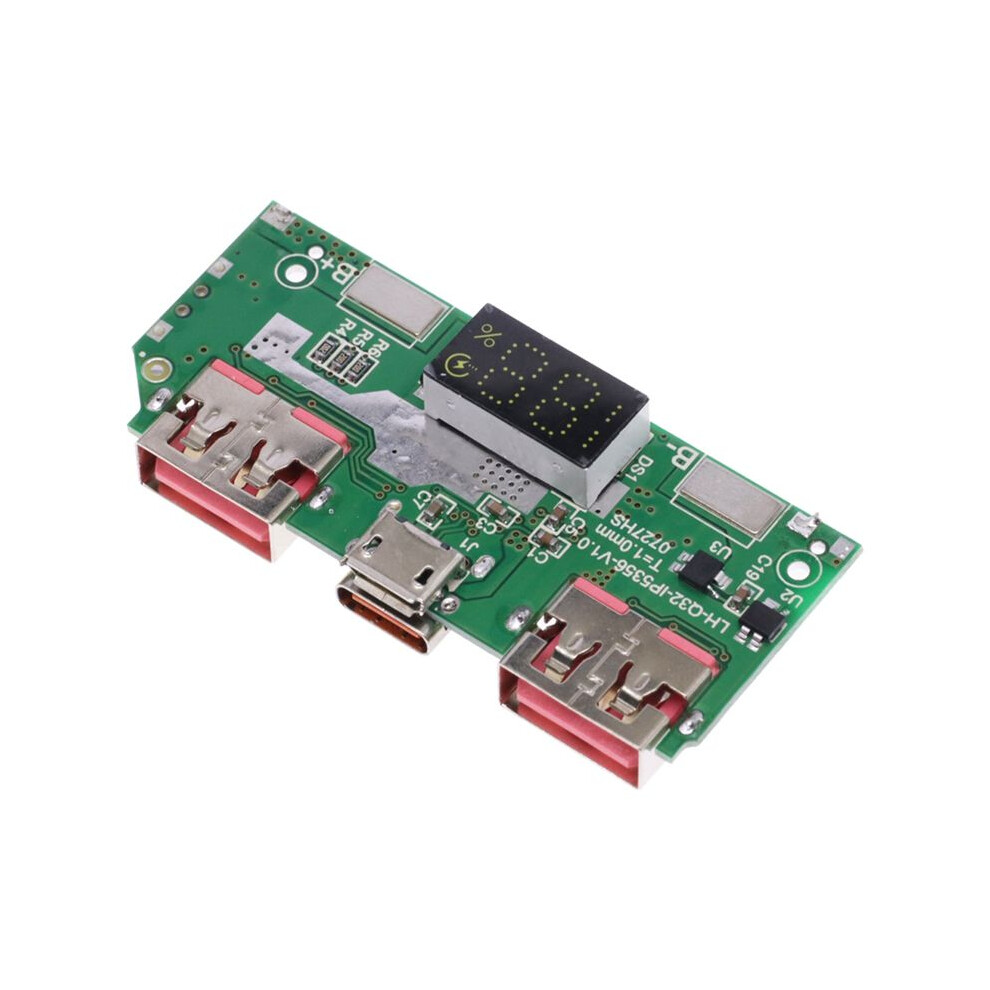

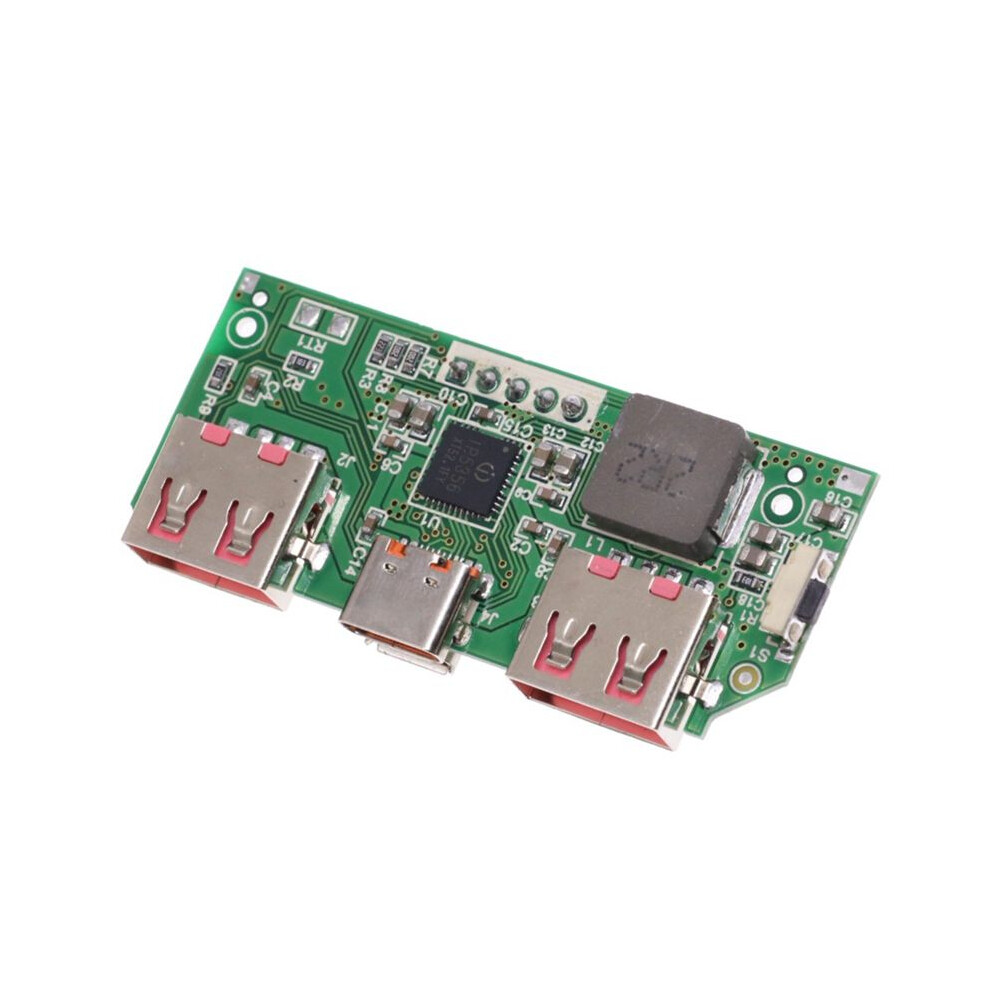

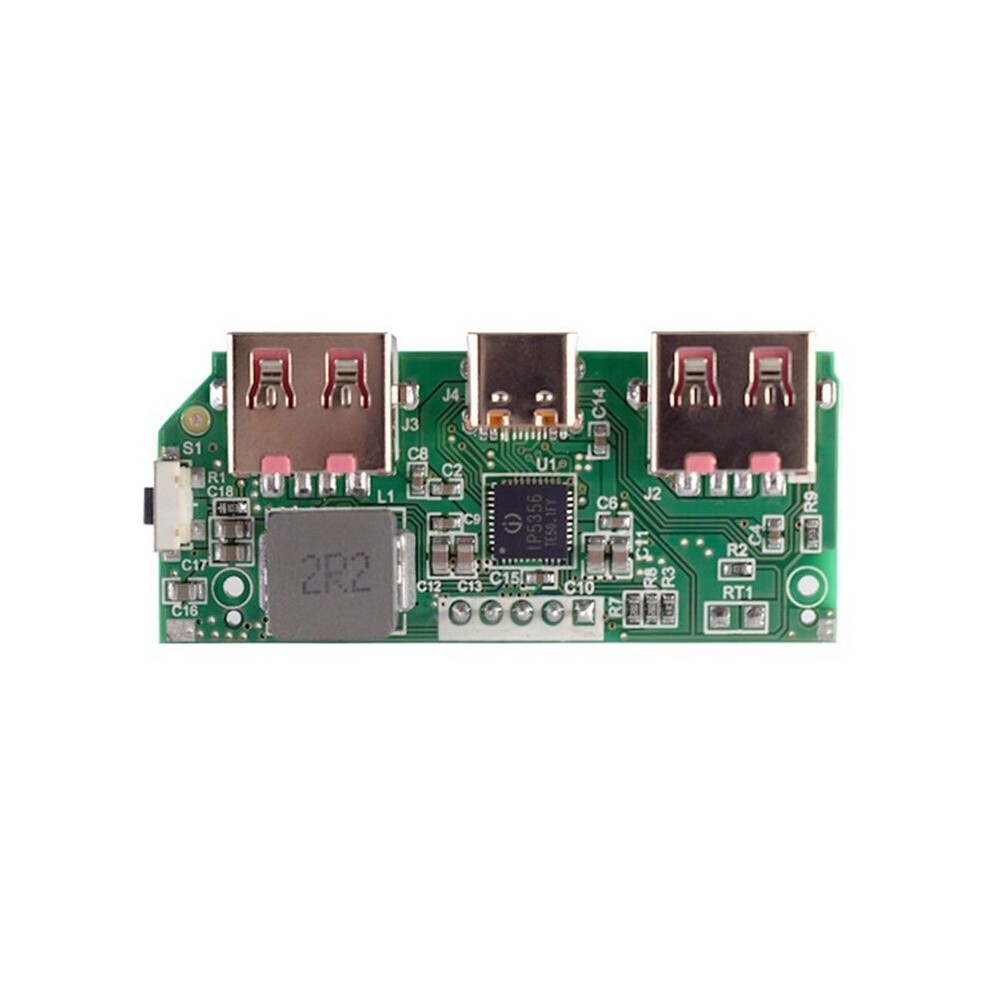

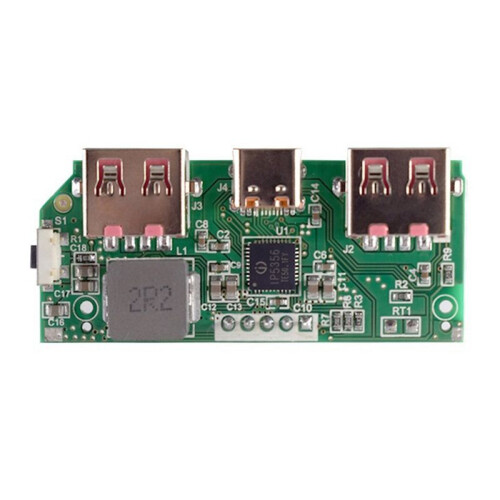

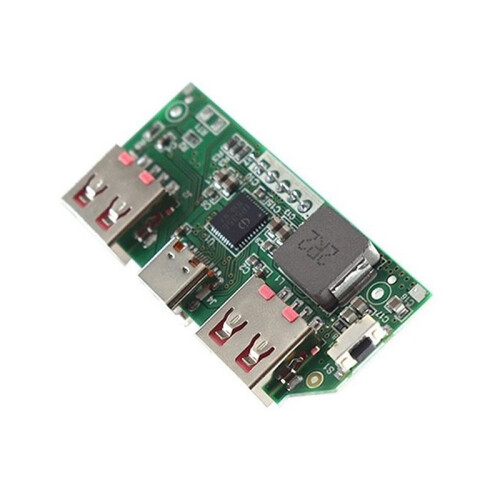

5V 3A Lithium Battery Digital Display Fast Charging Module IP5356 TYPE-C Micro-USB QC3.0 2.0 PD3.0 PD2.0/AFC/FCP

5V 3A Lithium Battery Digital Display Fast Charging Module IP5356 TYPE-C Micro-USB QC3.0 2.0 PD3.0 PD2.0/AFC/FCP Beskrivelse

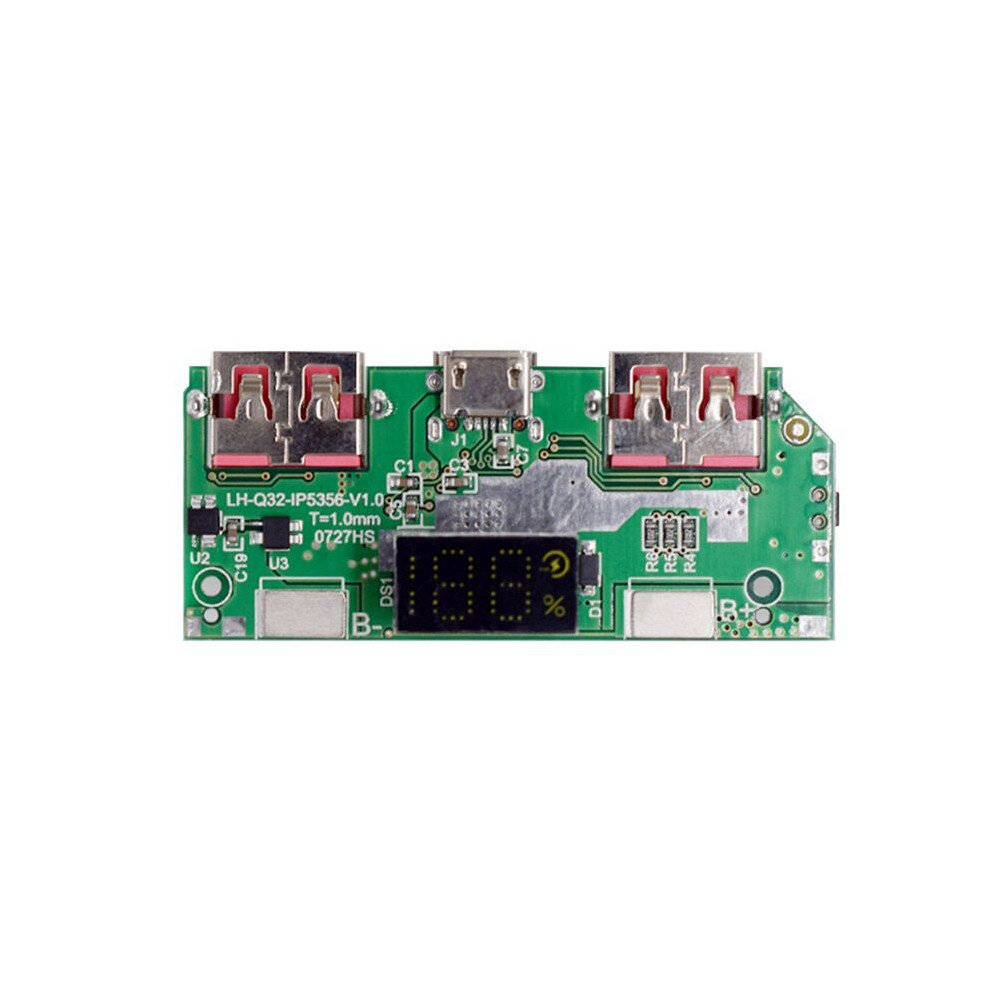

LED display status:Digital tube display during charging/discharging (charging status)
When discharging, the digital tube is always to display the battery figure % (when there is fast charge output, the -Pattern mark is always )
When charging, the digital tube displays the power figure %, and the single digit flashes at 1HZ (when there is fast charging input, the -Pattern mark is always )

Key Function:
1. Short press the button and the digital tube will display the battery level.
2 Double-click to close the output
Other function descriptions:
USBA output fast charging protocol (supports QC3.0/QC2.0/AFC/FCP/SCP) (output
5V/3A 9V/2A 12V/1.5A 5V/4.5A 4.5V/5A)
Type-C supports PD3.0/PD2.0/QC3.0/QC20/AFC/FCP/SCP fast charging and input
Out, support PD3.0/PD20/AFC/FCP/fast charge input (output 5V/3A 9V/22A
12V/1.5A5V/4.5A 4.5V/5A), (input 5V/3A 9V/2A 12V/1.5A)
micro-type input supports AFC/FCP fast charging input (input 5V/2A9V/2A)
Colour:green
Material:PCB+components
Depending the batch, the component appearance/color/batch number may be different, which does not affect use.

Package Contents:
1 x Fast Charging Module
