5X 220V Foot Dimmer Foot Operated LED Dimmer Full Range Inline Slide Control

5X 220V Foot Dimmer Foot Operated LED Dimmer Full Range Inline Slide Control Beskrivelse

Suitable for bedside lamps, table lamps, night lights, decorative lighting, etc.
With button , the power can be turned off.
Adjustable dimming range, by adjusting the bottom knob.
Slide foot operated lamp cord LED dimmer.

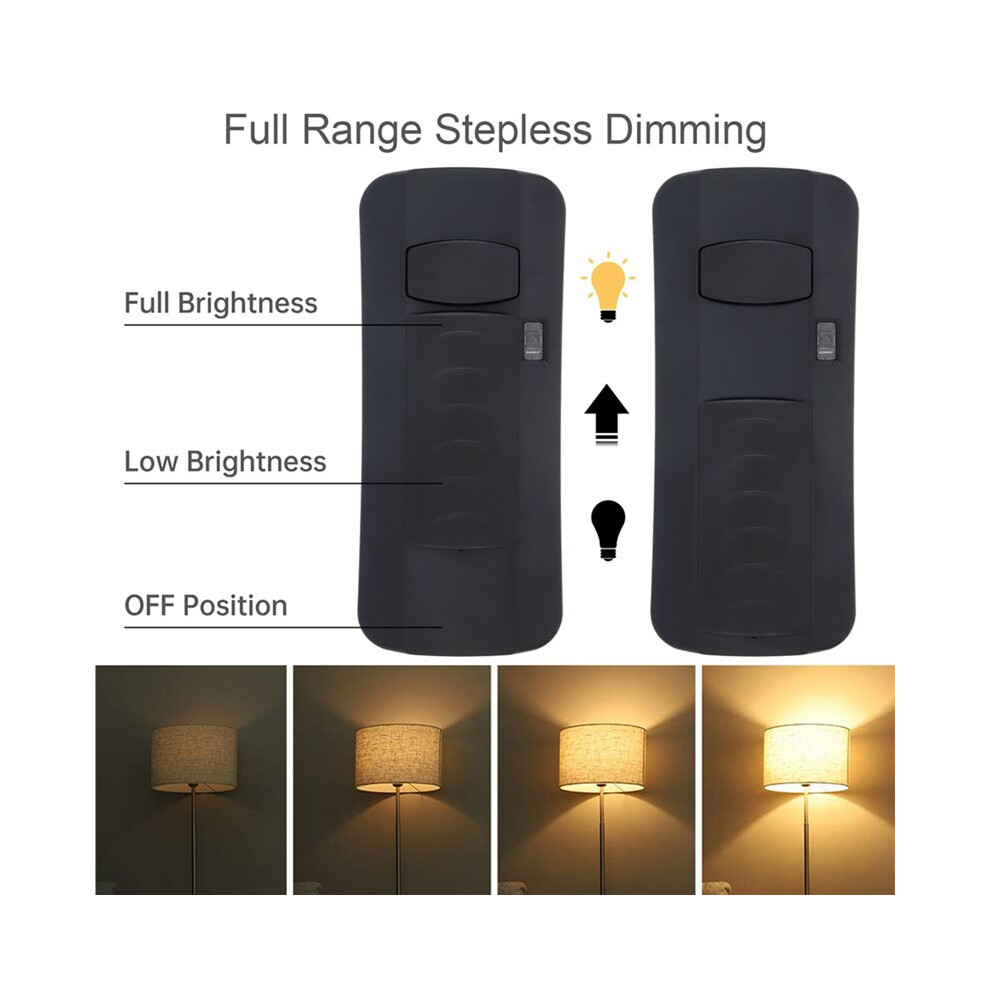

Cord (slide) full range dimmer .

Input Voltage: 220-240V 50/60Hz
Output Voltage: 220-240V 50/60Hz
Dimming Range: LED 3-24W; HV 3-60W
Installation Methods and Steps:

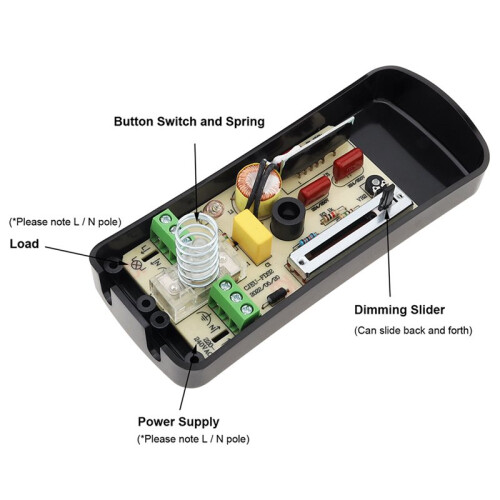

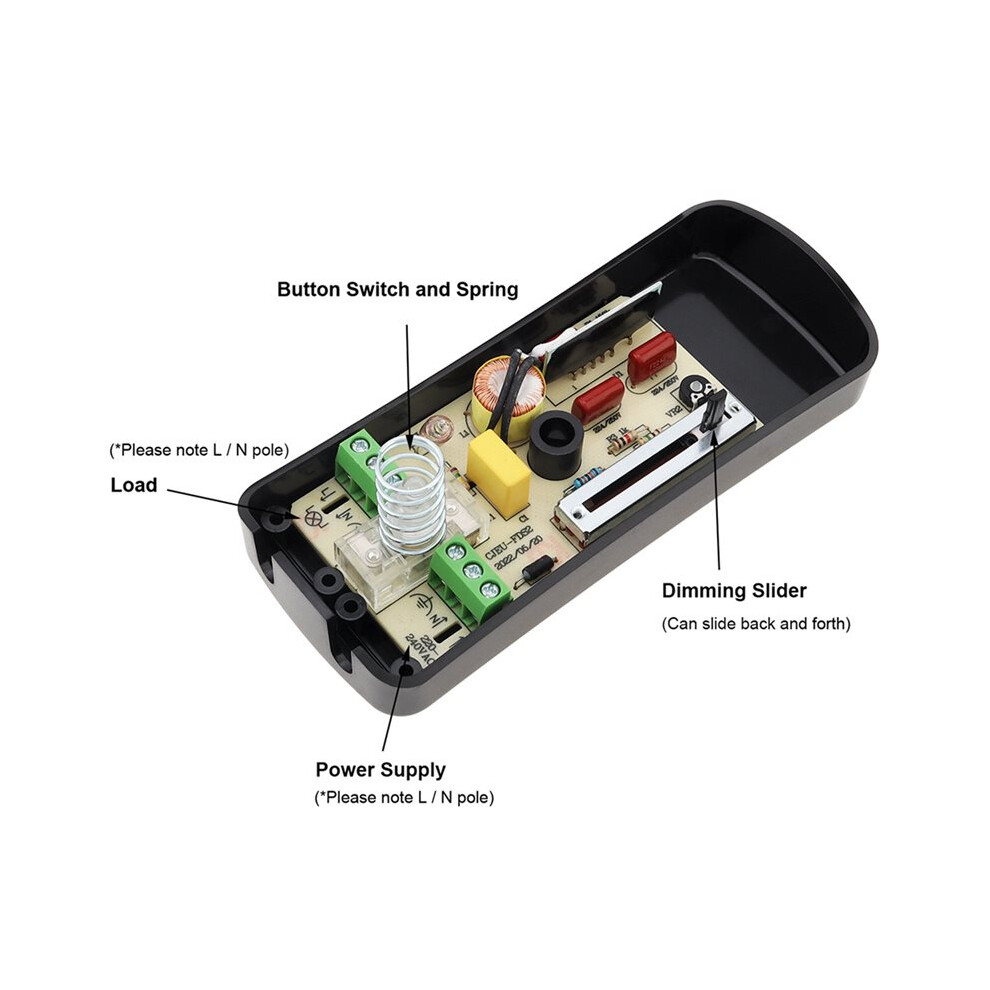

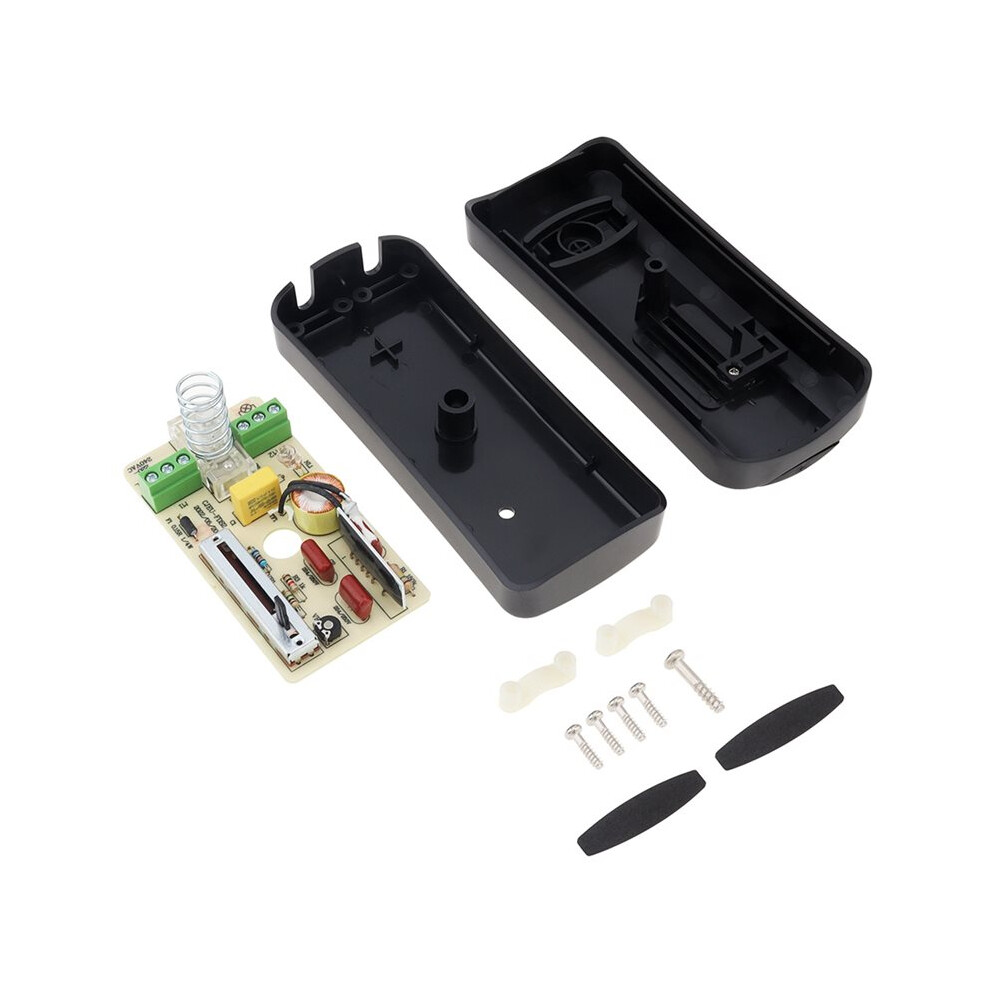

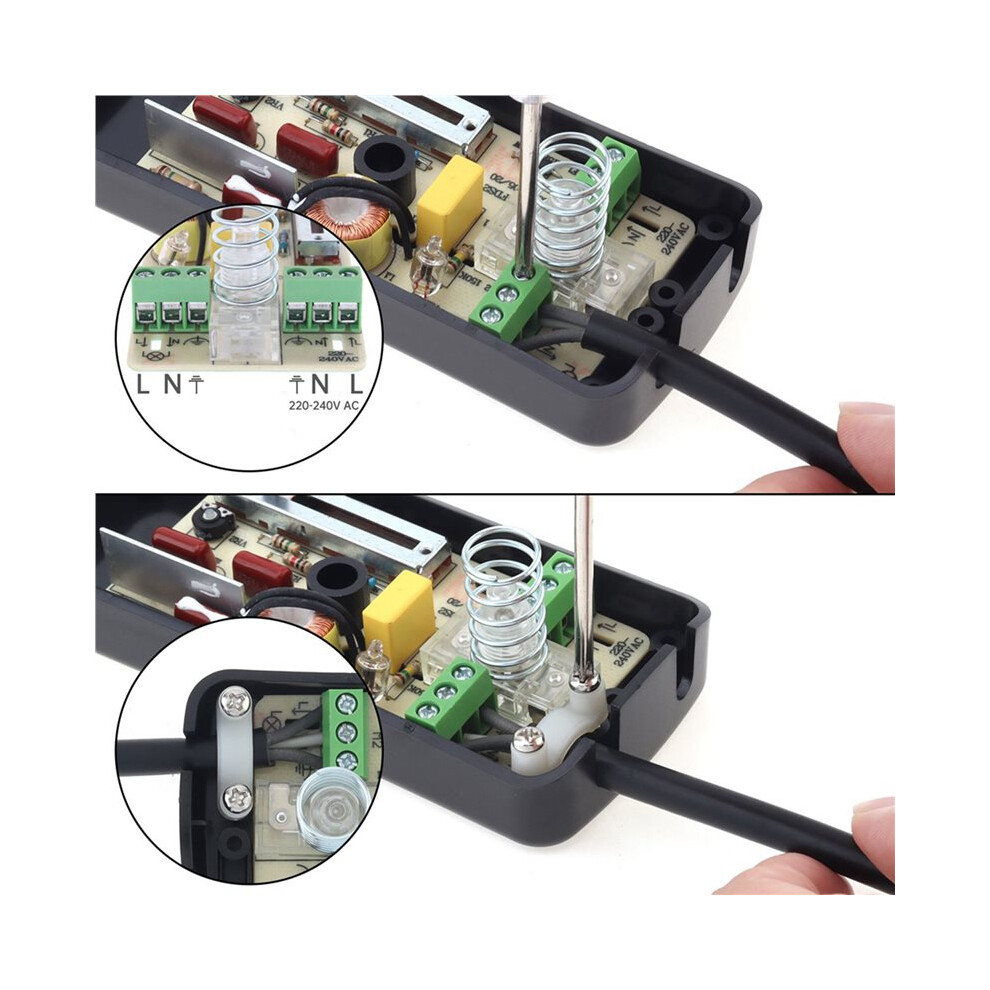

1.First, correctly install the circuit board module into the back cover. Please pay attention to the correct direction.
2. Wiring. Connect the power and load wires to the corresponding terminals and lock them with screwdriver. (Please recognize the markings the power terminal and load terminal the circuit board, as well as the markings the "L" wire, "N" wire, and grounding wire.)
3. Move the dimming slider to the front or end; At the same , move the slider the front cover to the front or end, corresponding to it.
4. Install the button spring above the button section the circuit board.
5. Close the plastic front cover, install the back cover screws and tighten them to complete the installation. Please pay attention to whether the wire diameter of the incoming and outgoing lines is appropriate.
Note:
Please don't connect electricity until all installation steps are completed.

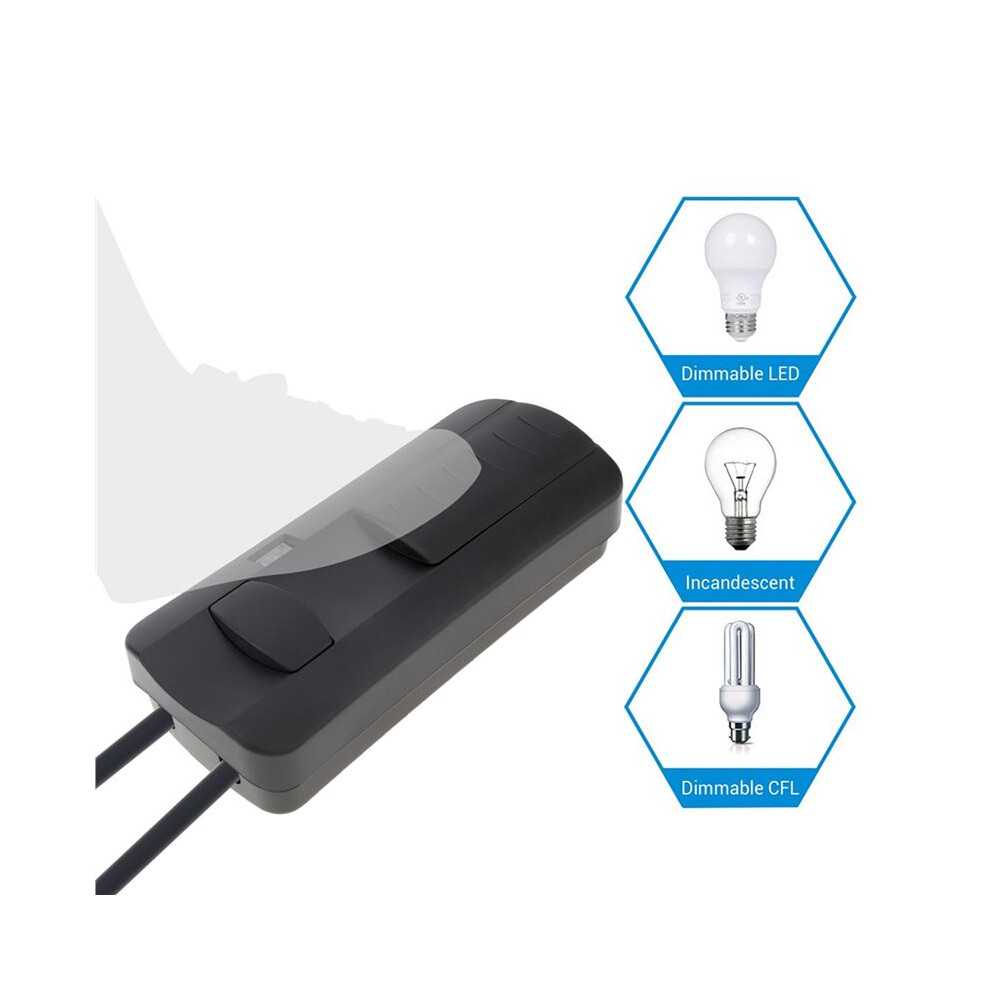

Please confirm if your light bulb is dimmable, and the power is within the appropriate range.

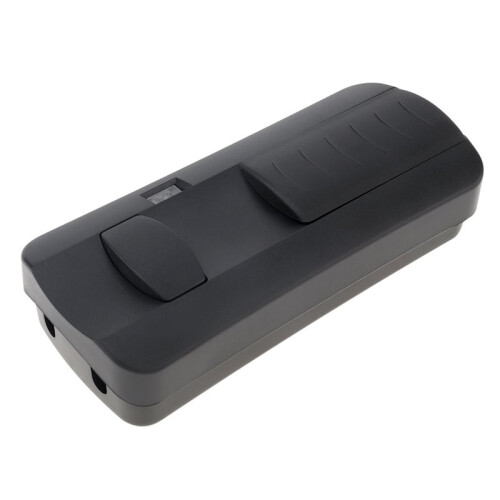

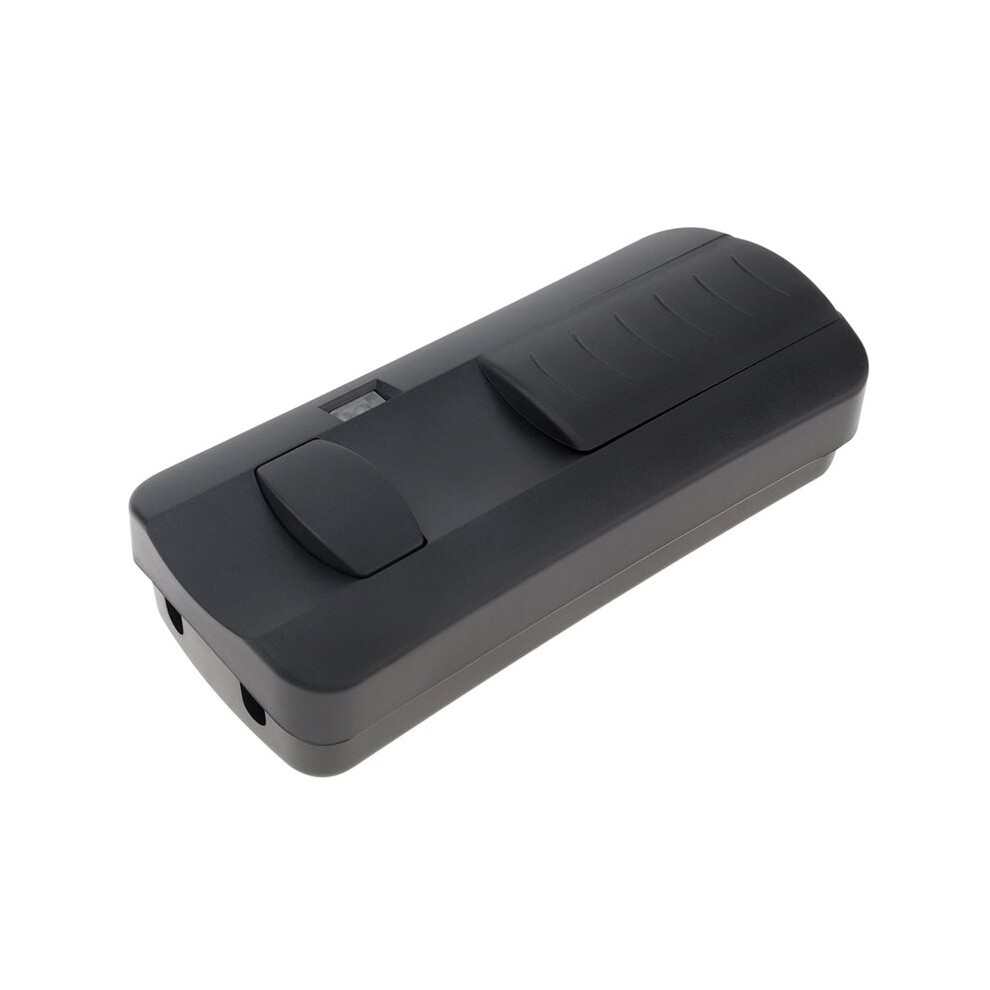

Product Name: Foot Operated LED Dimmer
Colour:Black
Material:plastic

Package Contents:

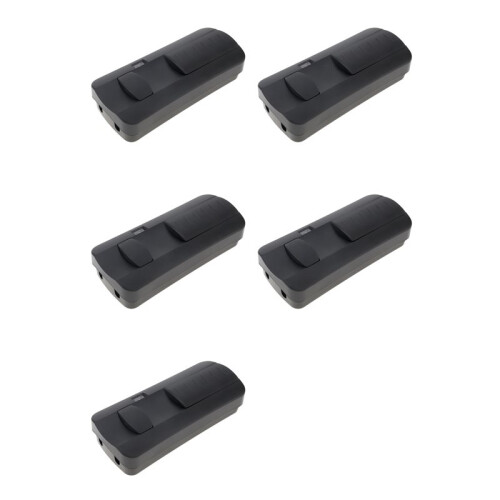

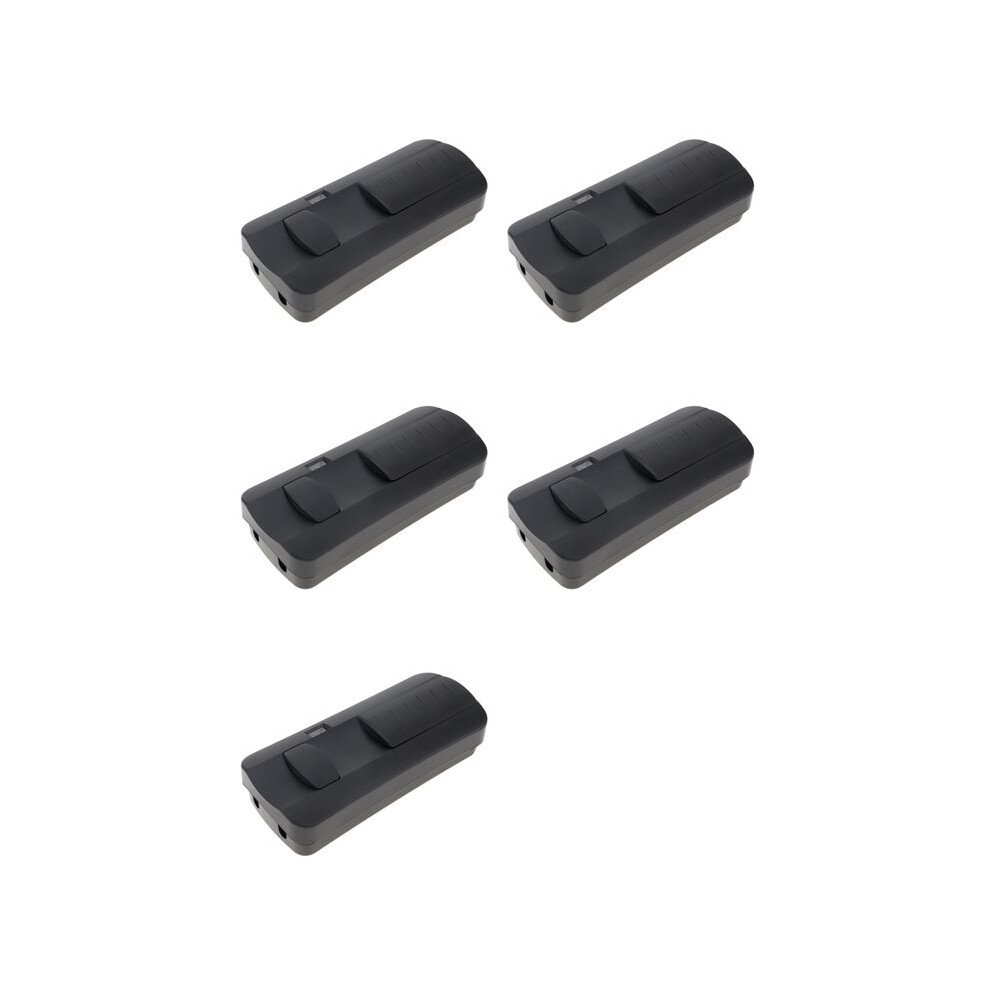

5 x LED Dimmer
