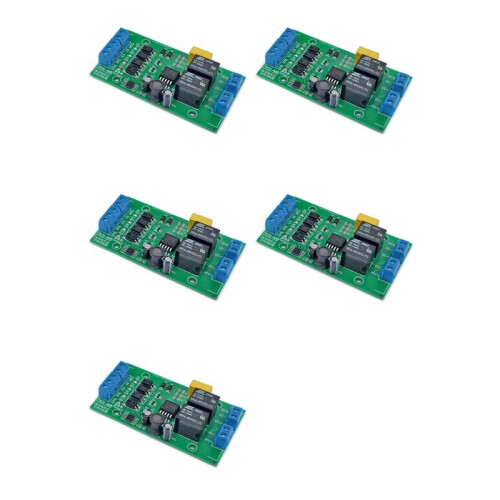

5X 6V 12V 24V Motor Forward and Reverse Controller 20A with Limit Relay Driver Lifting Control Board P0

5X 6V 12V 24V Motor Forward and Reverse Controller 20A with Limit Relay Driver Lifting Control Board P0 Beskrivelse

1. What is the PO versions? PO is self-locking mode. For example, when the external forward (K1) is pressed, the motor will immediately rotate forward. At this , the will be released immediately, and the motor will still keep rotating forward. It will not stop until it encounters the reverse rotation signal () or the forward rotation stop signal (SW1).
2. What are the requirements for the signal, can the sensor be connected? The signal is active low, it can be a three-wire sensor (NPN-NO type), K1 Sw1 SW2 is still this specification.
3. What is the limit signal? The limit signal can also be called a stop signal. The limit signal is trigger type and level-enabled. For example, if a short limit signal is encountered during forward rotation, it will stop, even if the limit signal disappears, it will still stop. The forward rotation signal must be restarted to run forward again.
4. What is the input and output voltage? The input voltage range of TKS-M8 is 4v-40v, but to ensure reliable operation, it is recommended to use it in the range of 6V-36V. The output motor is the same as the input voltage.

Working voltage:wide voltage DC4V-40V
Module power consumption:0.6W (without load motor), static 0.1W
Signal input:active low level, the input is the negative pole of the optocoupler. When the voltage is lower than 2V, it is considered that there is a signal
Response speed:K1 is 20mS, SW1 SW2 is 50mS
Output current:20A
Action life:Greater than 150,000 times
PO/Standard version:After a short trigger, the motor will keep running until it encounters a limit or commutation signal
Colour:Green
Material:PCB
Size:83x46x20mm

Package Contents:

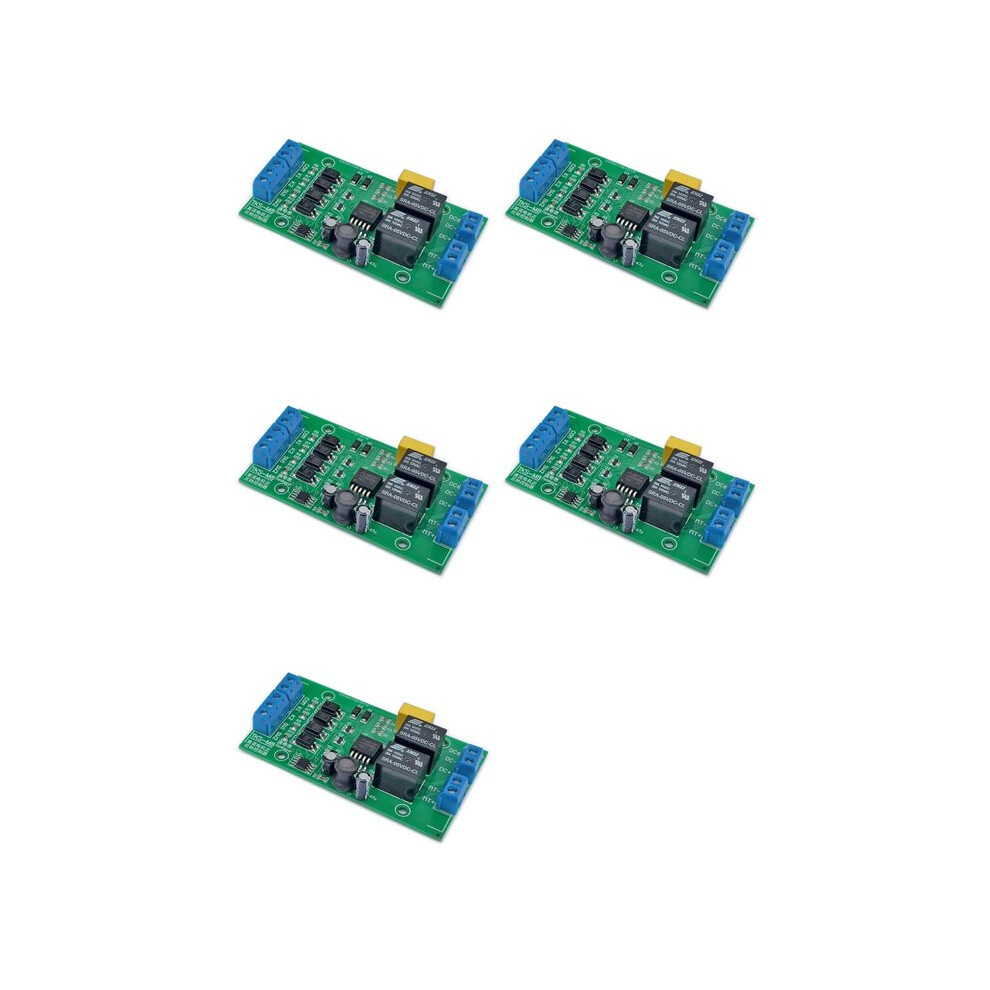

5 x P0 Forward/reverse controller
