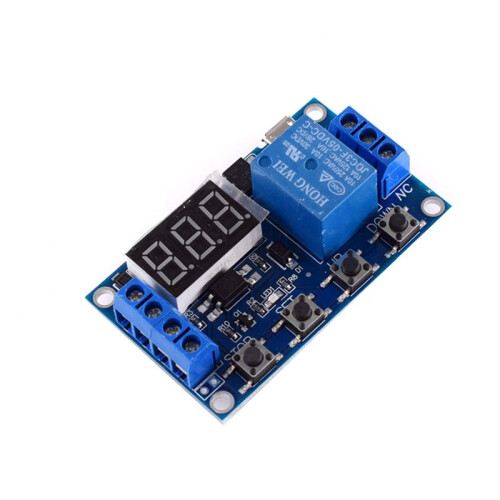

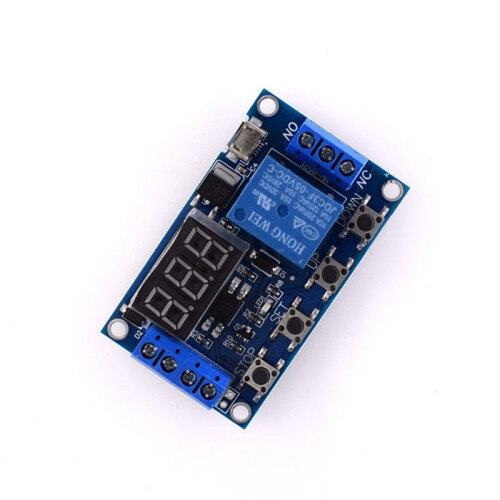

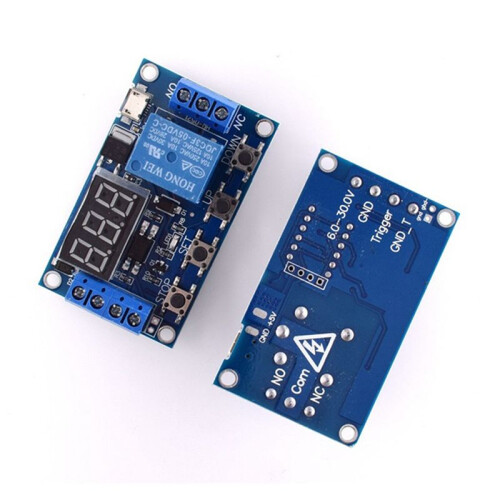

6-30V Support Micro-USB 5V LED Display Automation Cycle Delay Timer Control Off Delay Relay 6V 9V 12V 24V

6-30V Support Micro-USB 5V LED Display Automation Cycle Delay Timer Control Off Delay Relay 6V 9V 12V 24V Beskrivelse

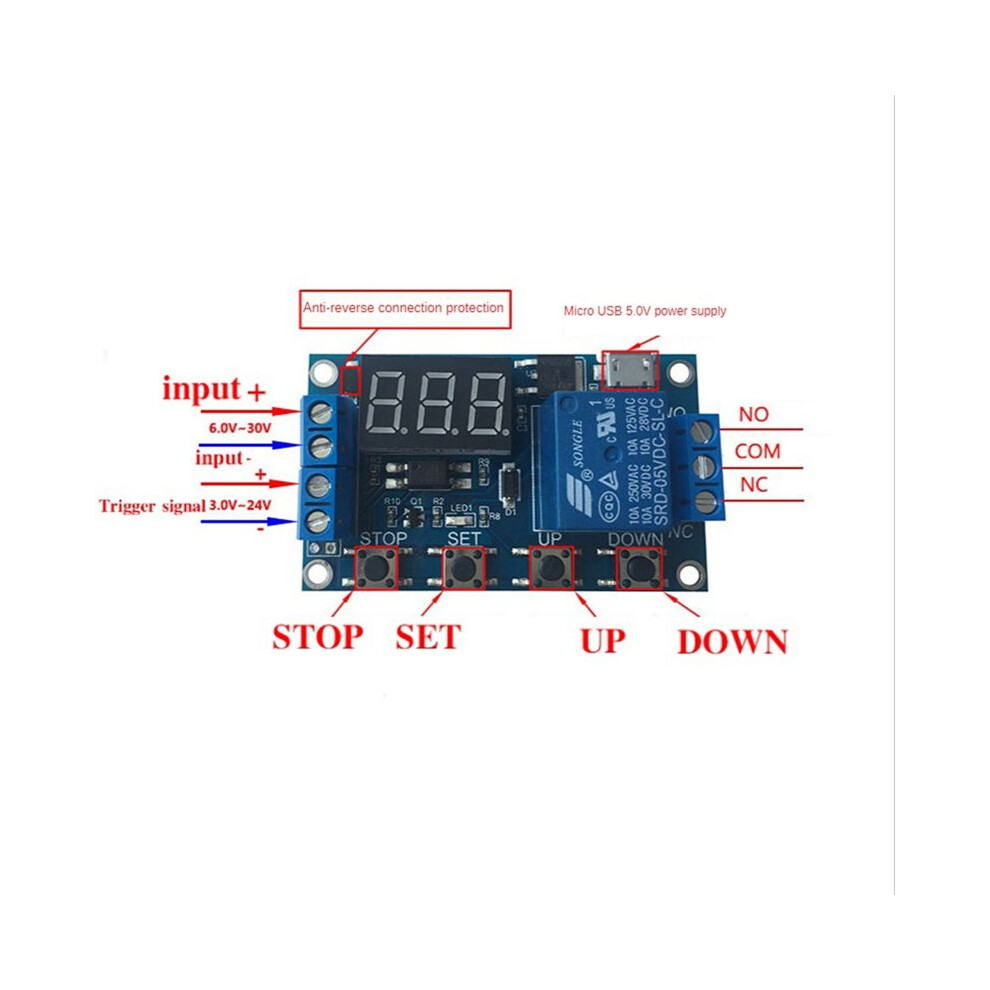

Module highlights: 1. Wide voltage power supply (6~30V) supports micro-USB 5.0V power supply, which is very convenient to use
2. The interface is clear and simple, powerful and easy to understand, almost meeting all your needs
3. One key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn
4. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately
5. All setting parameters are automatically saved after power off.

Product parameters:
1: Working voltage: 6--30V, support micro-USB 5.0V power supply

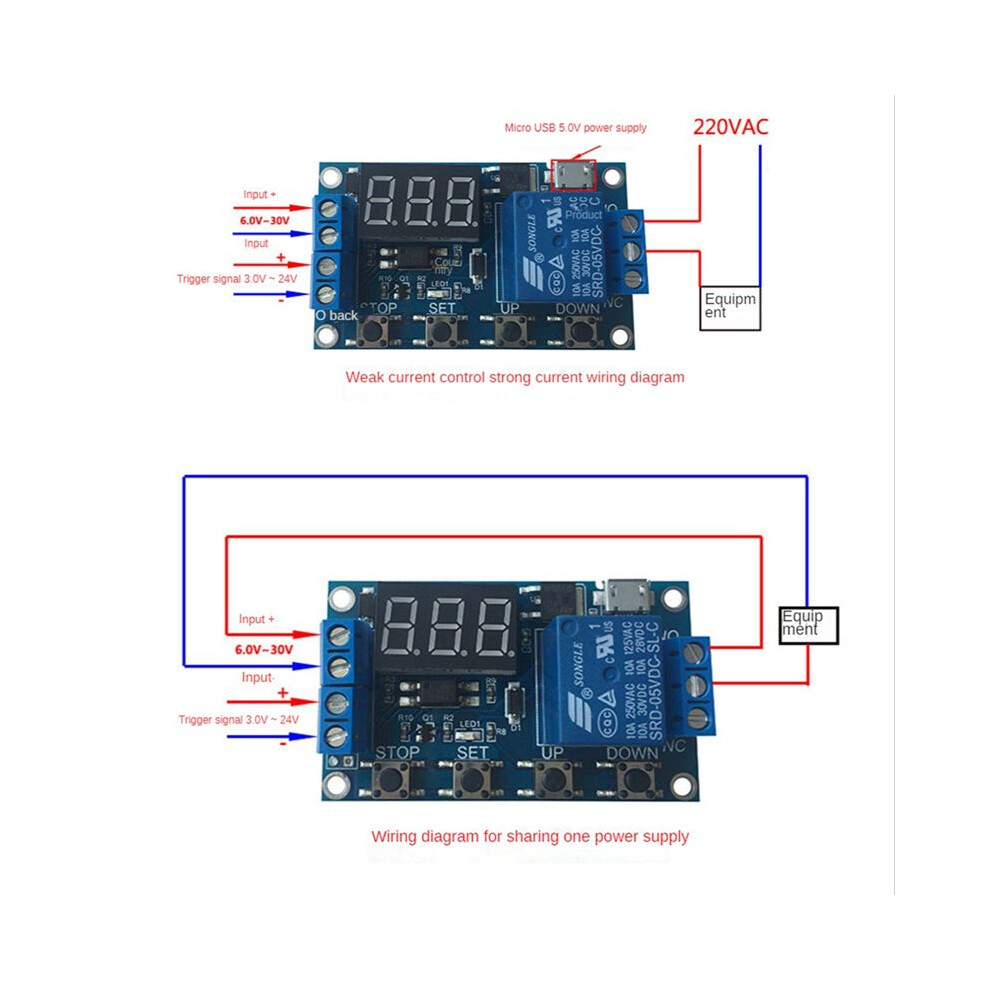

2: Trigger signal source: high-level trigger (3.0V-24V) signal ground and system ground are not common to improve the anti-interference ability of the system (you can also short-circuit the common ground by yourself)
3: Output capacity: can control equipment within 30v 5A or AC 220v5A
4: Static current: 20mA Working current: 50mA
5: Service life: more than 100,000 times; working temperature: -40-85C;
6: With optocoupler isolation, enhanced anti-interference ability, industrial-grade circuit board, set parameters forever after power off memory.
Special attention: The relay output is a passive contact, with no power output, and it controls the -off function of a .
type: relay module
color:
Material:PCB+electronic components

Package Contents:
1 x One way relay module
