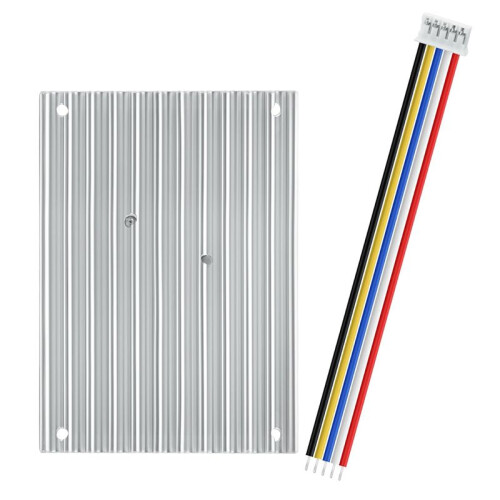

6-60V 400W BLDC Three-Phase Brushless Motor Controller PWM 12V 24V 48V with Forward/Reverse/Stop/Brake Function
Brand Typecat
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 130,000 anmeldelser med vurderingen “Fremragende”
184,78 kr.
273,27 kr.
Spar 32%!
Gratis levering
1%
Tjen 1,85 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tor. 13. - tir. 18. aug.
Solgt af: Papishop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Beskrivelse og detaljer
Oversigt

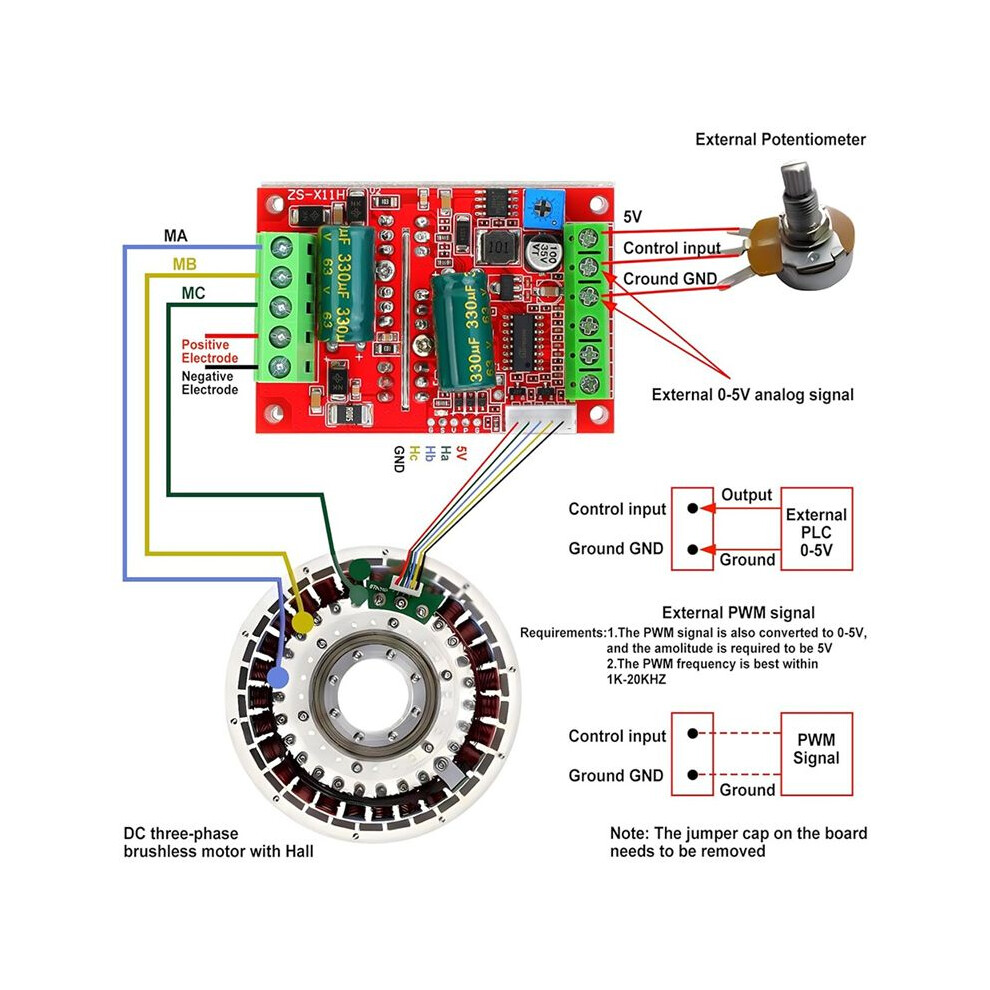

- 1. MA MB MC phase line output connection motor
- 2. 5V GND motherboard comes with 5V power supply (current does not exceed 30MA)
- 3. VCC GND motor main power supply (external DC power supply)
- 4. SC speed pulse signal output
- 5. positive and negative reversing control interface (also can be connected to the external switch)
6-60V 400W BLDC Three-Phase Brushless Motor Controller PWM 12V 24V 48V with Forward/Reverse/Stop/Brake Function Beskrivelse
1. MA MB MC phase output connection motor
2. 5V GND motherboard comes with 5V power supply (current does not exceed 30MA)
3. VCC GND motor main power supply (external power supply)
4. SC speed pulse signal output
5. positive and negative reversing control interface (also can be connected to the external )
VR speed control signal input (onboard with potentiometer speed control can also be connected to 0-5V analog simulation PWM duty cycle to support dual signal input speed regulation).
Ha Hb Hc +5V GND Hall signal Power input, generally with Hall's motor has five corresponding lines.
Full patch process Stable performance with positive/reverse function.
Motherboard specifications:
Product Name:400W Brushless Hall Motor Driver
Model Number:ZS-X11D1
Operating voltage:6-60V
Maximum current:rated 16A 20A
power:400W
Overcurrent protection:Yes
Product size:length 63MM x width 45MM x height 31MM
Weight:about73g
Colour:As Shown
Material:Metal
Package Contents:
1 x Motor Controller
Detaljer
| OPC | PWJGF22 |
|---|---|
| Mærke | Typecat |
| Koder | 6031743557258 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 4cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.108kg |
| Colour | As Shown |
| Material | Metal |
