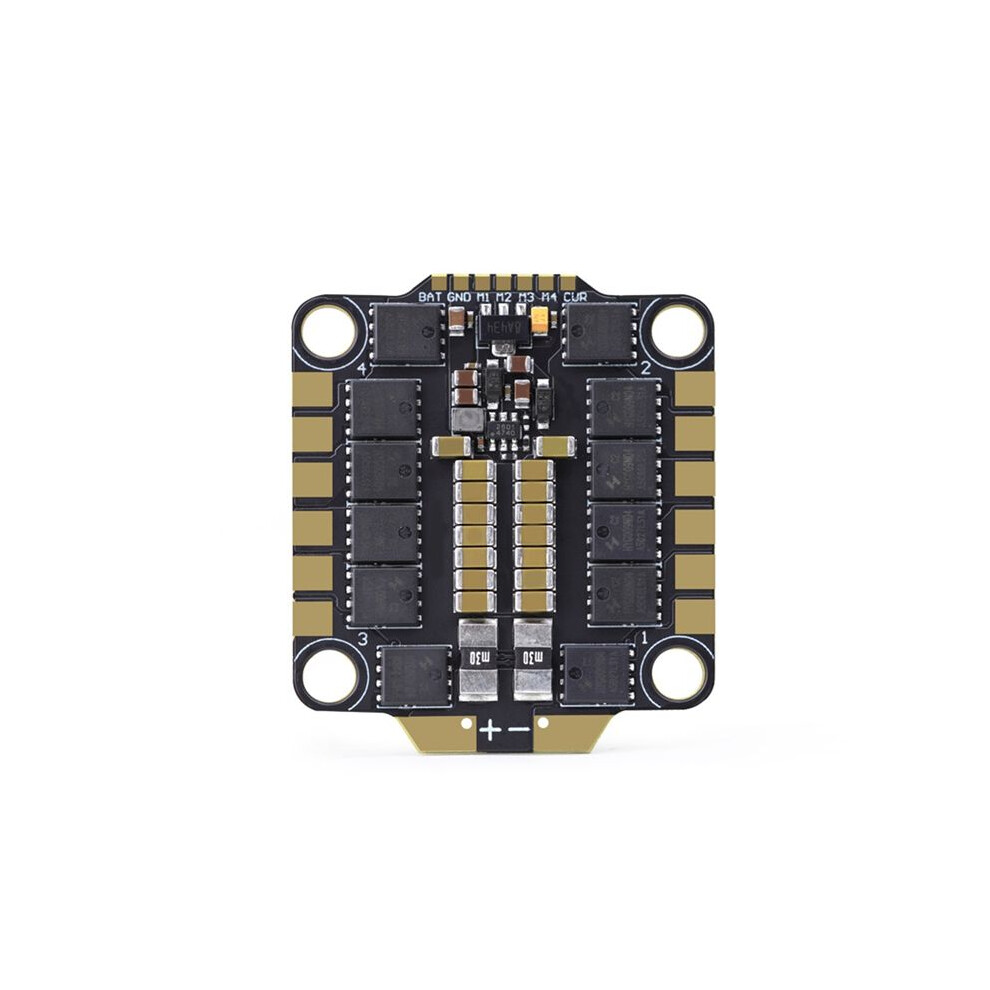

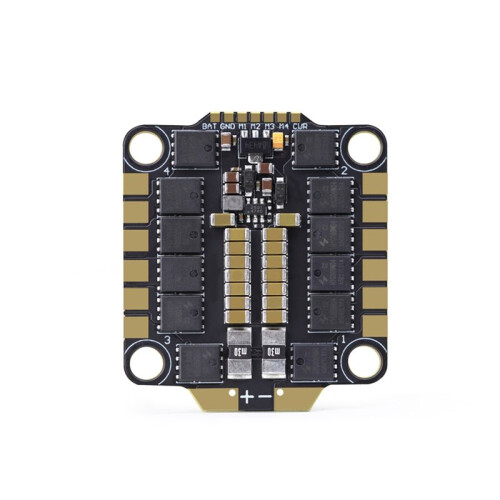

60A 6S V1 4-in-1 8-Bit ESC for FPV Racing Drones
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 132,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (32,99 kr.) | fre. 4. - tor. 10. sep.
Solgt af: GSbuy
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- NOTE:After receiving the goods, please do not weld first, connect it to BF first, and ensure that all functions of the sensor are normally welded.
- The flight control adopts the extremely stable MPU6000 gyroscope;
- The flight control main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;
- The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;
- It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;
60A 6S V1 4-in-1 8-Bit ESC for FPV Racing Drones Beskrivelse
NOTE:After receiving the goods, please do not weld first, connect it to BF first, and ensure that all functions of the sensor are normally welded.
The flight control adopts the extremely stable MPU6000 gyroscope;
The flight control main control chip adopts F405 chip, and the serial port supports to 4 groups, with fast operation speed and smoother control;
The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;
It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;
Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;
Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;
Integrated 16M black box, can record flight data;
Onboard galvanometer module, real- viewing of data such as current feedback through the flight control;
Item Name:HGLRC SPECTER F460 STACK
Input Voltage:2-6S Lipo (7.4V-22.8V)
Installing Hole:30.5x30.5mm, M3
Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot
Weight:29g
SPECTER F405 FC
MCU:STM32F405
GYRO:MPU6000
OSD:AT7456E
:16MB
UART:4
BEC:9V2A/5V2.5A
FC Firmware:HGLRCF405V2
Size:38mm x 38mm
SPECTER 60A ESC
Constant Current:60A
Current:70A(10s)
ESC Firmware:BL_S (J-H-30)
Size:37x42.7mm
Color: As Shown
Material: PCB
Package Contents:
1 * ESC
Detaljer
| OPC | PXQPRTB |
|---|---|
| Koder | 4711563059300 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 10cm |
| Weight | 0.1kg |
| Colour | As Shown |
| Material | PCB |
