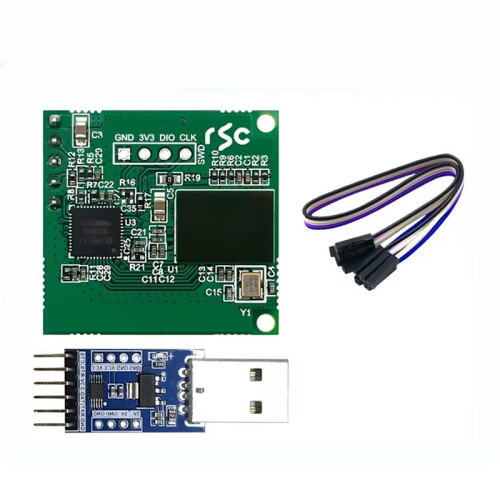

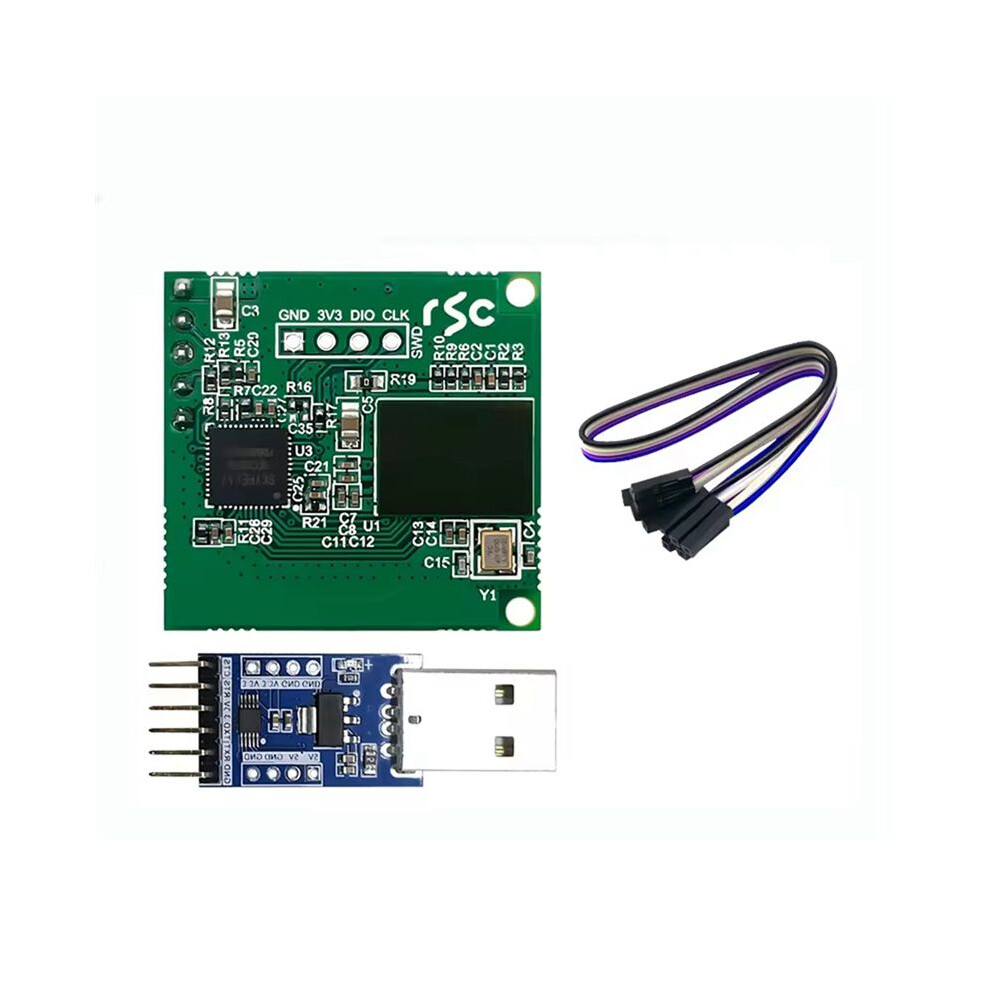

60G 4 Transmitter 4 Receiver High-Precision Multi-Target Human Movement Track Sensing LD6001A Module
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre. 19. - ons. 24. jun.
Solgt af: Papishop
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Bevægelsessensorer
Oversigt
- LD6001A is a high performance 60GHz millimeter wave radar sensor module. Compared with traditional visual, infrared, laser and other sensing means, millimeter wave radar is not affected by light, and can realize non-sensory active monitoring of indoor people all day long, with personal privacy protection function.
- The product adopts the national chip, independent and controllable, to realize the accurate tracking and positioning of indoor multi-person, and at the same time can detect reading, sleeping and other people in a stationary state, and can suppress curtains, green plants and other interference.
- 60G four-transmit four-receive
- Multi-target human body sensing
- 60G human movement Track Sensor Radar
60G 4 Transmitter 4 Receiver High-Precision Multi-Target Human Movement Track Sensing LD6001A Module Beskrivelse
LD6001A is a high performance 60GHz millimeter wave sensor module. Compared with traditional visual, infrared, laser and other sensing means, millimeter wave is not affected by light, and can realize non-sensory active monitoring of indoor people all day long, with personal privacy protection function.
The product adopts the national chip, independent and controllable, to realize the accurate tracking and positioning of indoor multi-person, and at the same can detect reading, sleeping and other people in a stationary state, and can suppress curtains, green plants and other interference.
Frequency:60GHz(60-64GHz)
Modulation mode:FMCW
Installation:Recommended top-mounted
Detection distance: 0.5-8m (effective projection ground radius 3.5m installation height 2.7m)
Coverage angle:60
Operating voltage:3.3V
Average power consumption:0.3W
power consumption:1.7W
Communication mode:TTL serial port
Processing cycle:Less than 30ms
Colour:Green
Material:ABS
Package Contents:
1 set * 60G human movement Track Sensor
Detaljer
| OPC | PV87VM8 |
|---|---|
| Mærke | Typecat |
| Koder | 4713365988352 (EAN) |
Produktdata
| Height | 3cm |
|---|---|
| Width | 10cm |
| Length | 13cm |
| Weight | 0.021kg |
| Colour | Green |
| Material | ABS |
