60pcs Relay Module 12V Relay Board 1 Channel with Optocoupler Isolation Support High or Low Level

60pcs Relay Module 12V Relay Board 1 Channel with Optocoupler Isolation Support High or Low Level Beskrivelse

12V Relay Module Specifications: Operates 12V with a maximum load capacity of AC 250V/10A or 30V/10A. The trigger current required for the opto-isolator is just 5mA, making it highly efficient for various applications.
Enhanced Fault-Tolerance: Designed with robust fault tolerance, ensuring that even if the control is disrupted, the relay will remain non-operational. All connection interfaces can be directly wired through accessible terminals, offering configurations for normally open and normally closed setups.
Optocoupler Isolation for Safety: Features a 1-channel relay board with optocoupler isolation to enhance driving capabilities and ensure stable performance. This isolation helps prevent any potential damage to I/O from relay currents, enhancing device longevity.

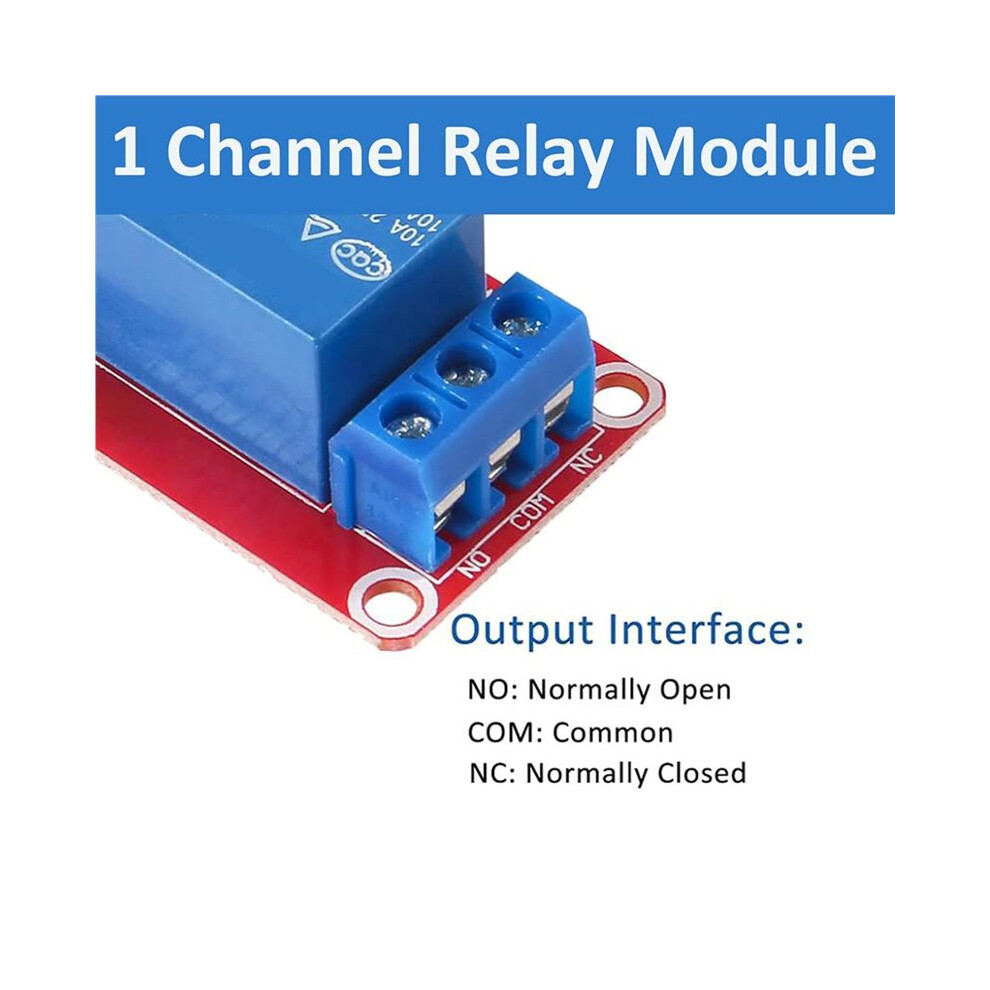

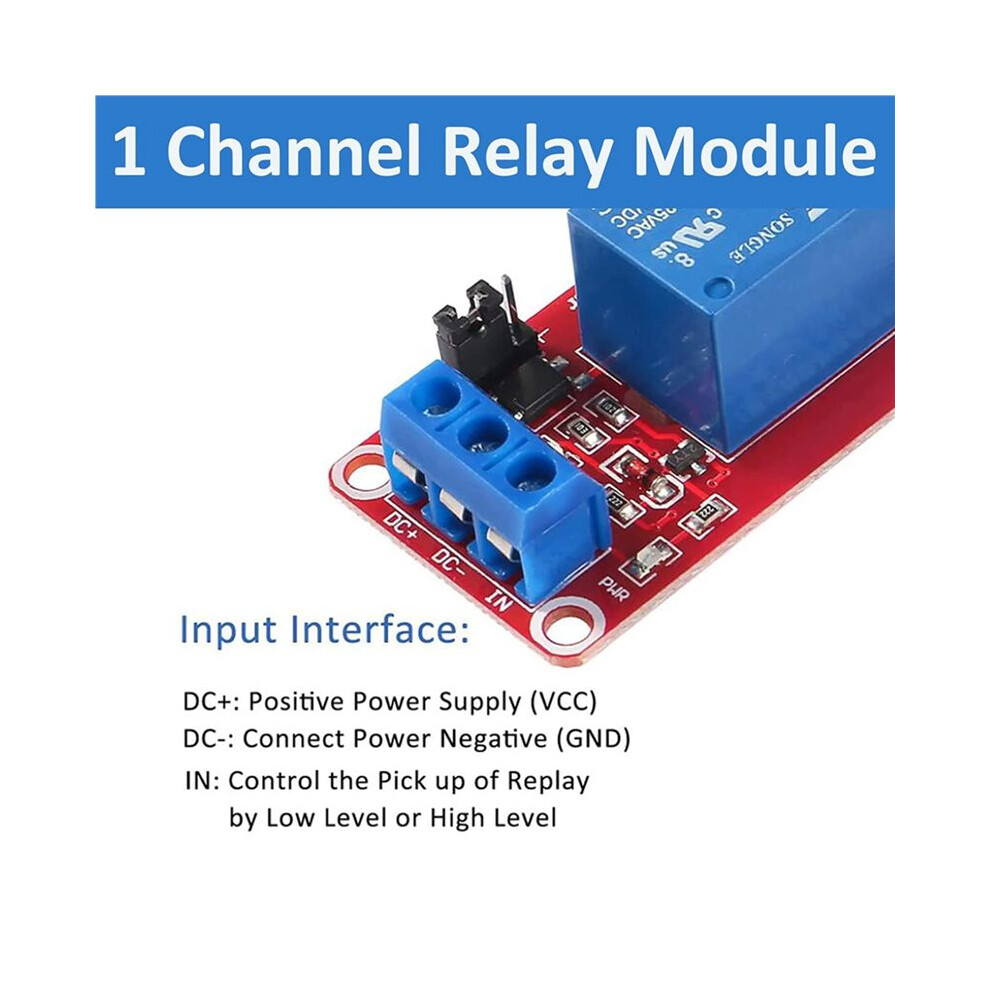

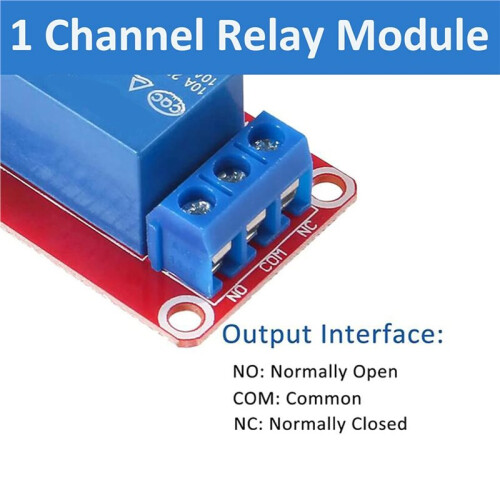

Configurable Jumper Design: Equipped with a configurable jumper, allowing users to set the relay module to change states with either a high or low signal. This module includes screw terminals for easy installation of relay (NC, C, NO) and input (Coil +, Coil -, and Trigger).
Versatile Compatibility: This 12V relay module is compatible with a wide range of Microcontrollers and systems including ARM, , AVR, MCU, Raspberry Pi, CNC machines, and PS4. Its versatility makes it ideal for various industrial and hobbyist applications.

Colour:As Shown
Material:electronic

Package Contents:

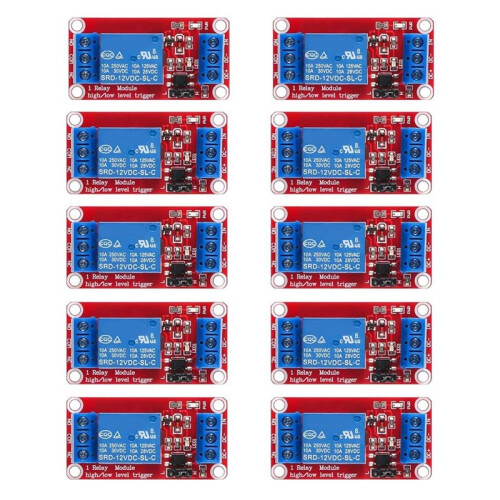

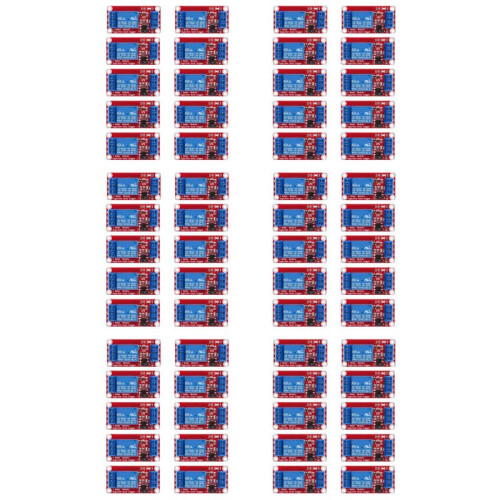

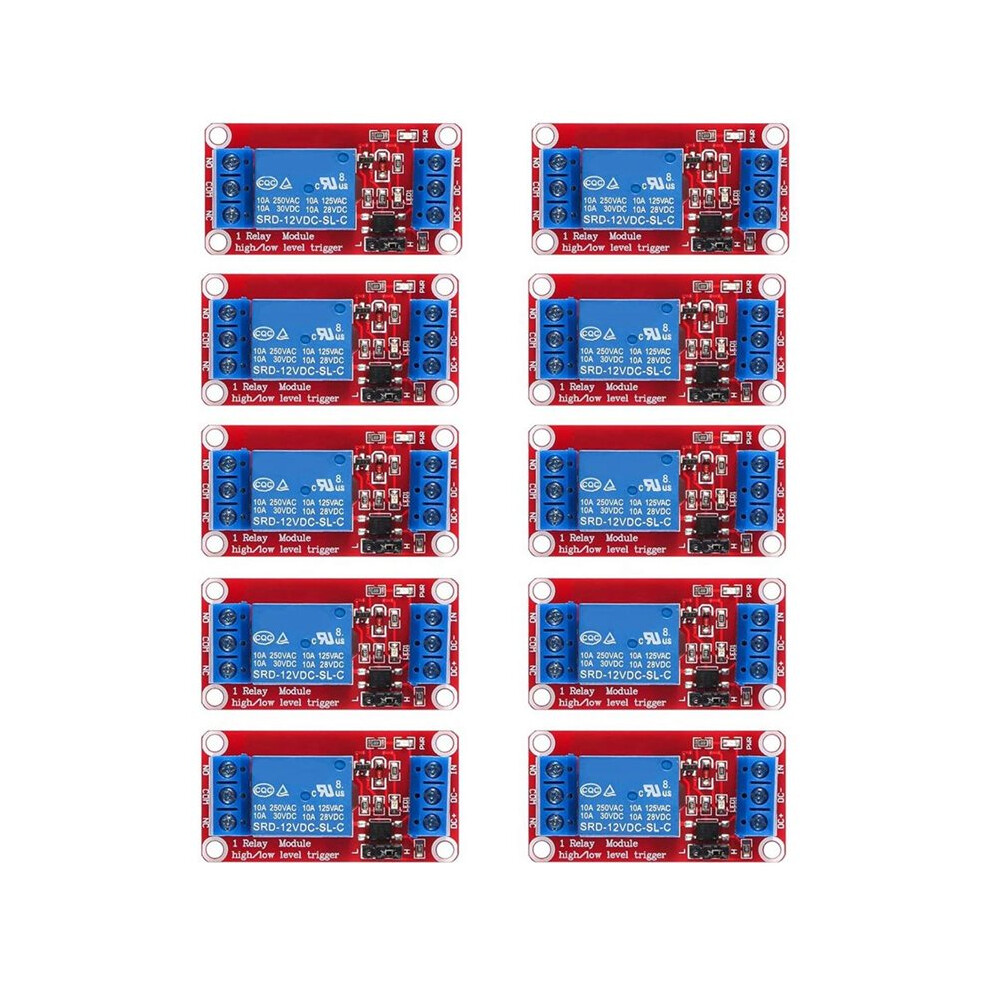

60 x Relay Module
