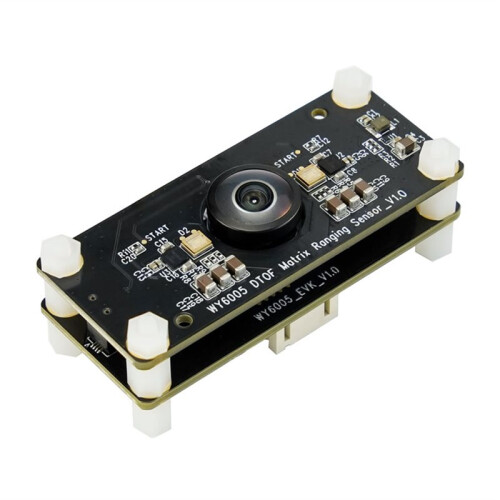

64x8 Matrix DTOF 3D Laser Ranging Sensor 120 FOV 5m for Robot Obstacle Avoidance Blind Spot Detection

64x8 Matrix DTOF 3D Laser Ranging Sensor 120 FOV 5m for Robot Obstacle Avoidance Blind Spot Detection Beskrivelse

Features :


From Point to Area Sensing: this module provides a 64x8 grid (512 points) of distance data, giving you a comprehensive view of the environment, not just a single .

Robust DTOF Technology: Measures the direct -of-flight of 905nm laser pulses. This method is highly immune to ambient light interference, ensuring reliable, accurate performance both indoors and outdoors, unlike IR or ultrasonic sensors.

Wide 120 Field of View for Full Coverage: Features an expansive 120 horizontal field of view (expanding to 160 at close range), allowing a single sensor to cover wide areas, detect low-profile obstacles, and navigate tight corners.

Dual Interfaces & Visualization Software: Offers both UART (PH2.0) and Type-C interfaces for flexible integration. The included GUI visualization software lets you view real- depth maps, grayscale images, and data, simplifying debugging and prototyping.

Optimized for Robot Navigation: Perfectly addresses two core robotics challenges: forward obstacle avoidance and blind spot detection. Its configurable field of view and selectable data output (single-point, single-row, or full matrix) make it ideal for mounting robots, arms, or automated guided vehicles (AGVs).
Color: Black
Material: Plastic+Metal

Package Contents:
1*Sensor
