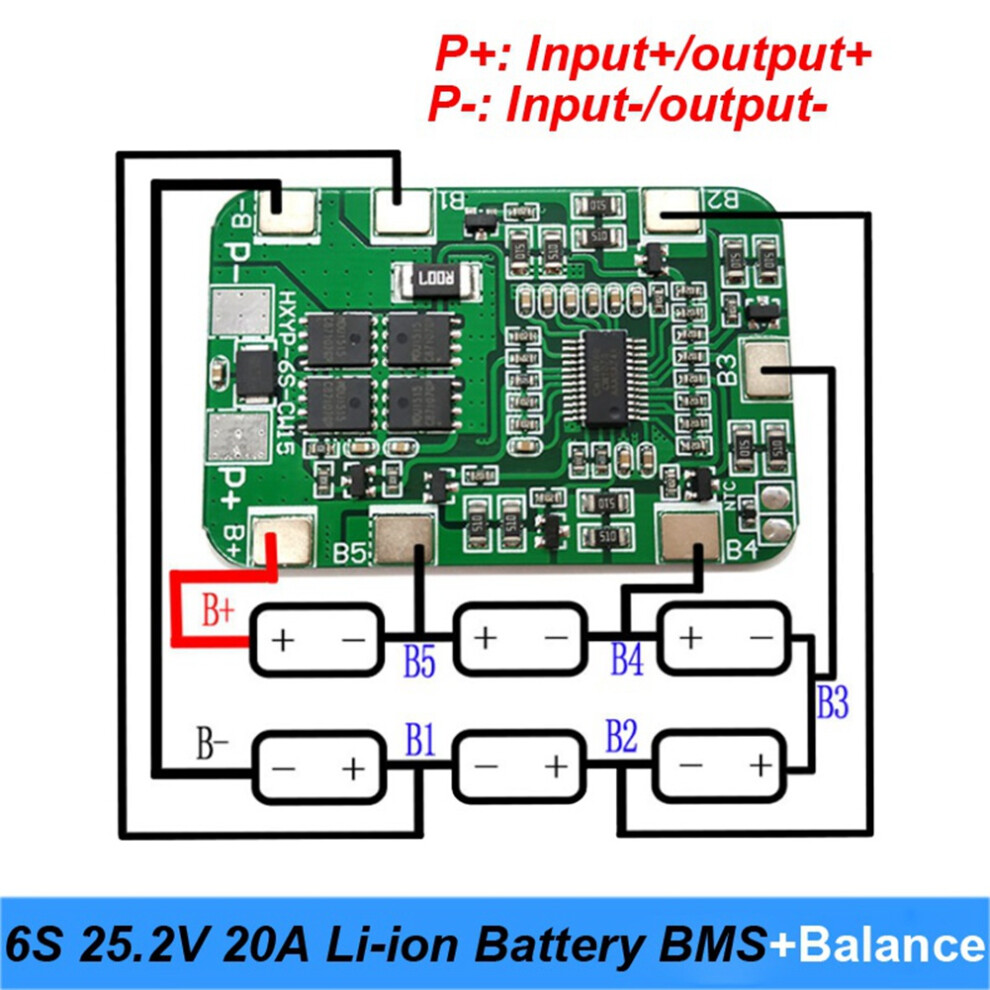

6S 25.2V 20A BMS Lithium Battery Board with Balancing for 25V Screwdriver and 24V Battery Pack Use

6S 25.2V 20A BMS Lithium Battery Board with Balancing for 25V Screwdriver and 24V Battery Pack Use Beskrivelse

Name: protection board
Charging voltage: 25 V
Charge MOS pressure value: 35 V
Discharge MOS pressure value: 35 V
Charging current: 5-6 A

Continuous discharge current: 20 A
Over current protection: 50/55/60 A
Over current protection delay: 20/25/30mS
Single section since the power consumption: 30uA
Single section between the power consumption: 3uA
Single section over charge detection voltage: 4.18- /4.22V
Over charge recovery voltage 4.05- 4.15 V
Over charge detection delay: 0.5/1.0/2.0S
Single section over discharge detection voltage: 2.75-2.85 V
Over discharge recovery voltage: 2.90-3.20 V
Over discharge detection delay: 0.5-2.0S
Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery
Short circuit protection delay: 200/500/600uS
The normal working state of B- to P- resistance: 5m ohm
Continuous 20A current maximum temperature rise: 25
Working environment (humidity) relative humidity: greater or equal to 98% (long-term stability under the humidity)
Working environment (temperature) -30 ~ 80(in the lower temperature range of long-term stability)
colour: green
Material: plastic

Package Contents:
1 x 6S 25.2V 20A BMS Lithium Battery Board
