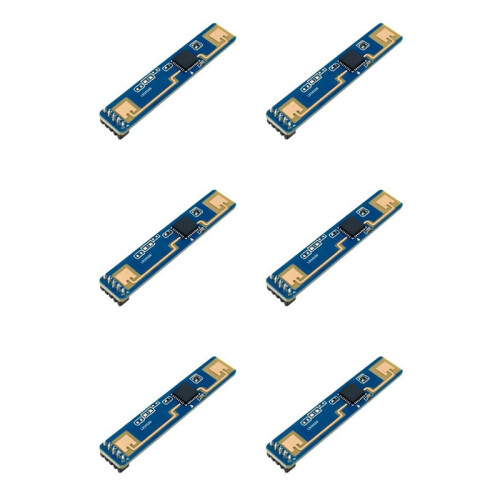

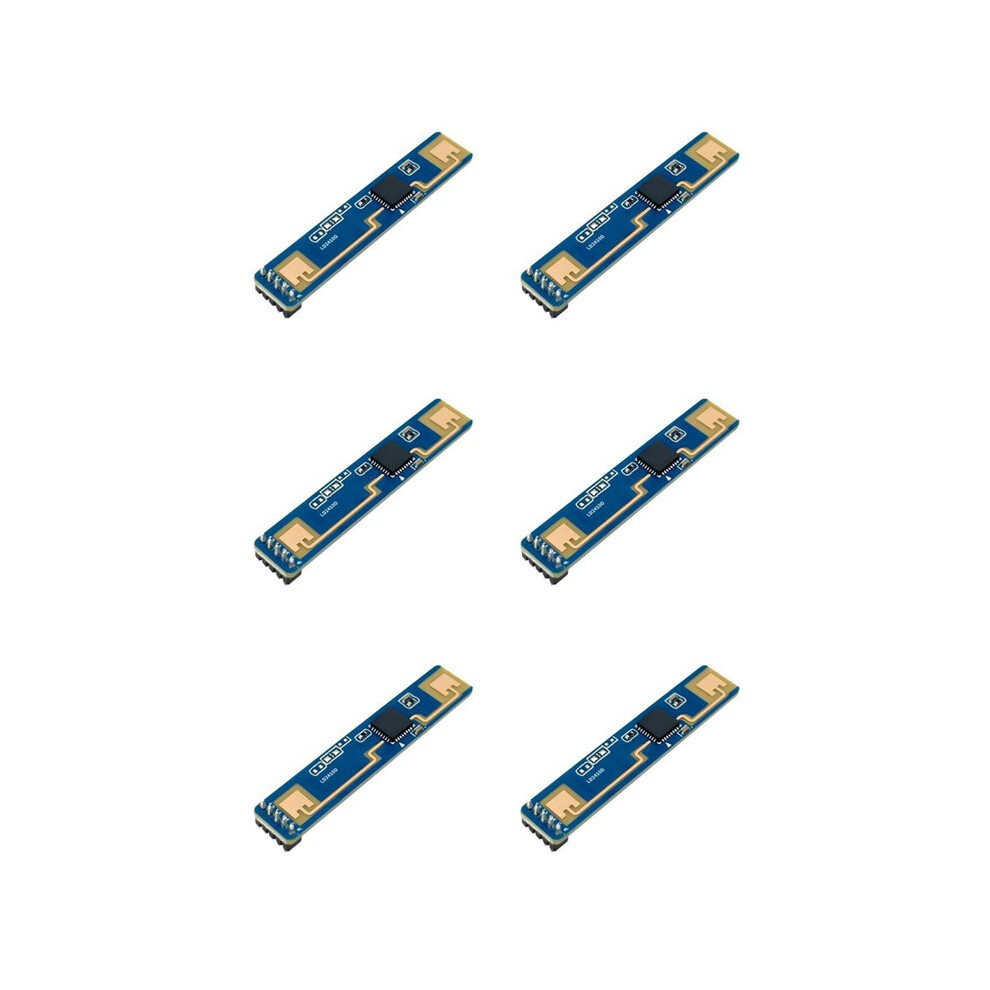

6X HLK-LD2410D 24GHz Human Presence Status Sensor Human Micromotion Movement Module 5V
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 131,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | ons. 19. - man. 24. aug.
Solgt af: JJBRDZ
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- The LD2410D is a stationary human presence sensor consisting of minimalist 24 GHz sensor hardware and intelligent human micro-motion sensing algorithm firmware. The hardware features an AIoT millimeter-wave sensor, a high-performance 24 GHz transmit-receive antenna, and peripheral circuitry.
- It utilizes millimeter-wave radar distance measurement technology and the radar chip's advanced proprietary radar signal processing to accurately sense motion, micro-motion, and human presence.The human presence sensing intelligent algorithm firmware is mainly used in indoor scenarios to sense whether there is movement, micro-movement or the presence of a human body in the area, and refresh the detection results in real time.
- Radar Module 5V
- 5V Mini FMCW 24G Sensor
- Human Radar Module
6X HLK-LD2410D 24GHz Human Presence Status Sensor Human Micromotion Movement Module 5V Beskrivelse
The LD2410D is a stationary human presence sensor consisting of minimalist 24 GHz sensor hardware and intelligent human micro-motion sensing algorithm firmware. The hardware features an AIoT millimeter-wave sensor, a high-performance 24 GHz transmit-receive antenna, and peripheral circuitry.
It utilizes millimeter-wave distance measurement technology and the chip's advanced proprietary signal processing to accurately sense motion, micro-motion, and human presence.The human presence sensing intelligent algorithm firmware is mainly used in indoor scenarios to sense whether there is movement, micro-movement or the presence of a human body in the area, and refresh the detection results in real .
Supported frequency band: 24GHz-24.25GHz
Sweep bandwidth: 0.25GHz
Maximum equivalent isotropic radiated power: 11dBm
Add LDO power supply voltage: 5V
Dimensions: 7x35mm
Ambient temperature: -40-+85
Average operating current: 50mA
Data refresh cycle: 165ms
Detection range: static greater than equal 4m / dynamic greater than equal 5m
Distance resolution: 0.75m
Detection angle: 60
Distance measurement accuracy: 0.15 m
(The product printed words may vary depending the batch, but this does not affect use)
Color:As Shown
Material:PCB
Package Contents:
6 x 24G FMCW Module
Detaljer
| OPC | PWMMW69 |
|---|---|
| Mærke | Torribaly |
| Koder | 6033963300270 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 6cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.012kg |
| Colour | As Shown |
| Material | PCB |
