8S Active Balancer Board Lifepo4 Lipo Li-Ion Lithium Battery Transfer Board 1.2A High Current Module

8S Active Balancer Board Lifepo4 Lipo Li-Ion Lithium Battery Transfer Board 1.2A High Current Module Beskrivelse

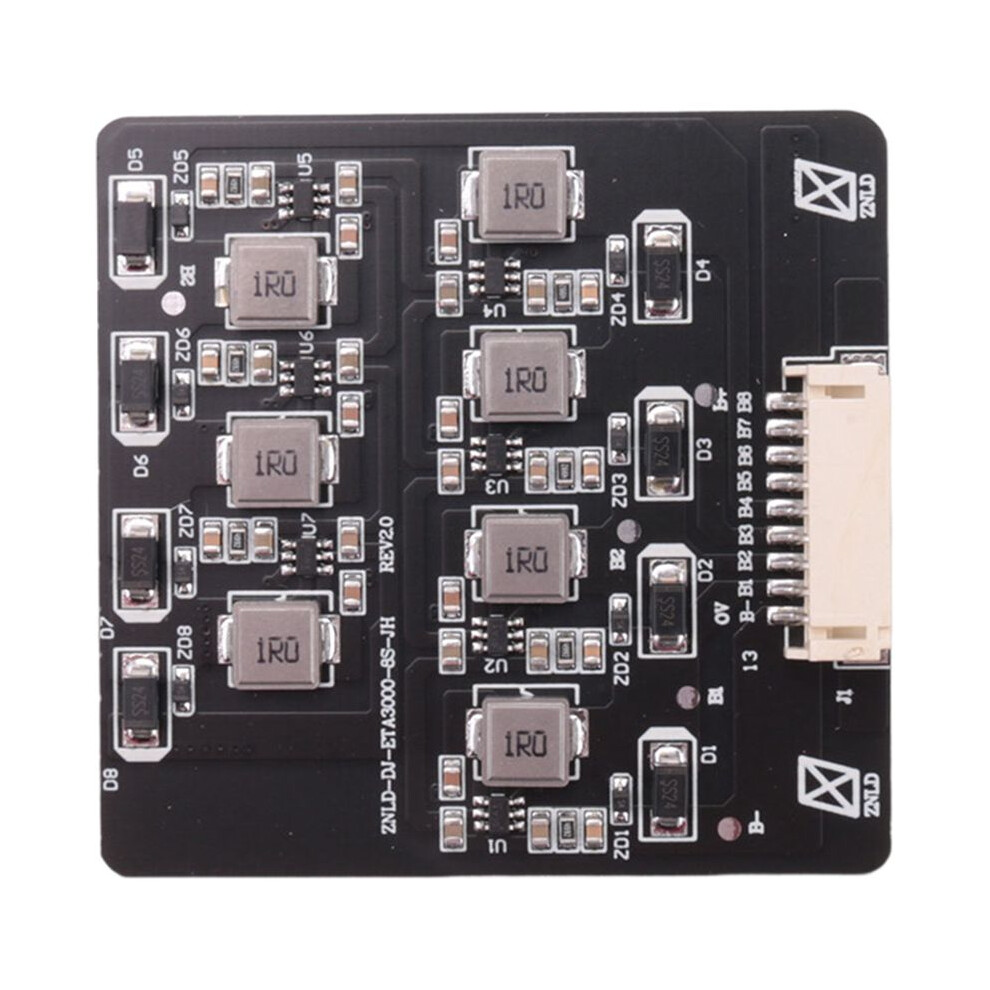

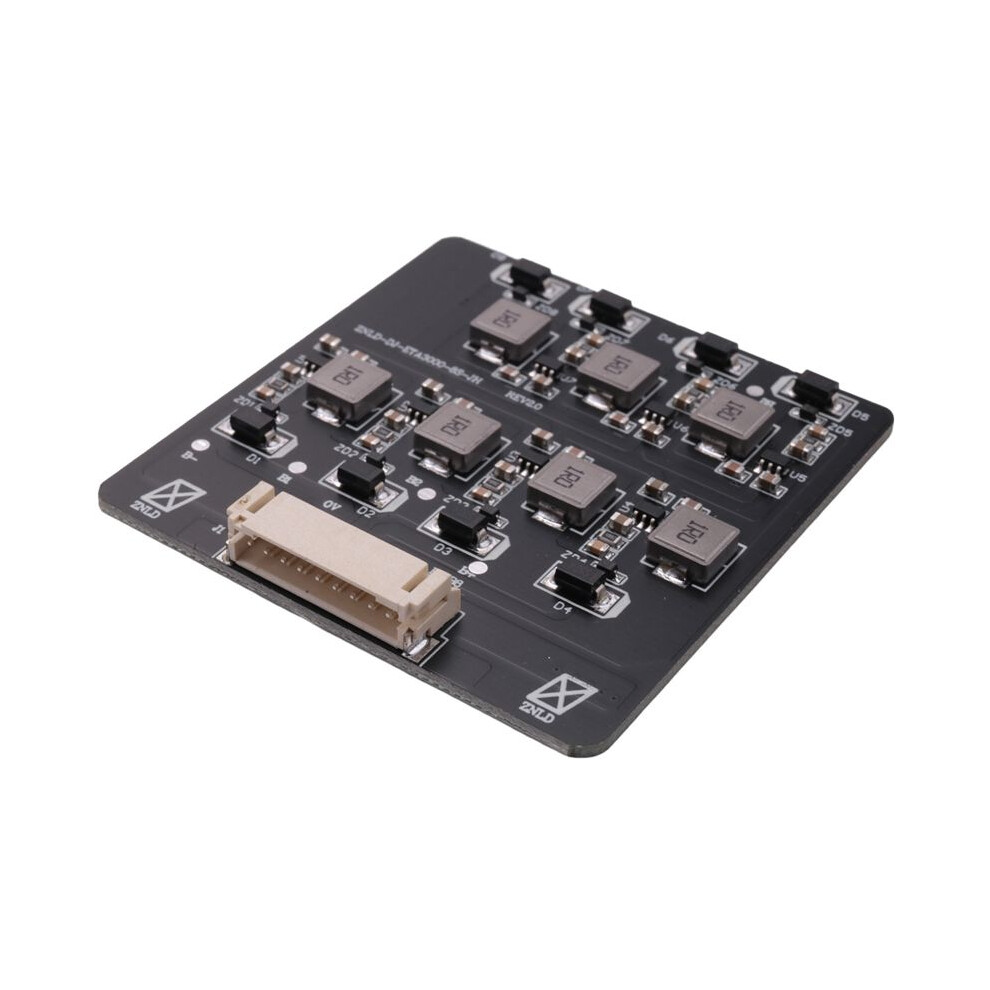

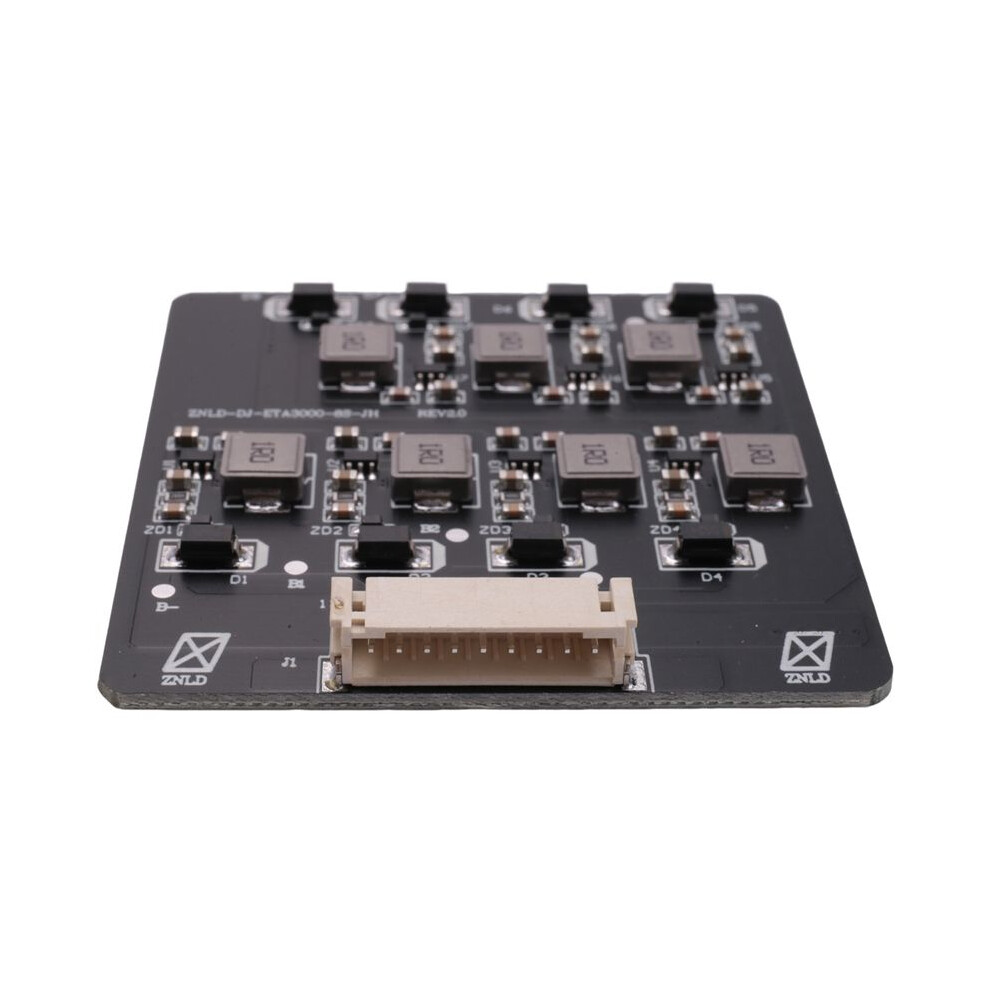

Inductive transfer active equalization board
Equilibrium principle: This module is adjacent differential pressure equalization. When the differential pressure of adjacent batteries reaches above 0.1V, the chip will trigger the equalization to work until the differential pressure of adjacent batteries stops working within 0.03V. When it is used for charging and discharging the battery pack, the adjacent differential pressure triggers the equalization to work.
The battery pack voltage error will also be pulled back to a more perfect value, reducing the battery maintenance cost.
High precision transfer equalization, exclusive IC equalization, high current 1.2A transfer battery voltage balancer, significantly balancing the battery voltage, improving the overall efficiency of the battery pack

Operating voltage range 2.0V-4.5V, common for ternary/lithium iron battery
Equalizing current
The adjacent differential pressure is above 0.1V (the current is about 0.5-0.7A)
Adjacent differential pressure above 0.2V ( to the maximum equalizing current of 1.2A)
The smaller the differential pressure is, the smaller the equalizing current is

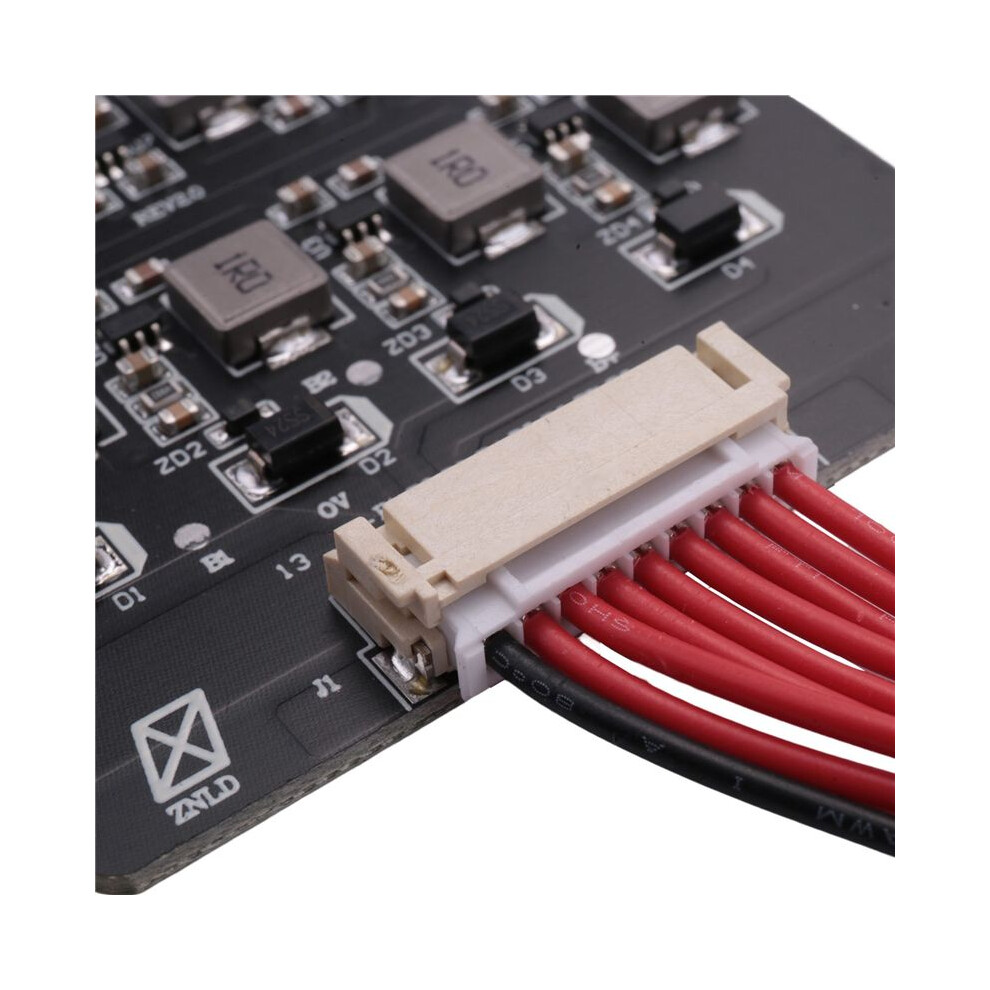

Wiring definition
B -, the total negative pole of the battery pack (the negative pole of the first battery) B1, the positive pole of the first battery
B2, positive pole of the second battery, B3, positive pole of the third battery, and so
Colour:black
Material:PCB
Due to different batches, the appearance and color of products may be different, which will not affect the use

Package Contents:
1 x Active Balancer Board

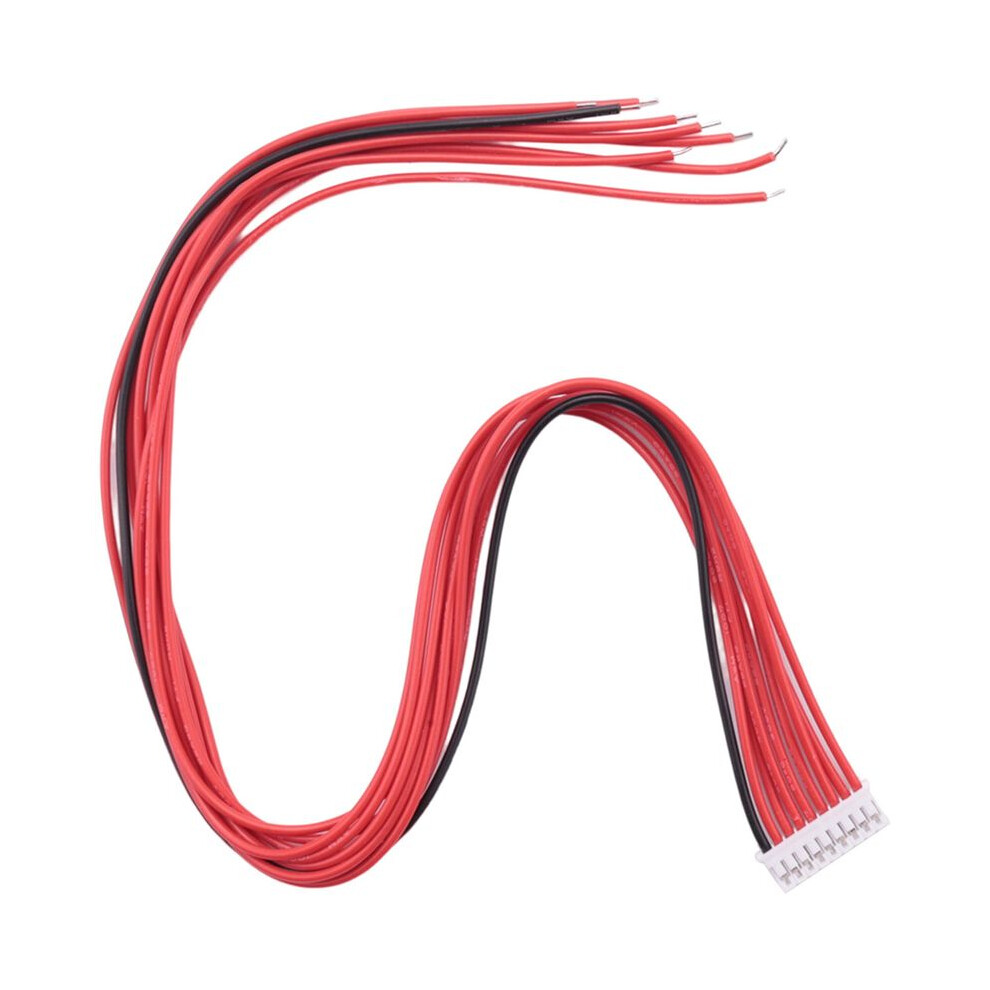

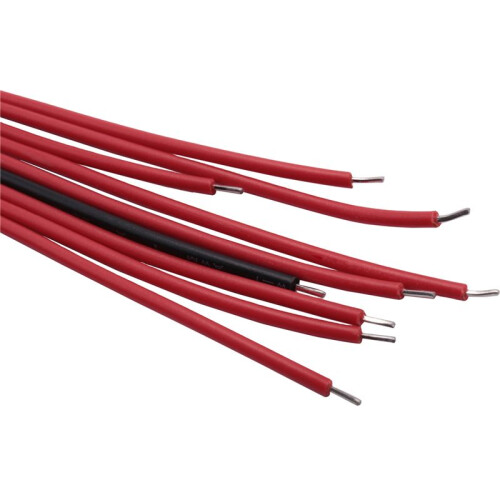

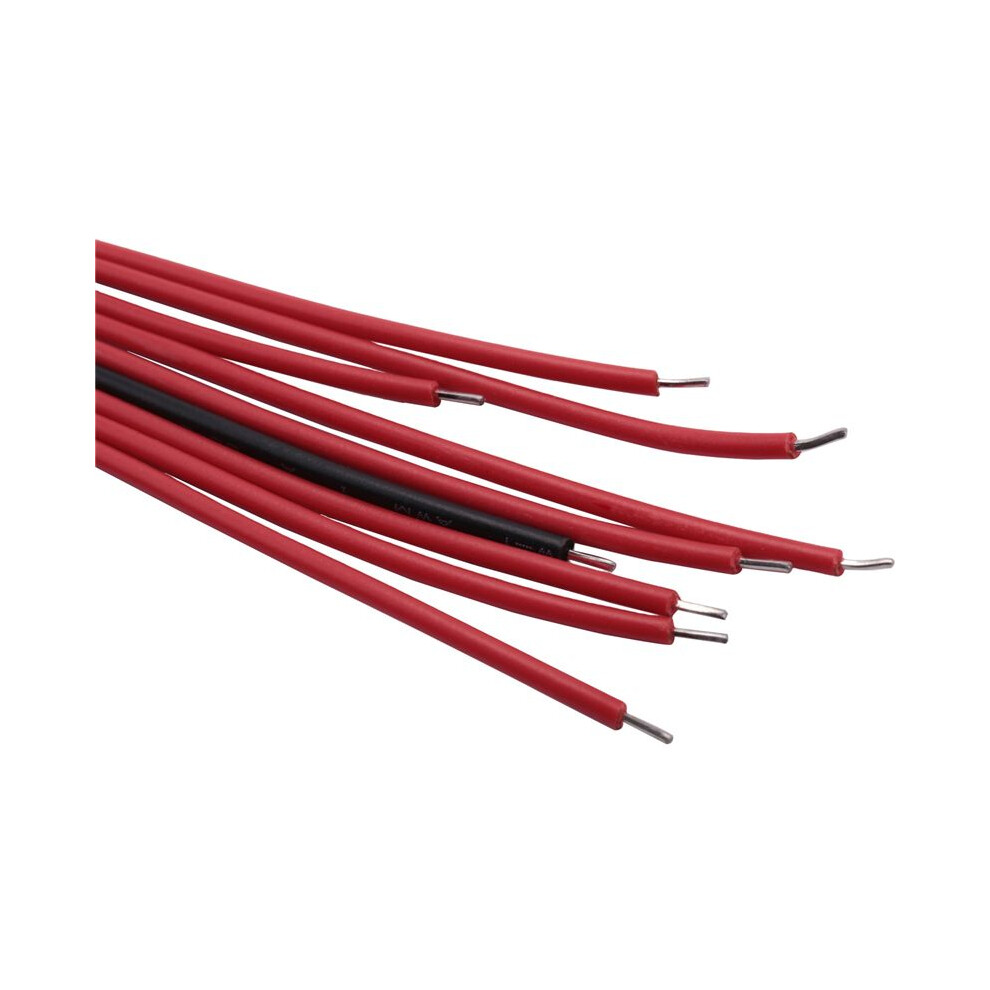

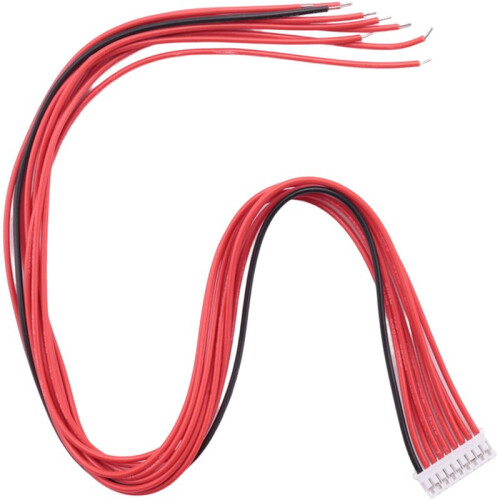

1 x Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
