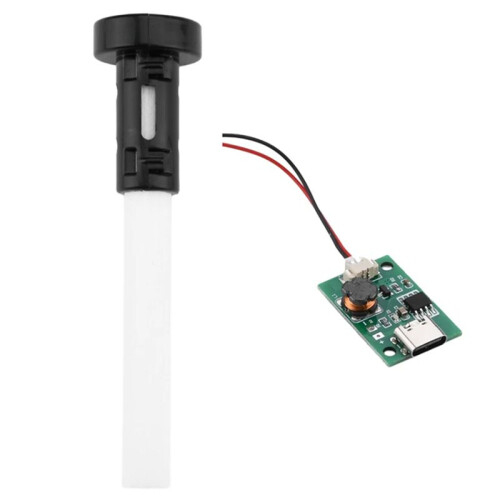

8X DC5V Single Non-Switched Atomization Humidification Module DIY Ultrasonic Atomizer TYPE-C Humidifier Circuit Board

8X DC5V Single Non-Switched Atomization Humidification Module DIY Ultrasonic Atomizer TYPE-C Humidifier Circuit Board Beskrivelse

1. Using 1plastic material, the circuit board is designed reasonably and has a long service life.

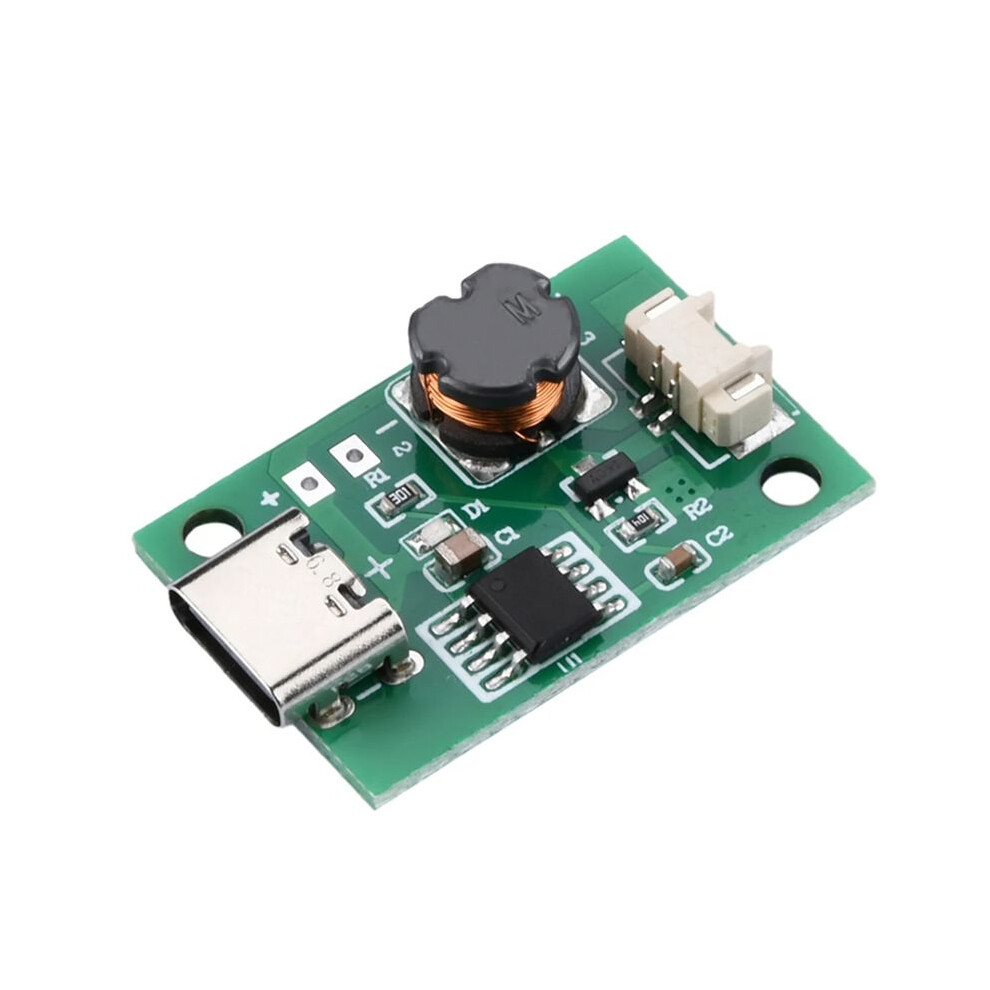

2. Upgrade the TYPE-C interface, with strong versatility, high fog output, stable performance, simple use, and easy to get started with.
3. Easy to use, single spray without , spray when the power input is powered , which is suitable for working when the atomizing equipment is powered .

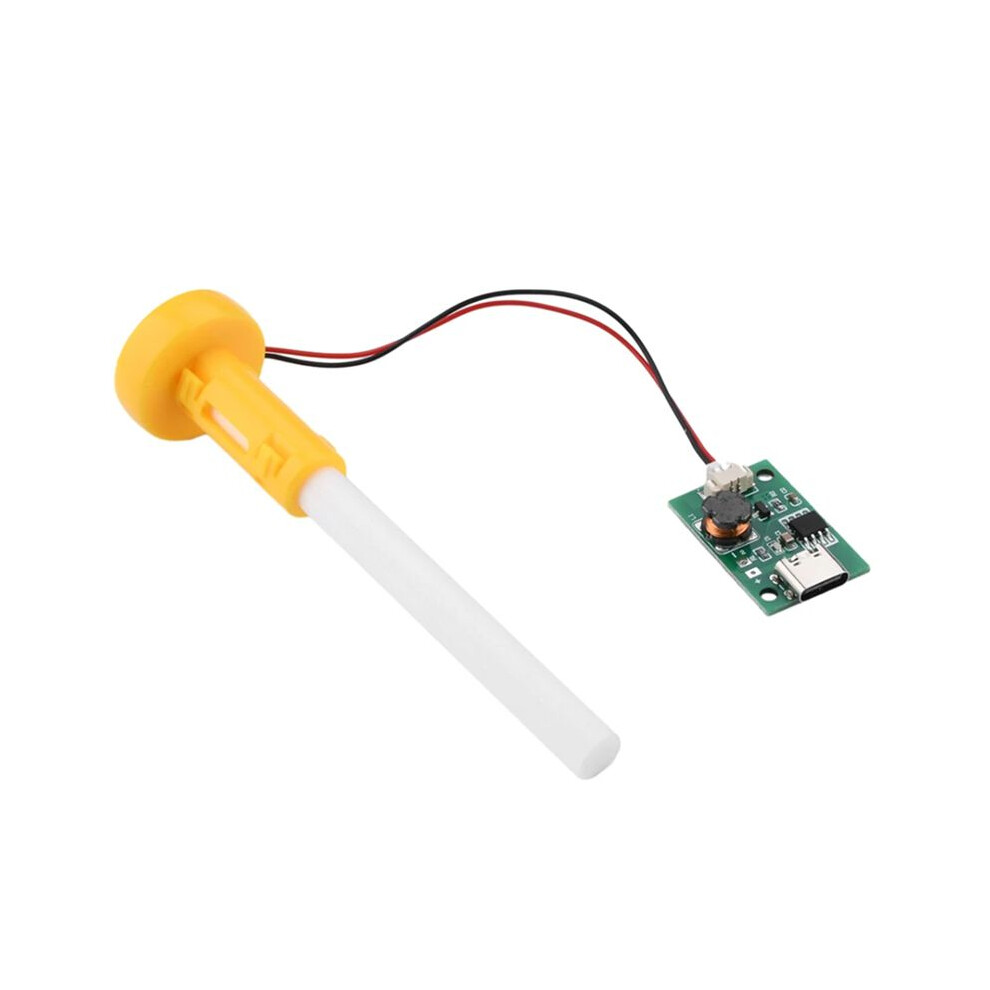

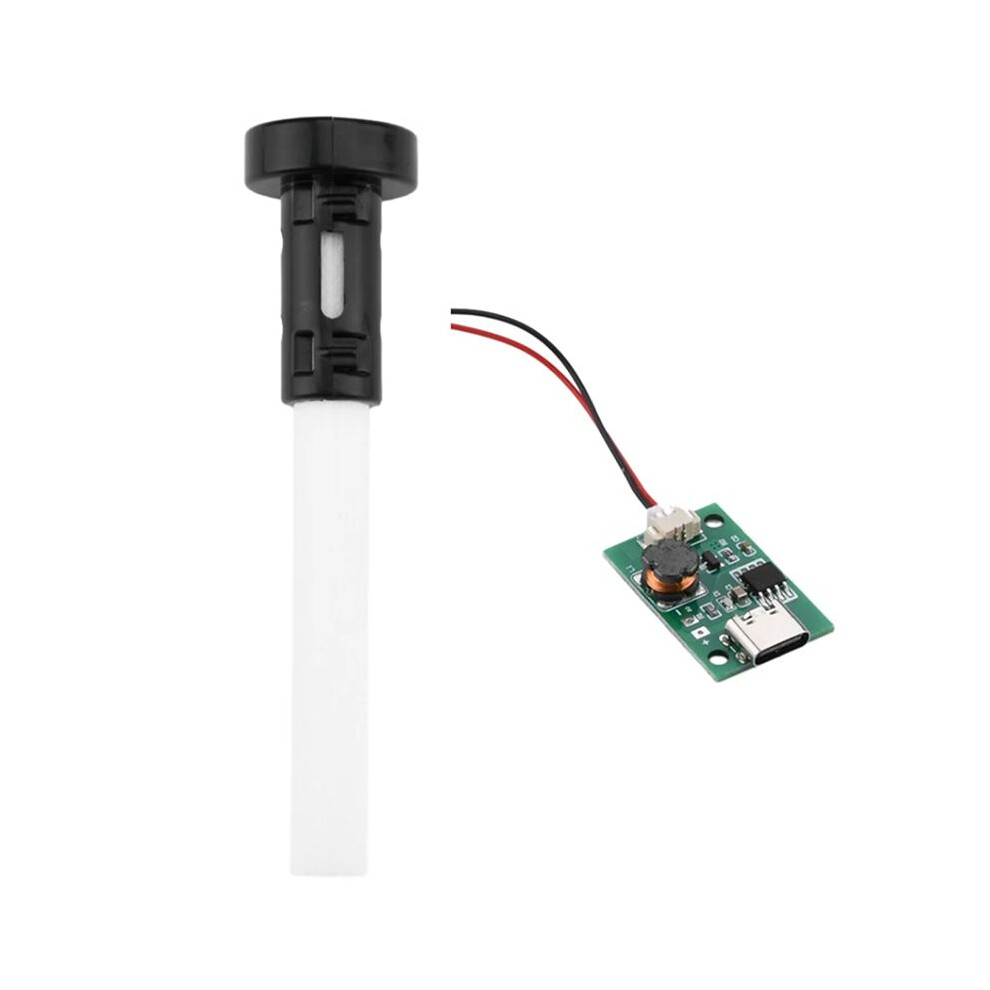

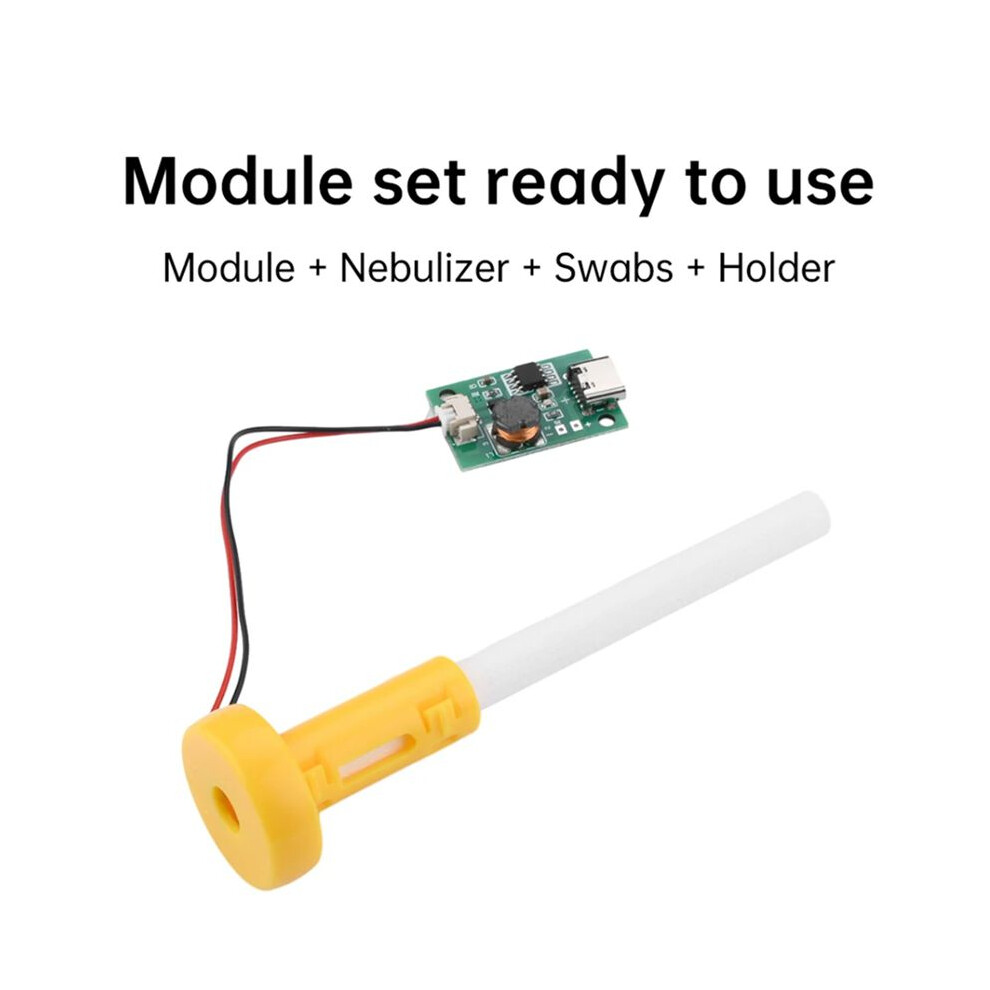

4. The module set is ready to use and comes with a bracket and cotton swab for easy assembly.
5. Micrometre atomization, which atomizes water into delicate water molecules through micropores, dispersing them into the air.

Name: Unswitched single spray humidification module
Rated voltage: DC5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ 2KHZ

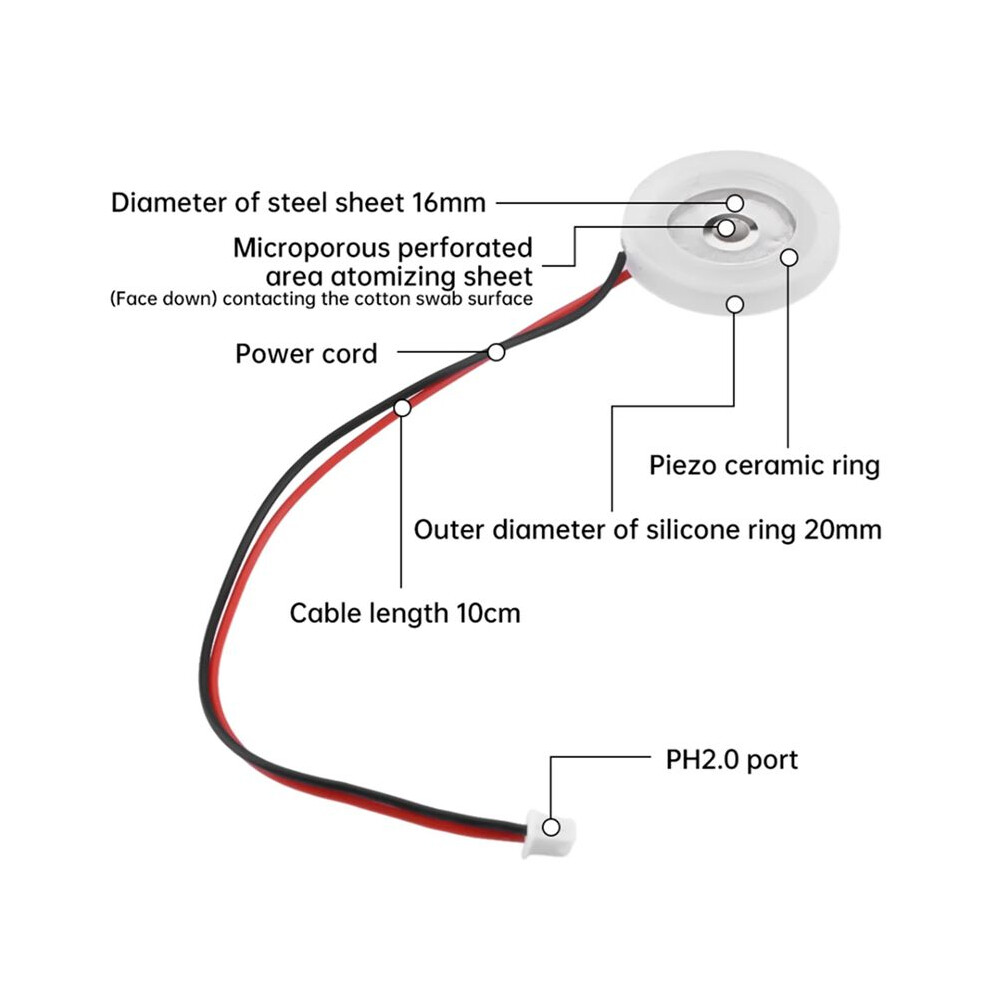

Nebulizer parameters:
Name: porous atomizing tablets
Drive voltage: 5V
Resonant frequency: 108-110KHZ 5
Rated power: 2W
Punch count: 1100
Aperture: 4-5UM

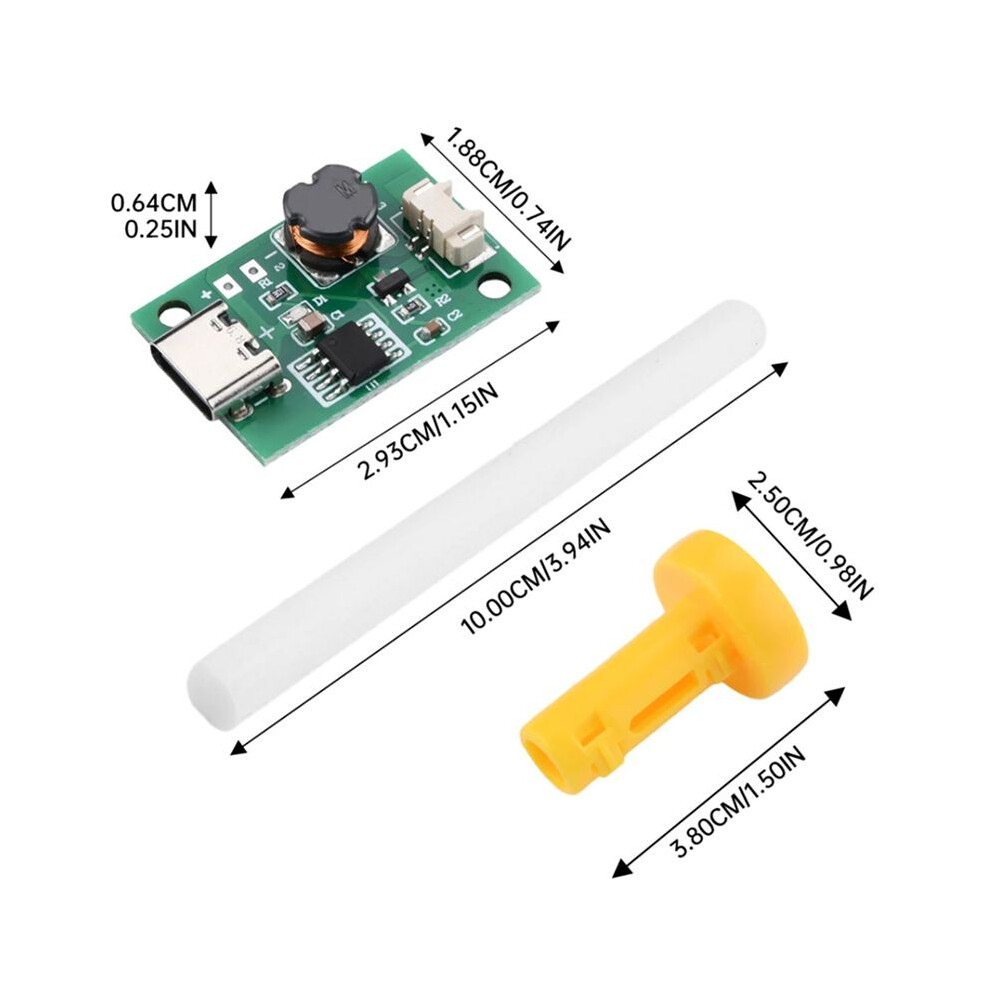

Outer diameter of silicone sleeve: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16MM
length: 100MM

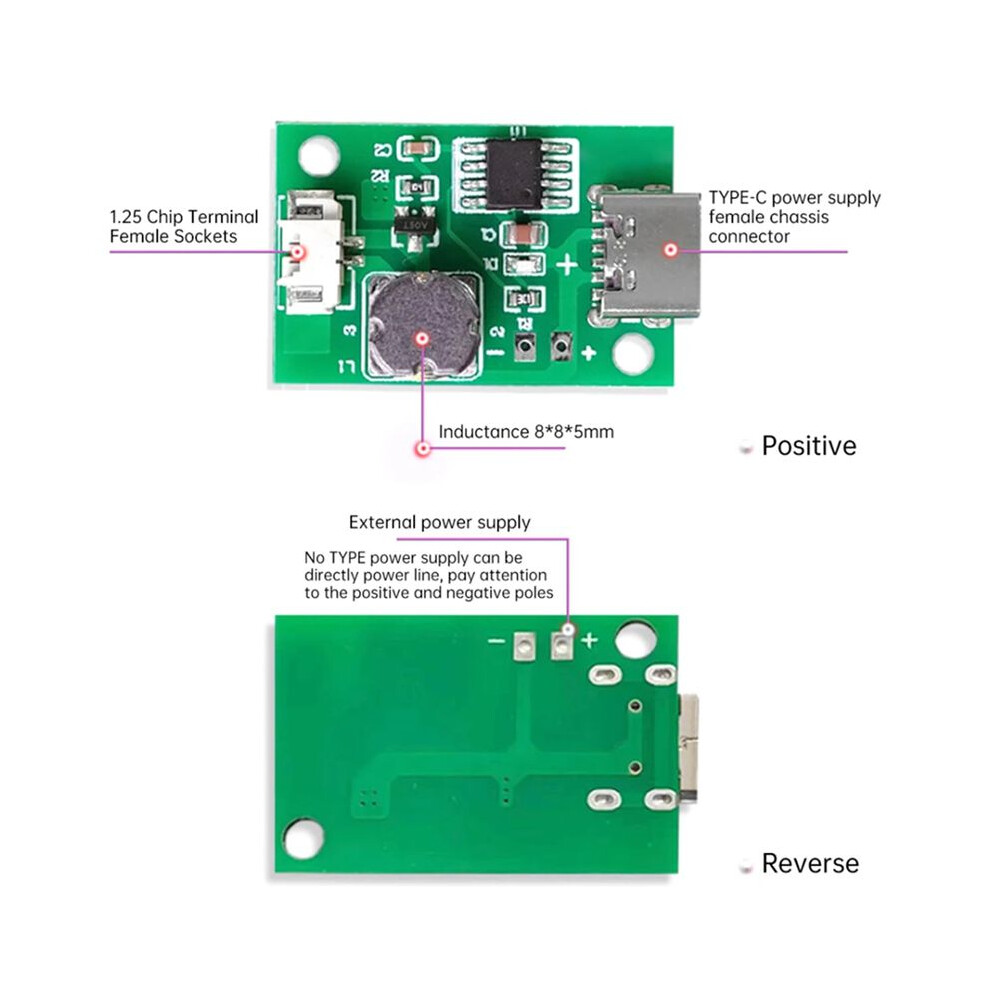

Wire terminal: PH2.0
Spray module:

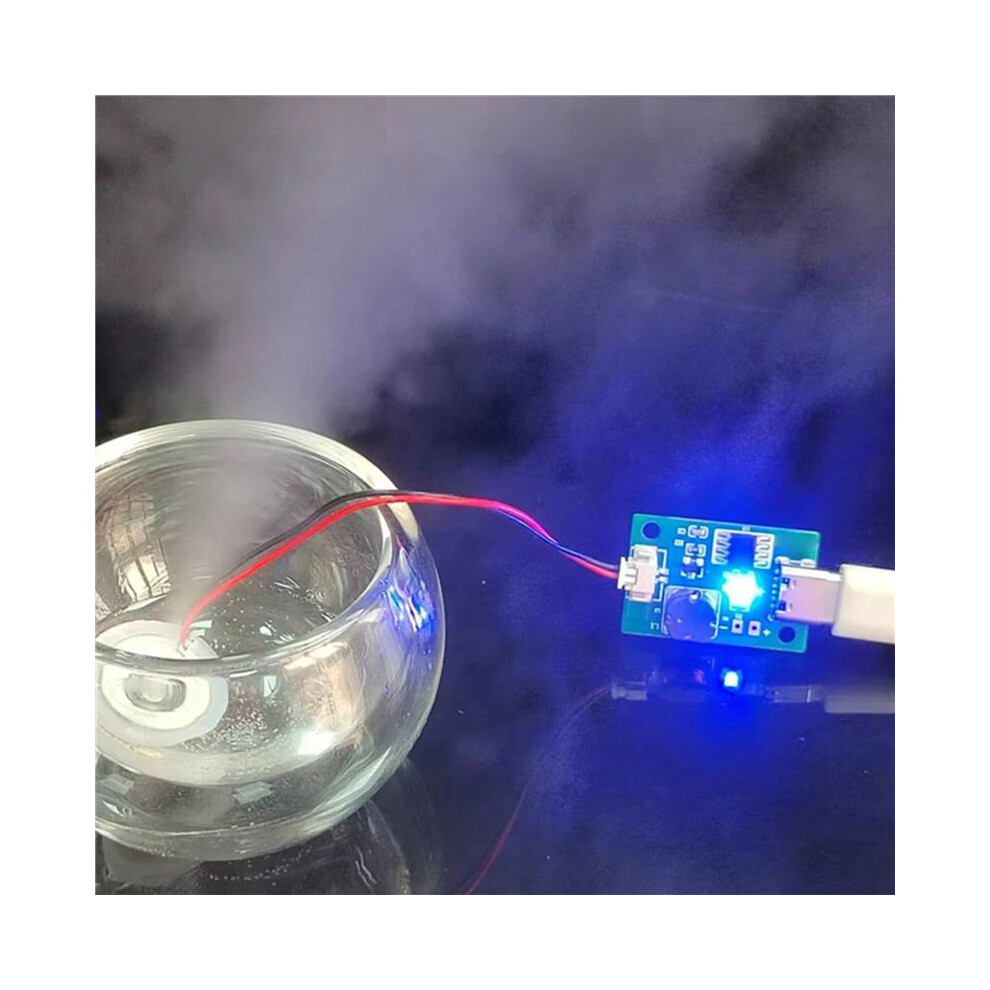

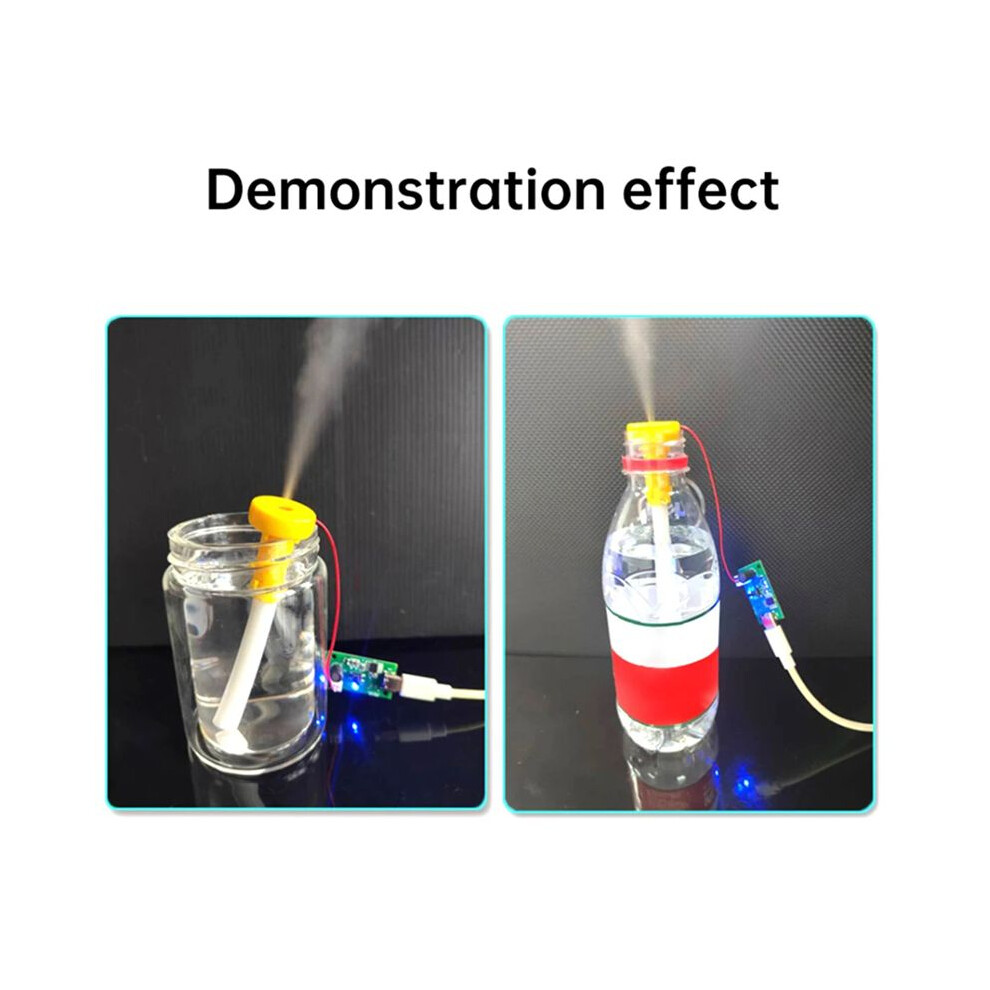

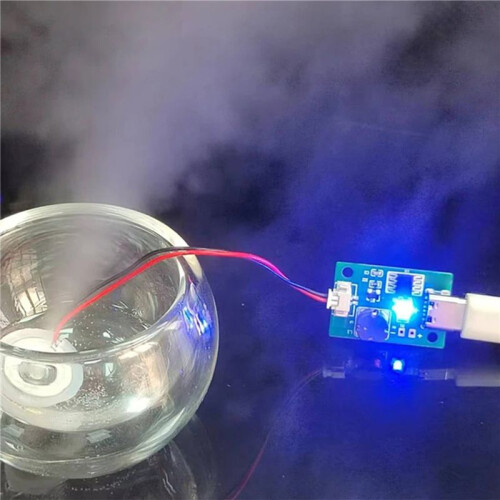

1. Continuous spray mode: no , power is spray, input DC5V power supply, immediately spray, LED light is always , continuous spray mode, always spray.
2. Shutdown: unplug the power input to shut down.
No type, the color of the rod is sent randomly, don't accept the specified
Colour:Green
Material:plastic

Package Contents:

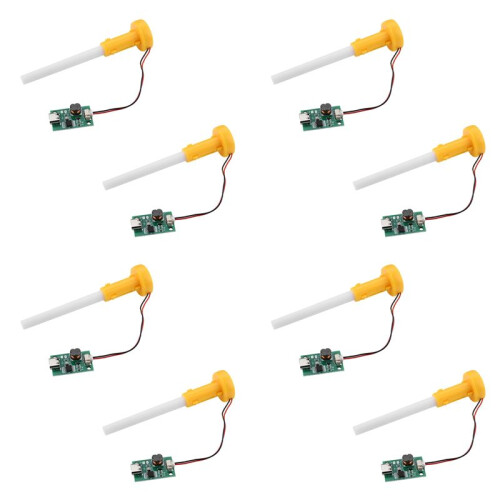

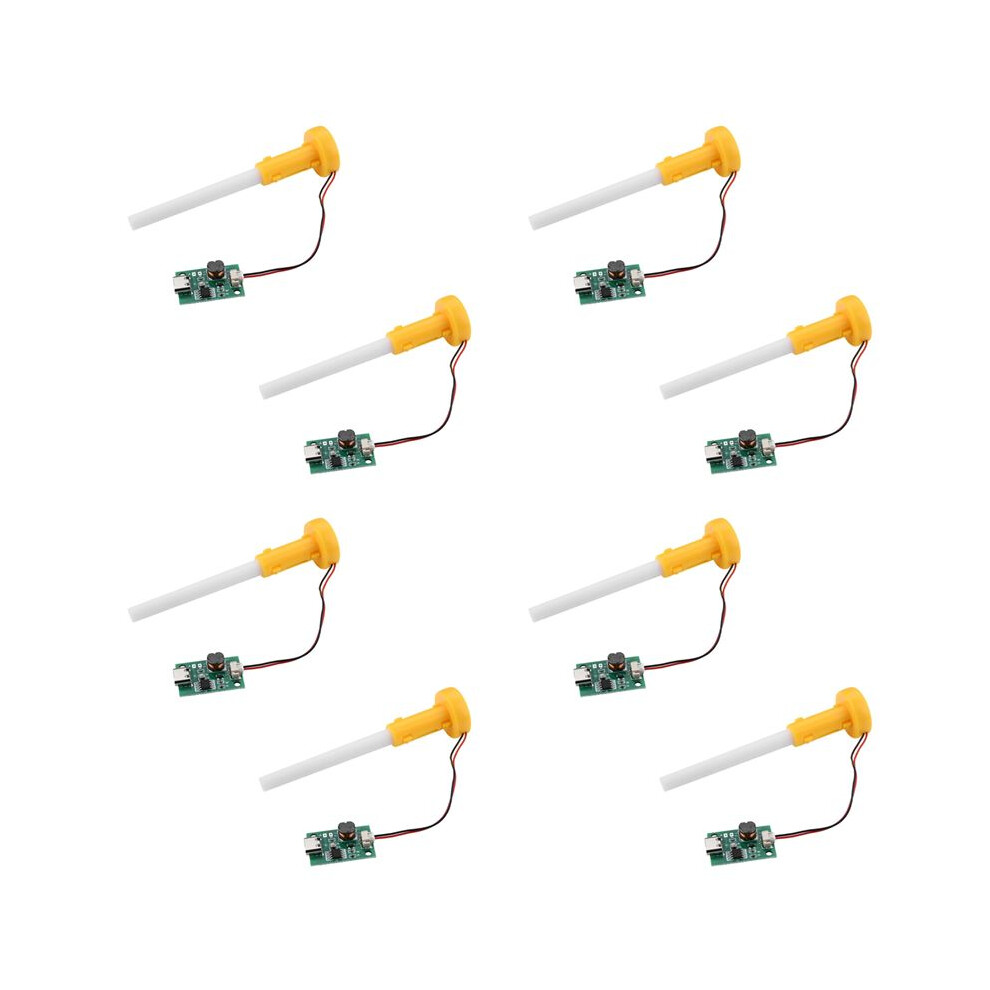

8x module
