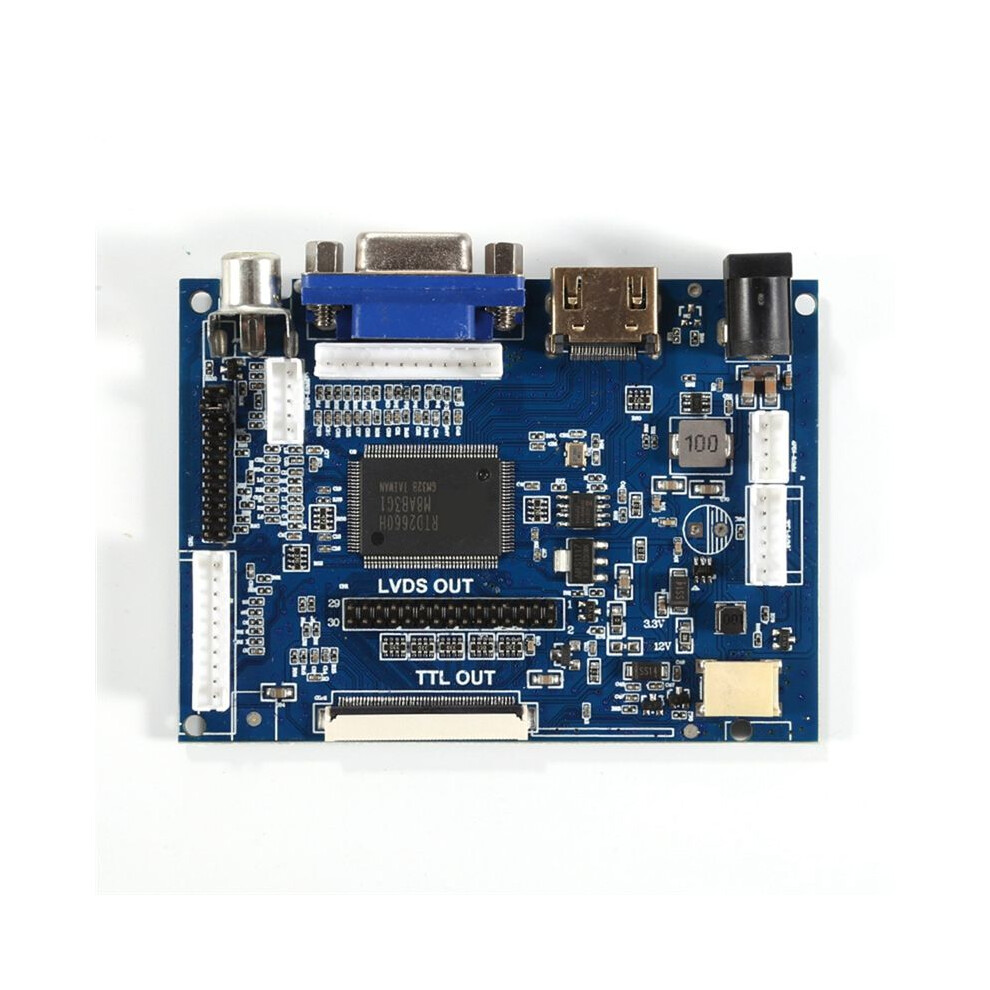

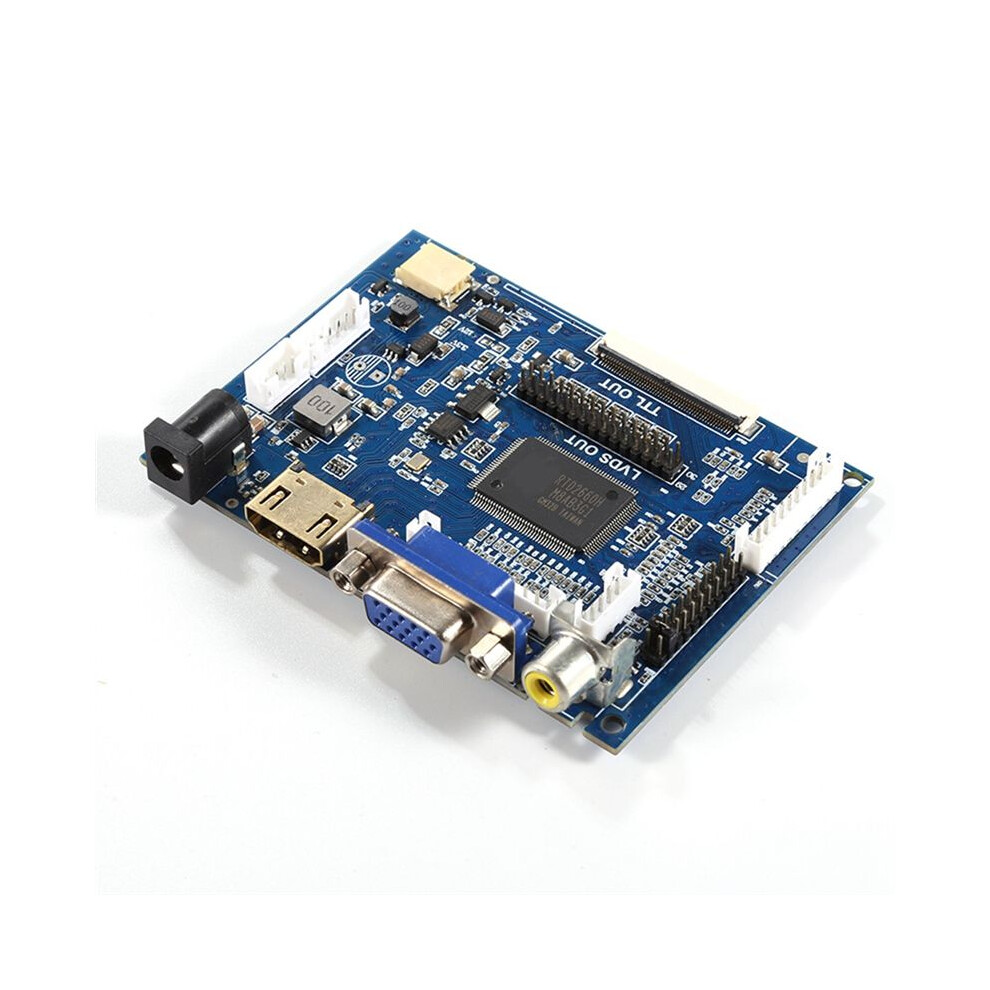

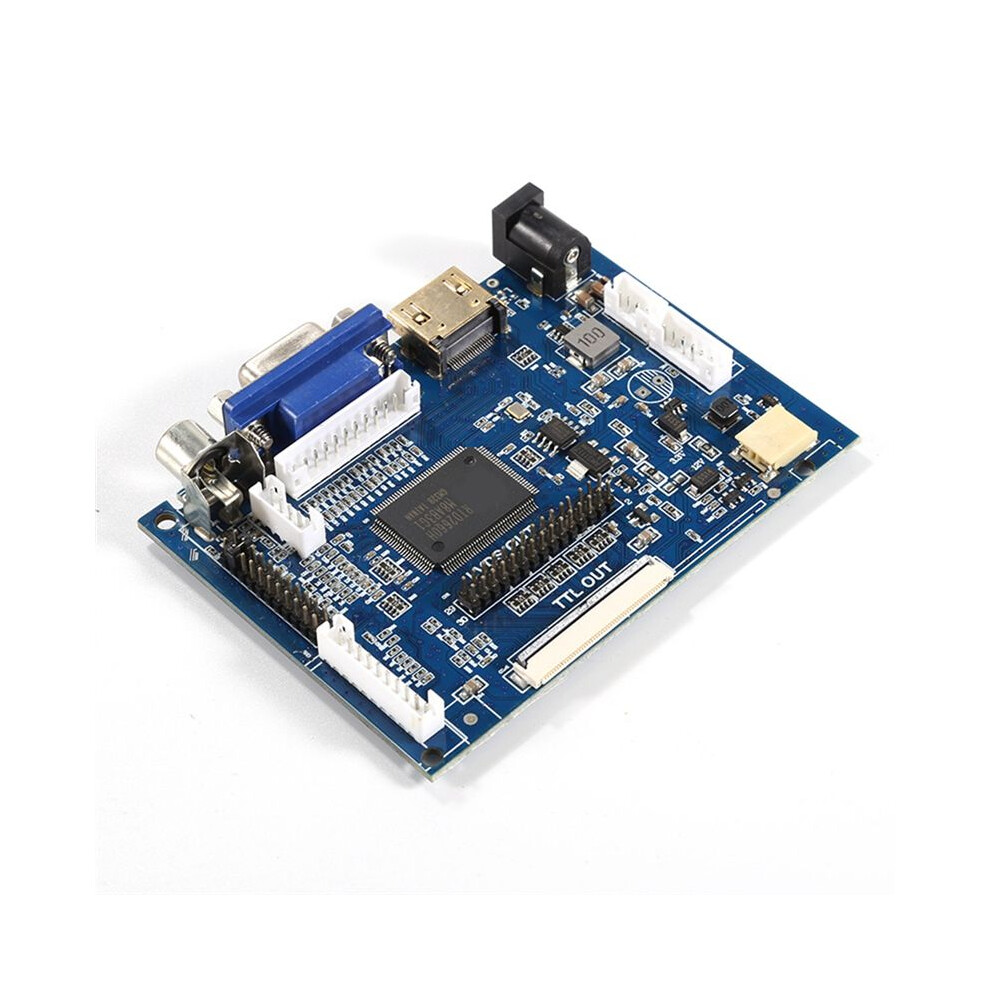

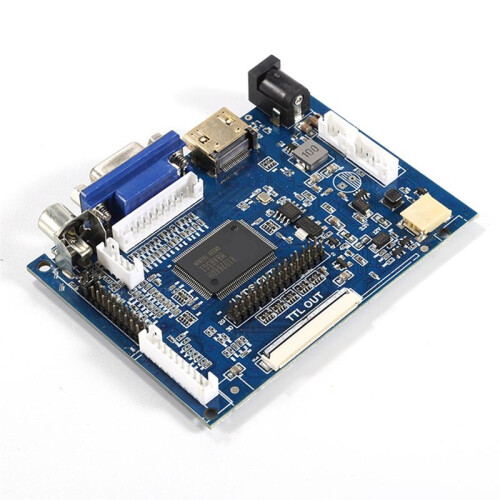

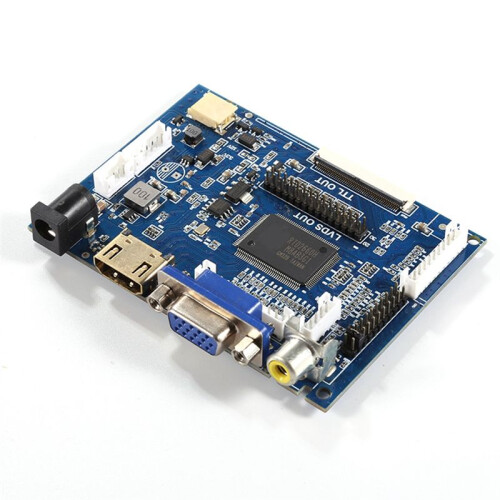

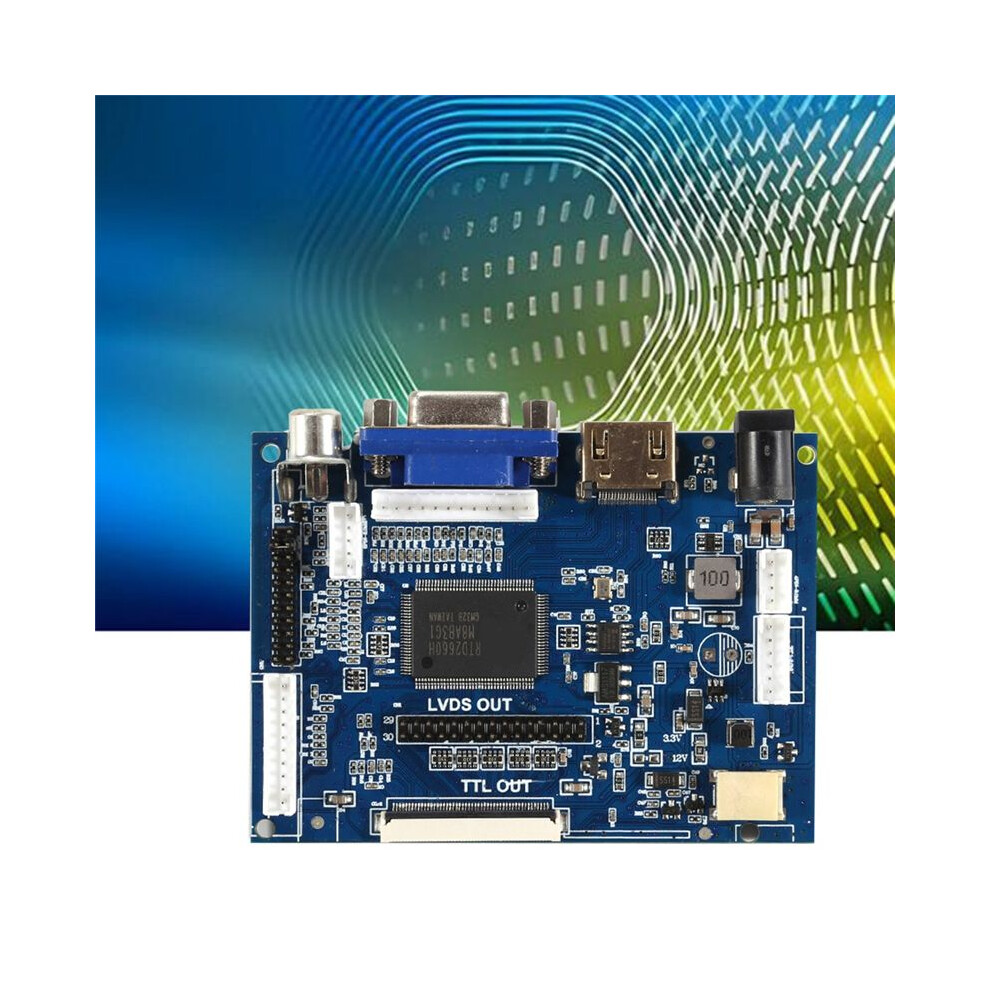

Adapter Board Module 7-8 Inch LCD 50PIN Universal AT070TN90/92/94 Driver Board -Compatible Projection Module

Adapter Board Module 7-8 Inch LCD 50PIN Universal AT070TN90/92/94 Driver Board -Compatible Projection Module Beskrivelse

1.1 VGA signal input; 2 AV signal input; 1 signal input, and this IC supports HDMI1.1/1.2/1.3; 1 reverse signal input; supports wide voltage input, and can be between 5V-24V normal operation; supports TTL signal output, can support AT070TN92 AT065TN14 AT080TN52 AT090TN12 AT090TN10 AT070TN90 AT070TN93 AT070TN94, etc., universal TTL LCD screen with 50PIN interface

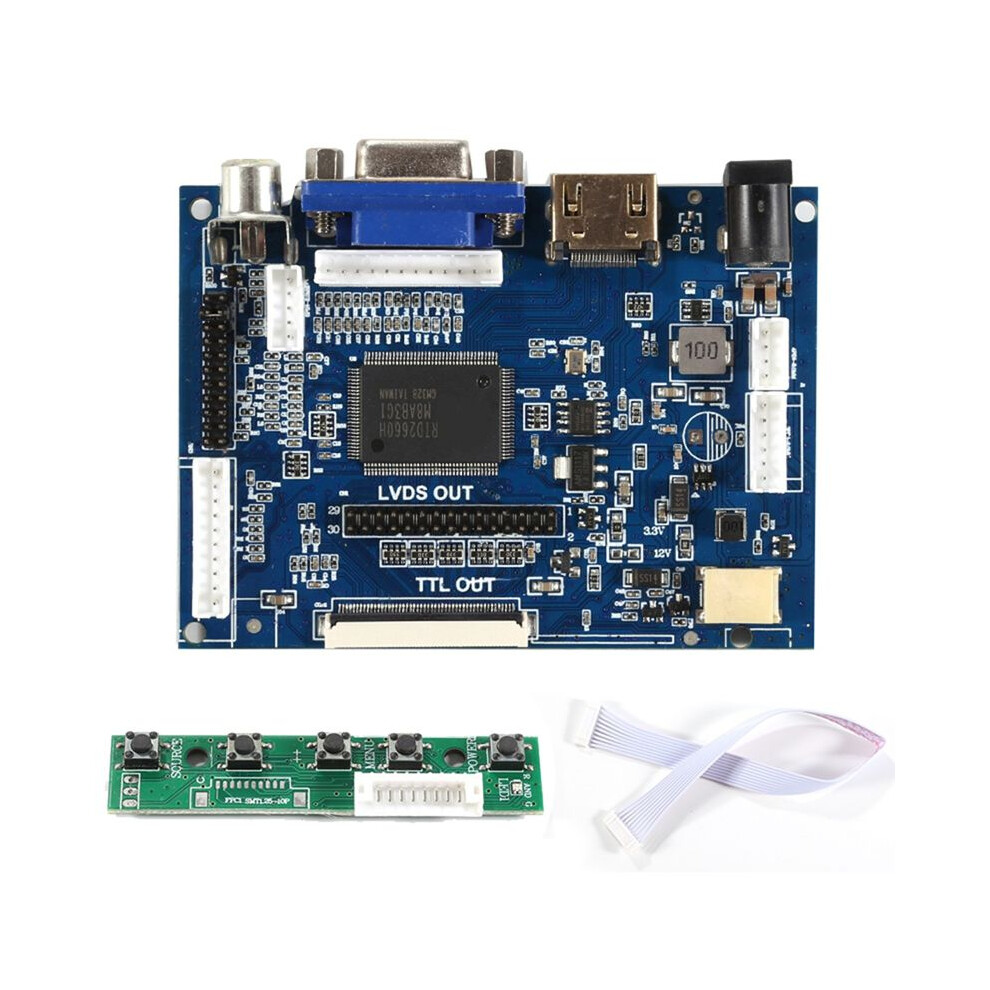

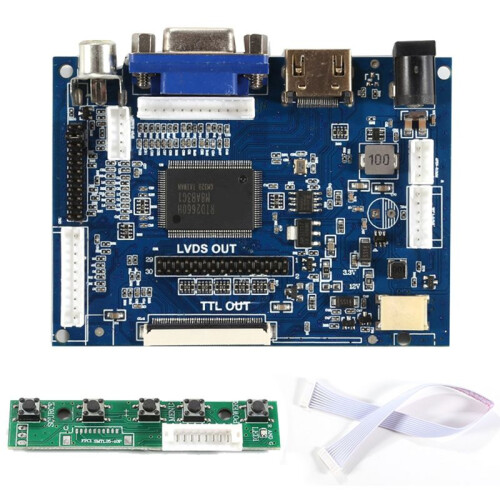

2. Standard backlight 6PIN interface, can be connected to an external high-voltage board; the driver board integrates the LCD screen LED backlight driver board circuit; standard LVDS signal output, can support single 6, single 8, double 6, double 8 and other standard LVDS signal LCD screens , but only supports LCD screens with a screen power supply of 3.3V; standard keypad interface, and supports dual-color LED indicator light display;
3. When used with other boards, it can support the following LCD screens: EJ070NA01-1024X600 resolution; EJ080NA04B-1024X768 resolution; ZJ070NA01, a universal 40PIN high-resolution LCD screen; when used with other boards, it can also support Zhonghua 60PIN LVDS 10.1-inch LCD Screen;
4. The maximum output display resolution of this driver board is 1920X1080. When the display resolution exceeds 1440X900, it is necessary to add a heat sink according to the working conditions of the IC to reduce the operating temperature of the IC); the VGA part of this IC can directly input the YPBPR signal , realized through program; this driver board can add remote control function (needs to be realized through software);
5. This driver board can automatically detect and display relevant input voltage information; this driver board can support the automatic detection signal function, this function is a customized function; it supports reverse control and displays AV2, and the reverse voltage supports 50V Within the voltage input; this driver board has four positio
