AI Stereo Depth Camera Module for RDK X5 Stereo Depth Camera Module SC230AI Chip Dual 2MP Color

AI Stereo Depth Camera Module for RDK X5 Stereo Depth Camera Module SC230AI Chip Dual 2MP Color Beskrivelse

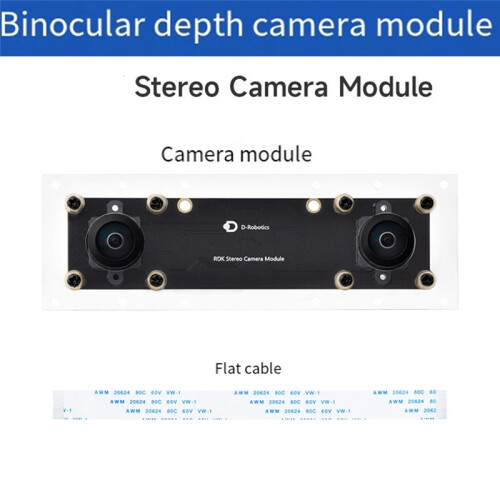

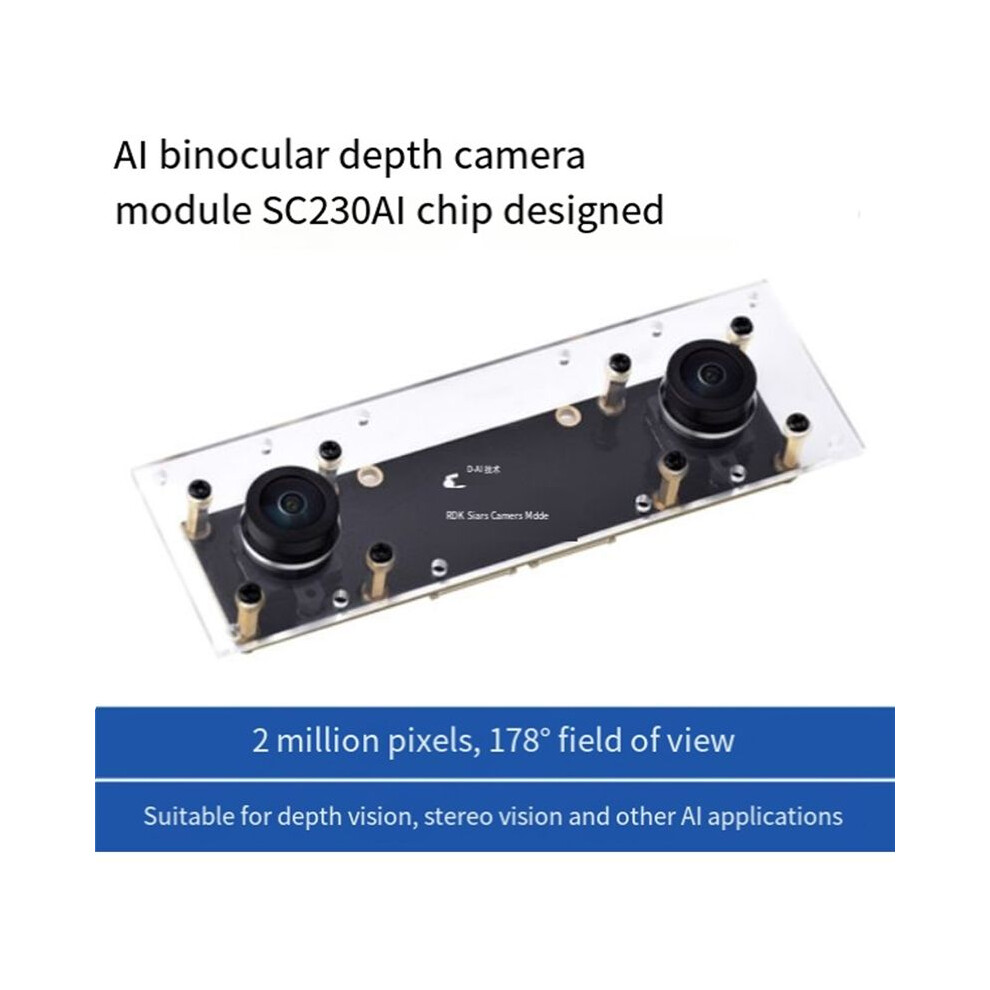

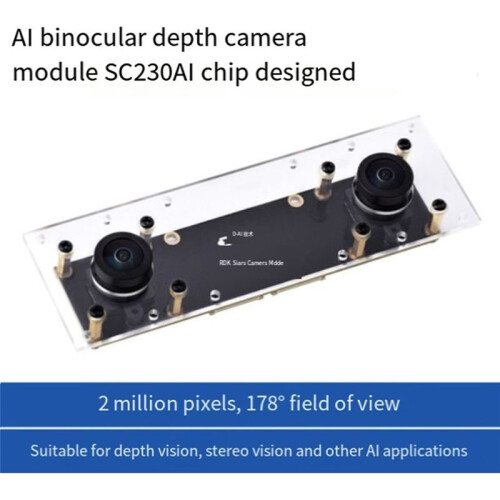

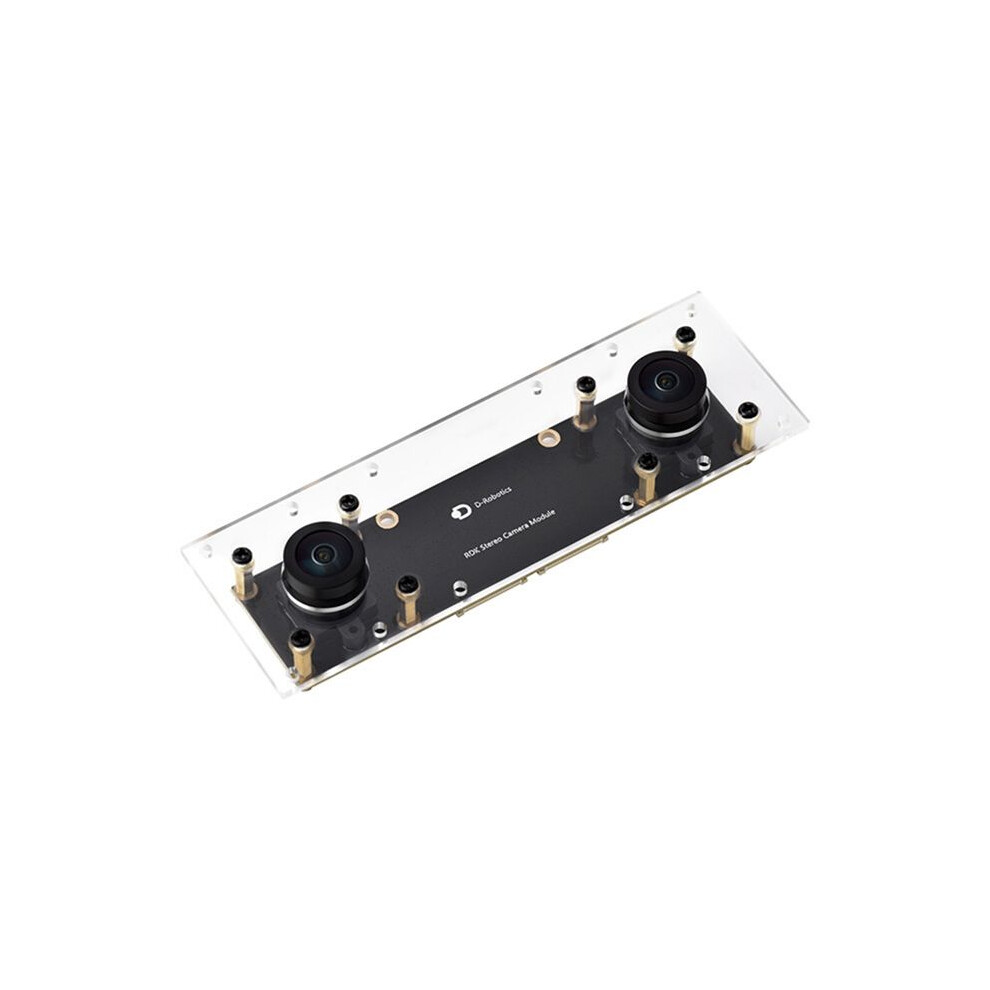

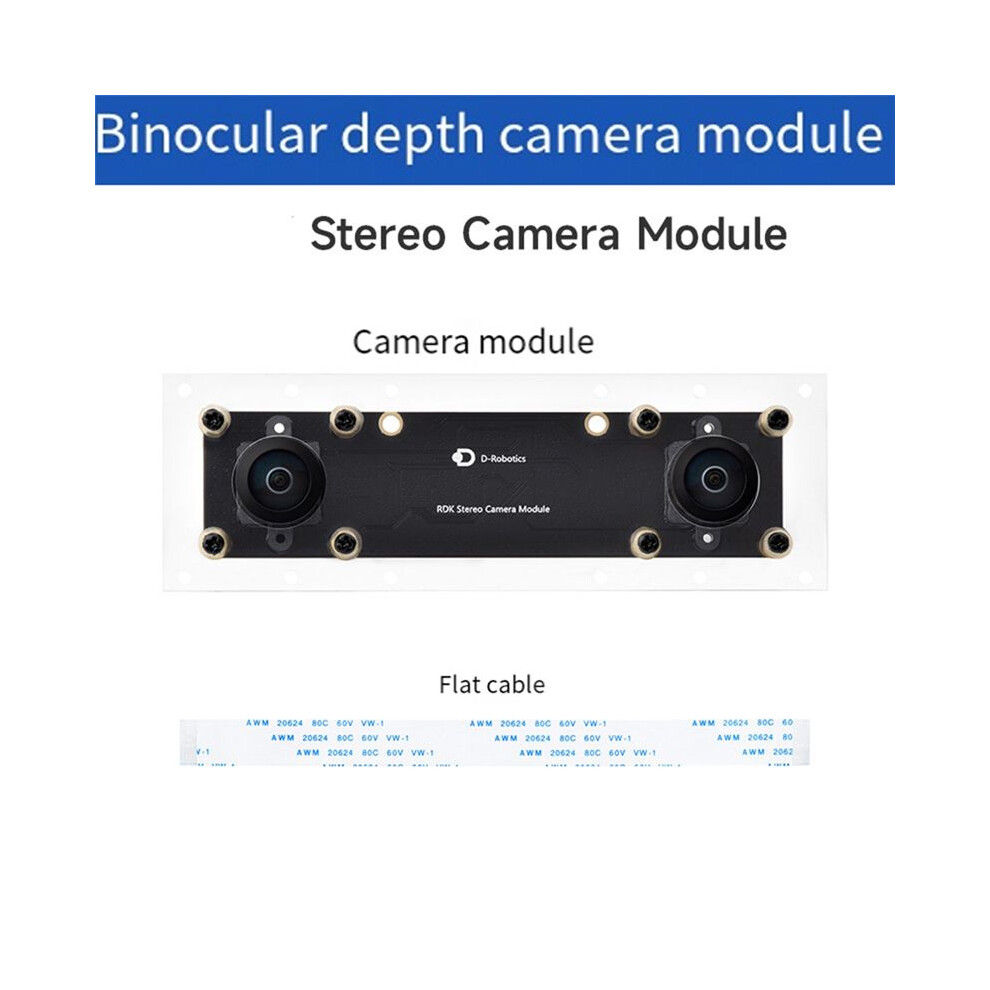

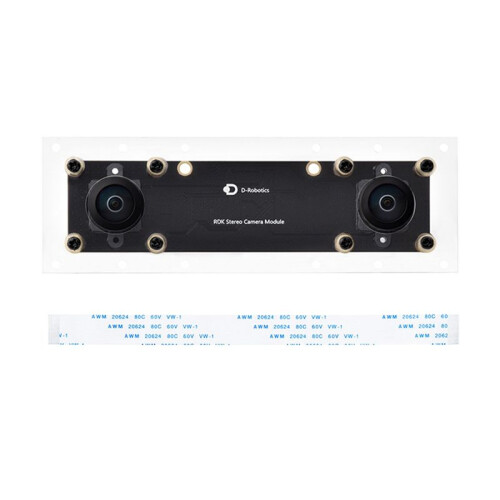

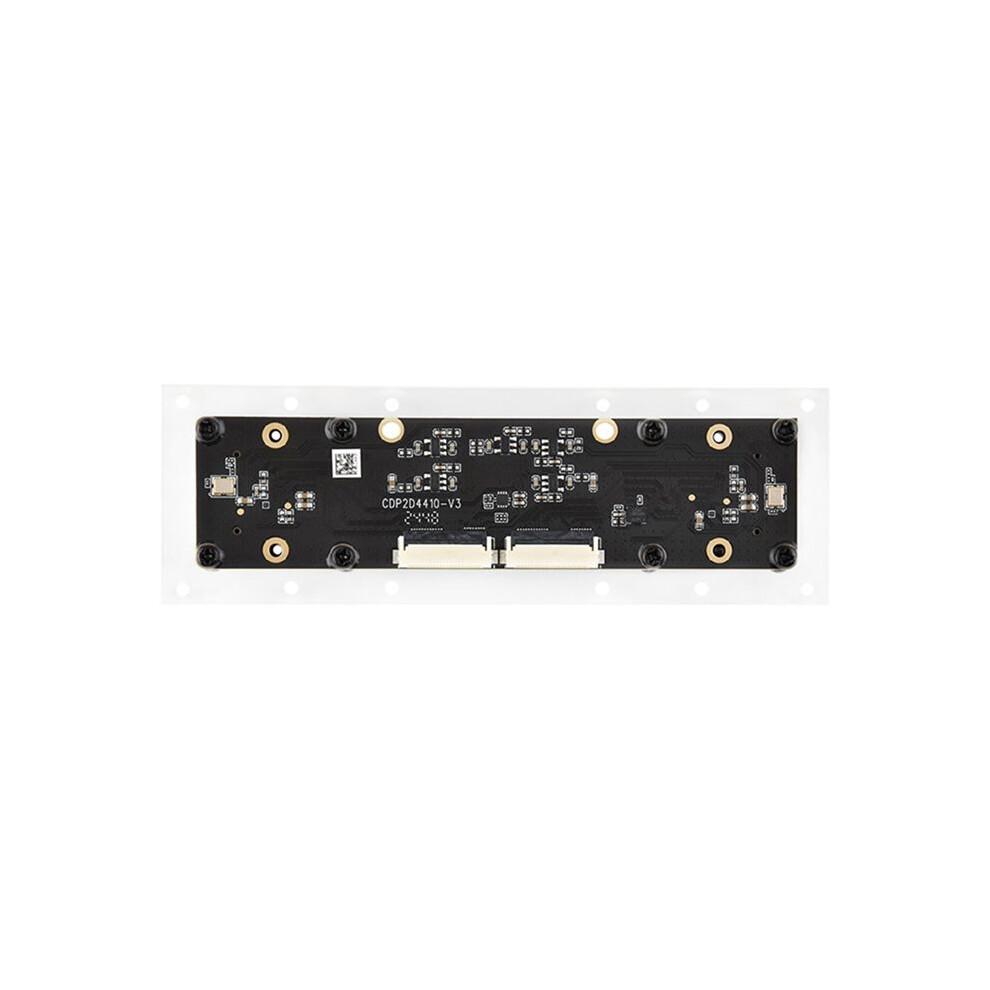

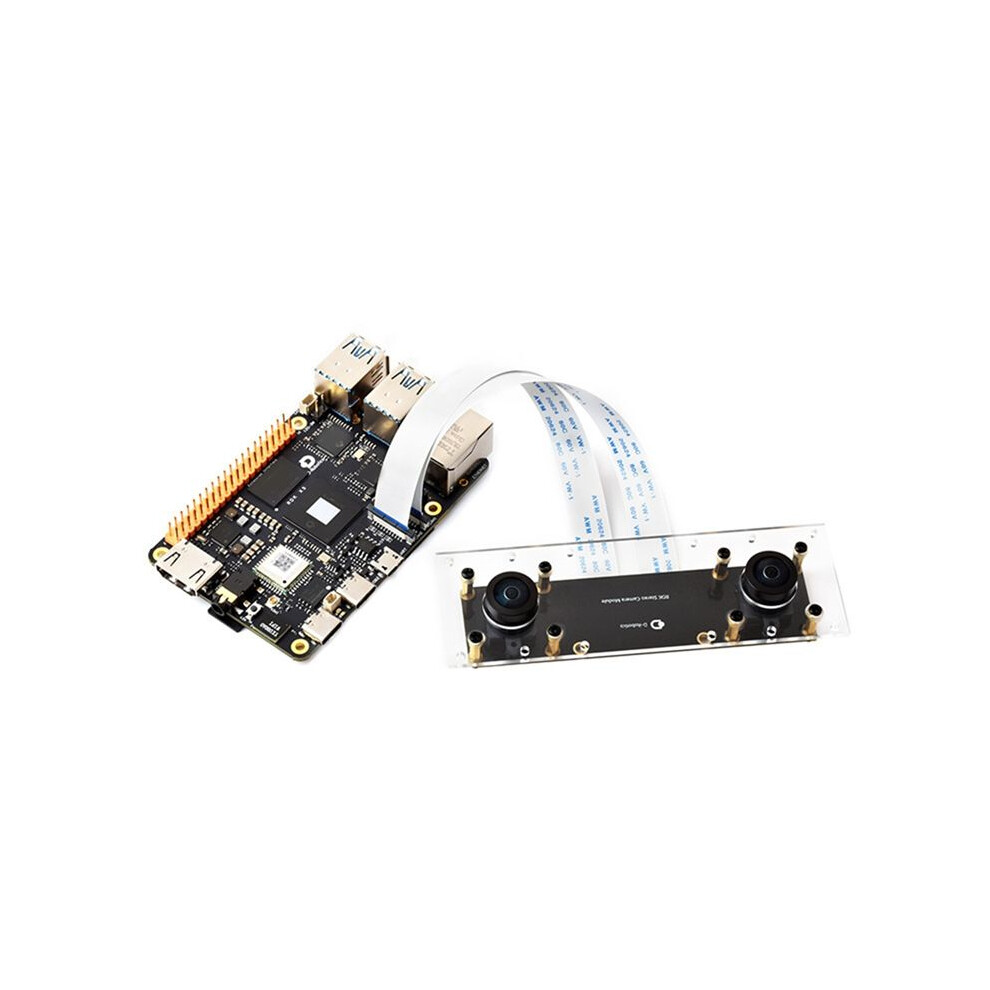

D-Robotics RDK Stereo Camera is a binocular depth camera designed for RDK X5. It uses two 2-megapixel color cameras and is equipped with dual 22-pin MIPI interface output.
Through optimized binocular depth algorithm and BPU calculation reasoning, efficient depth perception can be achieved, and the algorithm result rendering using rviz2 is supported the PC.
Using SC230AI chip and SmartSens SmartClarity-2 technology, it provides excellent day + night imaging effects (night imaging requires additional purchase of fill light)
Onboard dual 2-megapixel cameras provide 178 ultra-wide-angle field of view
Combined with optimized algorithms and BPU acceleration, efficient depth calculation is achieved

Suitable for artificial intelligence vision applications such as depth vision and stereo vision
Support RDK X5 development board
Pixels: 2 million
Photosensitive chip: SC230AI
Photosensitive element size: 1/2.8 inch
Aperture (F): 2.2
Resolution: 1920x1080 (per channel)
length (BFL): 2.28 mm
Field of view (FOV): 178 (bottom) 150 (horizontal) 80 (vertical)
Distortion: Less than -30%
Baseline length: 70 mm
RESETB control: low effective
I2C address: 0x300x32
Ioline: 0x50
Synchronization: support hardware synchronization
Application scenarios: suitable for artificial intelligence vision applications such as deep vision and stereo vision
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Colour:As Shown
Material:PCB

Package Contents:

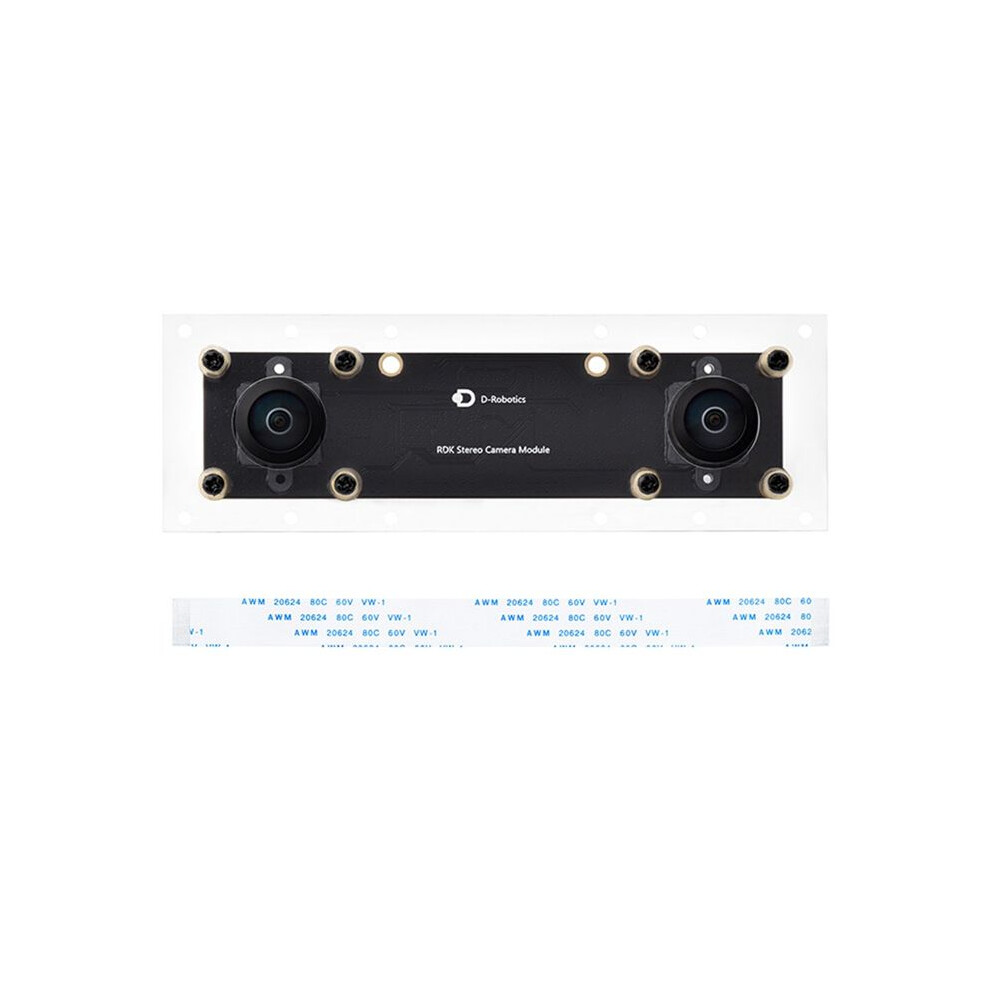

1 * Camera Module
