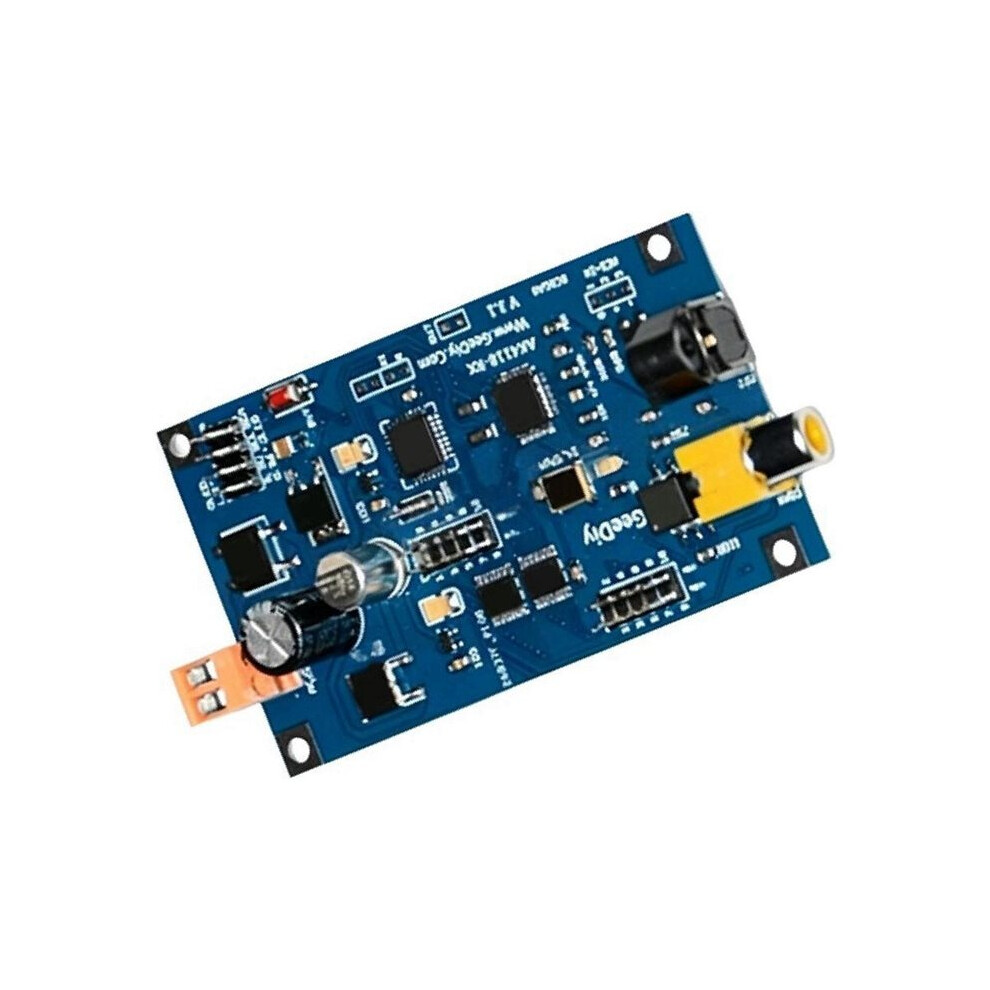

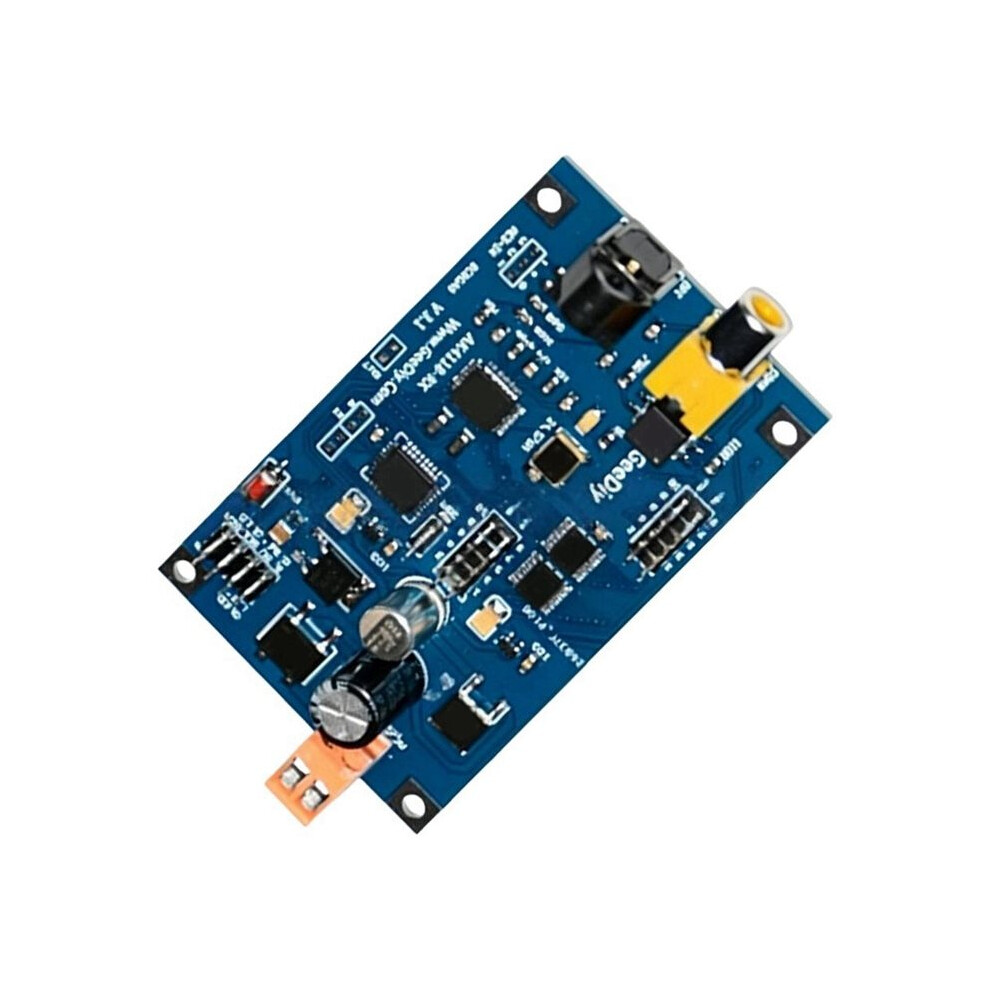

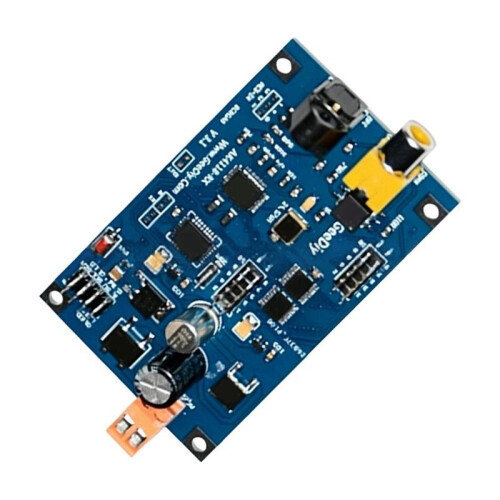

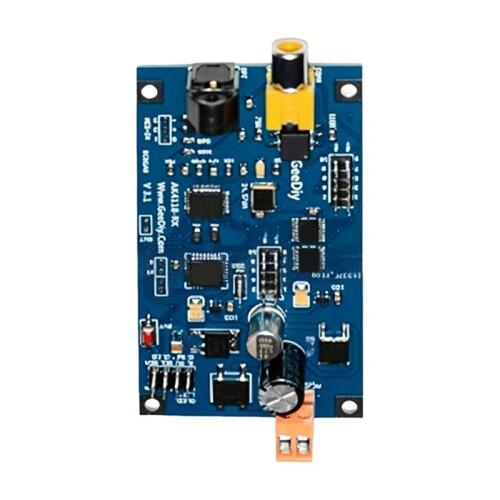

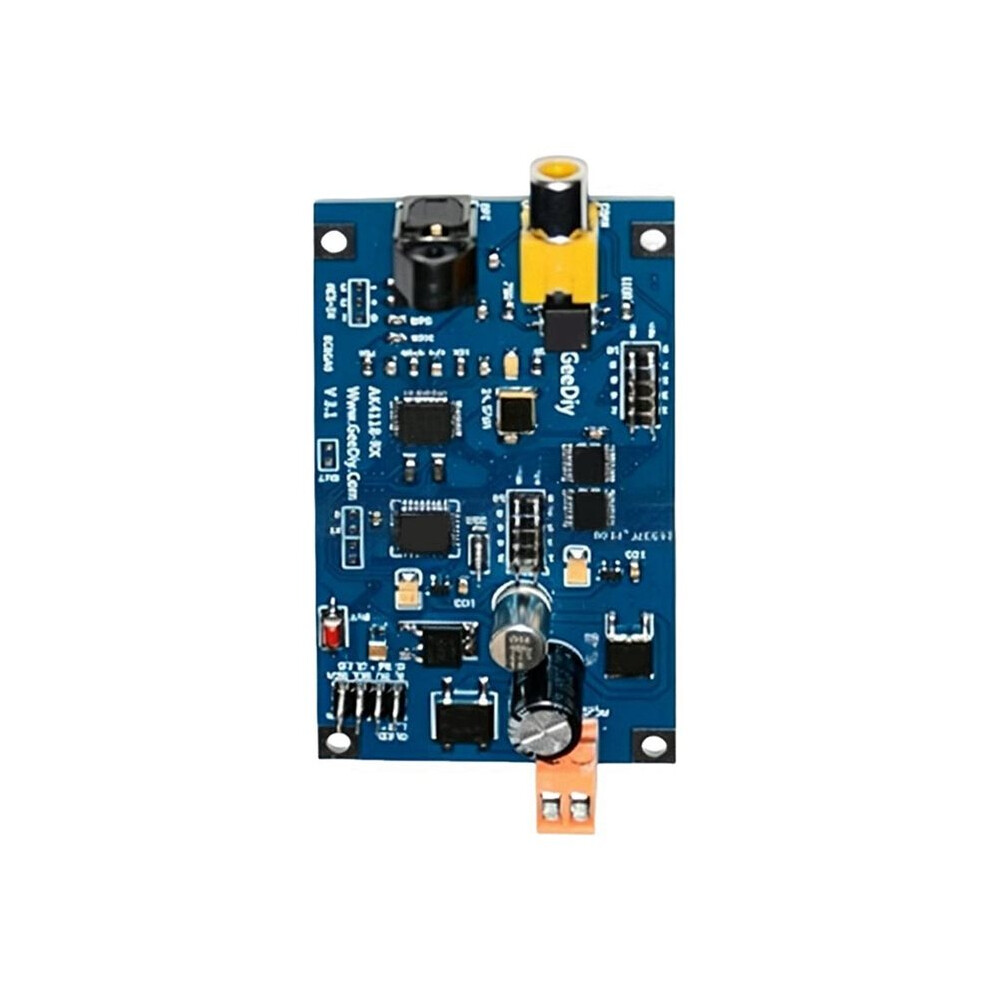

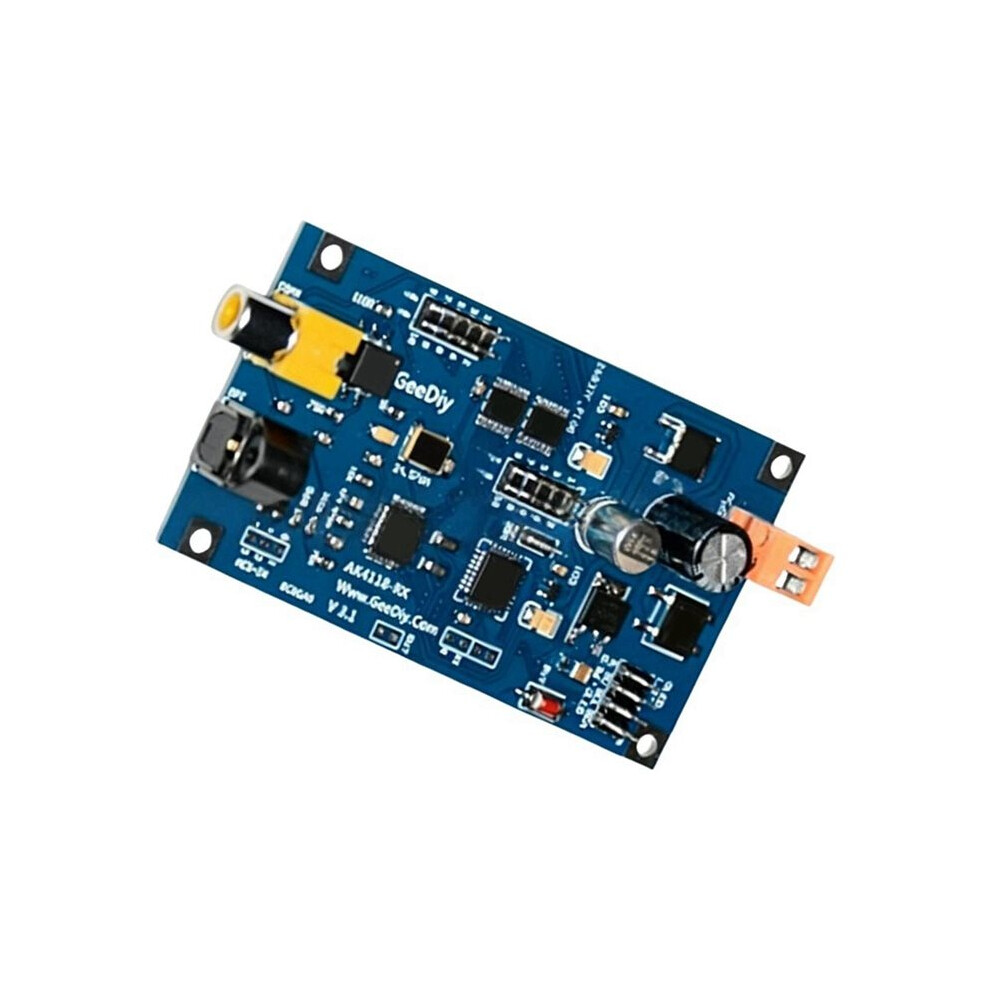

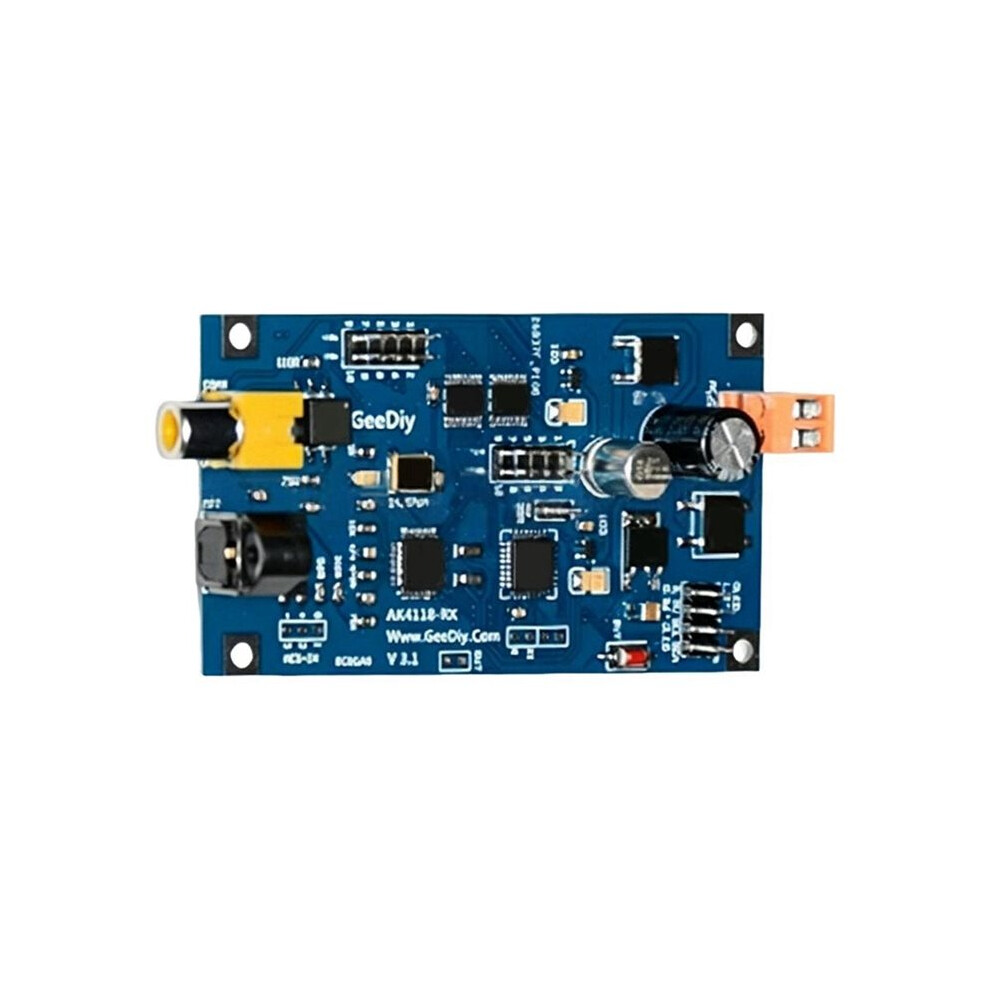

AK4118 Digital Receiver Board Coaxial Optical AES to I2S Converter with Sample Rate Display I2S Input Support

AK4118 Digital Receiver Board Coaxial Optical AES to I2S Converter with Sample Rate Display I2S Input Support Beskrivelse

It supports coaxial, optical, AES, and I2S/DSD inputs. You can select the input signal via buttons, and the selected signal will be displayed the screen. Once the input signal is locked, the current sampling rate will be shown. The board also features power-off memory
For coaxial, optical, and AES inputs, the output is in I2S format. For I2S/DSD inputs, the output format matches the input format. (Note: Some users' optical interfaces may not support 192kHz; please use different equipment or to coaxial.)

Supported Signal Ranges:
* Coaxial, optical, AES: 16-24bit, 32-192kHz sampling rate
* I2S input: PCM to 768kHz, DSD to DSD512
* AK4118 Receiver Mode (Coaxial, Optical, AES): 32-48kHz 512fs; 88.2-96kHz 256fs; 176.4-192kHz 128fs. For I2S input, the sampling rate depends the source device providing the I2S signal.
DAT-IN (I2S/DSD Input Port):
* Can connect to USB interfaces or other devices outputting I2S/DSD signals.
* Can transmit DSD signals as well as DSDON or DSD sampling rate indicator signals.
* Simply connect the output I2S/DSD signals from other devices to the DAT-IN port using ribbon cables or Dupont wires. As long as the downstream decoder board supports the provided I2S/DSD signal, it will function correctly (otherwise it will not). When a DSDON signal is connected, it can be used to control the downstream decoder board's DSD/PCM mode (the decoder must support DSDON).
• High-level input = DSD mode
• Low-level input = PCM mode
Color: As Shown
Material: PCB

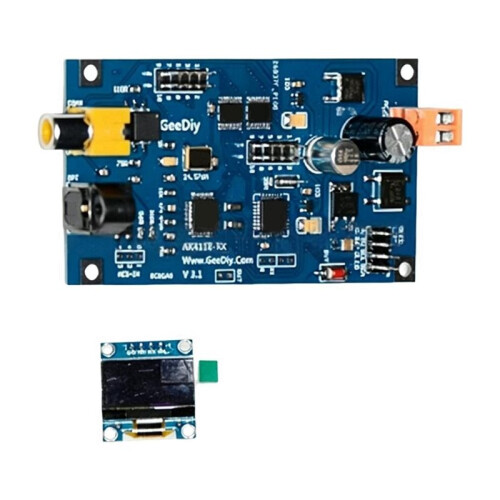

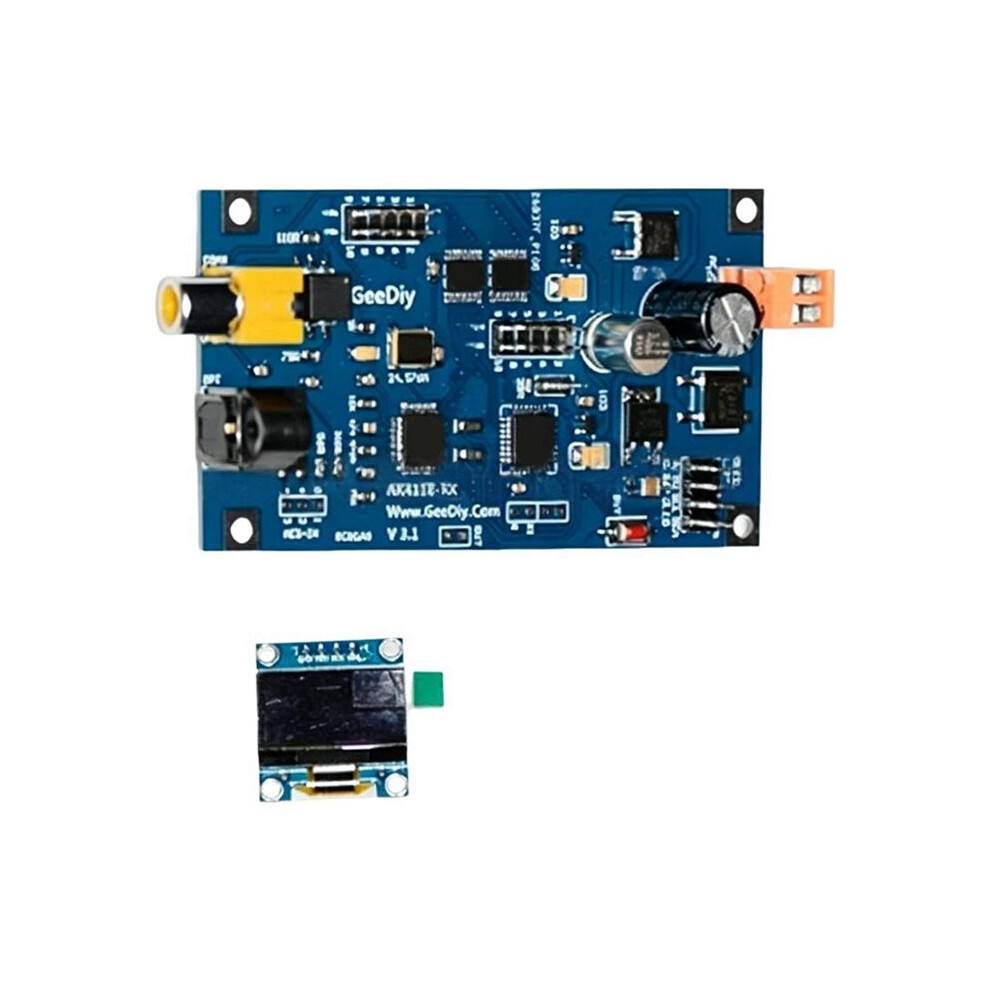

Package Contents:
1*Coaxial Optical Receiver Board kits
