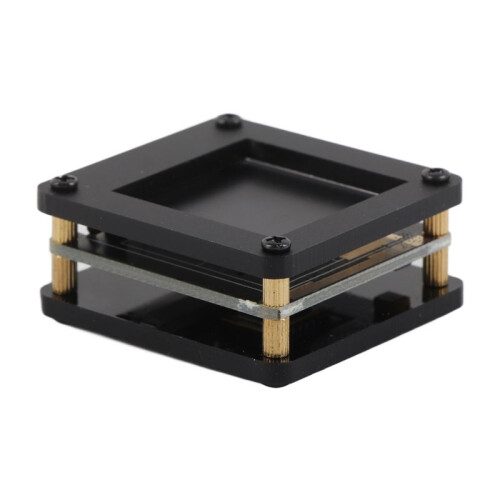

AMG8833 IR Infrared Thermal Imager Handheld Array Temperature Measurement Sensor Thermal Imaging Camera Module

AMG8833 IR Infrared Thermal Imager Handheld Array Temperature Measurement Sensor Thermal Imaging Camera Module Beskrivelse

1. USB POWERED: This IR thermal imaging camera module can be directly powered by USB 5V to generate infrared images, easy to operate.
2. EXCELLENT CHIP: Using AMG8833 infrared thermal sensor, the resolution is 8x8, and the maximum human body sensing distance is 7 meters.
3. GOOD PERFORMANCE: The thermal imager has high performance and high output resolution, sensitive and reliable, with strong practicability.

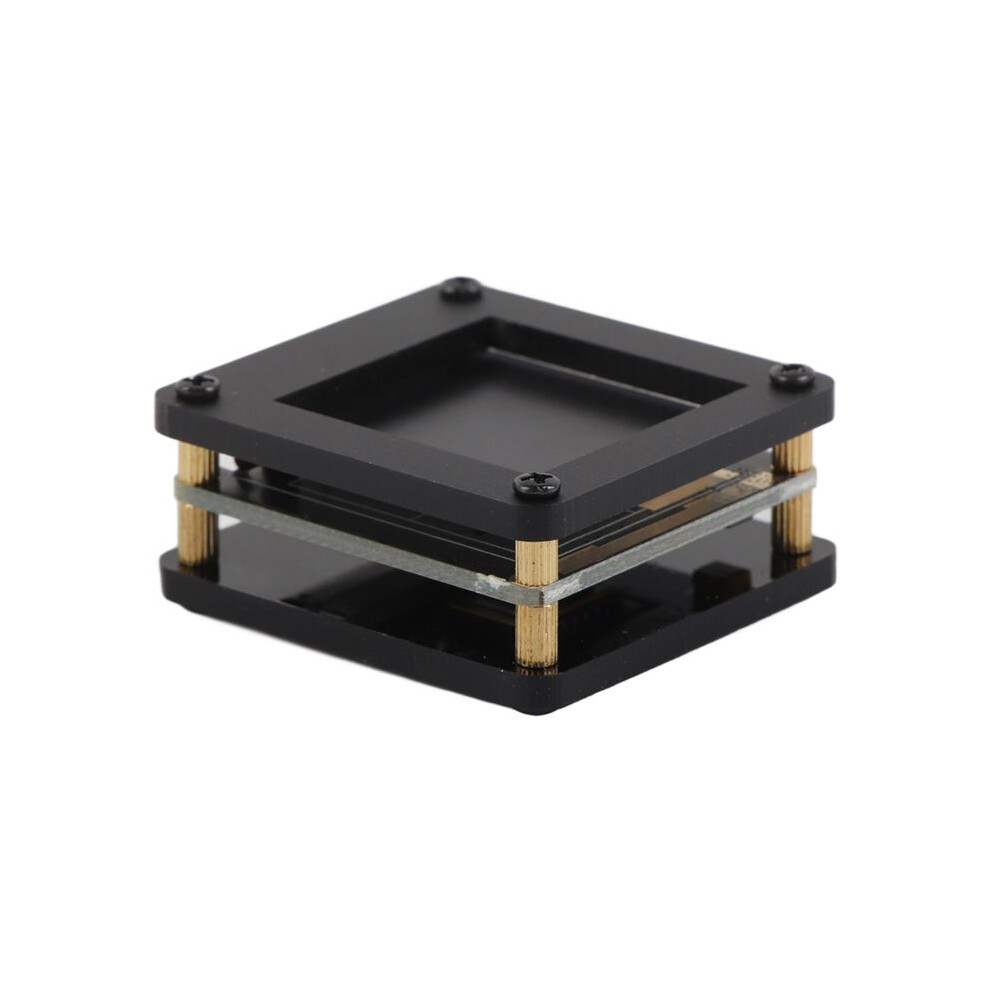

4. COMPACT SIZE: The infrared temperature sensor is equipped with shells, with small and compact structure, which is easy to install and use.
5. FOR ELECTRONICS: Infrared thermal imager has a measurement temperature of 0-80C and is widely used in testing electronic products.

Item Type: Infrared Thermal Imager
Temperature Accuracy:
High Performance Type High Gain: Typical 2.5 4.5
High Performance Type Low Gain: Typical 3.0 5.4
Human Detection Distance: Approx. 7 meter / 23ft or less (reference value)
Measuring Temperature: 0-80
Viewing Angle: Typical 60
Optical Axes : Within typical 5.6
Current Consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand by mode)
Setup :
Typical 50ms ( to enable communication after setup)
Typical 15s ( to stabilize output after setup)
Number of Pixel: 64 (vertical 8 x horizontal 8)
External Interface: 12;C (fast mode)
Frame Rate: Typical 10 frames/sec or 1 frame/sec
Operating Modes: Normal, Sleep, Standby (10s or 60s flash)
Output Mode: Temperature Output
Calculation Method: No moving average or twice moving average
Temperature Output Resolution: 0.25/32.45
Number of Sensor Addresses: 2 (1 address c slave address)
Size: Approx. 38 x 36 x 17mm / 1.5 x 1.4 x 0.7in
Weight: Approx. 19g / 0.7oz
Note: Powered directly by USB
