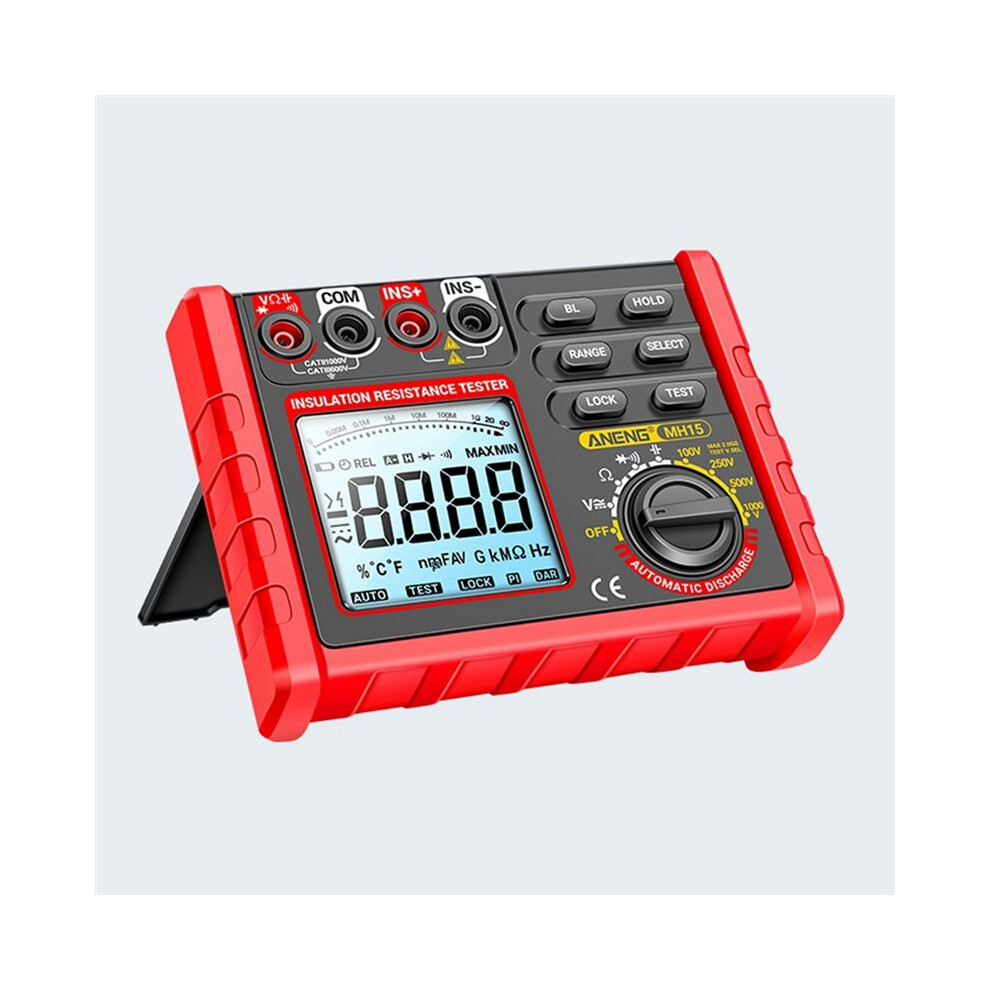

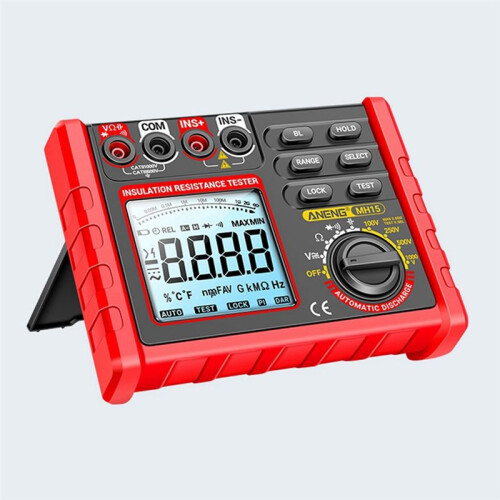

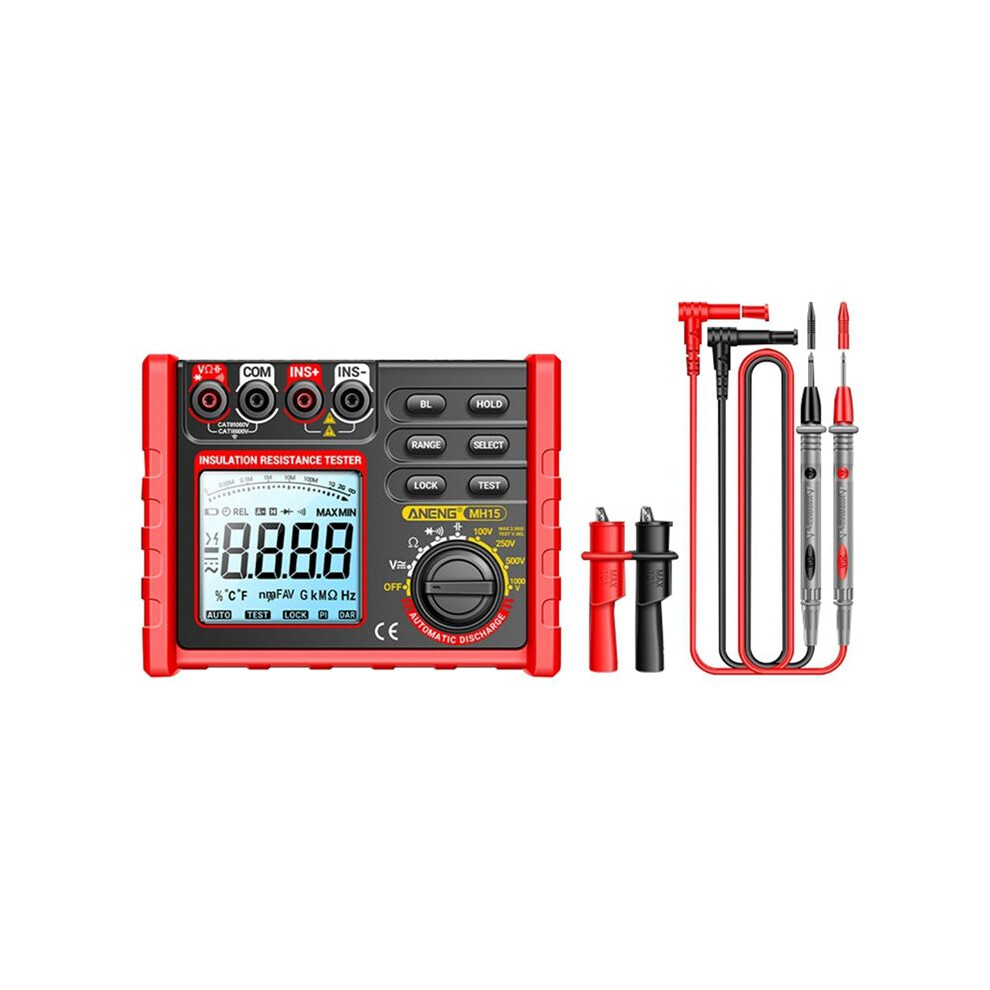

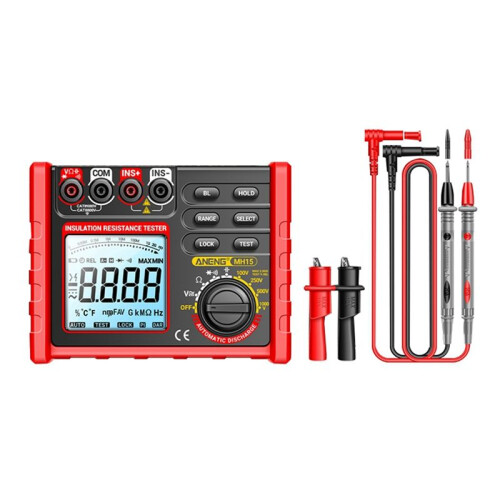

ANENG MH15 Insulation Resistance Multifunctional Digital Meter Automatic Discharge AC/ Voltage LCD Megohmmeter Tester Tools

ANENG MH15 Insulation Resistance Multifunctional Digital Meter Automatic Discharge AC/ Voltage LCD Megohmmeter Tester Tools Beskrivelse

General: This instrument is a battery powered insulation resistance tester that can be used to measure voltage, AC voltage, resistance, -off, diode and insulation resistance.
When measuring insulation resistance, there are four test voltages to choose from: 100V, 250V, 500V and 1000V. This instrument has polarity indication, over range indication, data retention, automatic retention and other functions. It is simple to use and is a precision measuring instrument.
Multiple application demonstration
Applicable to measuring insulation resistance of various electrical equipment and insulating materials such as /motors/cables/switches/electrical appliances

Function
AC voltage:0V-750V
voltage:0mV-1000V
Capacitor 0nF-60mF
Test voltage gear Display range Precision
100V 0.1~20MΩ (3.0%+10d)
20~100MΩ (4.0%+10d)
250V 0.1~20MΩ (3.0%+10d)
20~200MΩ (4.0%+10d)
500V 0.1~20MΩ (3.0%+10d)
20~200MΩ (4.0%+10d)
200~500MΩ (5.0%+10d)
1000V 0.1~20MΩ (3.0%+10d)
20~200MΩ (4.0%+10d)
200~500MΩ (5.0%+10d)
500~2000MΩ (6.0%+10d)
THE PARAMETERS ARE FOR REFERENCE ONLY,AND THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL
Installation guide not included, we strongly recommend you seek professional installation.
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Colour: Red
Material: ABS

Package Contents:
1 x Insulation resistance tester
1 x Pen
