AT8236 FNG Motor Driver Module with Voltage Stabilization High Performance Ultra L298 Balanced Drive Trolley Module

AT8236 FNG Motor Driver Module with Voltage Stabilization High Performance Ultra L298 Balanced Drive Trolley Module Beskrivelse

1. Can drive 2 motors simultaneously, forward and reverse, with stepless speed regulation, and the driving current is much greater than TB6612
2. Advanced voltage stability: ensures voltage stability and provides consistent performance even in the case of power fluctuations
3. Multiple protection functions: short circuit protection, over-temperature protection, over-current protection
4. The voltage regulator does not require external logic power supply or reference voltage
5. Versatile applications: suitable for a variety of applications from educational DIY projects to advanced robots, ensuring top performance and durability

Product name: AT8236 dual-channel drive module with voltage regulator
Single-channel continuous drive current: default 1.32A (maximum continuous output 4A)
Single-channel maximum current: 6A
VM power supply range: 5.5-17V
Logic control pin voltage range: 3.3-5V
Reference voltage pin voltage range: no logic power supply is required, the reference voltage uses the built-in voltage regulator output 3.3V
Other functions: power supply voltage sampling encoder interface
Control signal pin: 2 PWMs are required to control the forward and reverse rotation of a motor
The product appearance and printed words may vary depending the batch, but this does not affect use
Colour:Green
Material:PCB

Package Contents:

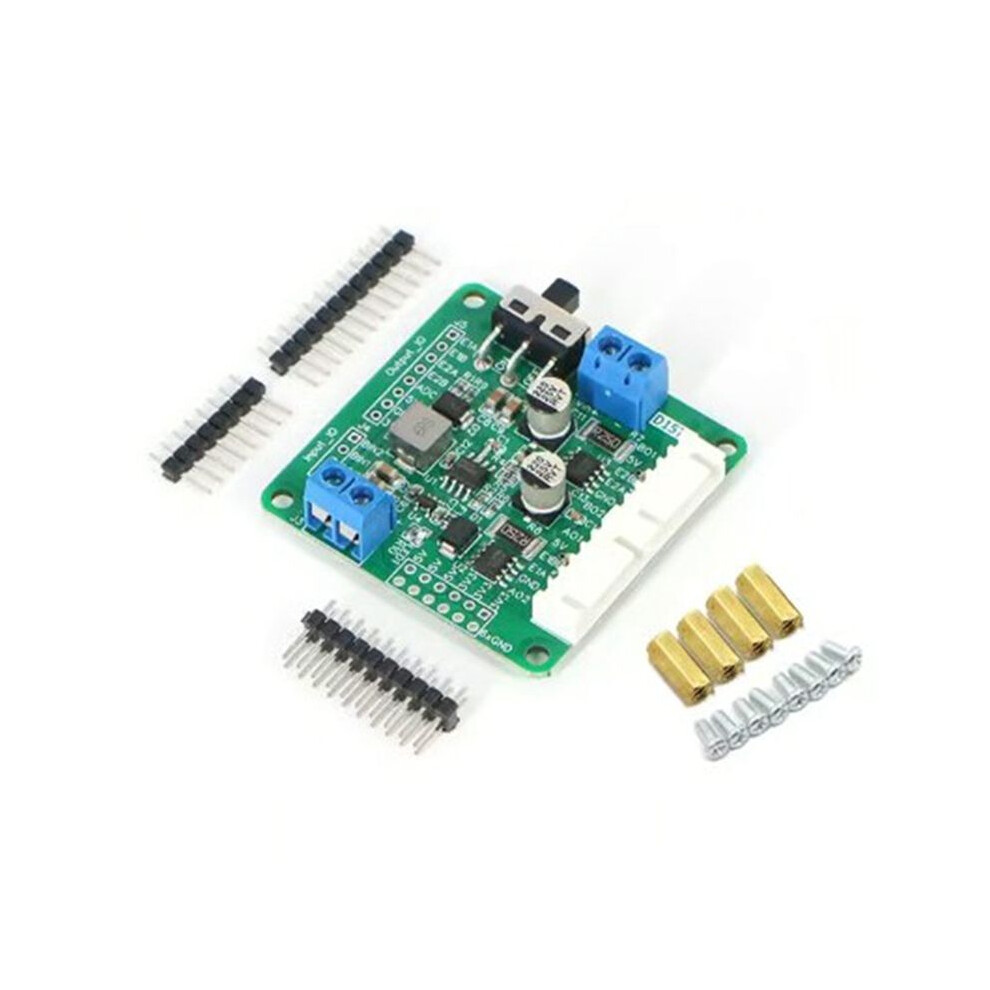

1 x Motor Driver Module Kit
