Brushless Motor Driver Board BLDC Speed Controller 3 Phase Governor Hallless Module Sensorless Control Board

Brushless Motor Driver Board BLDC Speed Controller 3 Phase Governor Hallless Module Sensorless Control Board Beskrivelse

Precautions: 1. There is no fuse in the power supply circuit the motherboard. Jianyi has added it himself. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some of the chips the board (even if it does not work for 1 second)
2. There is motor blocking protection during normal operation. Please do not artificially short-circuit when the module is not working normally. Once short-circuiting may cause the to burst, please use small current and low voltage test for the first wiring test. Matching use of three-phase brushless motors with equivalent current and power
3. Do not connect the motor that is obviously inconsistent with the drive module voltage, current, or power, to avoid inexplicable "nonsensical" damage

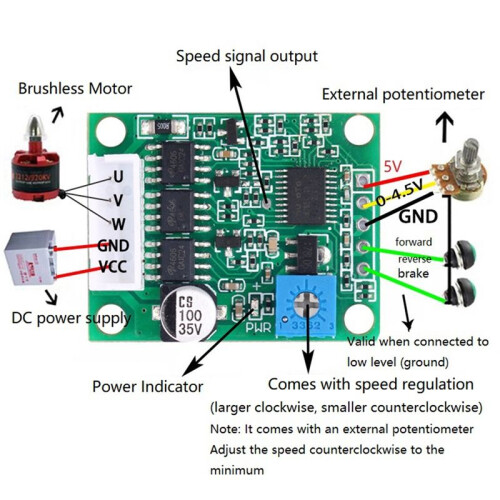

Interface Description:
1. U V W phase output is connected to the motor
2. VCC GND main power supply (external power supply)
Product parameters:
Product name: Three-phase brushless and Hallless drive
Model: X10 (no sense)
Working voltage: 6-20V (limit 5-24V)
Drive current: 3A max
Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).
Features: This driver is a low-power fan brushless driver, and it can also be embedded in other systems. It is specially used for air pumps, water pumps, oil pumps, fans, etc. and industrial control electric gadgets for small space and low-power three-phase brushless motors. Default The middle timing is not suitable for high-power motors, such as long-term full load current operation, It is recommended to add a fan for cooling.
Size: 34 x 27 x 11MM
Material: PCB
colour: Green

Package Contents:
1 x Motor Speed Controller
1 x cable
