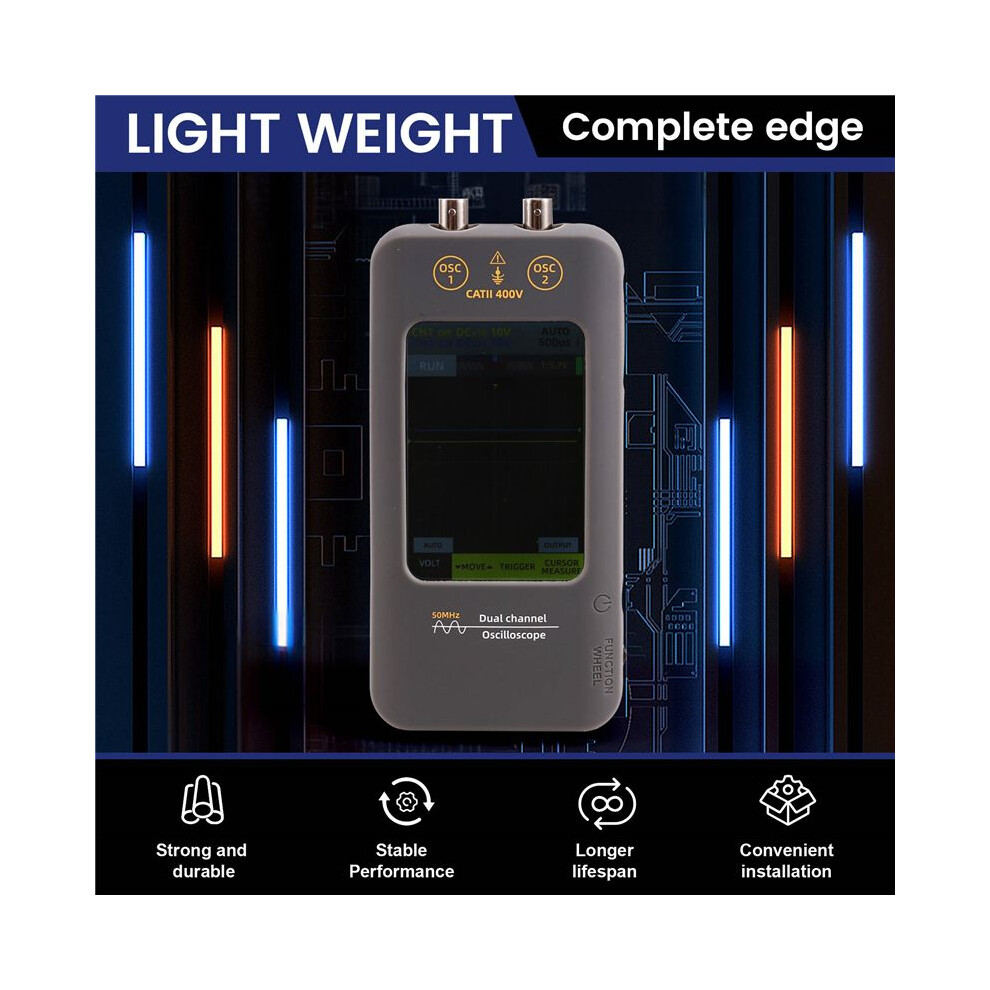

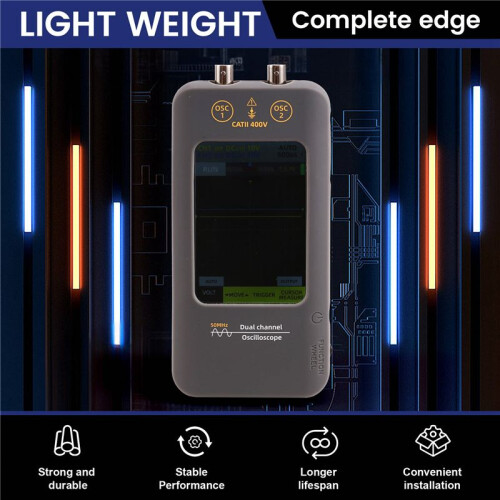

BSIDE Touch Screen Digital Oscilloscope+Signal Generator Dual Channel 50MHz Automatic Oscilloscope Tools Graphic Tester

BSIDE Touch Screen Digital Oscilloscope+Signal Generator Dual Channel 50MHz Automatic Oscilloscope Tools Graphic Tester Beskrivelse

With comprehensive functions and high practicality, targeting people in the maintenance and R&D industries.
This device has two major functions: oscilloscope and signal generator. The oscilloscope adopts FPGA+MCU+ADC hardware architecture.
It has a sampling rate of 250MS/s, an analog bandwidth of 50Mhz, a built-in high-voltage protection module, and supports a maximum voltage measurement of 400V;supports waveform screenshots. Save and view to facilitate secondary analysis.
Inside Set a DDS function signal generator, which can output 12 kinds of function signals. The maximum output of the signal generator is 2MHz, with a step of 1Hz; output frequency, amplitude, and duty cycle Adjustable.
It uses a 3.98-inch touch display and a built-in 3000mAh rechargeable lithium battery with a standby of to 7 hours.

name:Touch Screen Digital Oscilloscope
Real Sampling Rate:250MHzz
Digital Channels:2
Oscilloscope:
Channel:Dual channel.
Analog bandwidth:50MHz.
Real- sample rate:250MSa/s.
Storage depth: to 128kByte.
Input mpedance:1MΩ.
base range:10ns/div - 20s/div.
Vertical sensitivity:10mv/div - 20v/div.
base accuracy:20ppm.
Maximum measured voltage:400V.
Probe:1x/10x.
Bandwidth limitSupport 20MHz limit.
Trigger mode:AUTO/Normal/Single.
Trigger type:Rising , Falling .
Waveform display mode:XY/YT/Scroll.
Coupling method:AC/.
Measured data:Period, frequency, -to- value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width.
Math alculations:1+2,1-2,1*2,1/2,-1,-2,|1|,|2|,FFT.
Save waveform screenshot:Yes.
Export waveform images from computer:Yes.
Colour:As Shown
Material:ABS

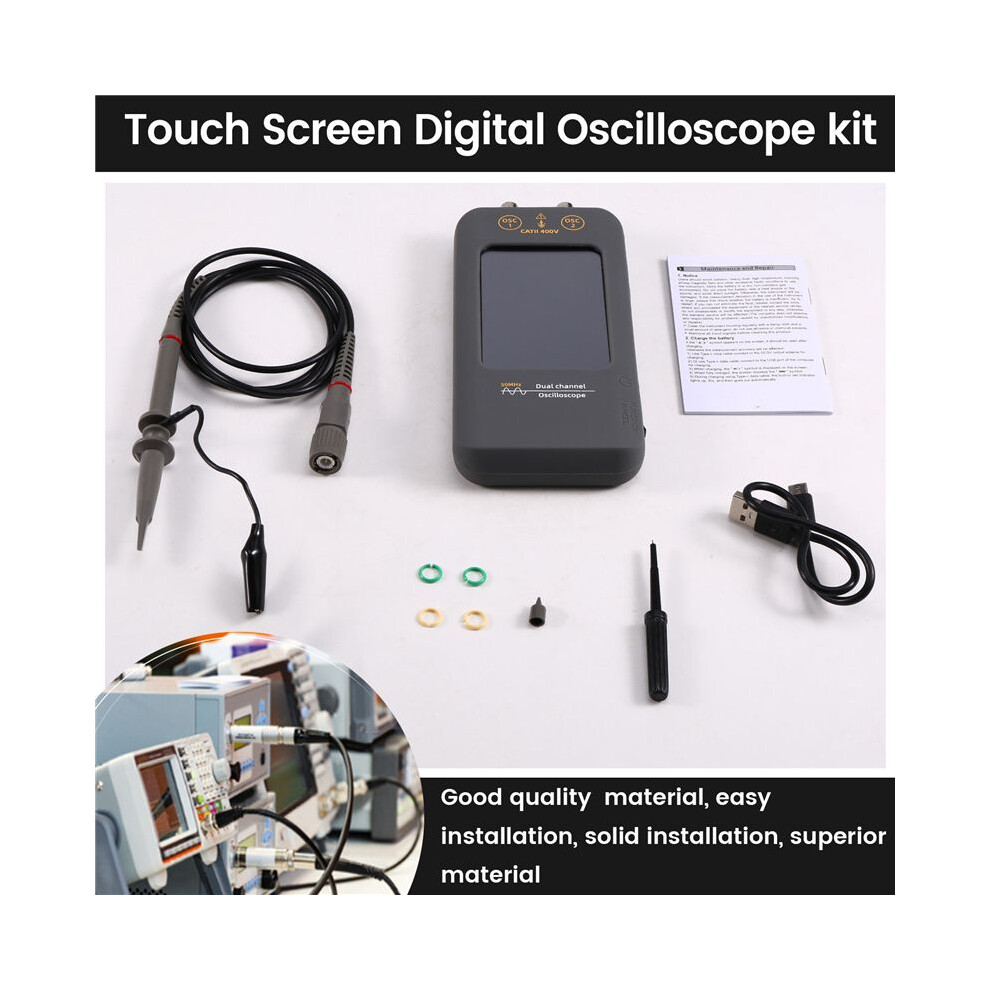

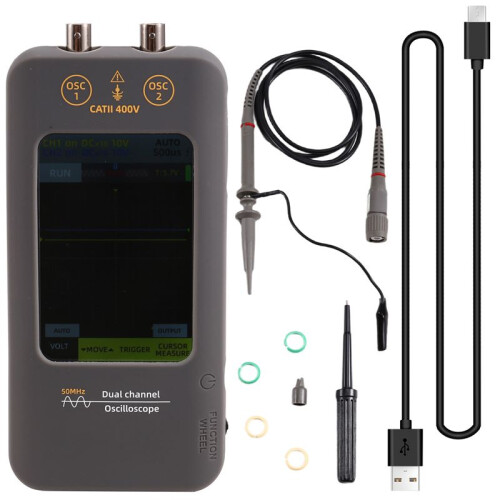

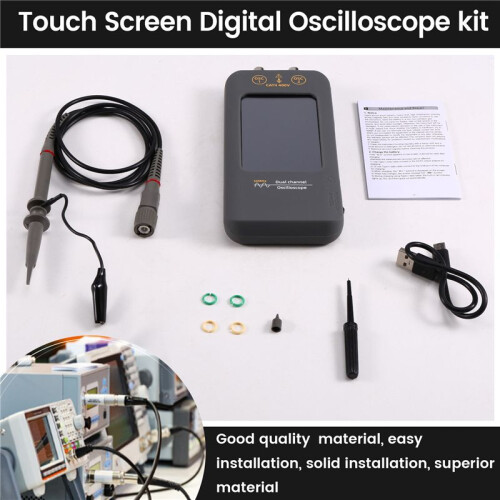

Package Contents:
1 * Touch Screen Digital Oscillo
