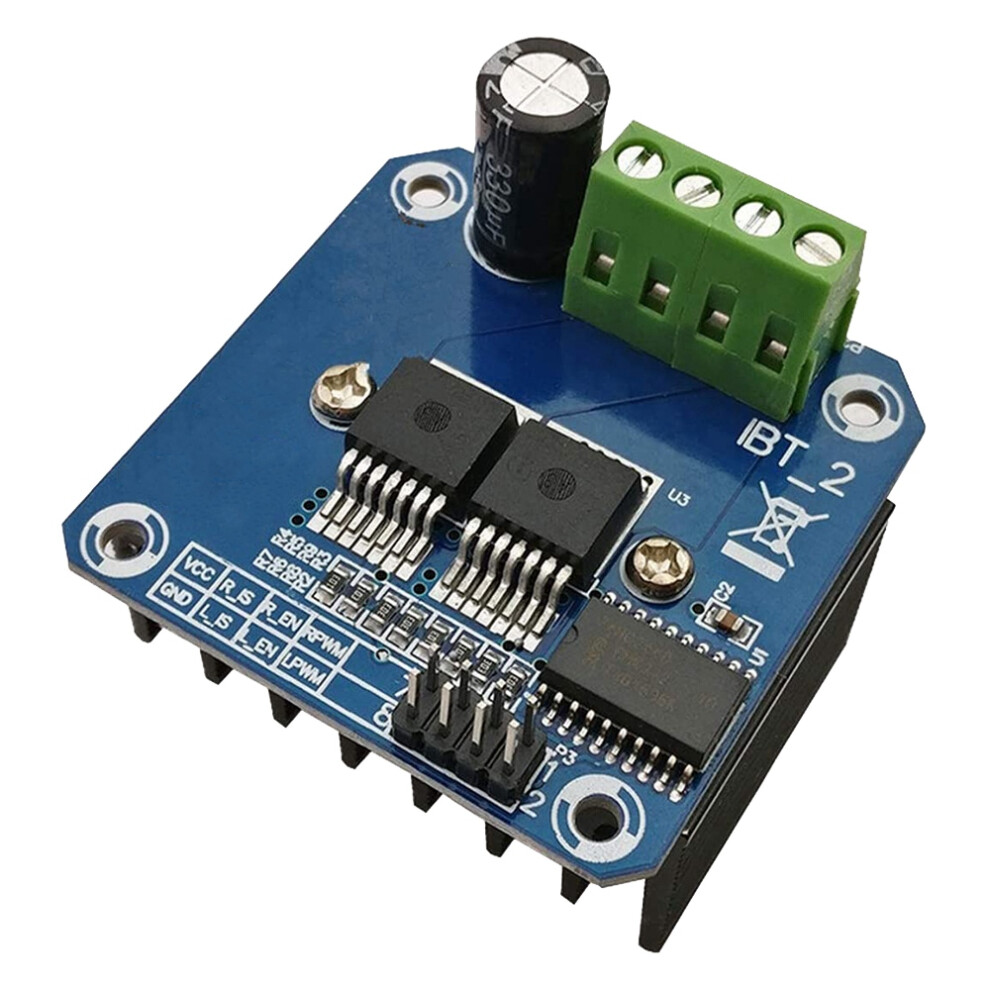

BTS7960 43A High Power Motor Driver Module/ Car Driver Module for Current Limit

BTS7960 43A High Power Motor Driver Module/ Car Driver Module for Current Limit Beskrivelse

5V isolate with MCU, and effectively protect MCU; 5V power indicator board.

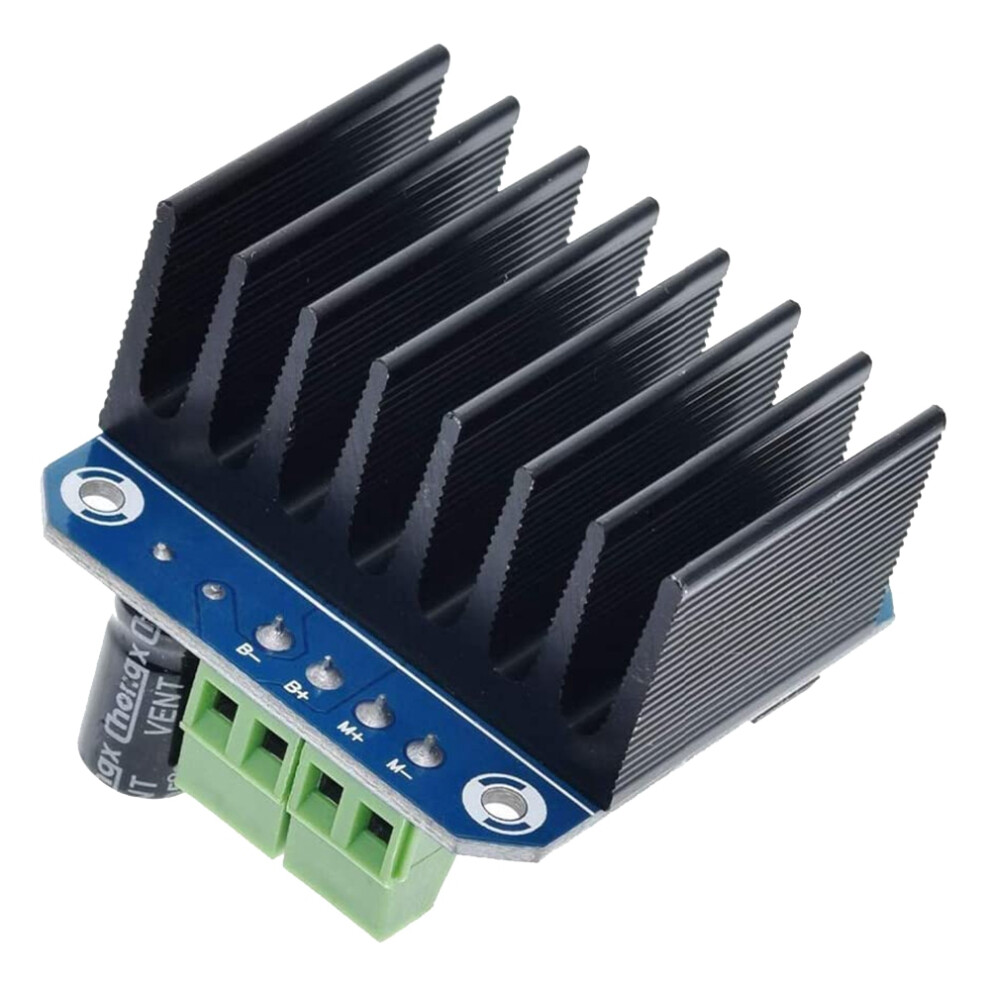

Voltage indication of motor driver output end; can solder heat sink.
Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2); isolation chip 5 V power supply (can share with MCU 5 V).
Able to reverse the motor forward, two PWM input frequency to 25kHZ; two heat flow passing through an error signal output.
Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the -board 5V supply; the supply voltage 5.5V to 27V.

Input voltage: 6V-27V
Maximum current: 43A
Input level: 3.3-5V
Control method: PWM or level
Duty cycle: 0-
Input port:
1.RPWM: forward level or PWM signal input, active high
2.LPWM: Reverse level or PWM signal input, active high
3.R_EN: forward drive enable input, high-level enable, low level off
4.L_EN: Reverse drive enable input, high-level enable, low level off
5.R_IS: forward drive current alarm output
6.L_IS: Reverse drive current alarm output
7.VCC: +5 V power output, 5V power supply connection with the microcontroller
8.GND: signal common low end
Colour:Photo Color
Material: ABS
Size: 5 x 5 x 3cm

Package Contents:
1 x Motor Driver Module
