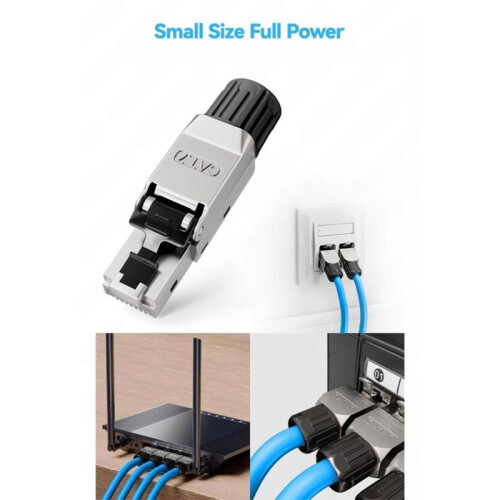

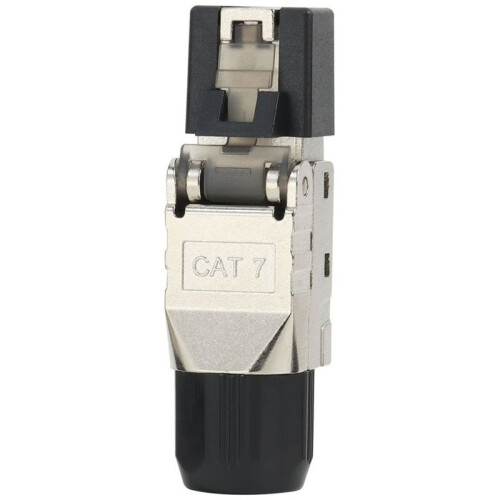

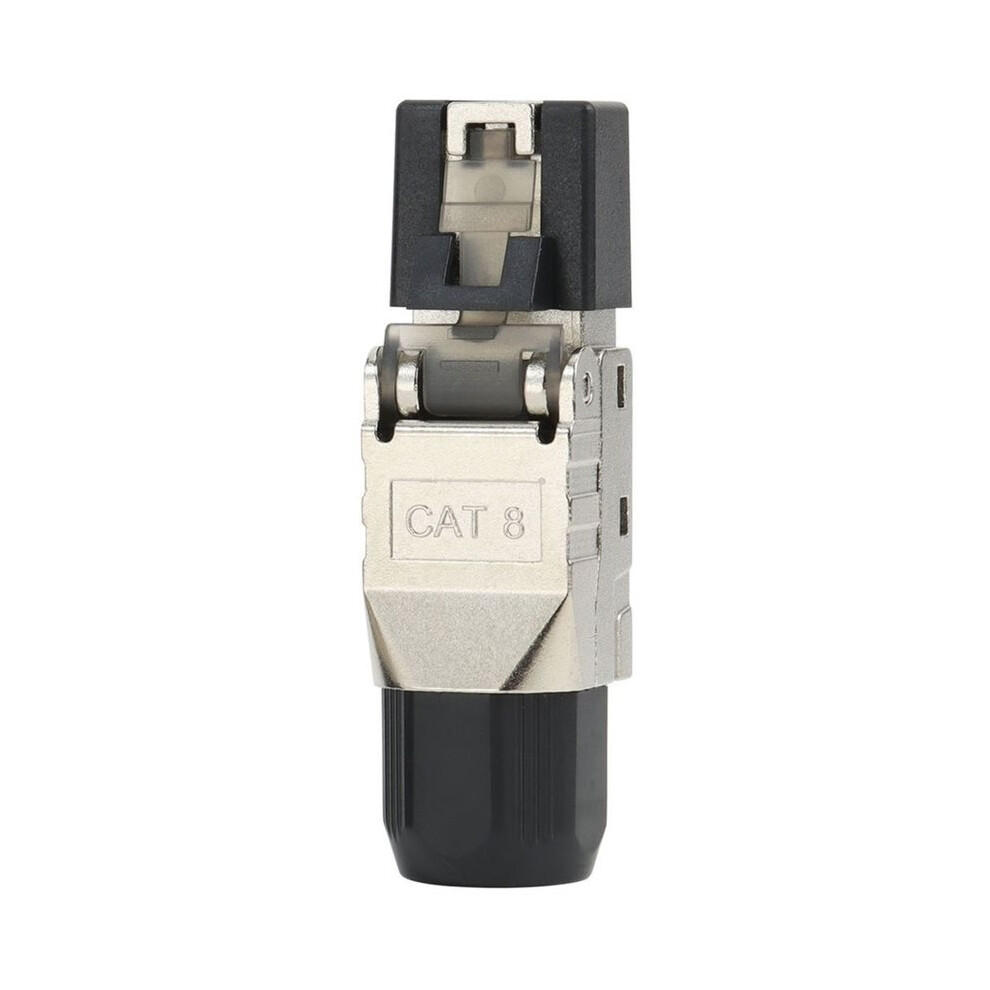

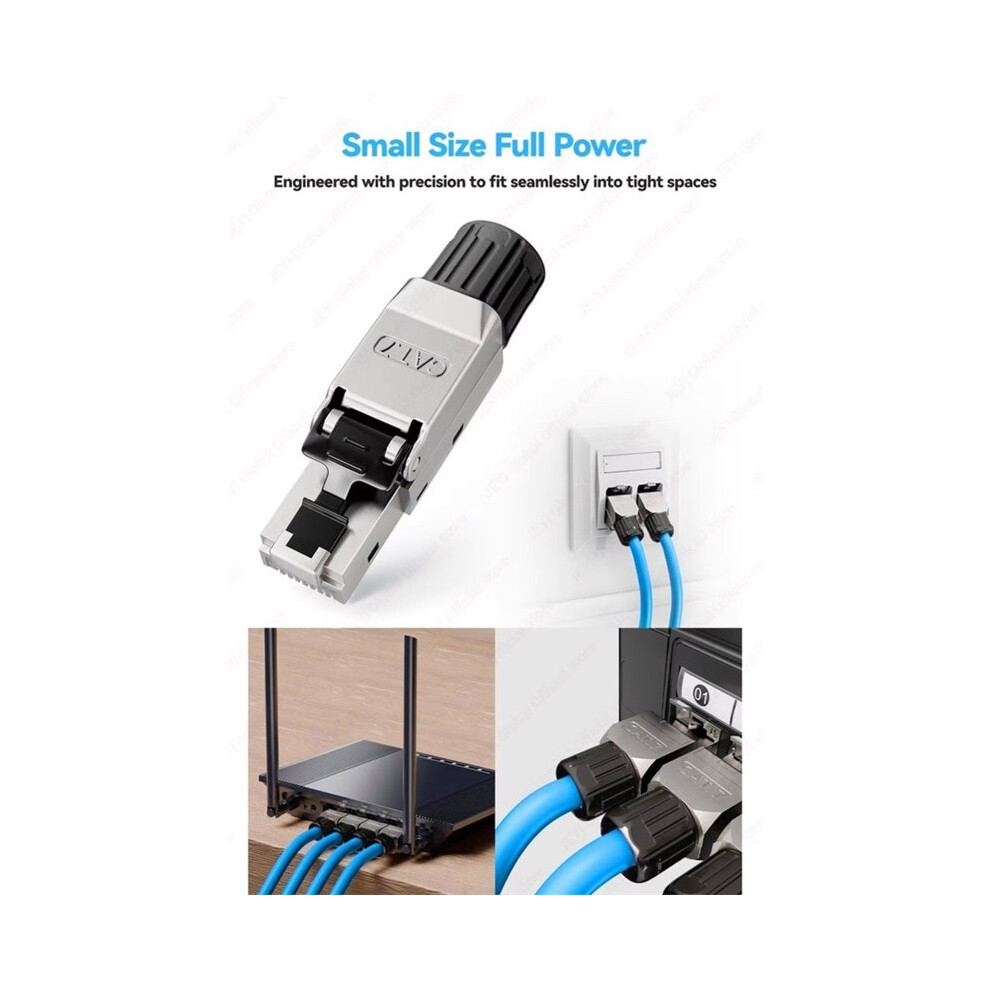

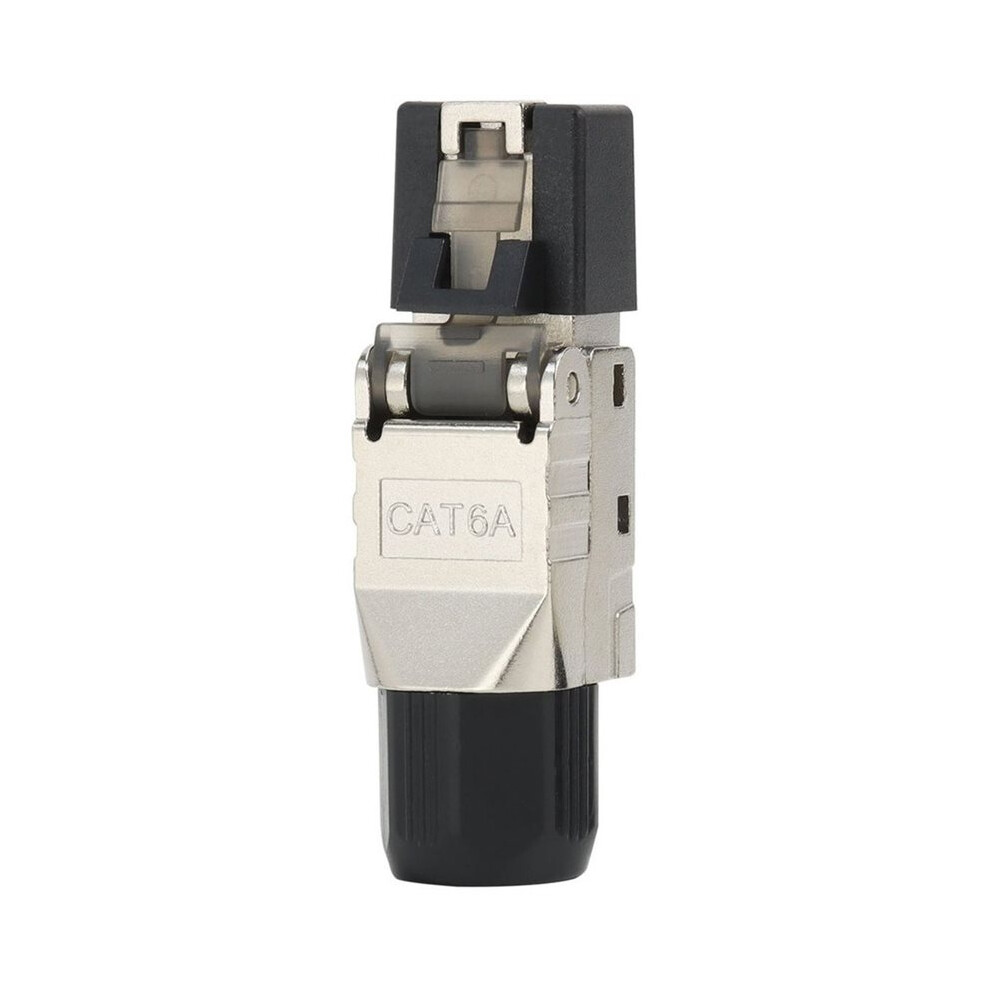

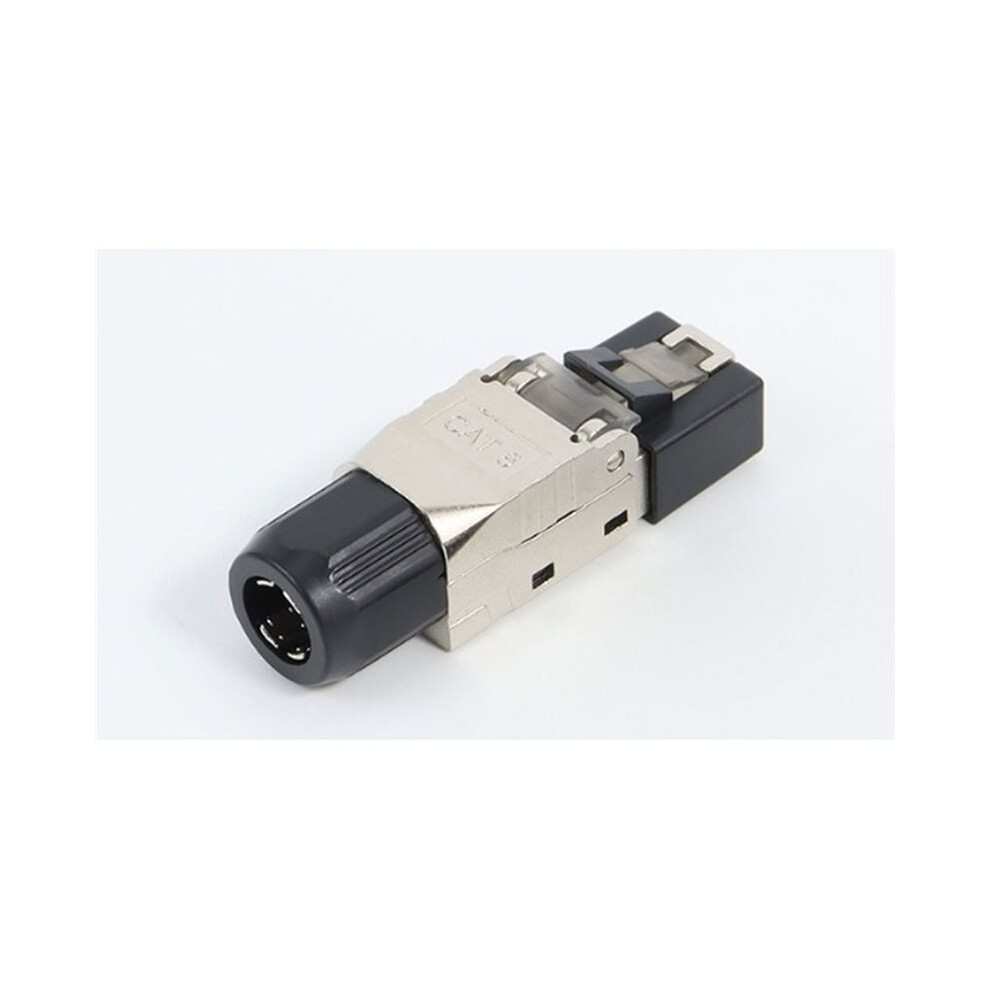

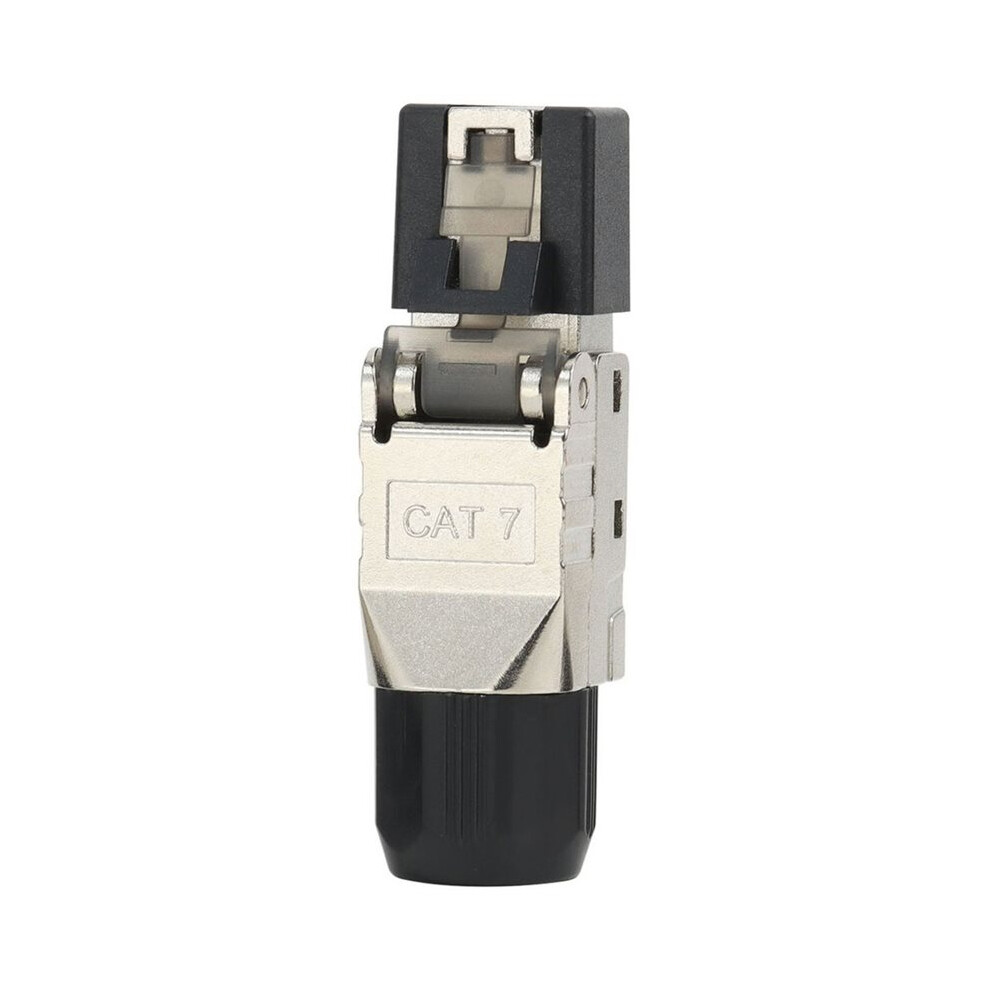

CAT8/CAT7/CAT6A RJ45 Toolless Ethernet Cable Connector Shielded Network Cable Plug for 22-24AWG STP Lan Cable C8

CAT8/CAT7/CAT6A RJ45 Toolless Ethernet Cable Connector Shielded Network Cable Plug for 22-24AWG STP Lan Cable C8 Beskrivelse

Specifications:

Data Rate: 40GBASE-T (40 Gbps) @ 30 m, backward compatible with 25G/10G
Standards: ANSI/TIA-568.2-D, ISO/IEC 11801-1, IEC 60603-7
Shielding Type: S/FTP 360 full shielding (per pair + overall shielding), nickel-plated zinc alloy housing
Gold Pins: Phosphor bronze, nickel base + 30-minute gold plating (1.27 µm)

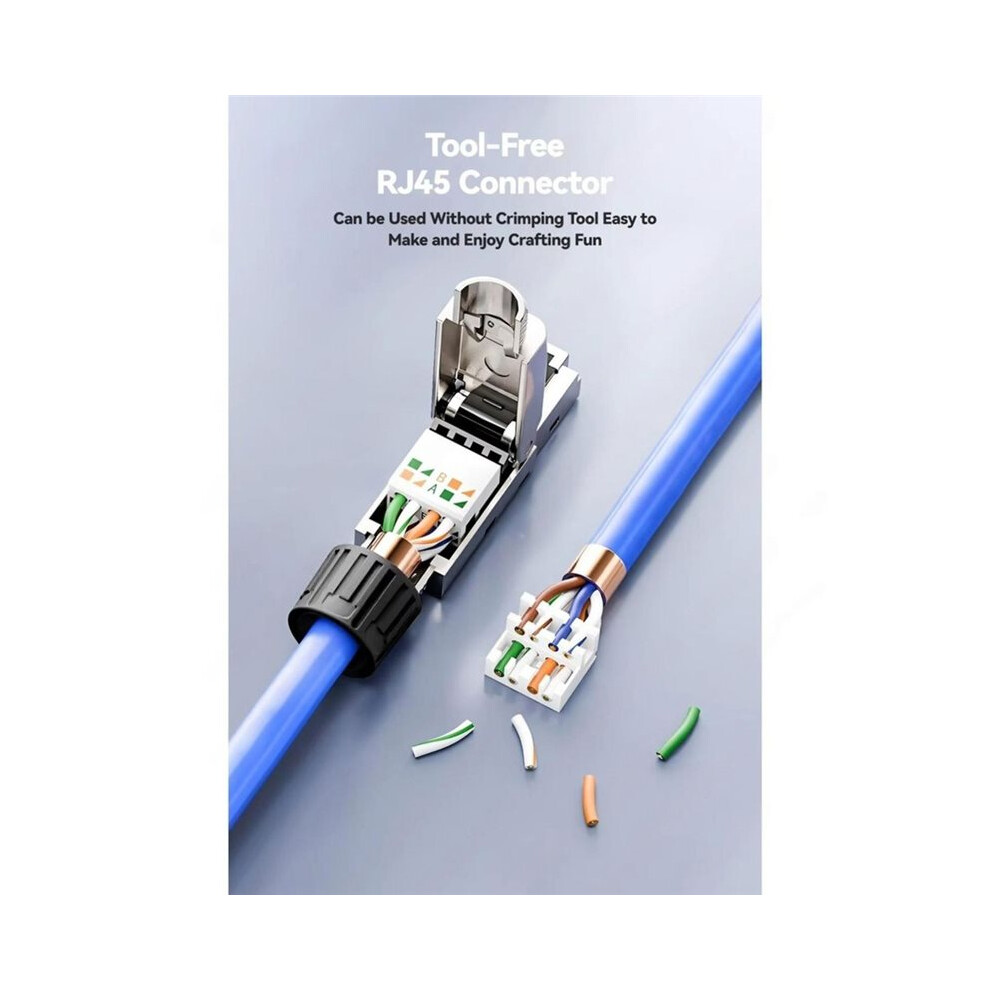

Termination: T568A/T568B compatible; tool-free or wire-crimping options available
Mating cycle: 21,200 cycles (high-end models {>} 2,500 cycles)
Connector: RJ45 8P8C
Transmission performance: 2,000 MHz
Temperature: -10C to +60C (operating); -40C to +70C (storage)
Flame Retardant/Environmental Compliance: UL94-VO, RoHS, REACH
Insulation Resistance: 500 MΩ @ 100 V (High-end: 1,000 MΩ)
Dielectric Withstand Voltage: 1,000 V AC/1 min, no breakdown, no arcing
Termination Life: IDC 2,250 cycles
Contact Resistance: 20 mΩ; Bandwidth: S2000 MHz; Rated Current: 1.5 A
Shield Continuity: 360 full shield continuity; both ends reliably grounded
IDC Terminals: Nickel-plated phosphor bronze + tin-plated; supports 22-24 AWG solid wire and 24-26 AWG stranded wire
Color: As Shown
Material: Metal
Specification: C8

Package Contents:

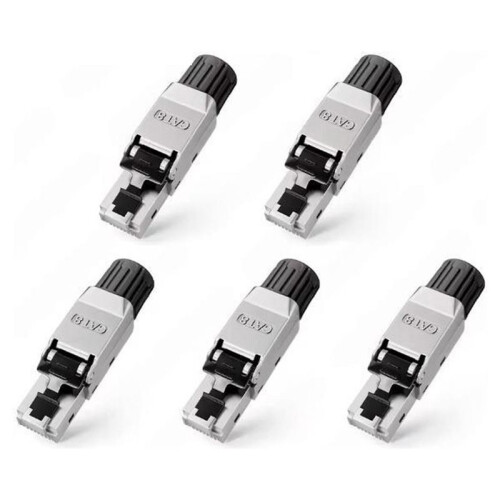

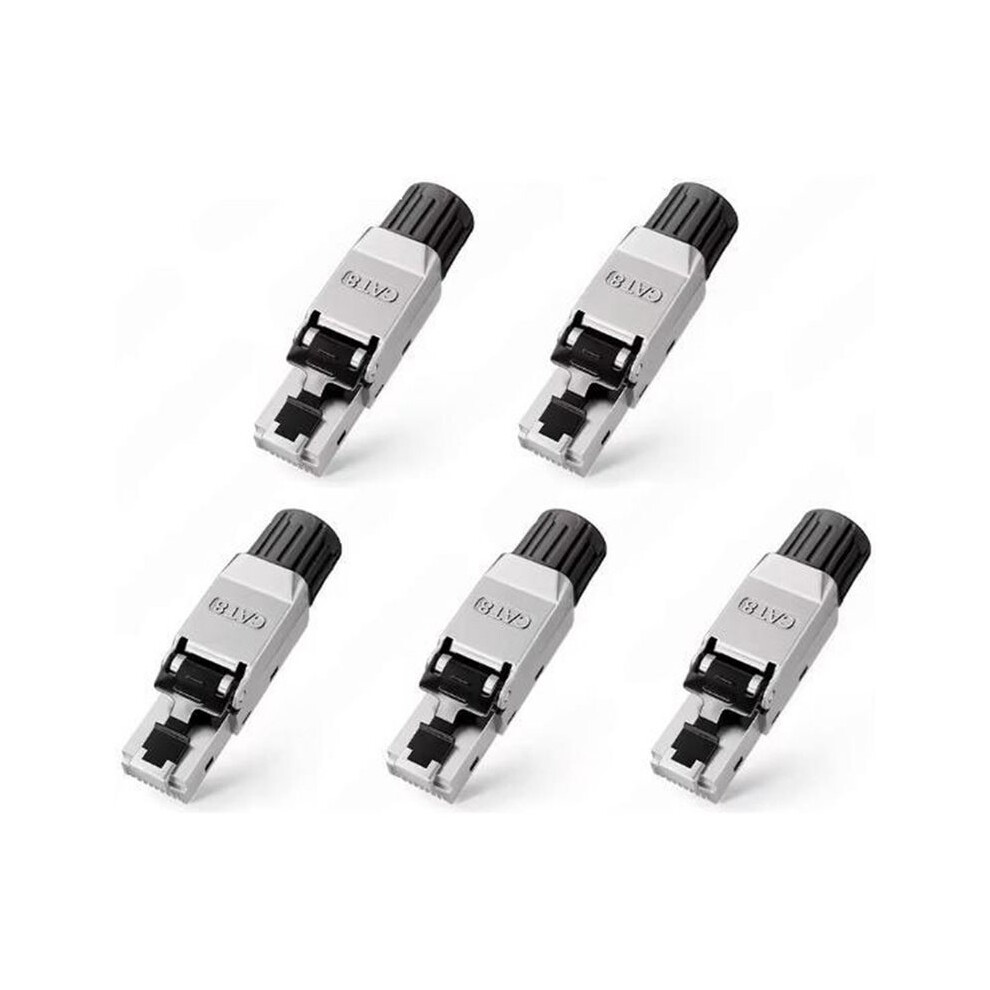

5* Network Cable Plug
