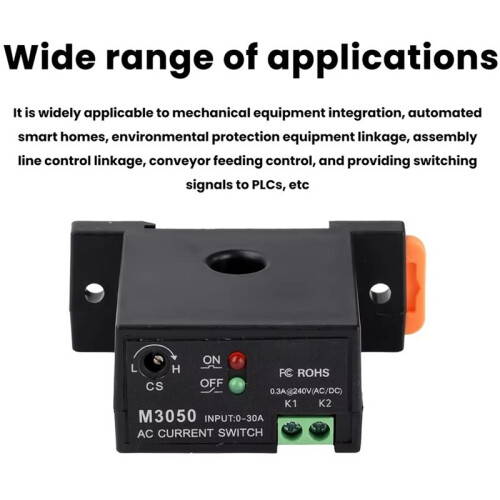

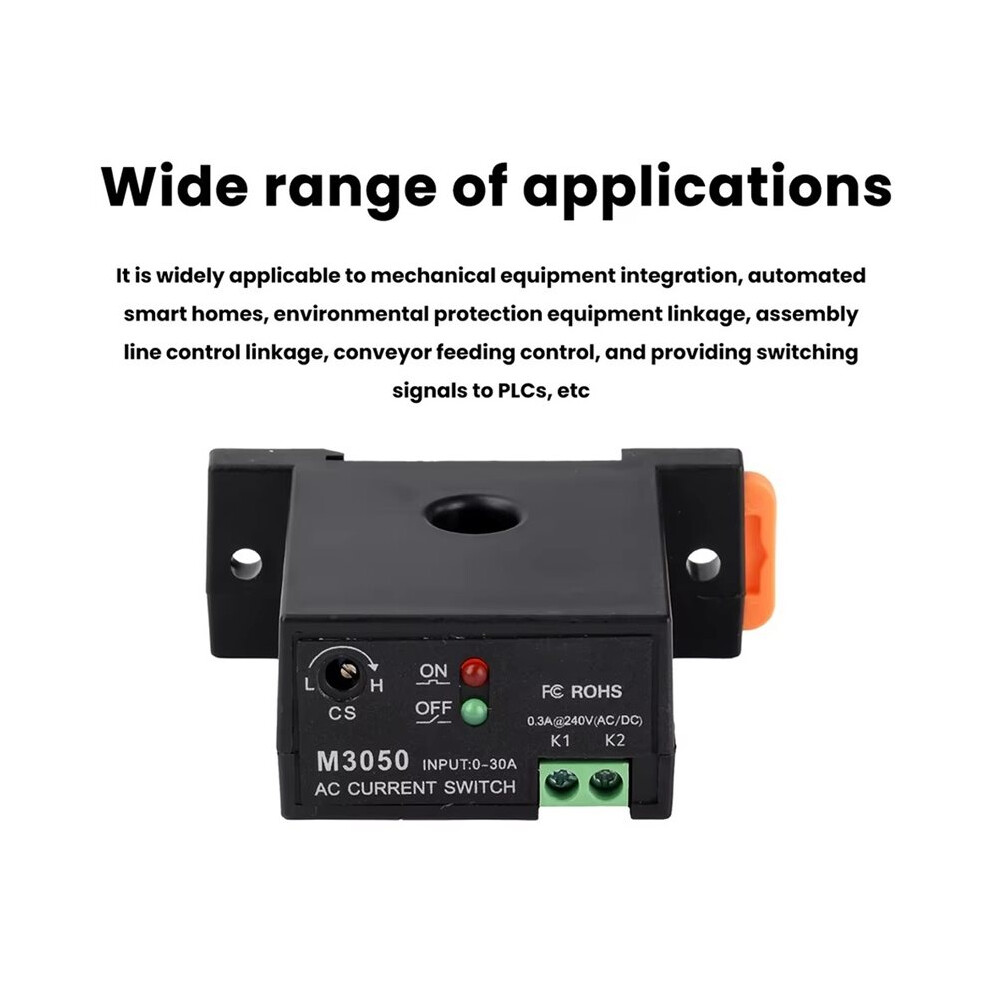

Current Sensing Current Detection Mutual Inductor AC Linkage Monitoring Sensor M3050

Current Sensing Current Detection Mutual Inductor AC Linkage Monitoring Sensor M3050 Beskrivelse

Product Features:


1. Easy to operate, self powered, dry contacts, no need for external power supply.

2. The maximum monitoring current range is 30A, and the monitoring threshold is adjustable from 0.2-30A.

3. Non contact electronic , fast response speed, unlimited switching times.

4. Mutual inductance current monitoring, input and output safety isolation, can be used in strong magnetic environments.

5. Wide application scenarios: widely applicable to mechanical equipment matching, automatic homes, environmental protection equipment linkage, assembly control linkage, conveying and feeding control, PLC signals, etc,


Product Parameters:

Optional models:

M3050 normally open (0.2A-30A)

M3056 normally closed (0.2A-30A)

Range: AC 0.2-30A

Contact capacity: AC/ 0.3A-240V

Perforation diameter: 10mm

Maximum leakage value: 0.1A

Maximum overload capacity:

Working temperature: -20-60

Lag: less than 1%
Color: As Shown
Material: plastic
Specification: M3050

Package Contents:
1*
