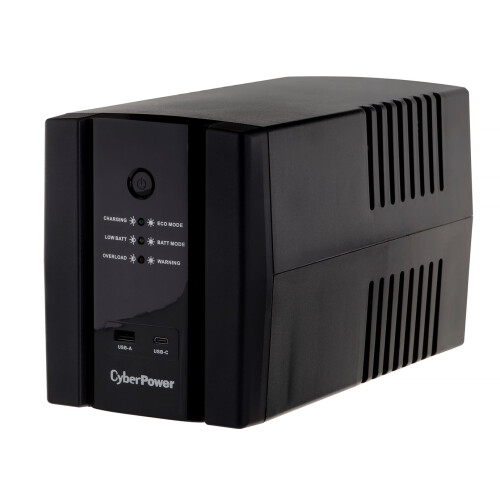

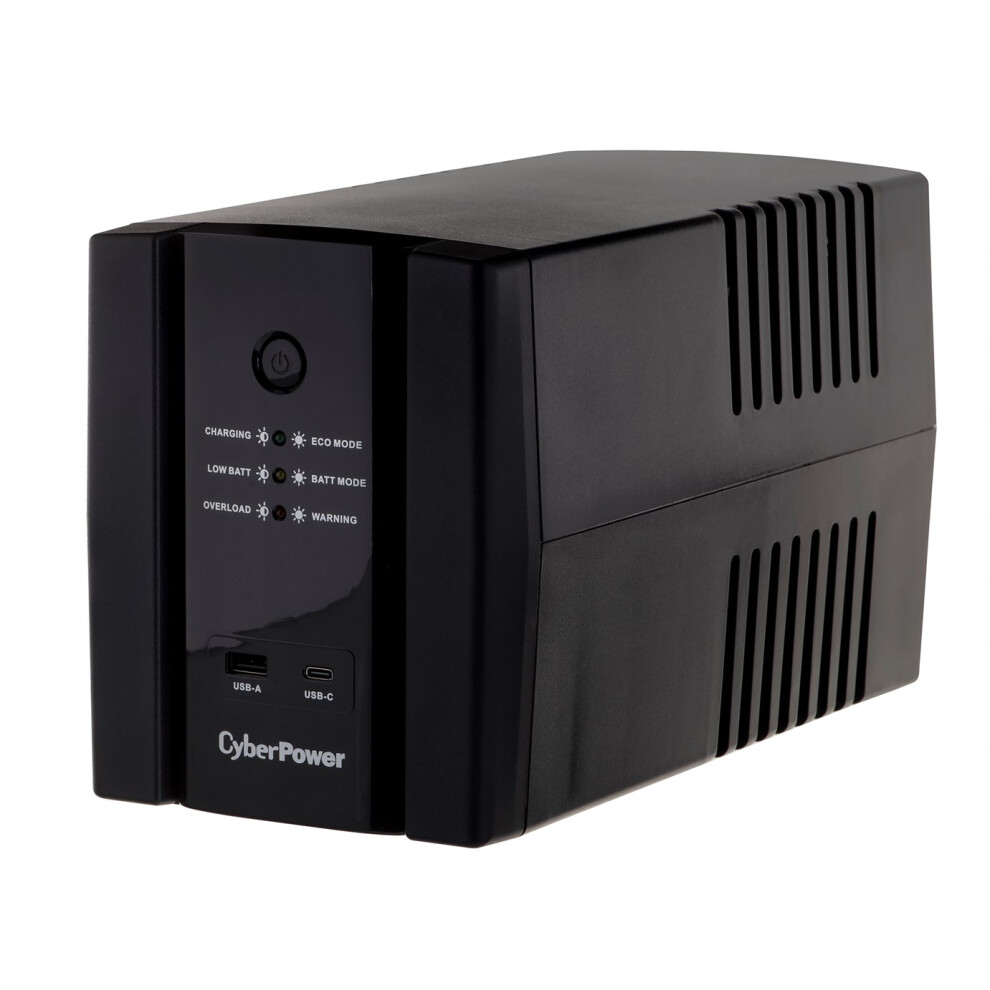

CyberPower UT2200EG-FR UPS

CyberPower UT2200EG-FR UPS Beskrivelse

Description Features UPS topology Line-Interactive Output power capacity 2.2 kVA Output power 1320 W Waveform Pseudo sine Input operation voltage (min) 167 V Input operation voltage (max) 295 V Input frequency 50/60 Hz Output operation voltage (max) 230 V Automatic Voltage Regulation (AVR) Yes Maximum current 10 A Surge energy rating 150 J Response time 4 ms Heat dissipation 34.1 BTU/h EMI/RFI noise filtering Yes Noise level 50 dB Surge protection Yes Surge protection features ModemNetworkTelephone Power protection features Overload Audible alarm(s) Yes Audible alarm modes Alarm when on battery, Fault, Low battery alarm, Overload alarm Power source type AC Number of phases 1 Ports & interfaces AC outlets quantity 4 AC outlet(s) USB port Yes USB port type USB Type A/USB Type-C Number of RJ11/RJ45 input ports 1 Number of RJ11/RJ45 output ports 1 Battery Battery technology Sealed Lead Acid (VRLA) Battery recharge time 8 h Charging current 2.1 A Charging voltage 5 V Design Form factor Tower Housing material Plastic Cable length 1.5 m Cooling type Active Product colour Black Control type Buttons LED indicators Yes Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -20 - 50 C Operating relative humidity (H-H) 0 - 90% Storage relative humidity (H-H) 0 - 90% Operating altitude 0 - 3000 m Non-operating altitude 0 - 3000 m Technical details Sustainability compliance Yes Sustainability certificates CERoHS Weight & dimensions Width 148 mm Depth 298 mm Height 178 mm Weight 10.8 kg Packaging data Manual Yes Quick installation guide Yes Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
