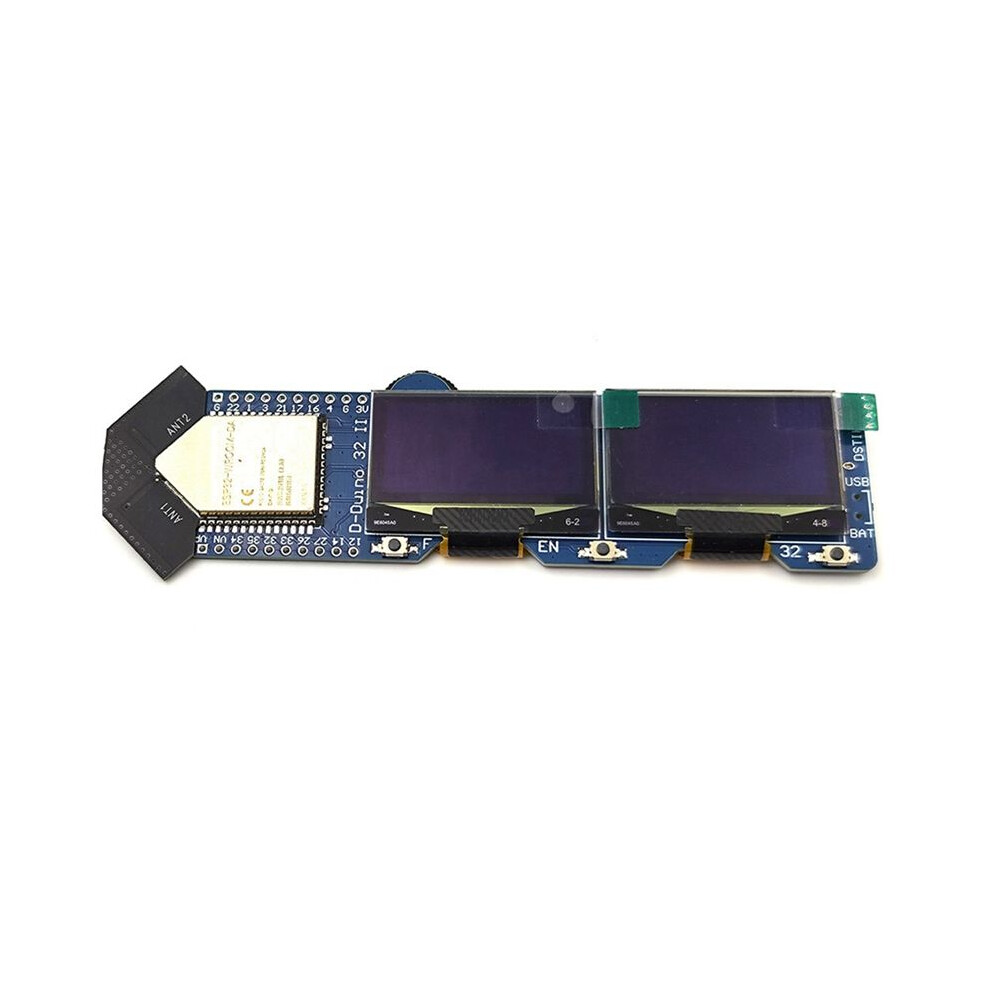

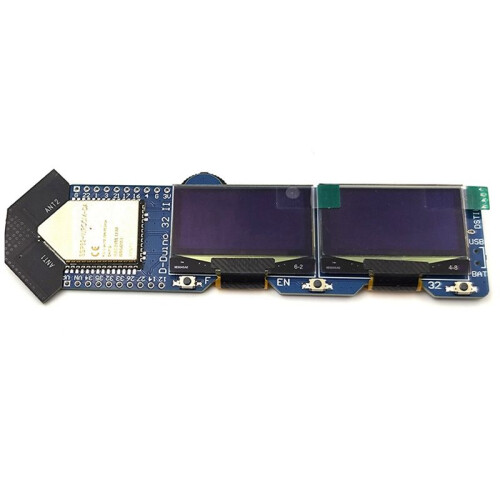

- ESP32-WROOM-DA is a powerful Wi-Fi + Bluetooth + Bluetooth LE MCU module, with two complementary PCB antennas in different directions. I customized the 16MB memory version and designed this development board around it.
- With two unique antennas design on one single module, ESP32-WROOM-DA can be used to develop IoT applications that need stable connectivity over a broad spectrum, or to deploy Wi-Fi in challenging and hazardous environments, or to overcome communication problems in Wi-Fi-dead spots. This module is an ideal choice for indoor and outdoor devices for smart home, industrial control, consumer electronics, etc.
- Equipped with a 128x64 dual OLED screen, data monitoring and interactive interface are displayed simultaneously.
- Equipped with a built-in DS3231 chip (with ±2ppm accuracy) and a MicroSD card slot, it ensures precise data recording and massive storage (supporting FAT32/exFAT formats).
- Integrated 5V/1A Type-C fast charging and lithium battery management (charge and discharge efficiency ≥ 85%), independent power module supports 5-12V wide voltage input, ensuring no power interruption for outdoor projects.
D-Duino-32 II Dual Screen ESP32-WROOM-da Development Board Wi-Fi + + LE MCU Module for Home Beskrivelse
ESP32-WROOM-DA is a powerful Wi-Fi + + LE MCU module, with two complementary PCB antennas in different directions. I customized the 16MB memory version and designed this development board around it.
With two unique antennas design one single module, ESP32-WROOM-DA can be used to develop IoT applications that need stable connectivity over a broad spectrum, or to deploy Wi-Fi in challenging and hazardous environments, or to overcome communication problems in Wi-Fi-dead spots. This module is an ideal choice for indoor and outdoor devices for home, industrial control, consumer electronics, etc.
Equipped with a 128x64 dual OLED screen, data monitoring and interactive interface are displayed simultaneously.
Equipped with a built-in DS3231 chip (with 2ppm accuracy) and a MicroSD card slot, it ensures precise data recording and massive storage (supporting FAT32/exFAT formats).
Integrated 5V/1A Type-C fast charging and lithium battery management (charge and discharge efficiency 85%), independent power module supports 5-12V wide voltage input, ensuring no power interruption for outdoor projects.
The 17 GPIO pins can be connected to various sensors, and it is compatible with for the /PlatformIO ecosystem.
There are schematic diagrams, test source codes, etc. in the card. Please back the contents of the card in advance.
GPIOs and hardware info
Diplay: SH1106 1.3 OLED (0x3D,0x3C)
Display SDA: GPIO21
Display SCL: GPIO22
Rotary LEFT: GPIO 15
Rotary PRESS: GPIO 13
Rotary RIGHT: GPIO 0
Press button: GPIO 32
CS:GPIO5
MOSI:GPIO23
MISO:GPIO19
SCLK:GPIO18
DS3231 RTC chip
Power/Programming
2 LEDs to indicate battery charging status (Red:Charging,Green:Full)
Color:
Material: PCB+C
Detaljer
| OPC | PSDRD5M |
|---|---|
| Koder | 4712589499309 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 15cm |
| Weight | 0.0415kg |
| Colour | Blue |
| Material | PCB+Components |
