Digital Load Cell Weight Sensor,8Sets 5KG Load Cell HX711 AD Weighit Amplifier Module Pressure Sensor Ar Duino Load Cell

Digital Load Cell Weight Sensor,8Sets 5KG Load Cell HX711 AD Weighit Amplifier Module Pressure Sensor Ar Duino Load Cell Beskrivelse

Simple operation: the maximum measuring force of the load cell: 5kg (11lb), four leads, easy to use, add 5-10V driving voltage, the force change is directly output as a voltage signal

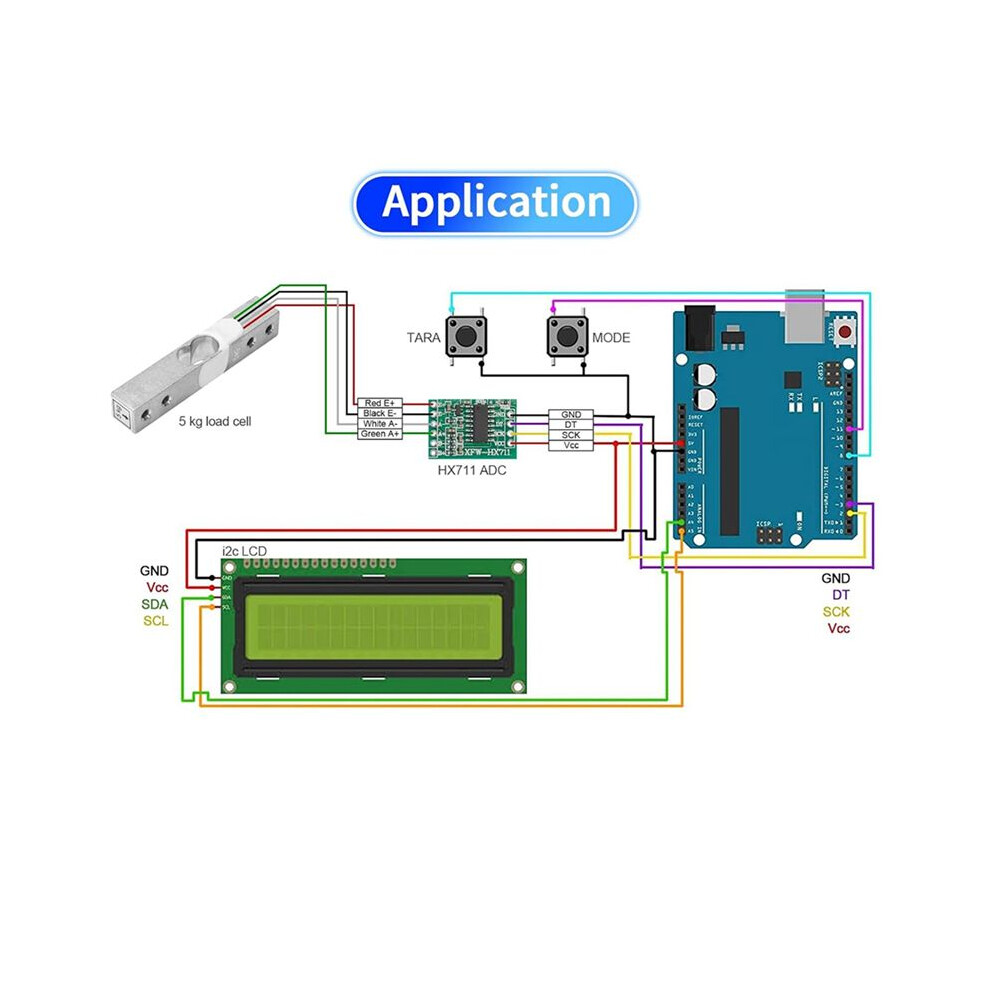

Wiring method: power positive (E+) red, power negative (E-) black, signal positive (S+) green, signal negative (S-) white
The HX711 module adopts a 24-bit high-precision A/D conversion chip hx711; HX711 is an internal integrated 128-fold programmable gain amplifier with two analog input channels designed for high-precision electronic scales
Precautions: One end of the sensor is fixed through the screw hole, and the other end is kept in a suspended state, and gravity is applied in the direction indicated by the label. Special attention must be paid not to directly press the white glue-coated part, so as not to damage the sensor Simple digital control and serial interface: pin drive control, no programming required, selectable 10SPS or 80SPS output data rate.

LOAD CELL - Rugged aluminum alloy construction with strain
The labels are random,the appearance and color are random, don't accept the specified
Please note: the physical slightly color difference or difference, does not affect the use, please do not mind, thank you!
Colour:Photo Color
Material:Metal

Package Contents:
8set x Digital Load Cell Weight Sensor
