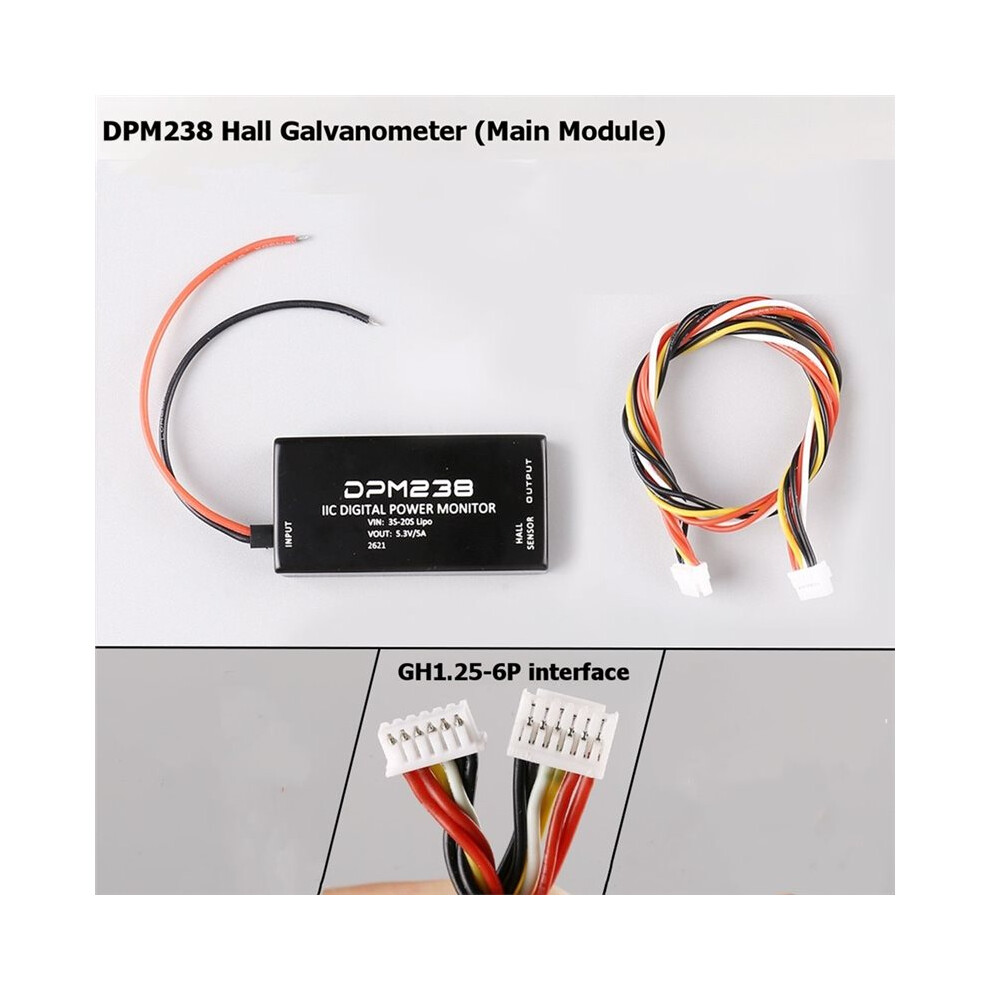

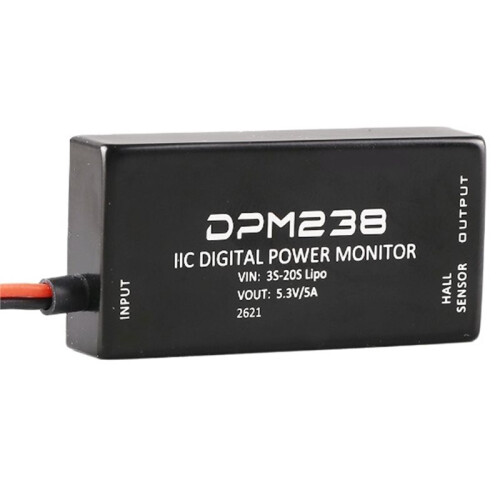

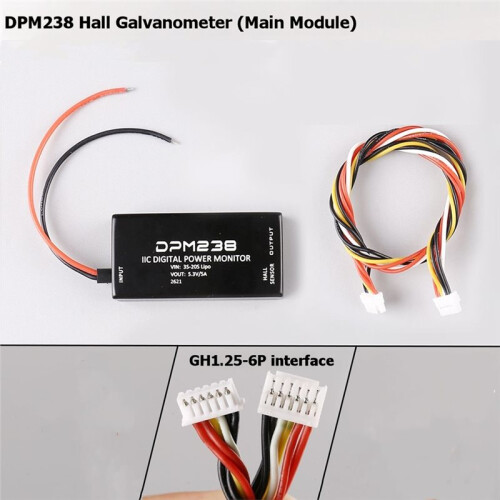

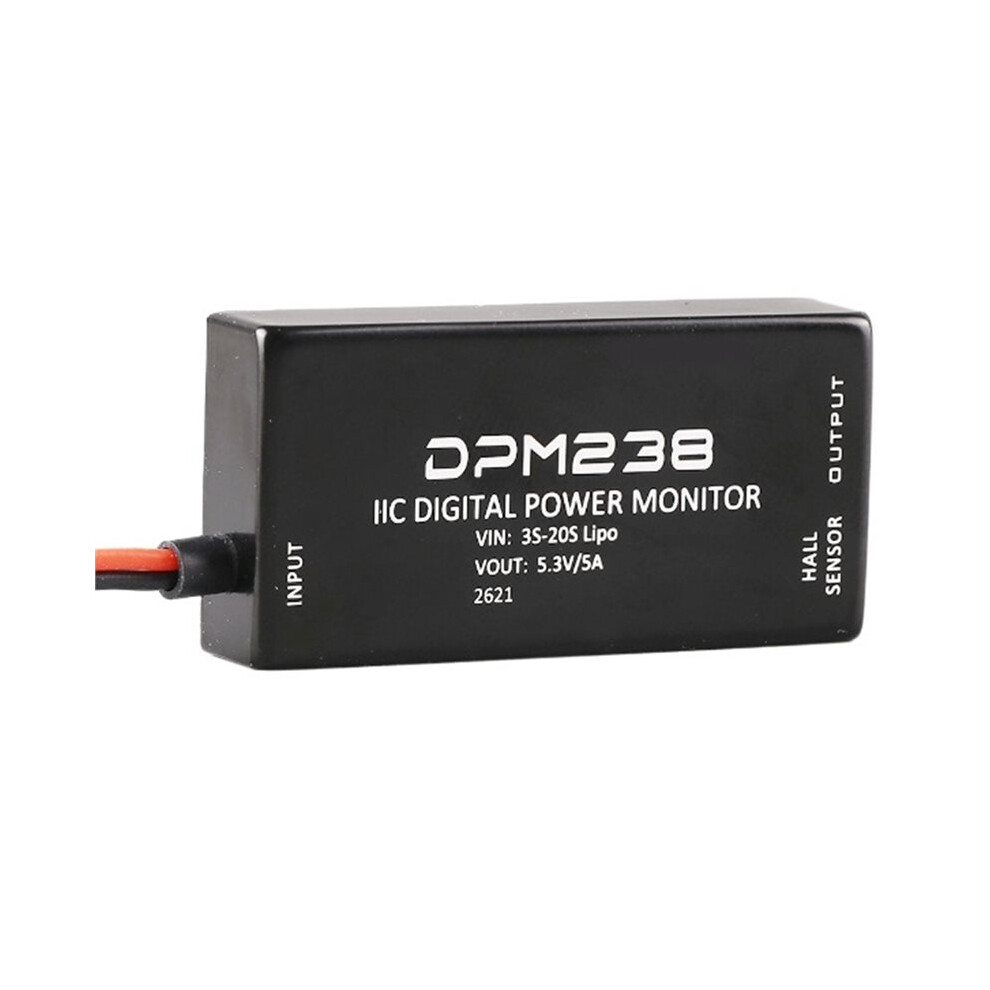

DPM238 Digital I2C Hall Current Sensor GH1.25-6P 300A High Voltage 12S Power Meter Compatible for PIXHAWK PX4

DPM238 Digital I2C Hall Current Sensor GH1.25-6P 300A High Voltage 12S Power Meter Compatible for PIXHAWK PX4 Beskrivelse

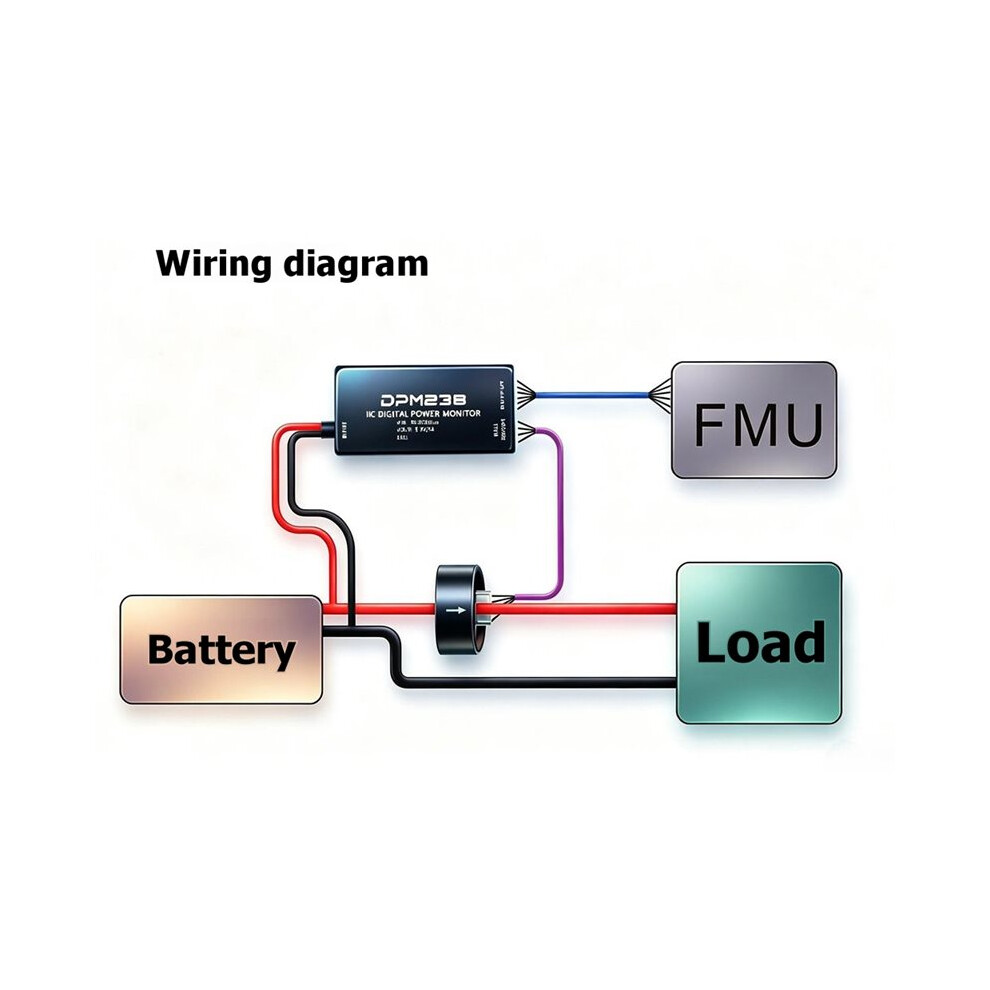

This module integrates - step-down power supply, ADC acquisition, UART Hall current data conversion and other functions. It outputs data via I2C interface and can be used as a precision digital current meter for FMU.The ADC measures VBUS voltage at the power input and internal module temperature.

Specifications

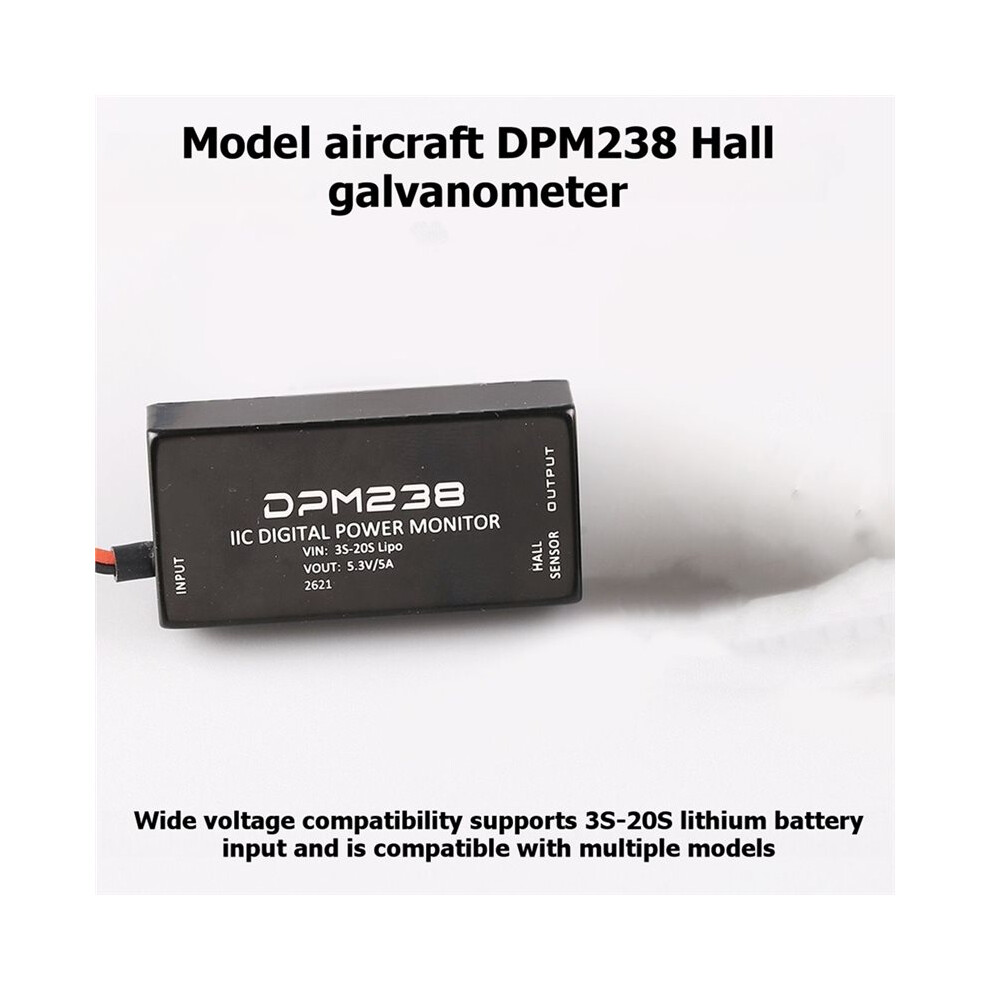

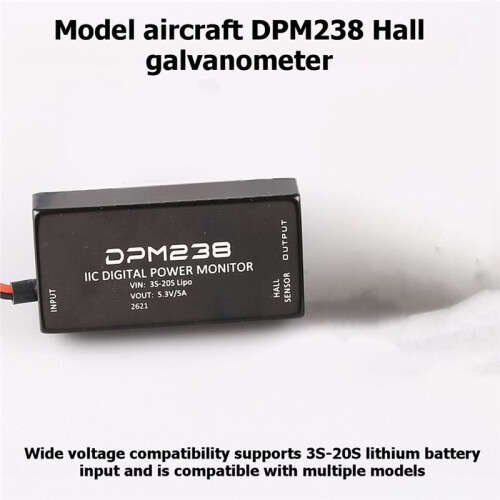

Input Voltage: 11V-85V (3S-20S LiPo Battery)
Regulated Output: 5.3V
Output Current: 5A
Voltage Data Output: 0.003125V/LSB (16bit), Max. 85V
Current Data Output: 0.01A/LSB (16bit), Max. 327.68A
Power Data Output: 0.002W/LSB (24bit)
Temperature Data Output: 0.0078125/LSB (16bit)
400KHz High-speed I2C interface; programmable custom slave address, default 7bit slave address: 0x40

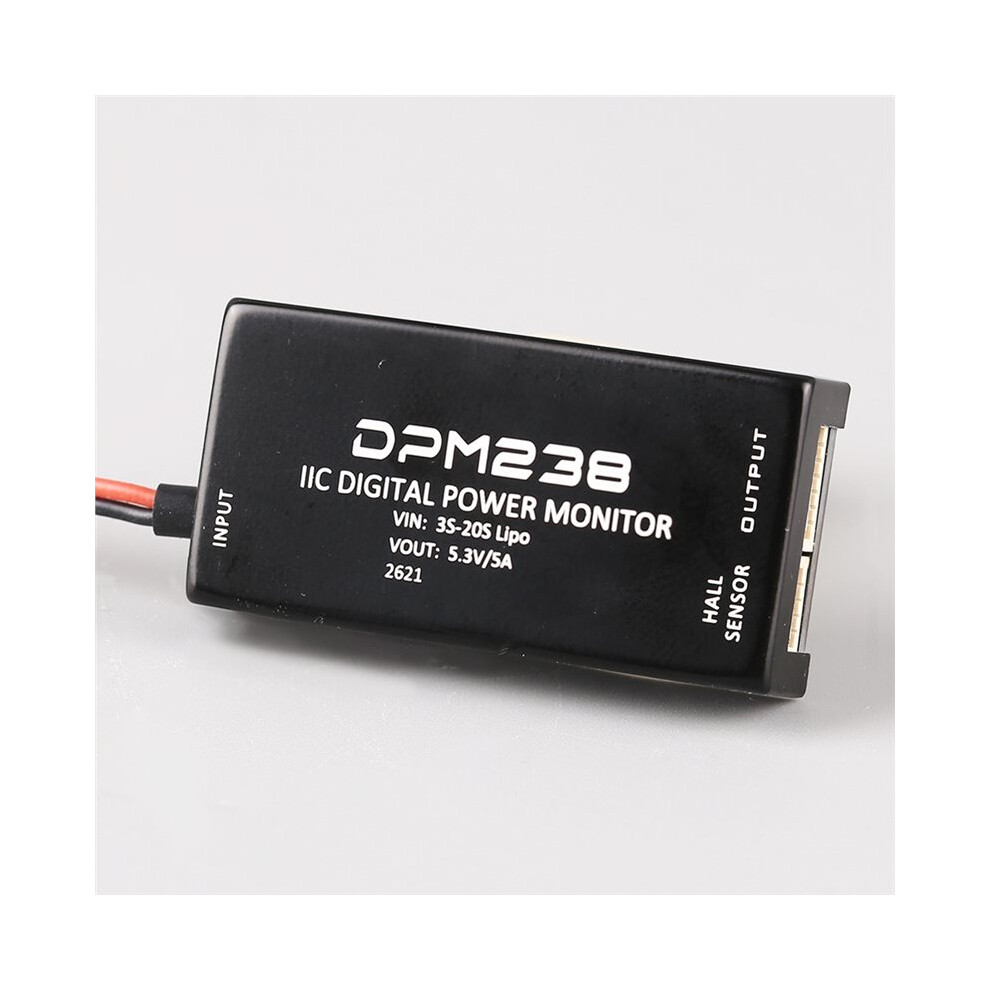

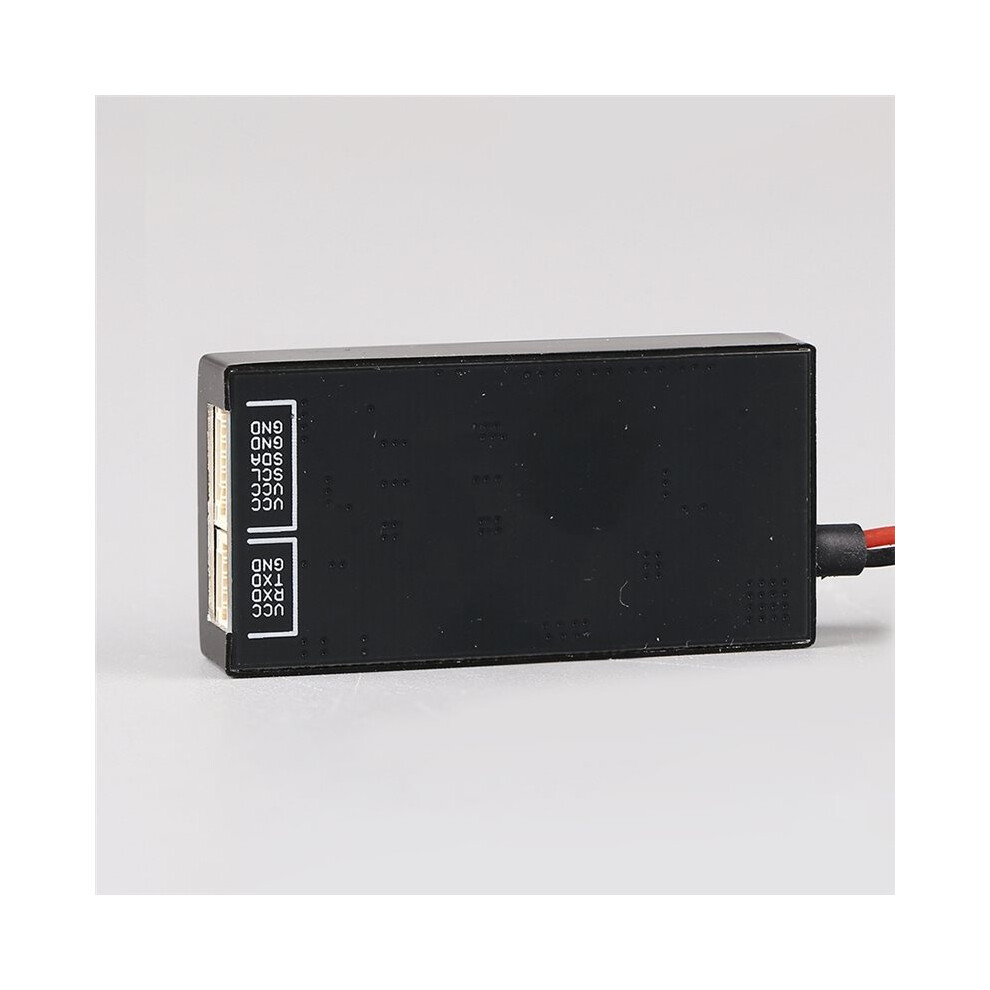

Interfaces
1 x I2C Port: Power supply and data communication for FMU
1 x UART Port: Connect external Hall sensor for current reading and modify local I2C slave address
I2C interface level 3.3V,UART logic level supports 3.3V & 5V
Color: Black
Material: plastic

Package Contents:
1*DPM238 Sensor
