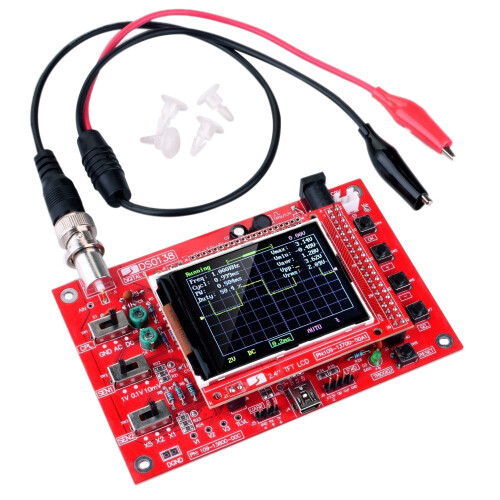

DSO138 Oscilloscope Digital Assembled TFT with Probe Alligator Test Clip for ARM Detection Development Board

DSO138 Oscilloscope Digital Assembled TFT with Probe Alligator Test Clip for ARM Detection Development Board Beskrivelse

This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
Can be secondary development the basis of this kit, for example, it can be changed to Millivoltmeter,
With automatic, regular and one-shot modes, easy to capture the moment waveform.
Comes 1Hz /3.3V square wave test signal source.
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./-

Maximum real- sampling rate: 1Msps
Accuracy: 12Bit
Sample buffer depth: 1024 bytes
Analog Bandwidth: 0 - 200KHz
Vertical Sensitivity: 10mV/Div - 5V/Div (in 1-2-5 increments)
Adjustable vertical displacement with indication
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling methods include /AC/GND
Horizontal base range: 10μs/Div - 50s/Div (in 1-2-5 increments)
With automatic, conventional and single trigger modes, it is convenient to capture instantaneous waveforms
Trigger with rising or falling
Adjustable trigger level position with indication
Waveform before trigger can be observed (negative delay)
Waveform display can be freeze at any (HOLD function)
Comes with 1KHz /3.3V square wave test signal source
Digital display with waveform parameters, the parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, -to- value, RMS
Save/recall the waveform, the waveform does not disappear when power off
Colour:Red
Material:ABS
Size:18 x 12.5 x 3cm

Package Contents:
1 * DSO138 DIY Digital Oscilloscope Kit
1 * Probe
