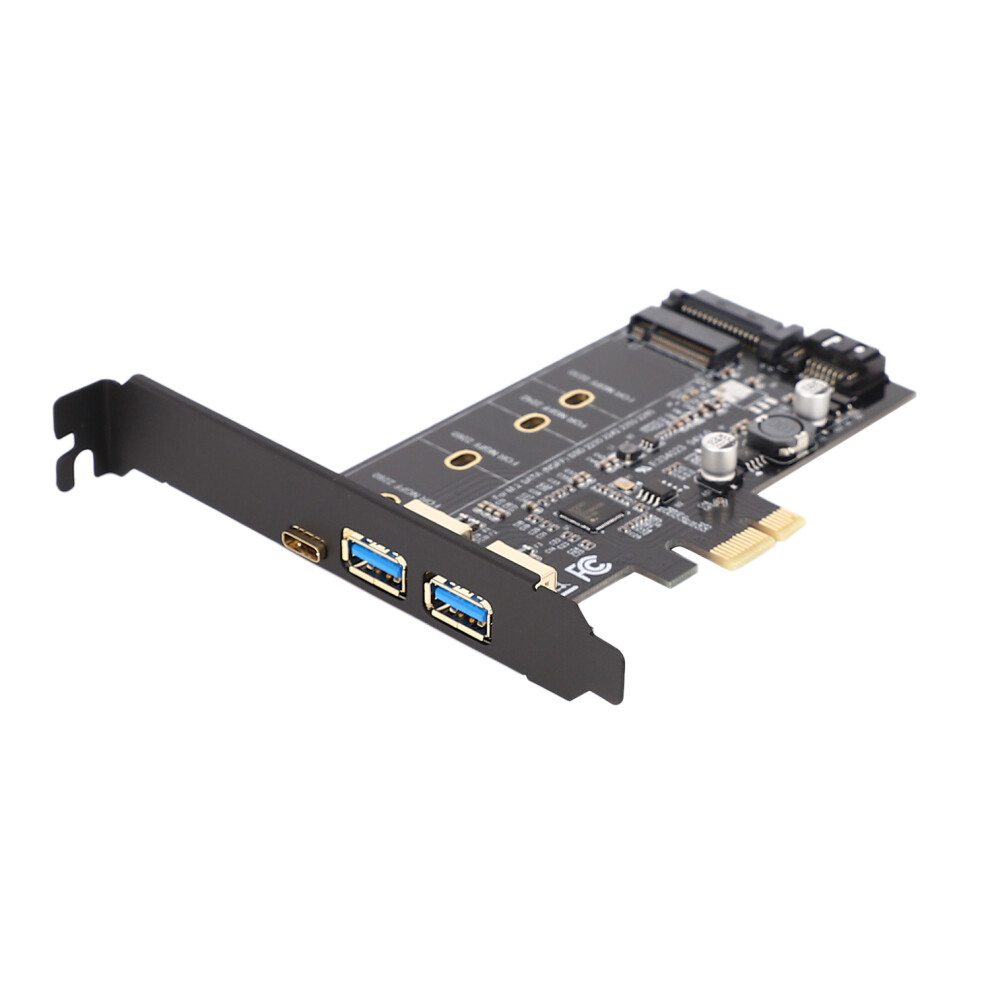

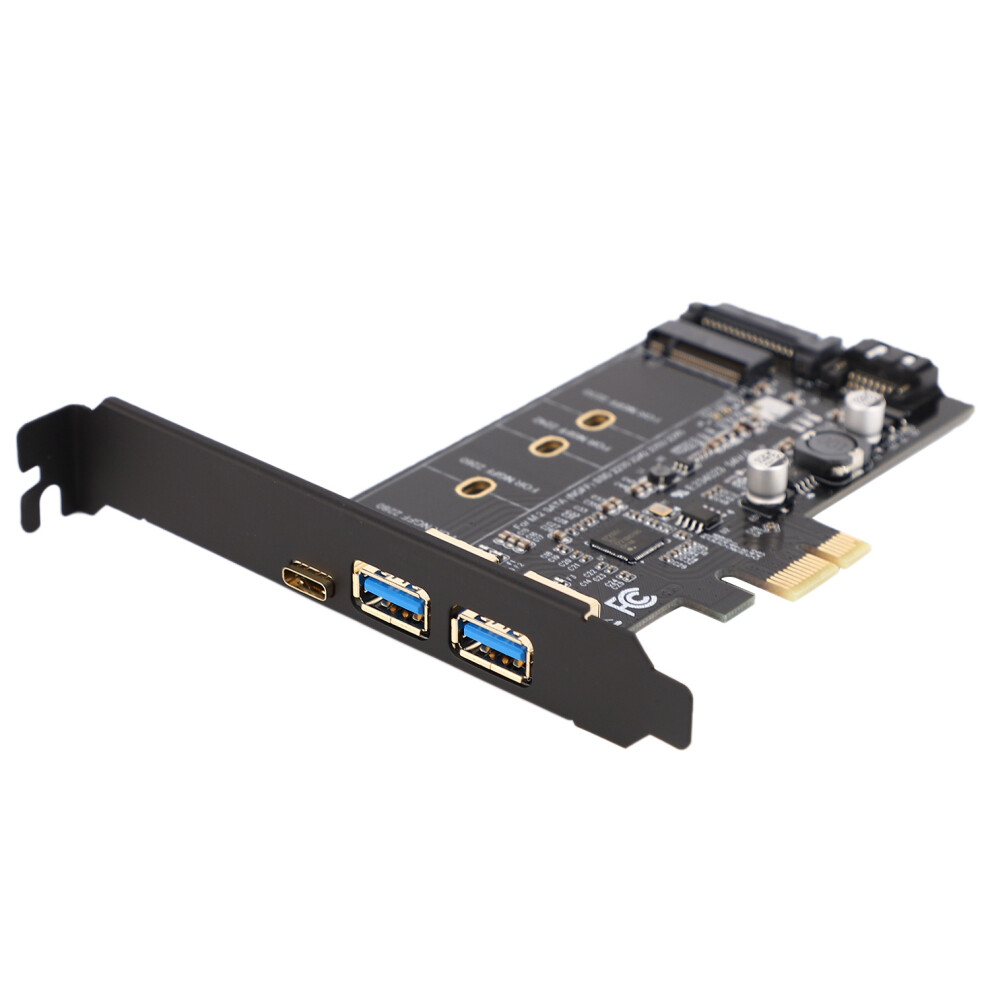

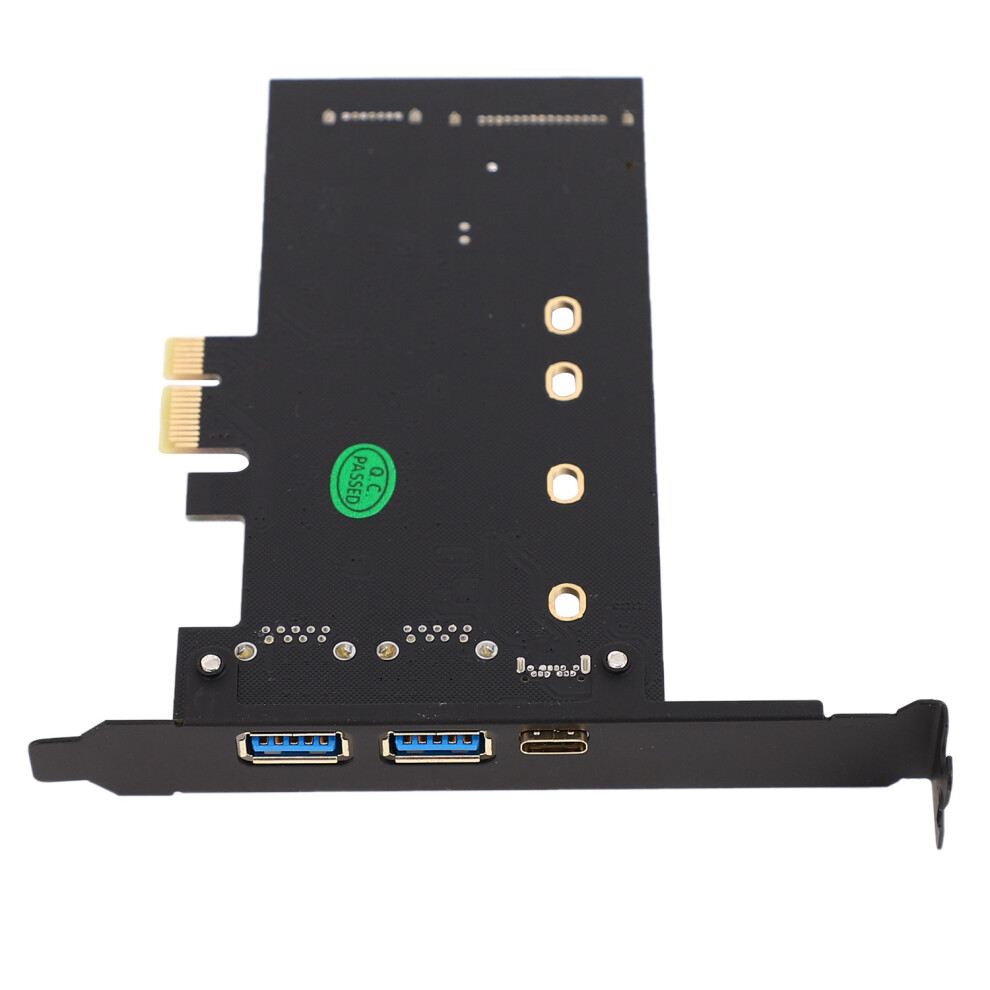

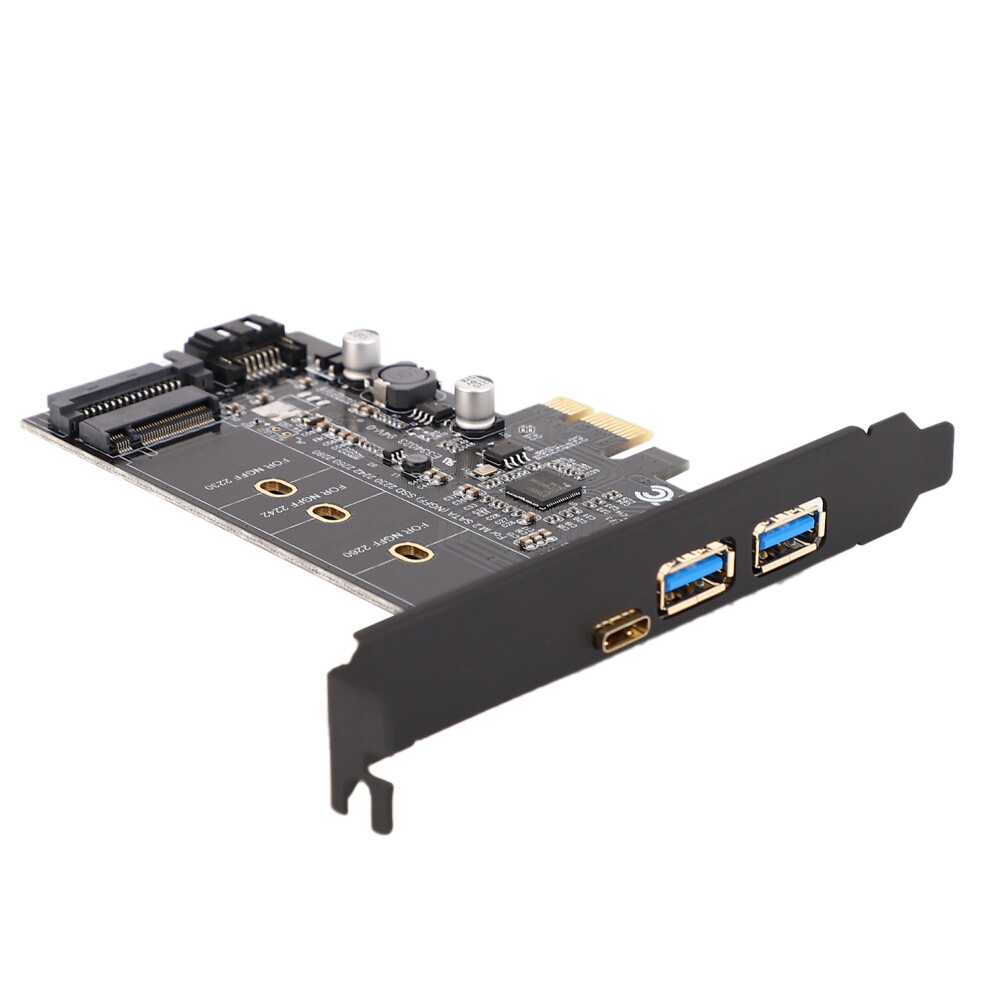

Dual USB3.0 & Type-C M.2 PCIe Adapter M2 SSD B Key to PCI-E Controller Converter Riser Card for 2280 2260 2242 2230 NGFF

Dual USB3.0 & Type-C M.2 PCIe Adapter M2 SSD B Key to PCI-E Controller Converter Riser Card for 2280 2260 2242 2230 NGFF Beskrivelse

1. Comply with PCI Express dual channel (X2) basic specification Revised Edition 2.0. 2. Conforming to universal serial bus 3.1 specification Gen2. 3. Conforming to the USB connection SCSI protocol revision 1.0. 4. Compatible xHCI (extensible host controller interface) Specification Revision 1.1.5. Support simultaneous operation of multiple USB3.0, USB 2.0 and USB 1.1 devices.
6. Support 5G / 480M/12M / 1.5M bpsUSB data transfer rate. 7. Built-in current protection for each USB port.
8. Inputting interface: using the latest USB3.1 Type-C interface
9. The data transmission rate can reach USB 3.1 GEN 1 5Gbps.
material: plastic
Color: Black
Main control chip: D720201
Support

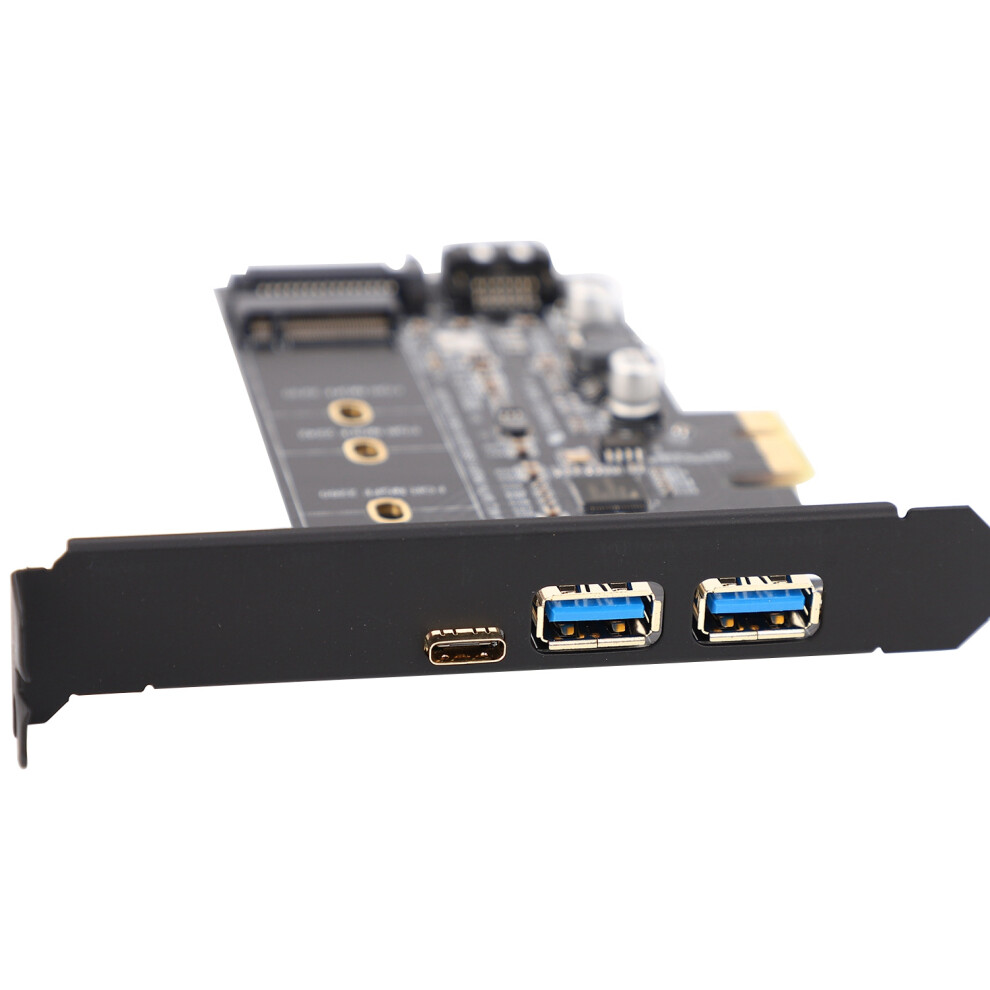

Out put interface 1: USB3.1 TYPE-C
Out put Interface 2: 2*TYPE-A interface
Interface 3: 3.0 input

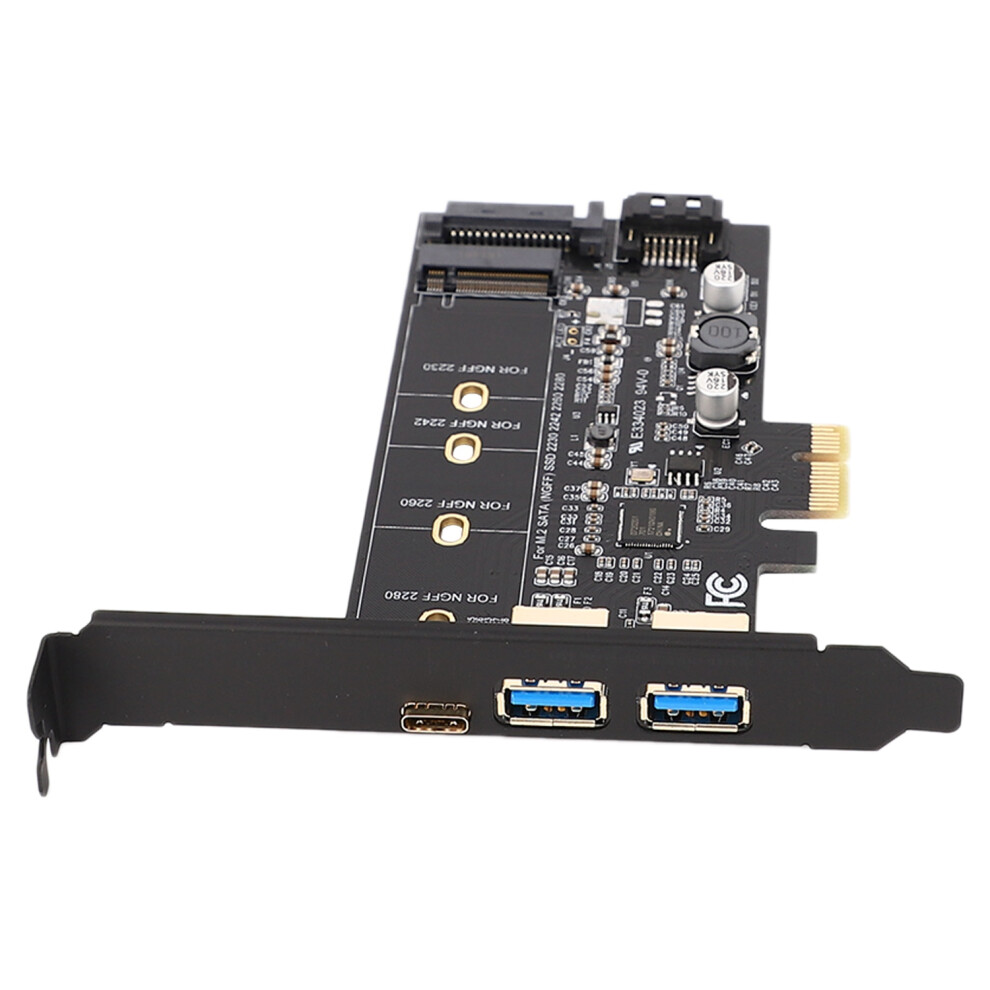

Interface 4: 1*M.2 NGFF (2230 2242 2260 2280)
Support system: WinXP/Win7/Win8 32 bit /64 bit WiN 10, Not support OS
Instructions:
1. Insert the M.2 ( protocol) hard disk of B key or B+M key into the M2 interface the riser card. Note: you cannot use NVMe M.2 PCIE SSD.
2.Connect the motherboard hard disk interface and riser card with cable.
3. Plug the power port of the power supply into the 15PIN the riser card.
4. Cconnect PCIE 1X to motherboard
Note: Please dont use to connect in 2.5inch HDD/SSD, it use for M.2 SSD data transfer

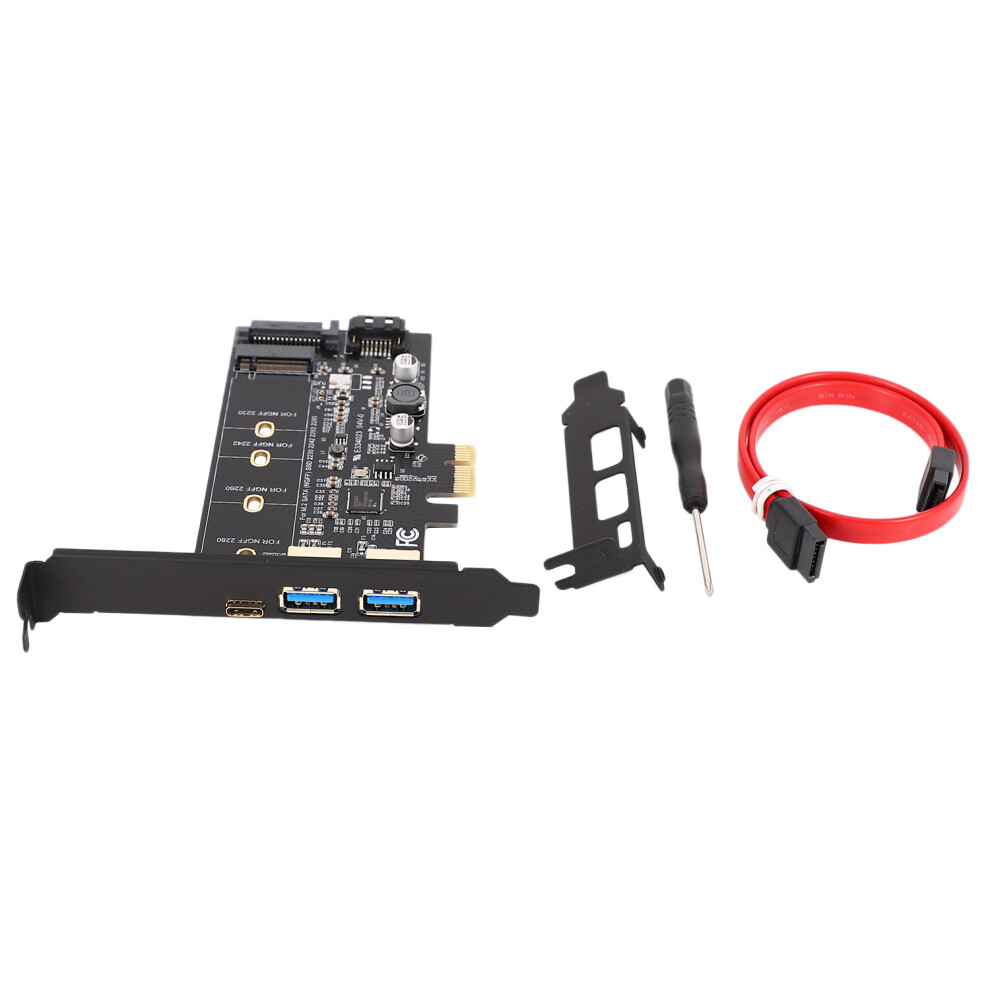

Package Contents:
1 * half height baffle
1 * cable
1 * expansion card
