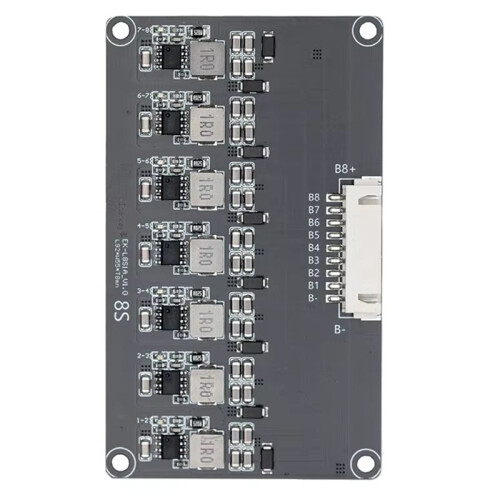

Electrical Inductance Inductor Lithium Battery Balance Balancer Battery Cell Pack Equalizer for Ebike Escooter

Electrical Inductance Inductor Lithium Battery Balance Balancer Battery Cell Pack Equalizer for Ebike Escooter Beskrivelse

Inductive active balance board:
Automatic start for more carefree
Zero loss of transfer
Compact layout for greater portability
Low heat generation during balance

All day uninterrupted voltage detection. Repair battery pack voltage - restore battery pack capacity - extend battery pack life.
Balance principle:
This module is fully automatic detection of adjacent neighboring cell's voltage difference to achieve balance, when the adjacent neighboring cell's voltage difference 0.1V, it will automatically trigger the balancer to work: until the adjacent neighboring cell's voltage difference 0.03V, the balance ends.
Balance current:
balance current 0.5A-0.7A when 0.2V0.1V ;
Equalization current when adjacent neighboring cells' voltage difference Greater than 0.2V: 1A balance current ;
Sleeping current: 10uA
for battery: li-ion /lipo/lifepo4
3.0V-4.2V per cell .
Voltage balance accuracy:30mV difference between adjacent voltages (typical value)
LED : in balancing
LED off: balance finished
LED blinking: drop wires indication/circuit fault
Sleeping current 10uA
Operating temperature -20-+60
Colour:As Shown
Material:plastic

Package Contents:
1 * current balance module
