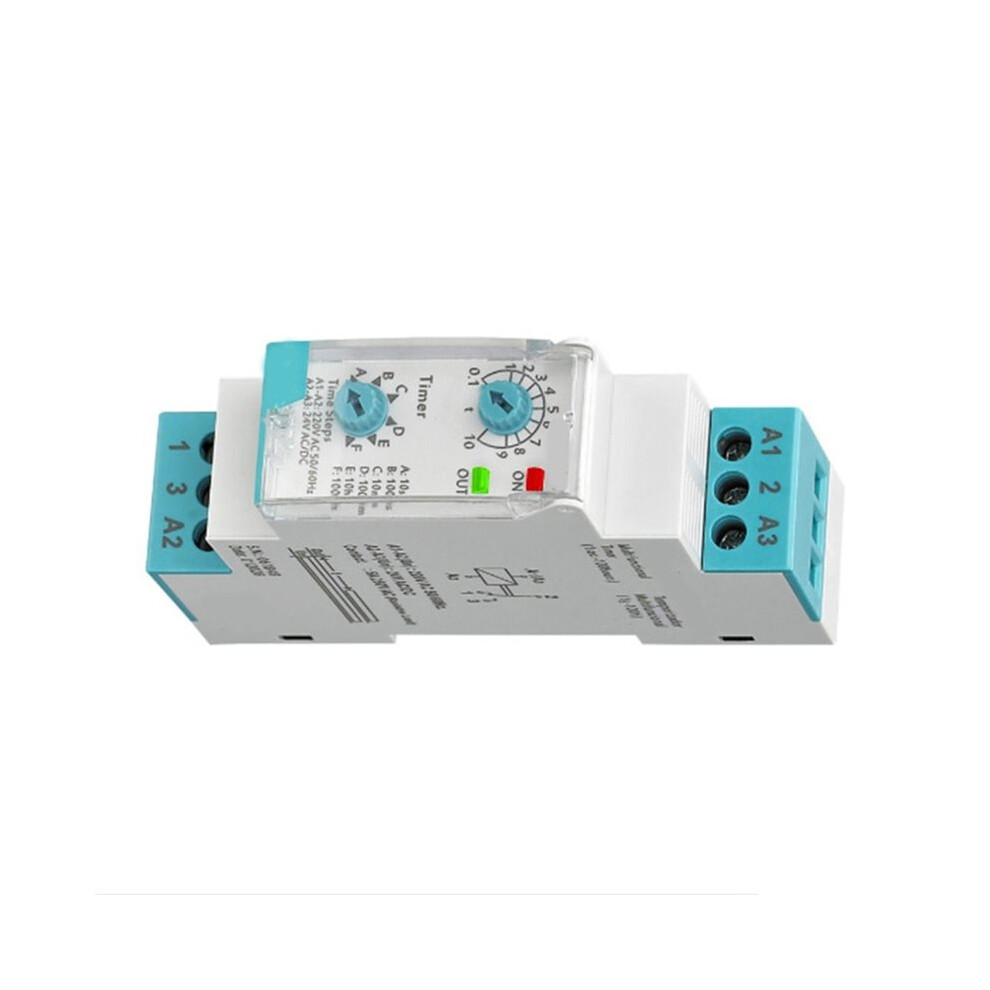

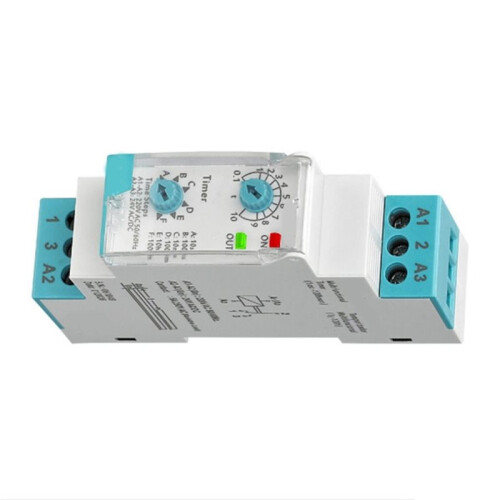

ERV-08-V2 5A Multifunction Delay Timer Relay DIN Rail 0.1Second-100 Hours Electronic Delay

ERV-08-V2 5A Multifunction Delay Timer Relay DIN Rail 0.1Second-100 Hours Electronic Delay Beskrivelse

The ERV-08-V2 timer relay is generally used in all fields (industry, housing, factories, etc.) where a -related controller is required.

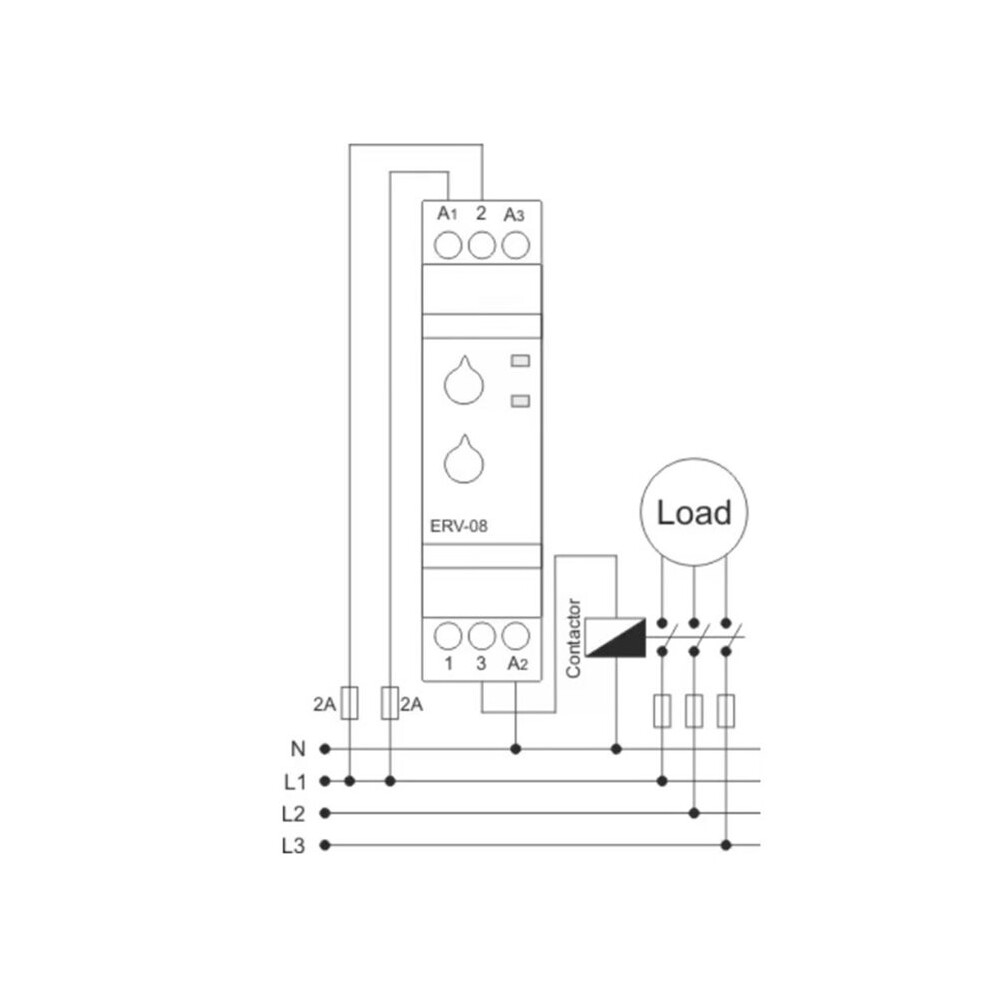

Applications and Operating Principles: Connect according to the diagram. Knob ( Step): range selection.

Knob (t): value. For example: is 75 minutes. Set the " Step" knob to 100 m (100 minutes) and

the "t" knob to 7-8. In this case, the is adjusted to 75 minutes. Note: To adjust for a more sensitive higher value,

set the "t" knob at a lower stage using the timer and increase the stage to the desired . For example: is 25 hours.

Set the " Step" knob to 10 s (10 seconds) and the "t" knob between 2-3. Turn the power and check with the timer

for 2.5 seconds. If it is high or low, set the "t" knob again. Recheck the device. Set the " Step" knob to 100 h (100 hours).

In this case, you set it to be more sensitive. After setting the , turn the device power. The device will start timing while

the LED is and off. When the device times out, the contact opens 1. When the timing is complete (set )
Color: As Shown
Material: plastic

Package Contents:
1* Delay Timer Relay
