ESP32-CAM Development Board Wifi Module with OV3660 Camera 3MP Type-C Optical Sensors

ESP32-CAM Development Board Wifi Module with OV3660 Camera 3MP Type-C Optical Sensors Beskrivelse

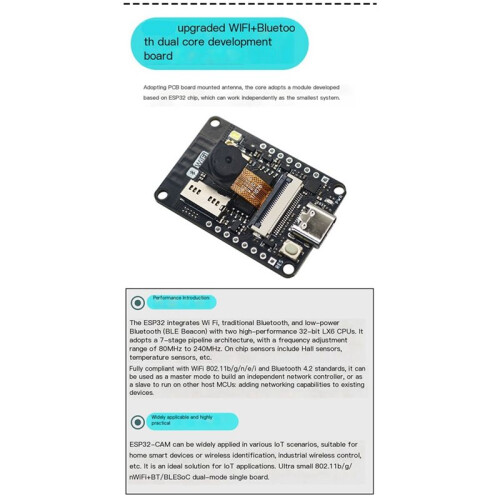

It adopts an onboard antenna a PCB and uses a module based the ESP32 chip as its core, which can work independently as a minimum system.
It adopts the ESP32 and integrates Wi-Fi, traditional and Low (BLE Beacon) with two high-performance 32-bit LX6 CPUs, adopts a 7-stage pipeline architecture, and has a main frequency adjustment range of 80MHz to 240MHz. -chip sensors include Hall sensors, temperature sensors and so .
The ESP32-CAM can be widely used in various IoT applications, suitable for home devices, wireless identification, industrial wireless control, etc., making it an ideal solution for IoT applications. It features an ultra-compact 802.11b/g/n WiFi + BT/BLE SoC dual-mode single board.

448 KB ROM, 520 KB , 16 KB RTC
QSPI supports multiple flash/SRAMs
Built-in 8 MHz oscillator
Support self-calibration
Built-in RC oscillator, supports self-calibration
Supports external 2 MHz to 60 MHz main crystal oscillators (if using)
Wi-Fi/ functionality is currently only supported with a 40 MHz crystal oscillator.
Supports external 32 kHz crystal oscillator for RTC, supports self-calibration.
Two timer groups, each containing two 64-bit general-purpose timers.
1 RTC timer
RTC watchdog
34 GP10-port 12-bit SAR ADCs, to 18 channels
Color: As Shown
Material: PCB

Package Contents:
1*ESP32-CAM Development Board
