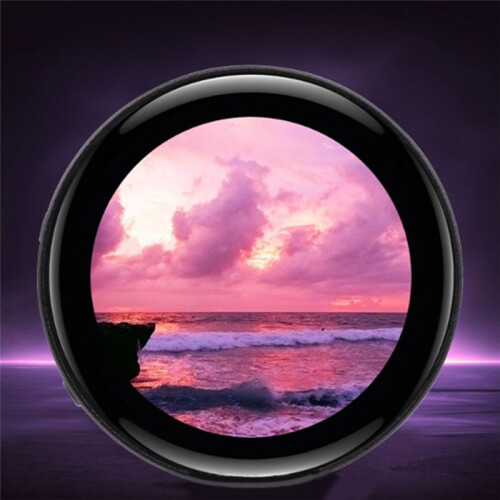

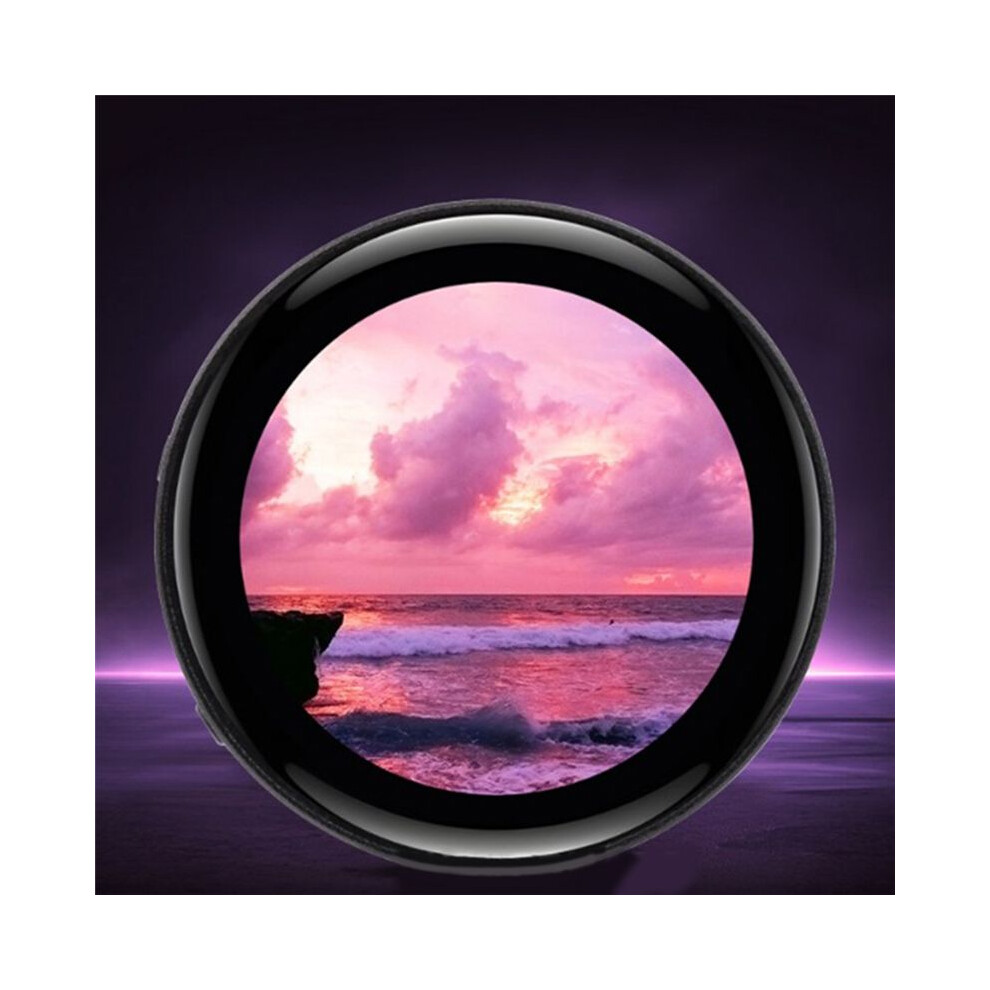

Esp32-S3 1.43-Inch Round LCD Screen Development Board Amoled Capacitive Touch Screen Supports Wifi A
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 133,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (32,99 kr.) | lør. 19. - fre. 25. sep.
Solgt af: GSbuy
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- ESP32-S3 1.43-inch AMOLED screen development board,466x466 resolution, AMOLED circular touch screen, multiple onboard peripheral interfaces.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz.
- Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), with internal antenna on board and reserved solder joints, which can be set as external antenna.
- AMOLED screen display uses QSPI interface, touch uses I2C interface, capacitive touch, supports interrupt output.
- Onboard PCF85063 RTC chip, reserved SH1.0 battery slot (supports charging), can easily realize RTC function requirements.
Esp32-S3 1.43-Inch Round LCD Screen Development Board Amoled Capacitive Touch Screen Supports Wifi A Beskrivelse
ESP32-S3 1.43-inch AMOLED screen development board,466x466 resolution, AMOLED circular touch screen, multiple onboard peripheral interfaces.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of to 240MHz.
Supports 2.4GHz Wi-Fi and 5 (LE), with internal antenna board and reserved solder joints, which can be set as external antenna.
AMOLED screen display uses QSPI interface, touch uses I2C interface, capacitive touch, supports interrupt output.
Onboard PCF85063 RTC chip, reserved SH1.0 battery slot (supports charging), can easily realize RTC function requirements.
Display Panel:Amoled
Display Size:1.43inch
Display Resolution:466 x 466
Display Color:16.7m
Display Brightness:350cd/M²
Contrast:60000:1
Communication Interface:Qspi
Driver Ic:Sh8601/C05300
Touch:Support
Touch Ic:Ft3168
The product appearance and printed words may vary depending the batch, but this does not affect use.
Type:A:without shell
Colour:As Shown
Material:LCD
Package Contents:
1 * round screen with accessories
Detaljer
| OPC | PXR9628 |
|---|---|
| Koder | 6031818141283 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 4cm |
|---|---|
| Width | 10cm |
| Length | 14cm |
| Weight | 0.0685kg |
| Colour | As Shown |
| Size | A |
| Material | LCD |
