ESP32-S3 2.41 Inch AMOLED Touchscreen Development Board 600x450 ESP32 Display with Case for HMI LVGL GUI ESP-IDF

ESP32-S3 2.41 Inch AMOLED Touchscreen Development Board 600x450 ESP32 Display with Case for HMI LVGL GUI ESP-IDF Beskrivelse

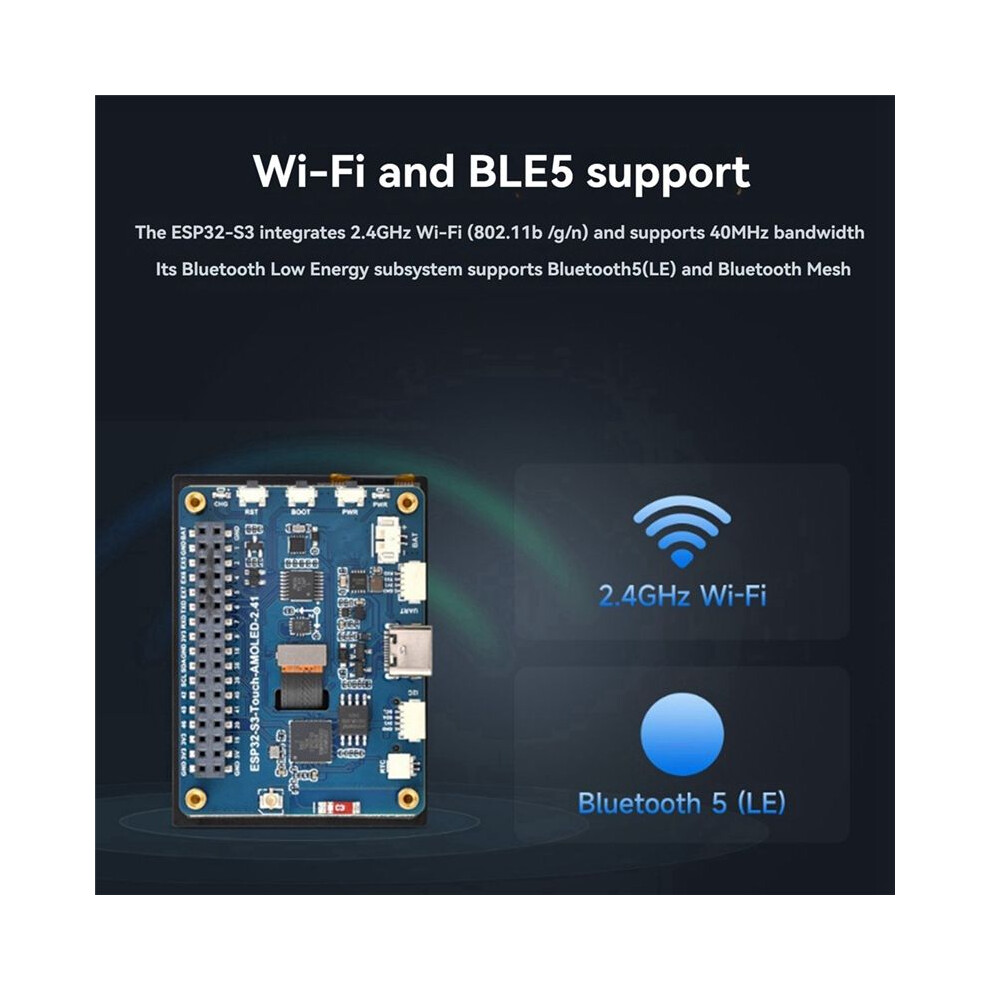

1. This product uses the ESP32-S3R8 chip, supports 2.4GHz Wi-Fi and BLE 5 functions, and has built-in large-capacity Flash and PSRAM

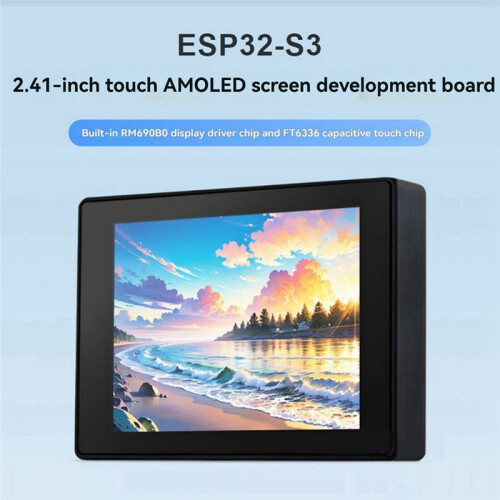

2. Equipped with a 2.41-inch high-definition AMOLED display, it can run GUI programs such as LVGL smoothly

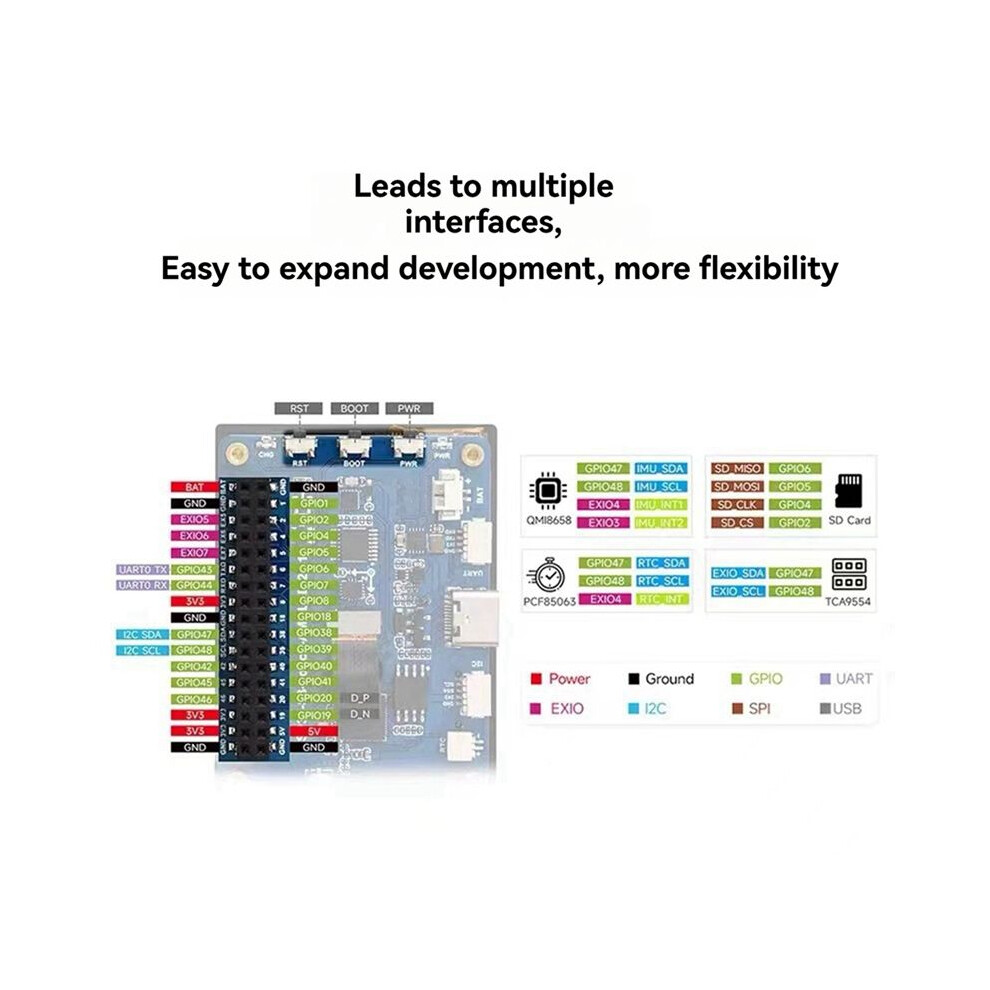

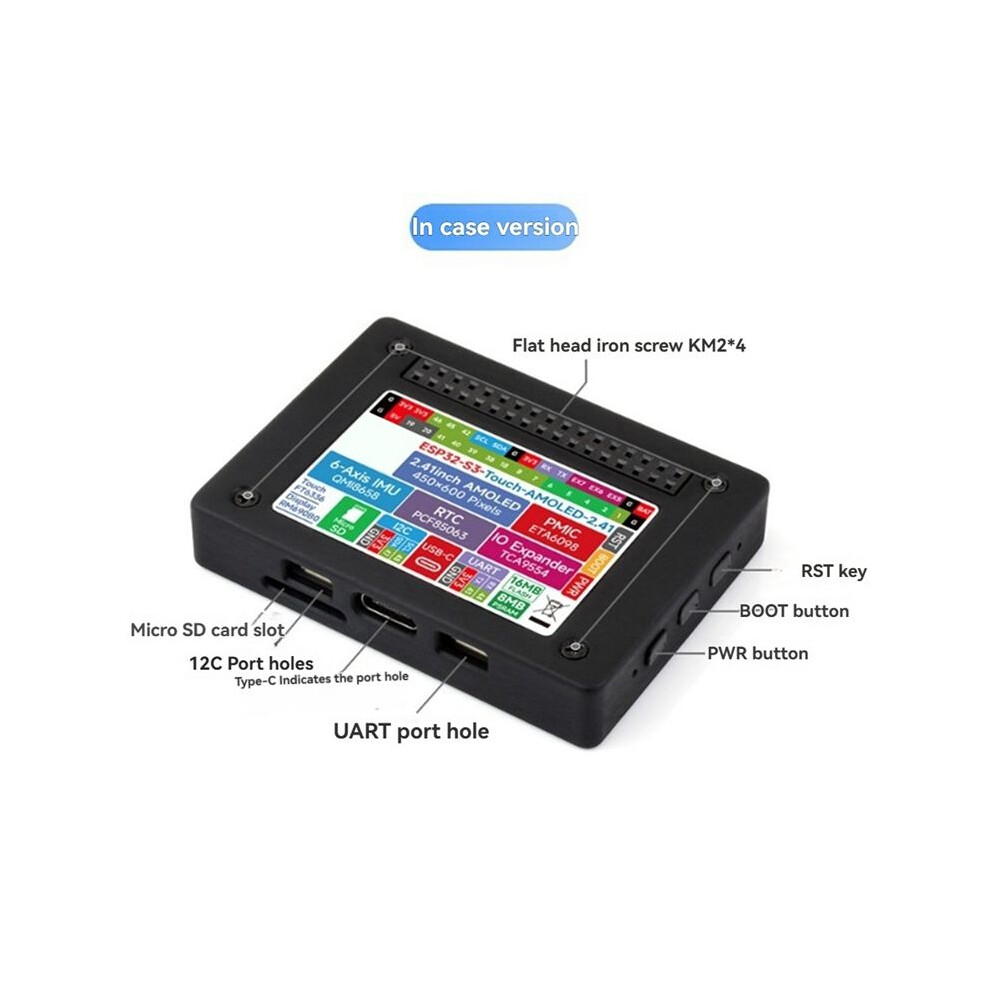

3. Onboard RTC, IMU, Micro- card slot and lithium battery charging function, rich peripheral resources, and reserved USB, UART, I2C and 34PIN GPIO interfaces, providing flexible expansion capabilities, it is an ideal choice for rapid development of HMI applications based ESP32-S3
4.Explore the capabilities of the Waveshare ESP32-S3 Development Board, featuring a high-resolution 2.41-inch AMOLED touch display with a 600x450 pixel resolution
5.This board is powered by a 32-bit LX7 dual-core processor, providing robust performance for all your development needs

Display panel: AMOLED
Display size: 2.41 inches
Display resolution: 600 x 450

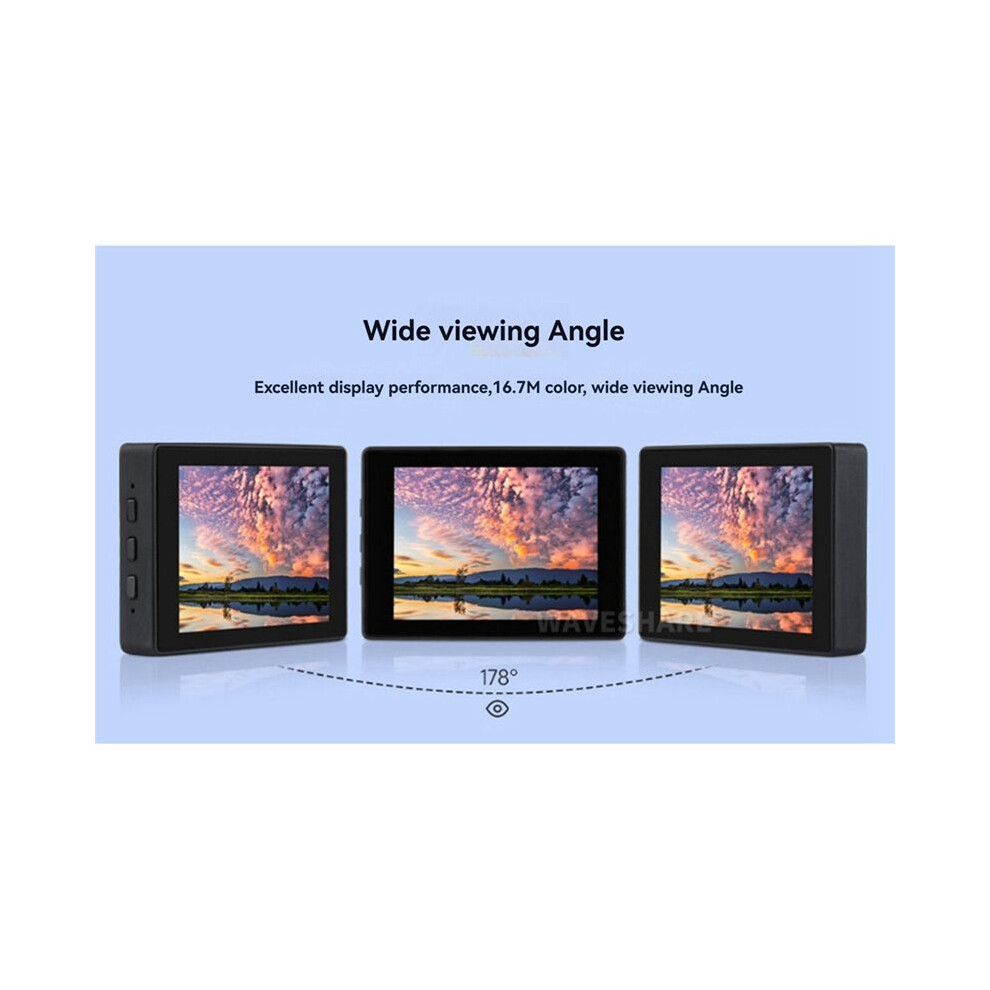

Display color: 16.7M
Display brightness: 800cd/m²
Contrast ratio: 100000:1
Communication interface: QSPI

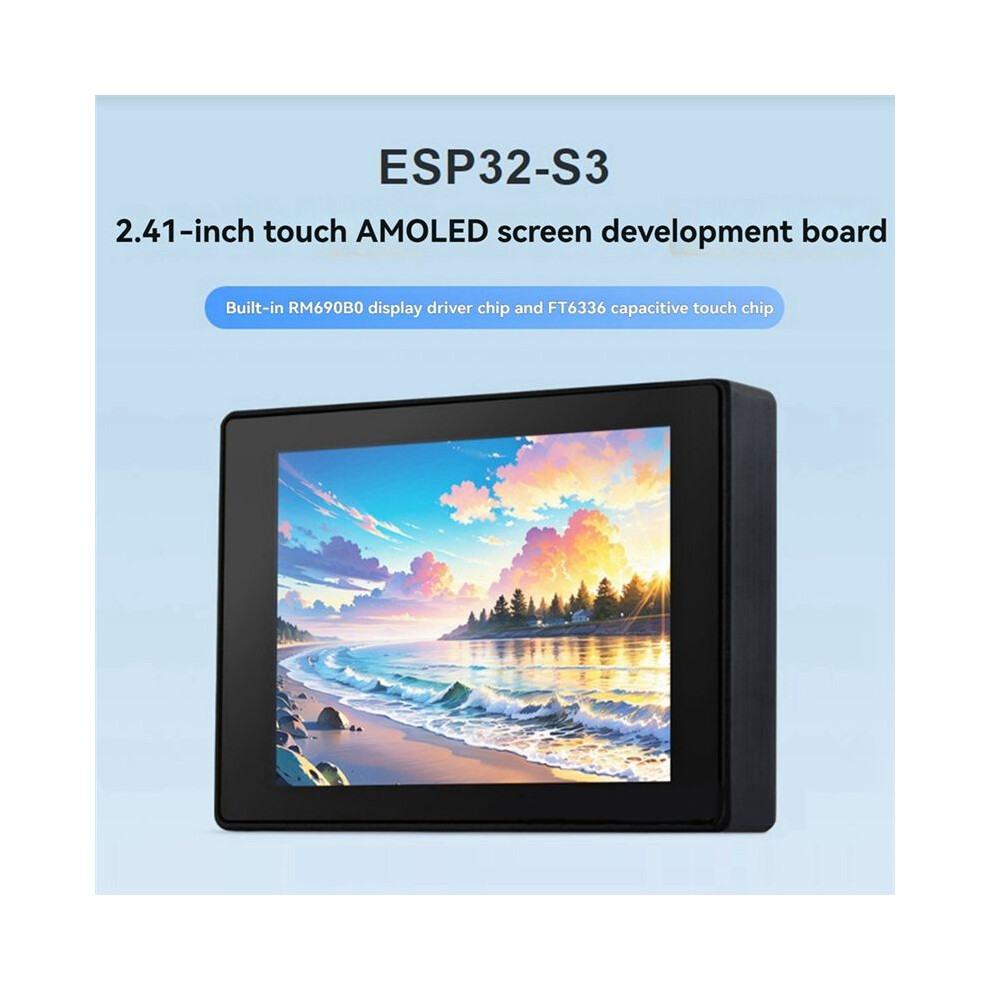

Driver IC: RM690B0
Touch: Supported
Touch IC: FT6336
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: As shown
Material: Plastic+LED

Package Contents:

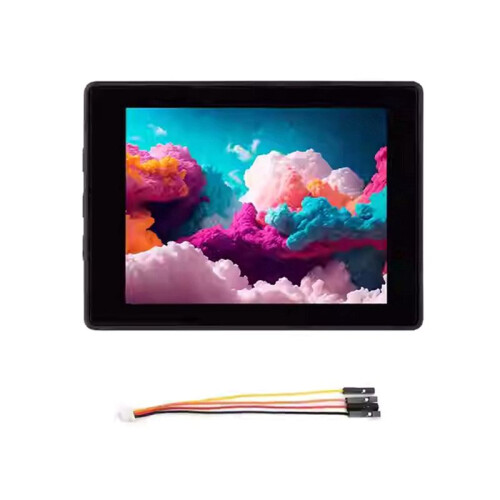

1 x Touchscreen Display Development Board Kit
