ESP32 S3 4In LCD Development Board 480x480 Touch Screen Display TVBOX LVGL HMI Sensor CAN RS485 Electronic Component Kit

ESP32 S3 4In LCD Development Board 480x480 Touch Screen Display TVBOX LVGL HMI Sensor CAN RS485 Electronic Component Kit Beskrivelse

1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is to 240 MHz.
2. Support 2.4 GHz Wi-Fi (802.11 b/g/n) and 5(LE), onboard antenna.
3. Built-in 512KB and 384KB ROM, stacked 16MB Flash and 8MB PSRAM.

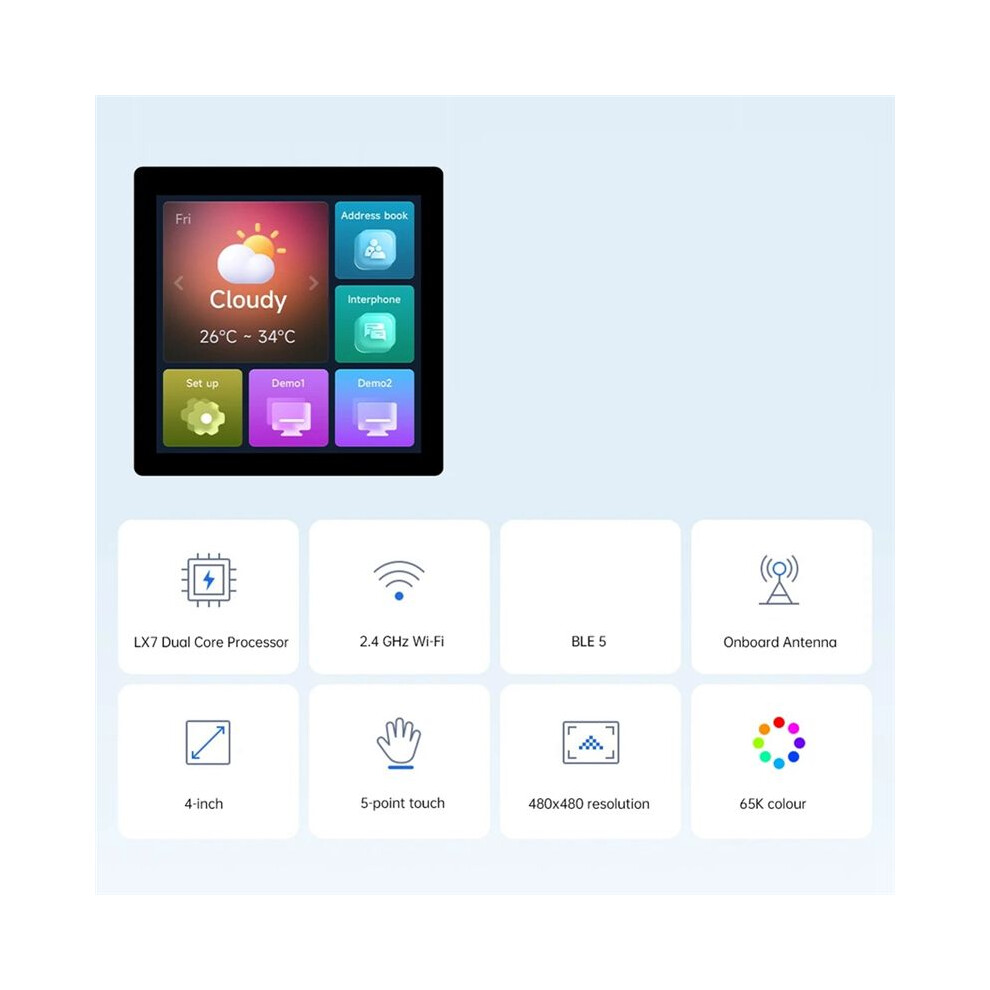

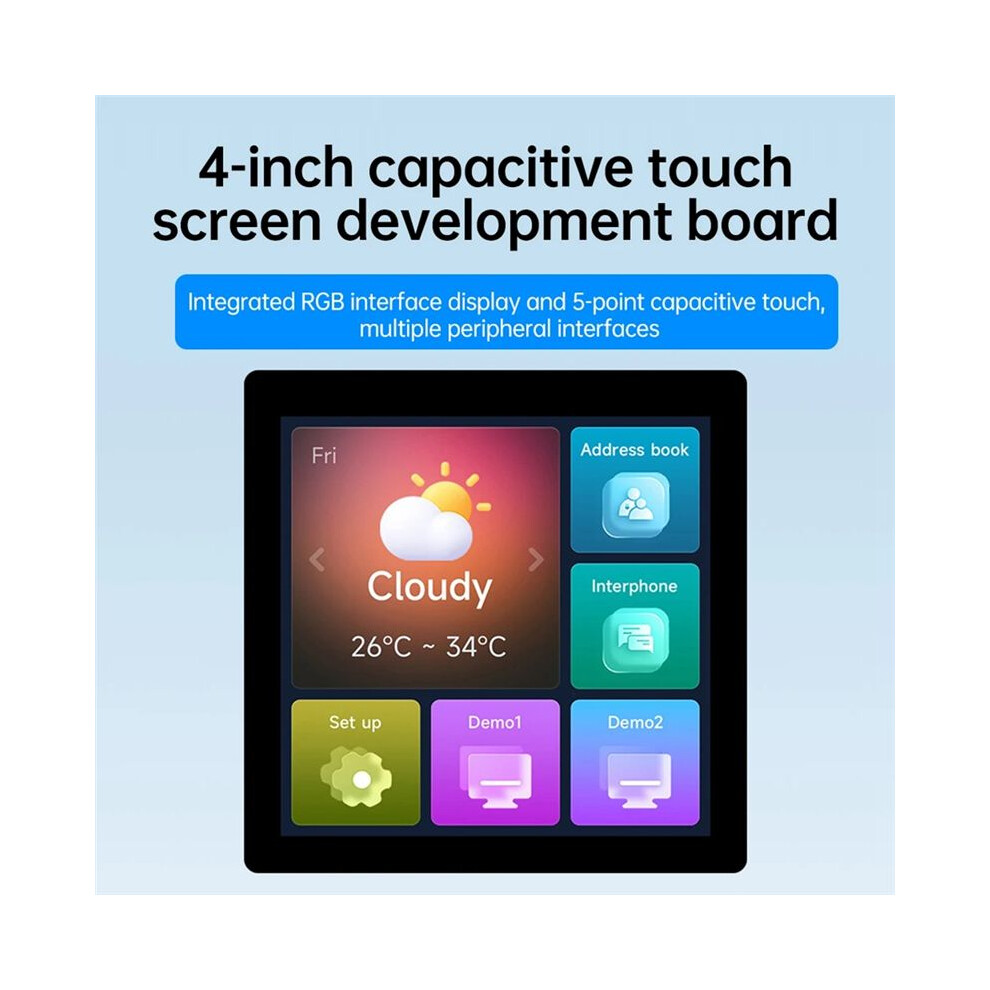

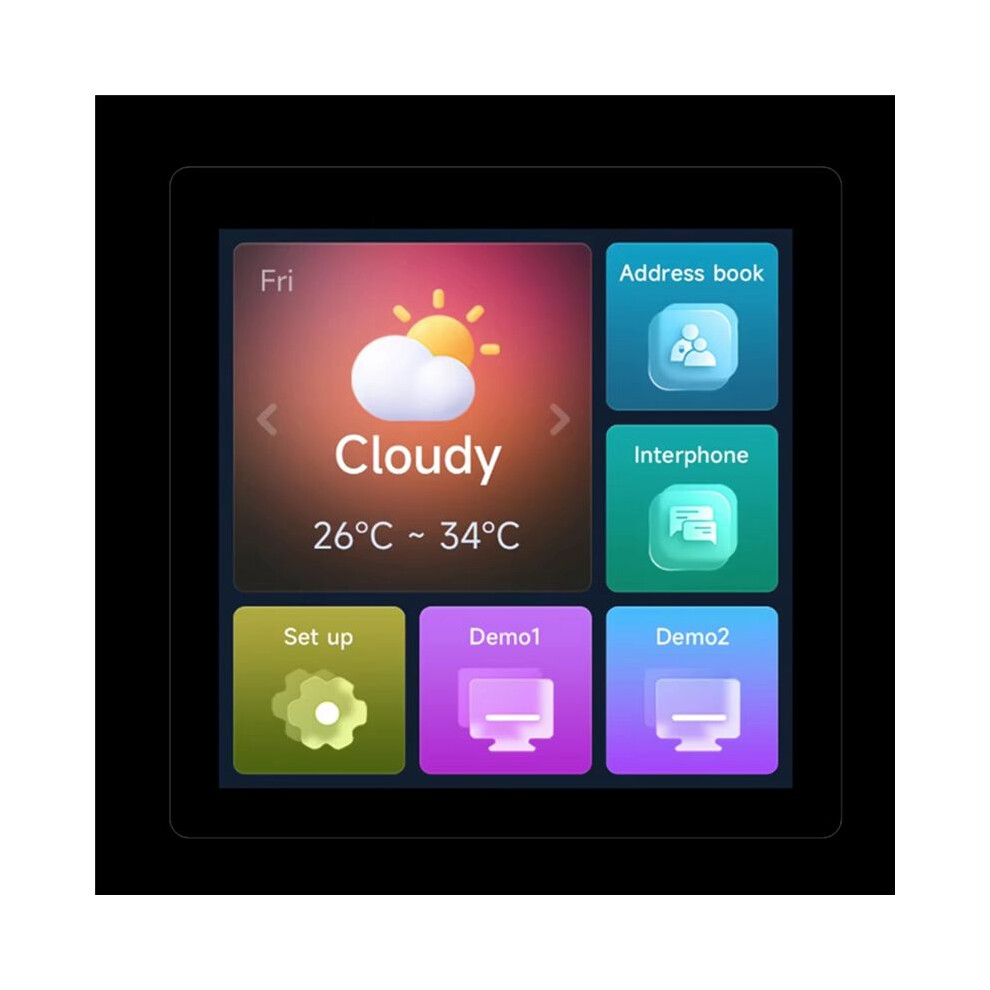

4. Onboard 4-inch capacitive touch screen, 480x480 resolution, 65K color.

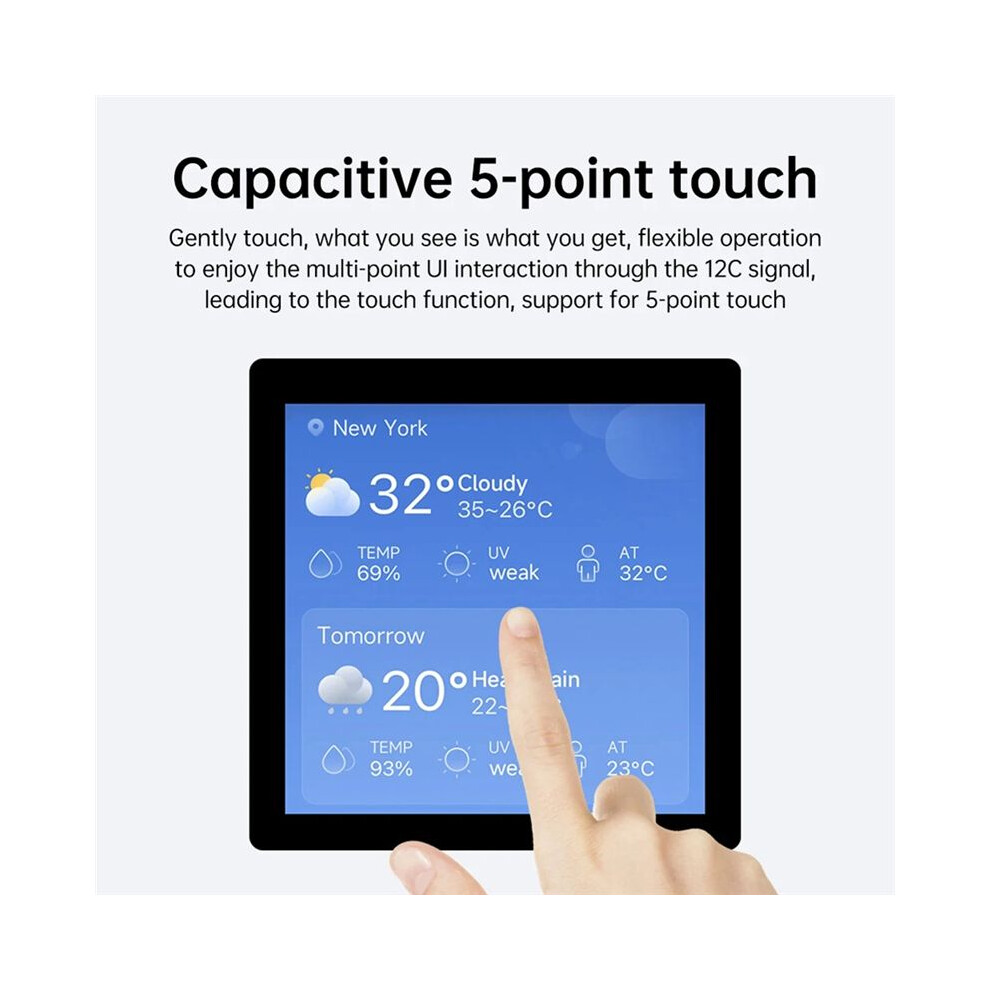

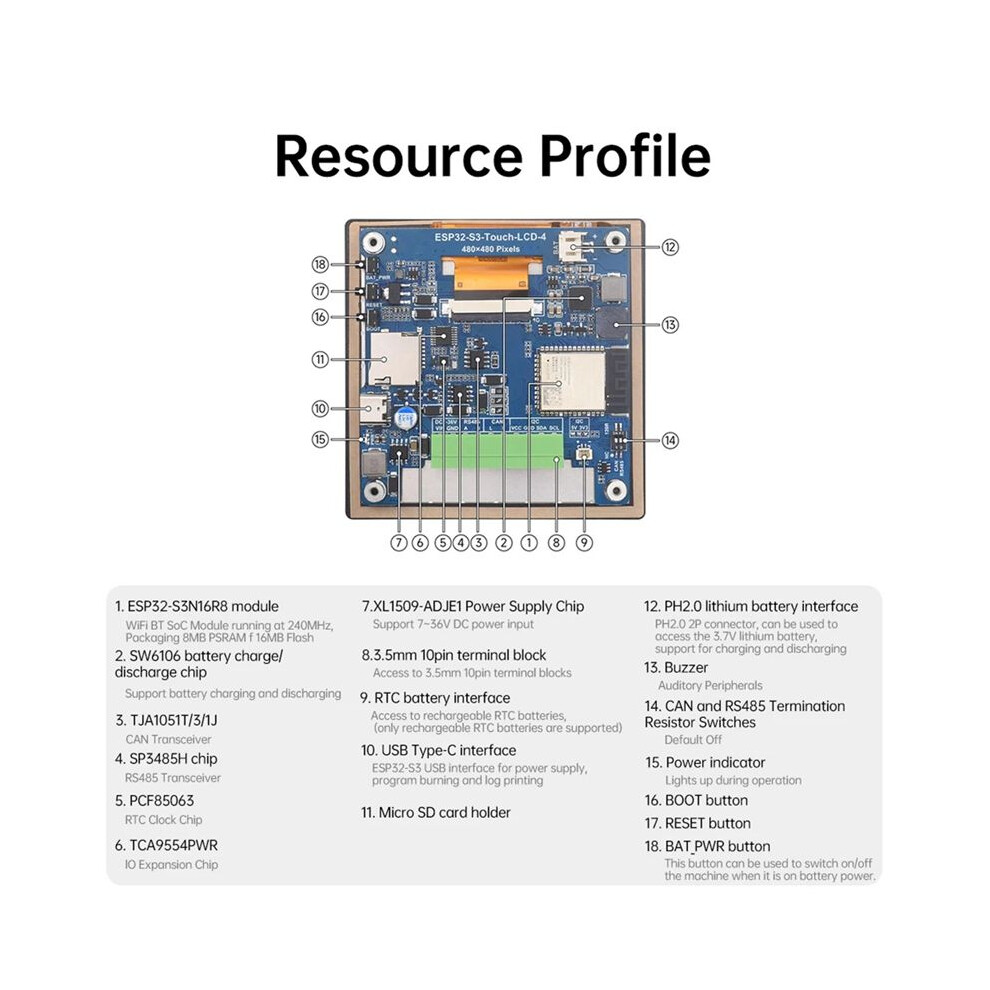

5. Support I2C interface to control capacitive touch, 5-point touch, support interrupts. Onboard CAN, RS485, I2C interface and Micro- card holder, etc., integrated full-speed USB serial port. Support flexible clock, module power supply individual setting and other precise control, to achieve multi-scenario low power consumption mode.

Product Features:

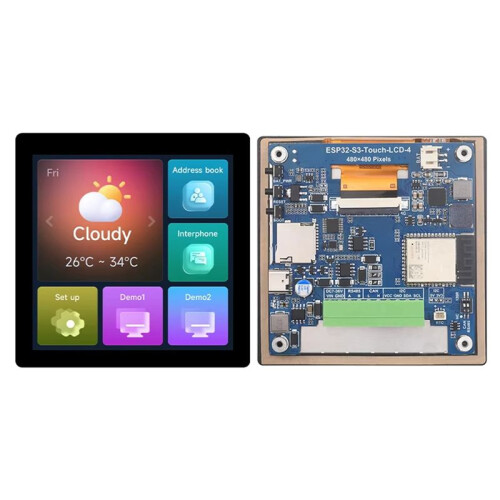

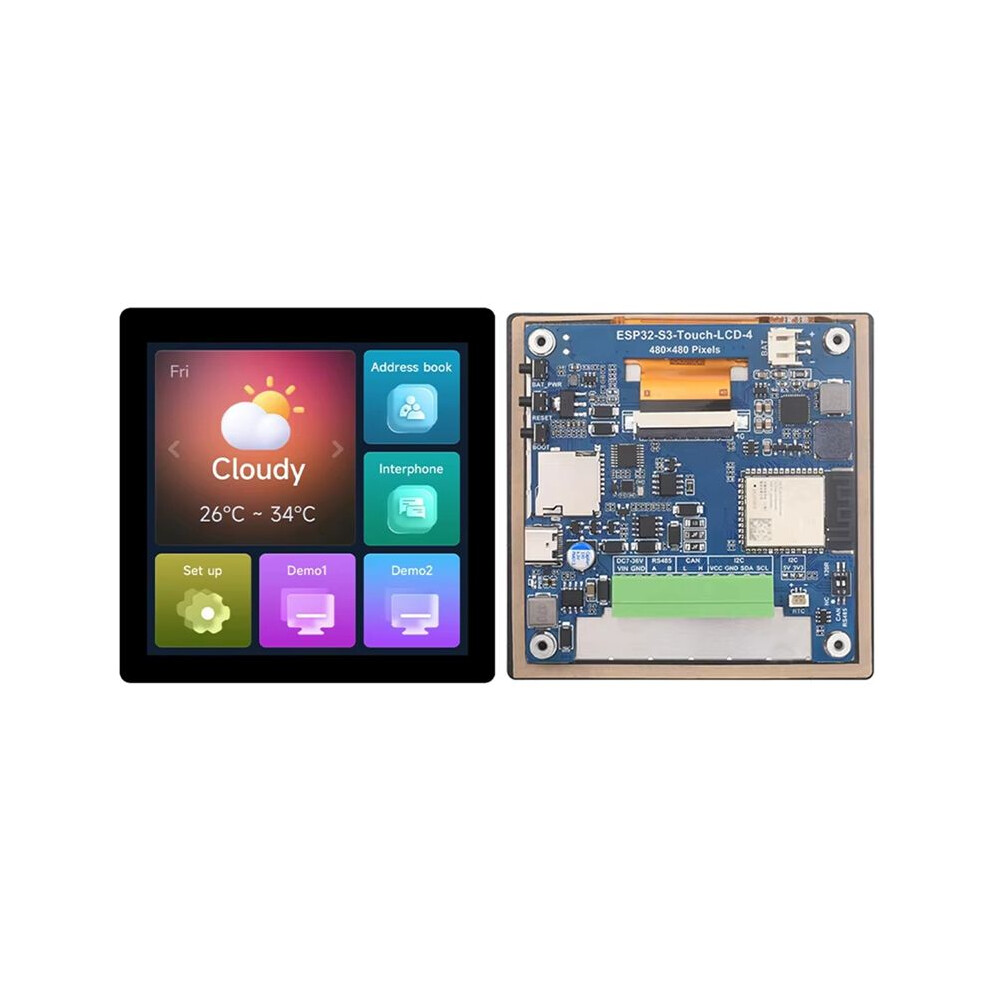

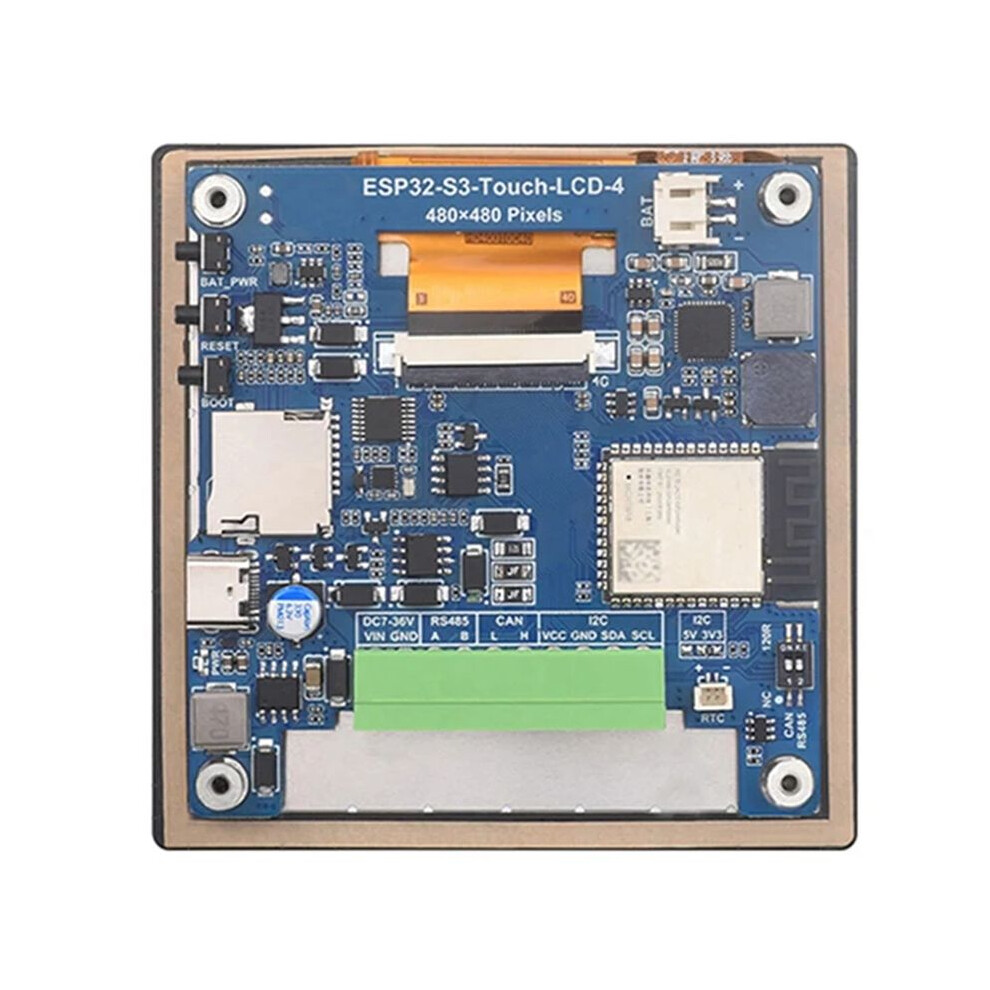

ESP32-S3-Touch-LCD-4 is a development board equipped with ESP32-S3 2.4GHz WiFi and BLE 5 modules, integrated with 16 MB Flash and 8 MB PSRAM. The onboard 4-inch 480 x 480 resolution RGB interface capacitive touch screen can smoothly run GUI interface programs such as LVGL; combined with a variety of peripheral interfaces, the HMI of ESP32-S3 can be quickly developed, which is suitable for scenarios such as central control panels, home gateways, interactive panels, industrial control, and lighting control.
Basic parameters:
Processor: High-performance Xtensa 32-bit LX7 dual-core processor, main frequency to 240MHz

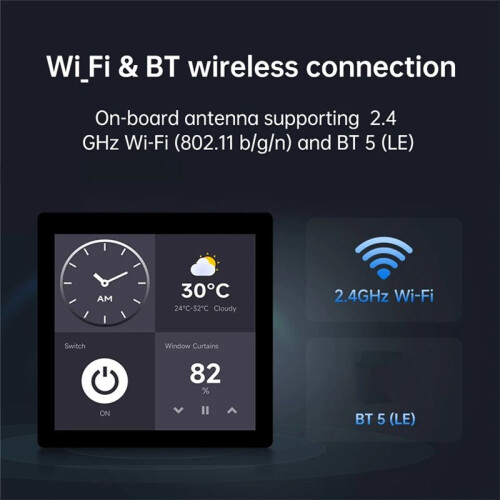

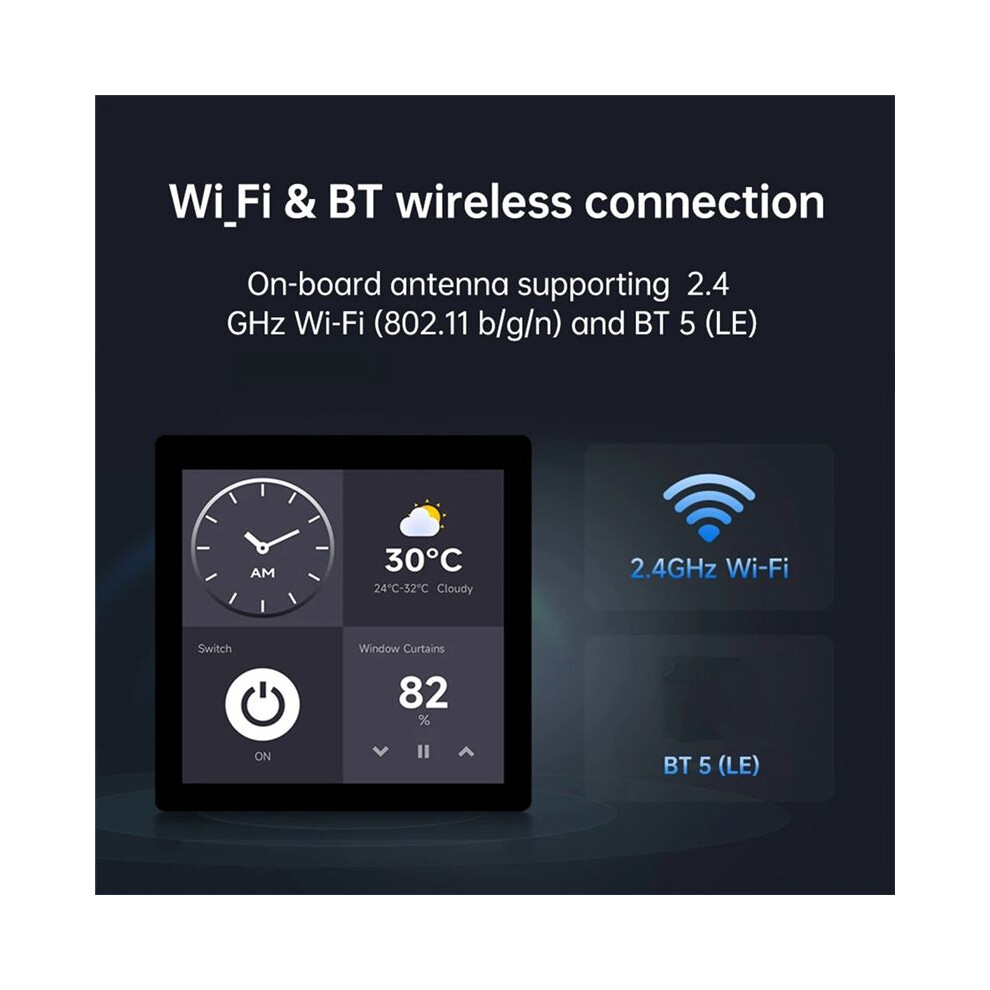

Wifi/: Support 2.4 GHz Wi-Fi (802.11 b/g/n) and 5 (LE), onboard antenna
Flash: 16MB Flash
PSRAM: 8MB PSRAM
Power supply range: TypeC 5V + 7-36V
Screen parameters:
Resolution: 480x480
Display interface: RGB

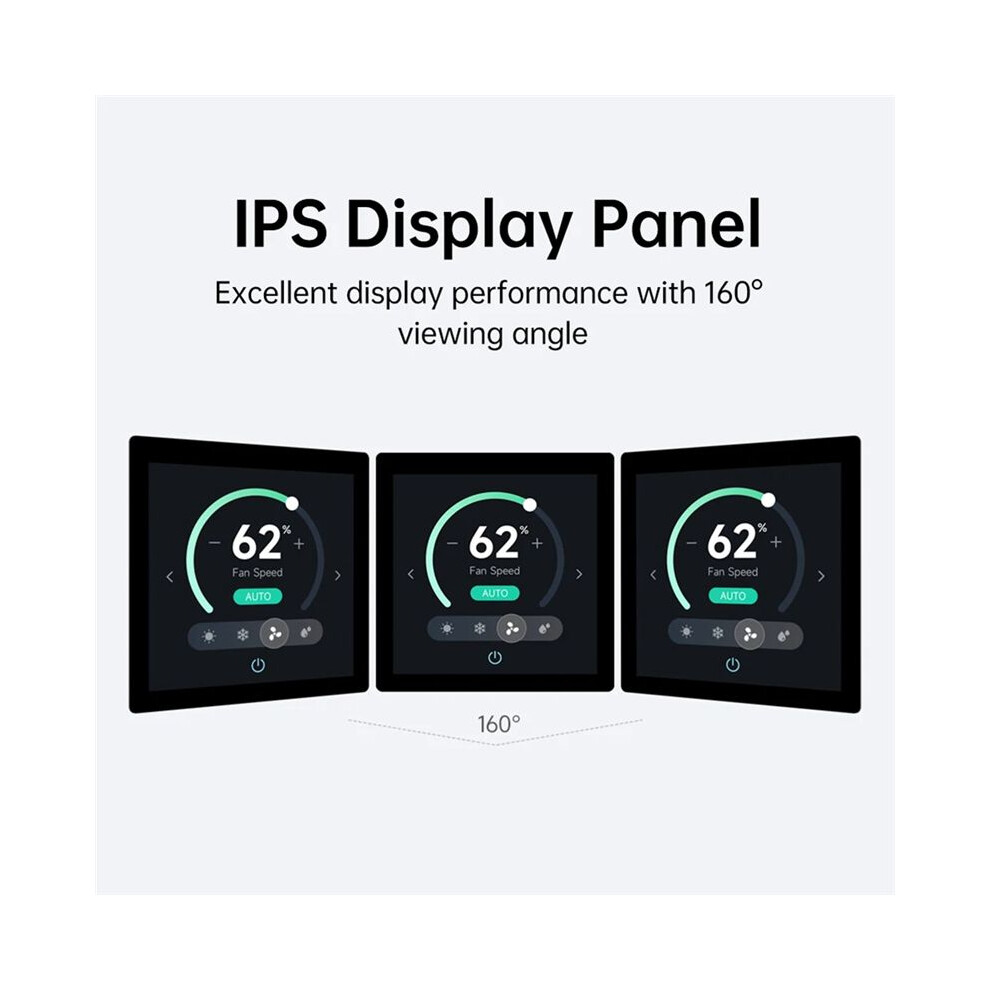

Display panel: IPS
Viewing angle: 160
Touch type: capacitive
Touch panel: tempered glass

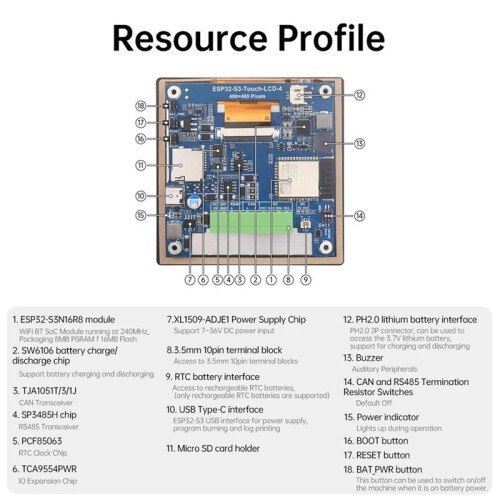

Communication interface: CAN, RS485, I2C, USB
Operating temperature: 0 - 65
Product size (LxW): 84.2x84.2mm
Color:As Shown
