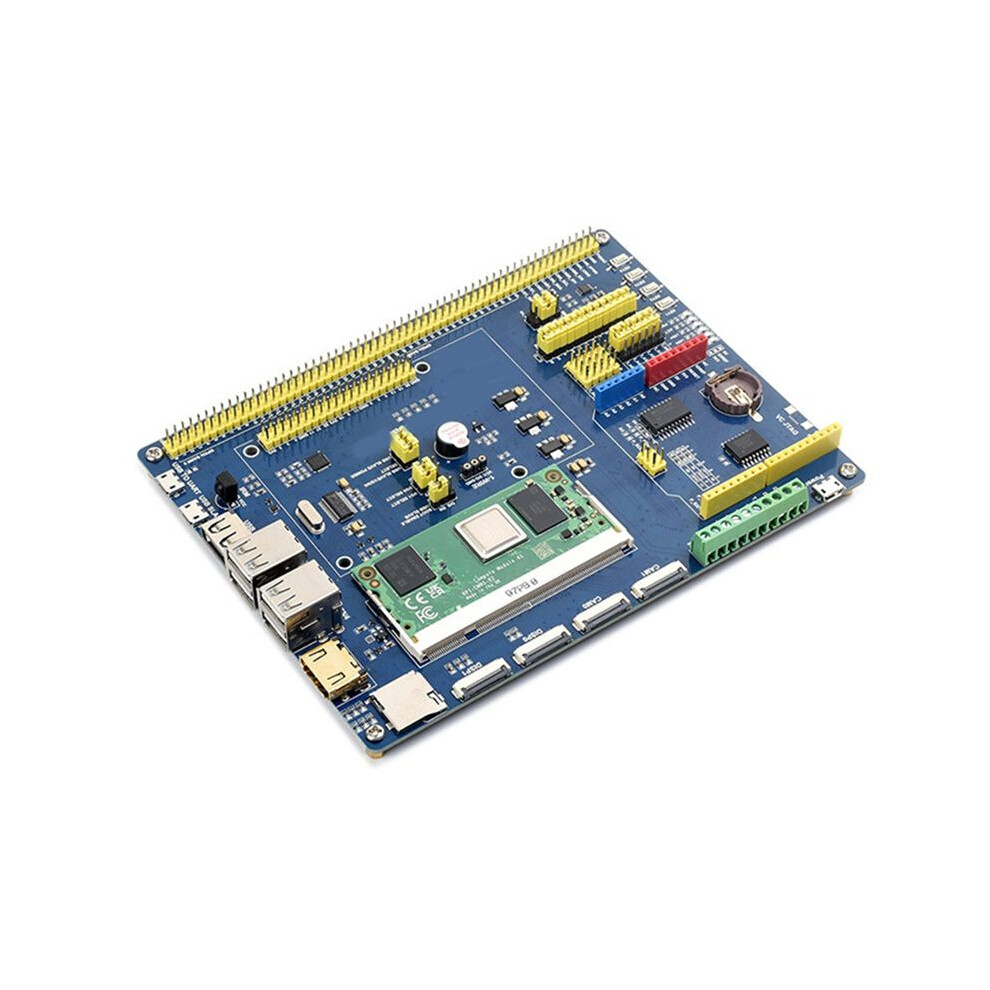

Expansion Board Module for Raspberry Pi Compute Module Compute Module 4S RPI-CM4S-R2 Support CM3 Expansion Boards

Expansion Board Module for Raspberry Pi Compute Module Compute Module 4S RPI-CM4S-R2 Support CM3 Expansion Boards Beskrivelse

1. High speed and low power consumption, the computing module 4S is based the for Raspberry Pi4B architecture, making it easy for users to migrate or upgrade from the computing module 3/3+
2. New upgrade, more powerful CM4S, the CPU is upgraded to BCM2711, quad-core Cortex A72 64-bit processor, more powerful performance and faster eMMC flash memory, with a transfer rate of to 100MB/s, 4 times faster than CM3+
3. CPU upgrade, more powerful performance, CPU upgraded to BCM2711, quad-core Cortex A72 64-bit processor, more powerful performance

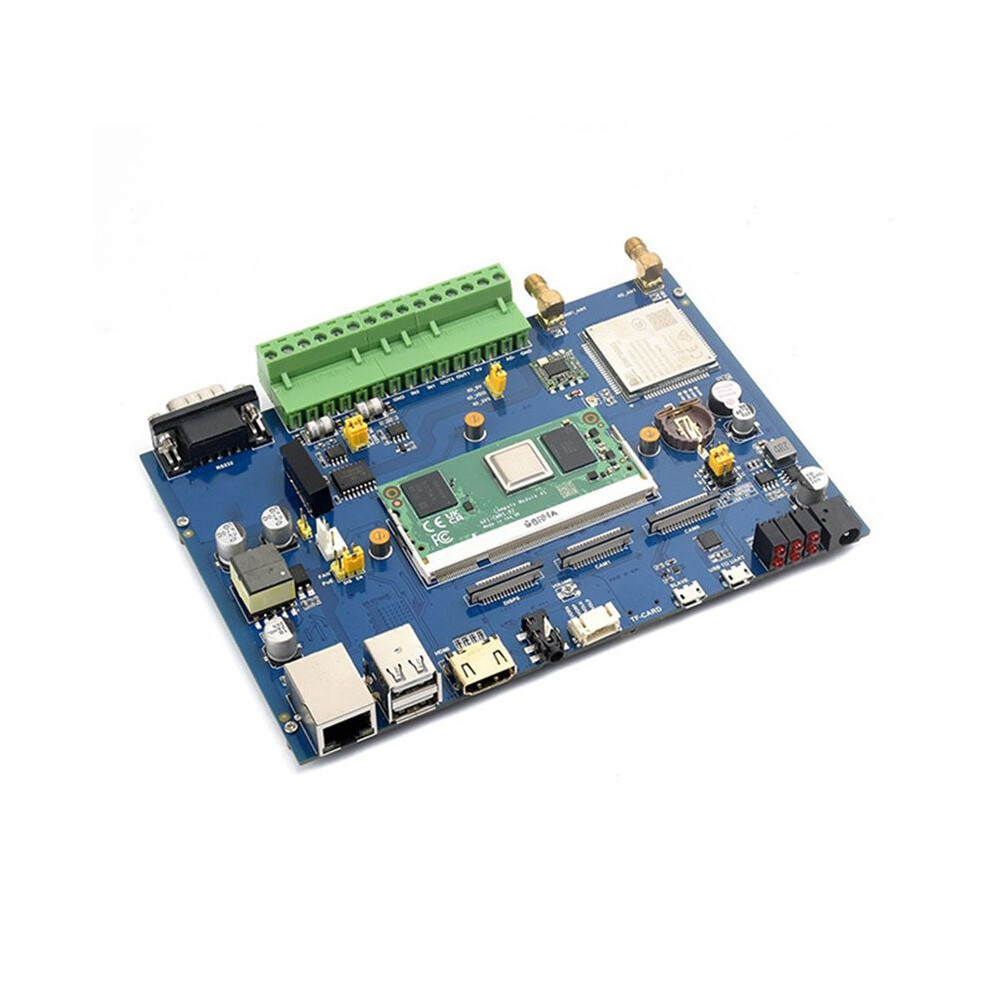

4. Supports CM3 peripheral expansion board, access to Compute Module PoE expansion board, Compute Module PoE Board
5. Applicable for Raspberry Pi computing module Compute Module 4S RPI-CM4S-R2 supports CM3 expansion board

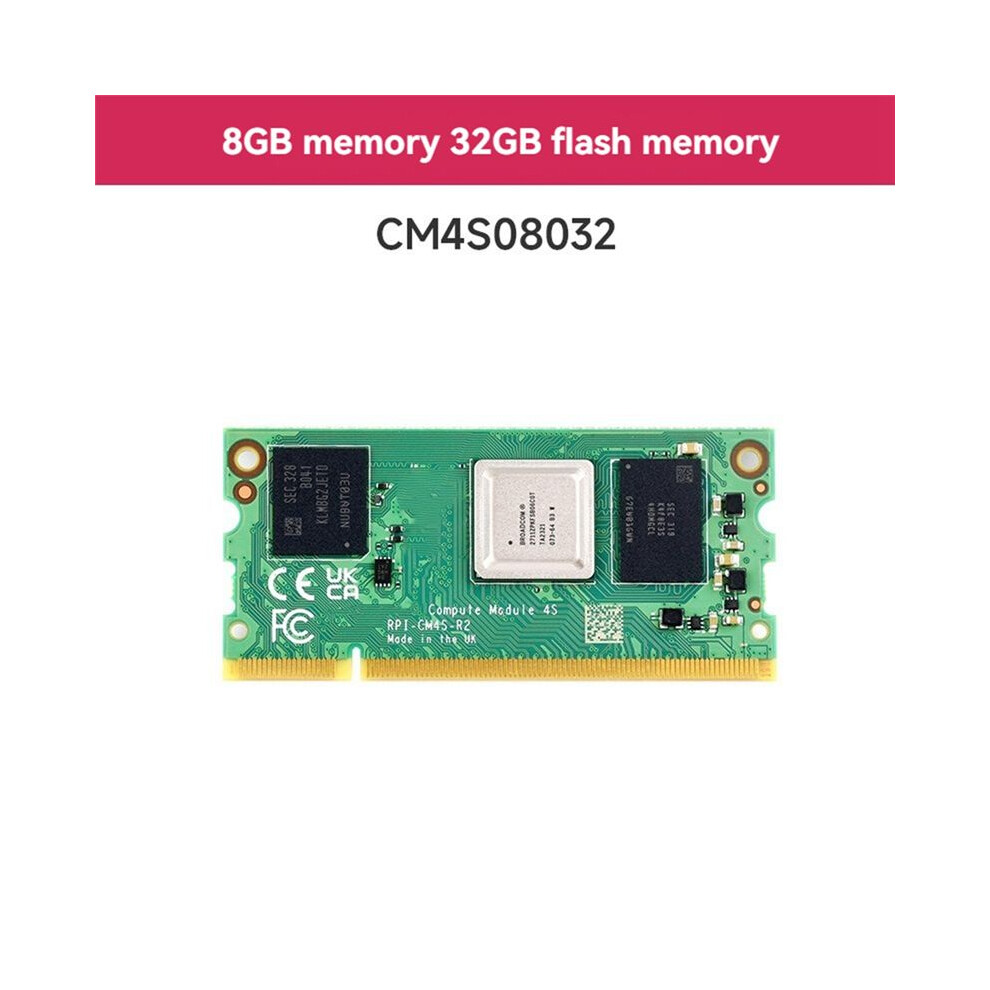

1. Processor:Broadcom BCM2711 quad-core Cortex-A72(ARM v8) 64-bit SoC @ 1.5GHz
2. Memory:8GB
3. Flash memory:32GB
4. Connectivity:USB 2.0 interface x1; 46 GPIO pins; card interface (only for versions without eMMC)
5. Video: interface (supports 4Kp60) x1; 2- MIPI DSl display interface; 2- MIPICSI camera interface; 4- MIPI display interface; 4- MIPICSI camera interface
6. Multimedia:H.265 (4Kp60 decoding); H.264 (1080p60 decoding, 1080p30 encoding); OpenGL ES 3.0
7. Working voltage:2.5-5V/3.3V
8. Working temperature:-20-85 ambient temperature
9. Overall dimensions:approximately 67.6 x 31 mm
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use.
Colour:As Shown
Material:PCB

Package Contents:
1 * Expansion Board Module
