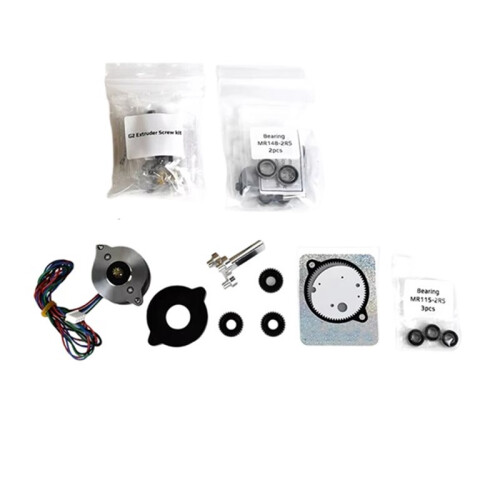

For Galileo 2 Extruder Kits By LDO G2E Extruder for Voron V2 and 3D Printer Stealthburner Toolhead

For Galileo 2 Extruder Kits By LDO G2E Extruder for Voron V2 and 3D Printer Stealthburner Toolhead Beskrivelse

For those that are curious about what for Galileo 2 offers over for Galileo 1, here's a short list of benefits: for Galileo 2 is a full redesign, moving to a 9:1 gear ratio and optimizing the gearbox design over for Galileo 1. No parts from for Galileo 1 are reused with for Galileo 2.
Custom 9T stepper with a taller spur gear resulting in 20% higher contact surface area than existing 10T stepper designs, resulting in better wear characteristics and power transfer. Proper meshing of gears due to number of stepper teeth being divisible by number of planets (9T sun /3 planets), which gives even loading the planets /sun gear and improves wear characteristics and power transfer.
Previous designs with 10T steppers had uneven loading the planet gears.
G2 Extruder (G2E) is designed as a drop-in replacement for the CW2 extruder for Voron printers utilizing the Stealthburner toolhead. G2E features a custom large drive gear (16mm diameter) mated to an idler bearing to help prevent extruder artificing due to gear meshing, and because it features a planetary gearbox, there's no issue with gear-meshing noise as found CW2.G2E is also fully compatible with all current toolhead boards available.
G2 Standalone (G2SA) is designed as an Orbiter 2.0 or Sherpa drop-in replacement extruder and utilizes the G2E kit parts for assembly. This expands the printer lineup for G2 to any printer compatible with the Orbiter 2.0 orSherpa , and gives the benefits noted above for G2E to every compatible printer. The G2SA is also a extruder, comparable to the Orbiter 2.0.

G2 Z-Drive (G2Z) is designed as a compact Z-drive for the for Voron V2 and printers. It features the same 9:1 planetary gearbox and stepper in an easy-to-assemble package without the need for belts or pulleys (outside of the Z belt pulley). This design saves considerabl
