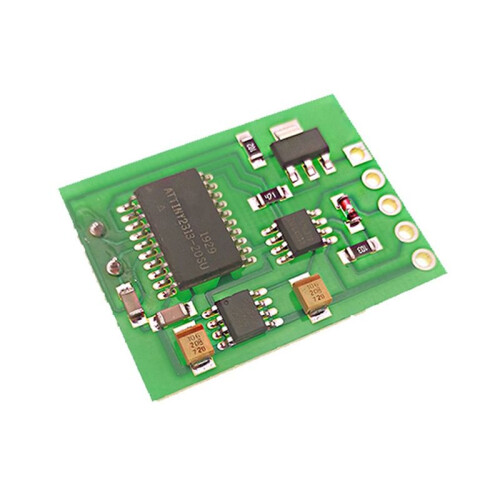

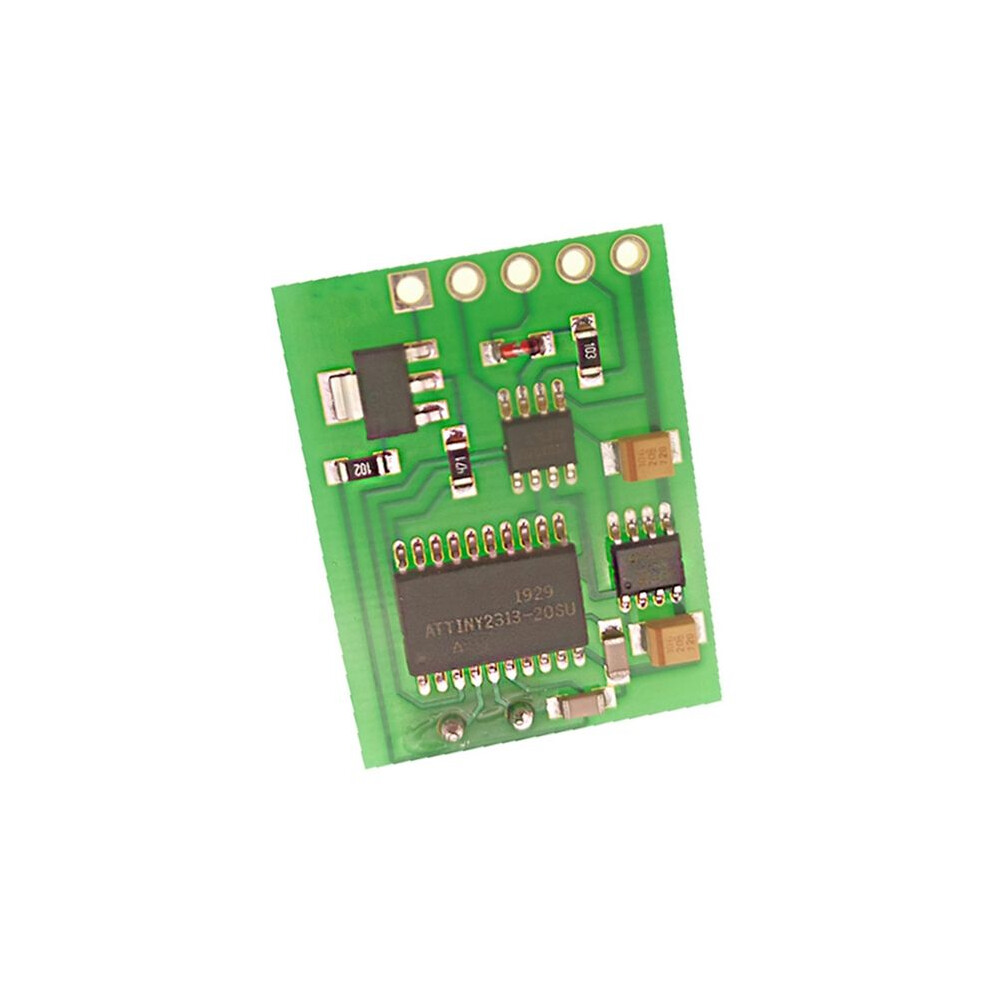

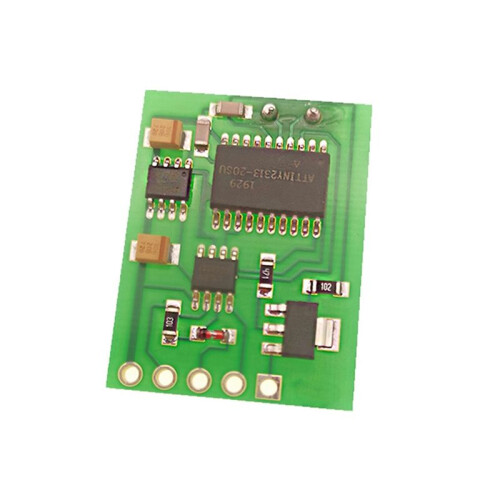

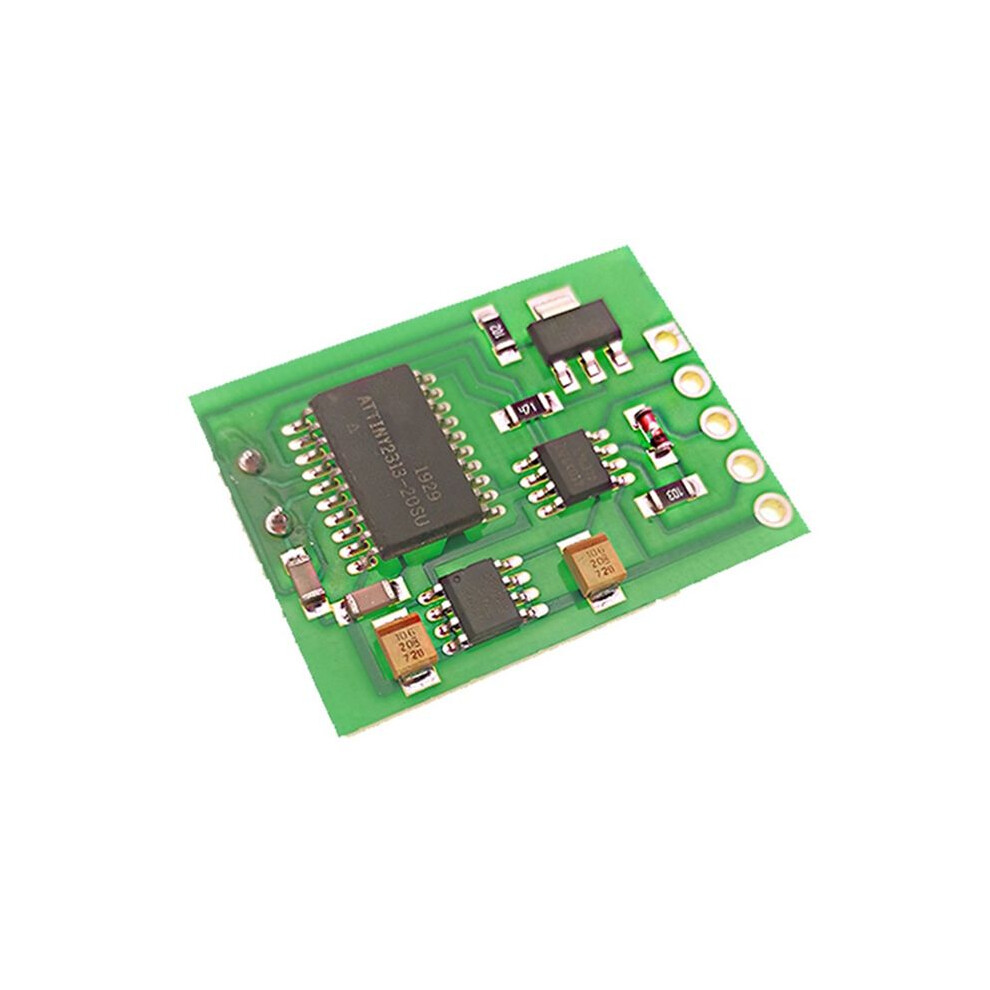

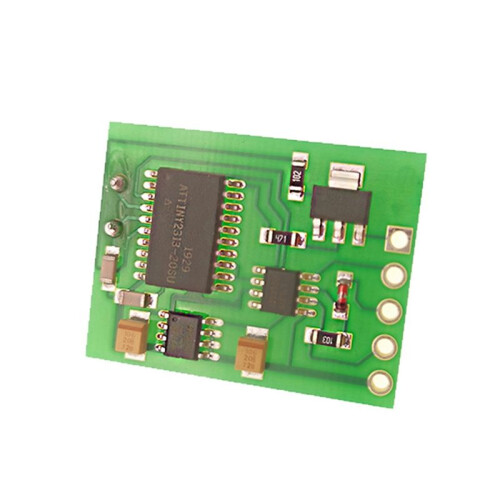

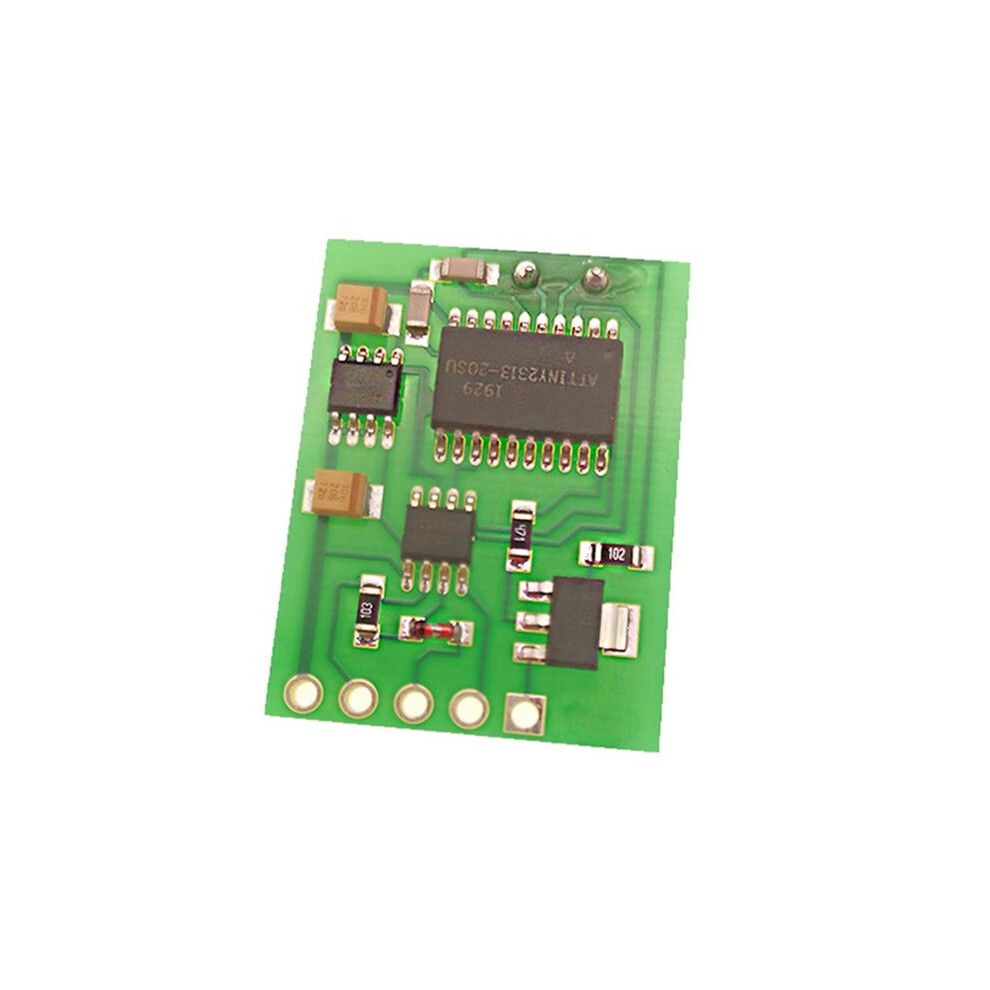

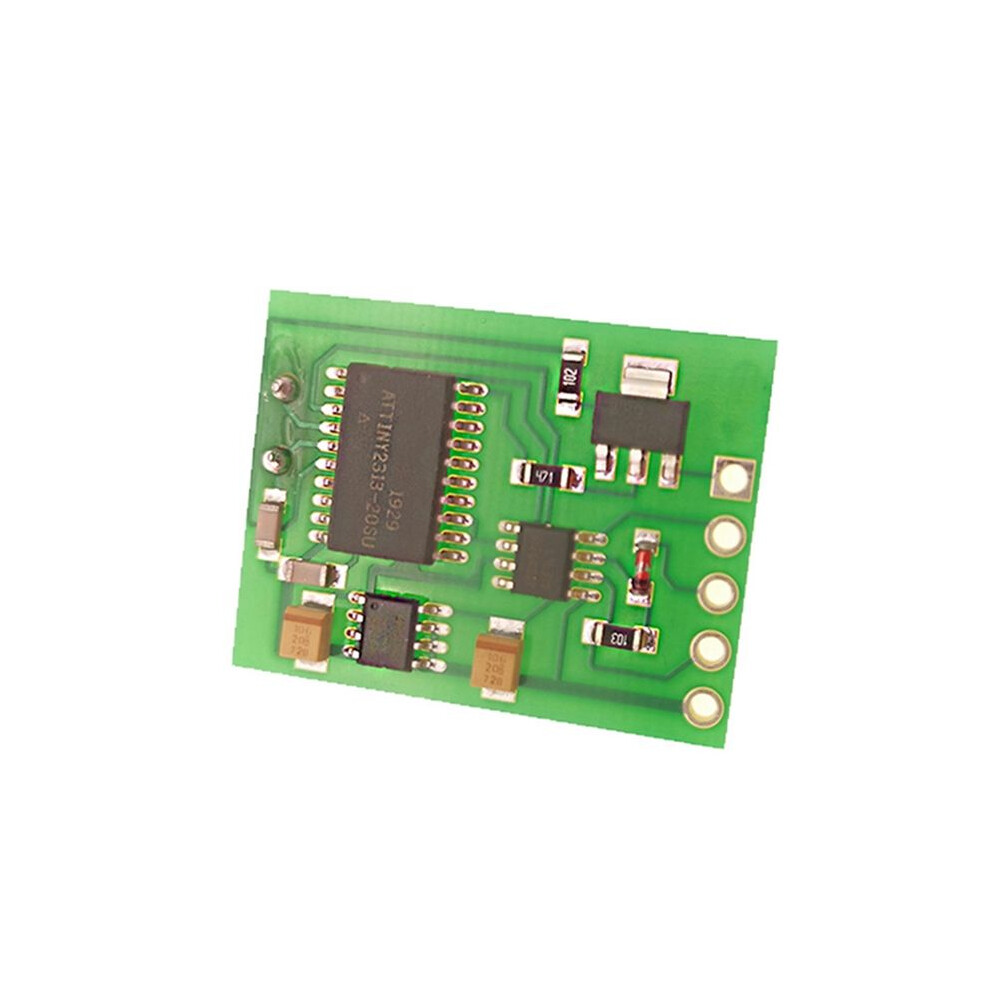

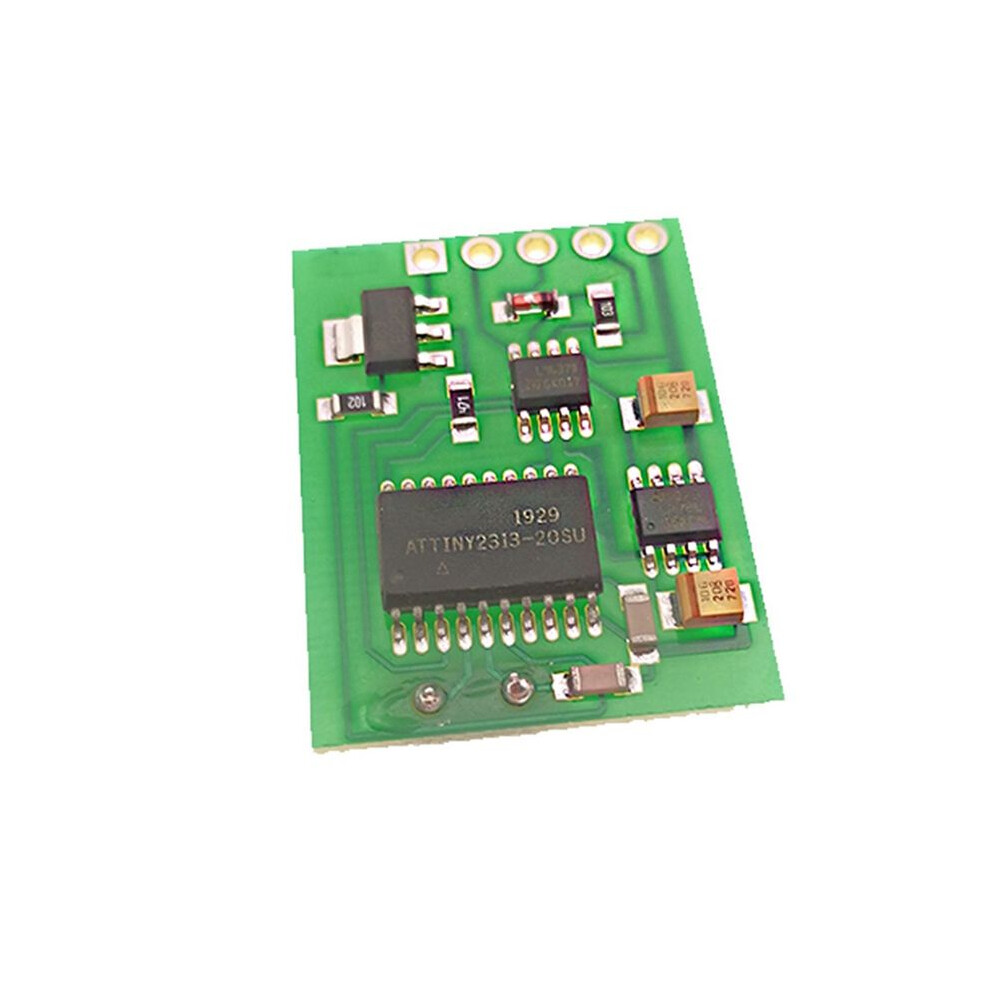

Immobilizer Emulator for
The emulator of an immobilizer for motorcycles and scooters FOR .
Works with all motorcycles and scooters for from 2006 to 2009.
Does not demand programmingonly need is connect wires.
Completely emulates work of a regular immobilizer, including light-emitting diode work the instrument panel.

For emulator installation in the case of a regular immobilizer:
1. Remove glue hermetic from the immobilizer case.
2. Take out a PCB from immobilizer and desolder from it wires.
3. Connect the emulator according to drawing more low.
4. Insert the emulator into the immobilizer case.
Colouring of wires and their appointment:
Black (2 pcs.) GND
Red BATT (+12v)
Yellow IGN (+12v)
Gray LED (+5v)
K- Immo-ECU
Note:
Installation guide not included, we strongly recommend you seek professional installation.
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Colour:As Shown
Material:PCB

Package Contents:
1 * Immobilizer Emulator for
