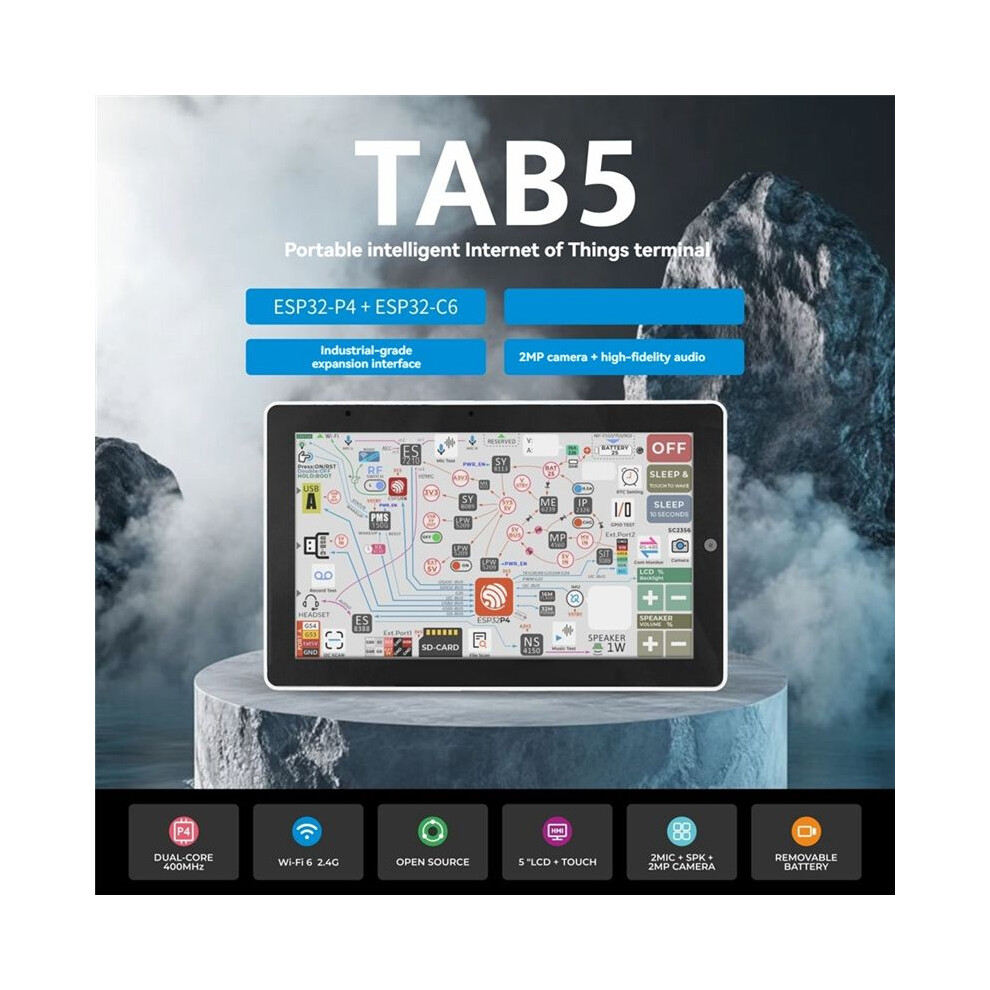

For M5Stack Tab5 IoT Controller/Development Portable IoT Terminal ESP32-P4 + ESP32-C6 Without Battery

For M5Stack Tab5 IoT Controller/Development Portable IoT Terminal ESP32-P4 + ESP32-C6 Without Battery Beskrivelse

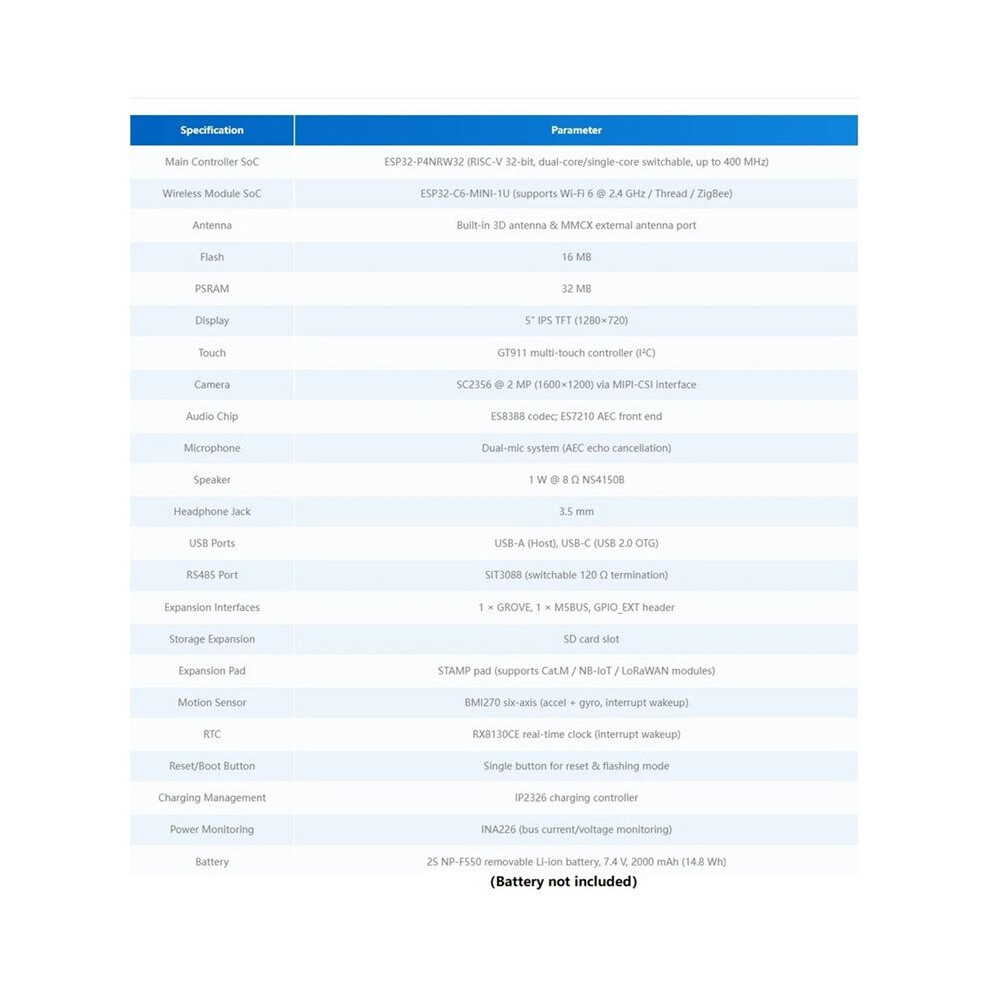

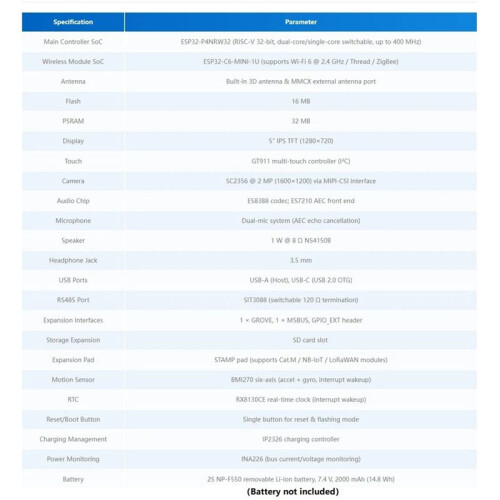

Tab5 is integrates a dual-SoC architecture and abundant hardware resources. Its main controller is the RISC-V-based ESP32-P4 SoC, equipped with 16 MB Flash and 32 MB PSRAM; the wireless module uses ESP32-C6--1U, supporting Wi-Fi 6 with an antenna system that can between a built-in 3D antenna and an external MMCX antenna port, flexibly adapting to different deployment environments and ensuring high data throughput and low latency.

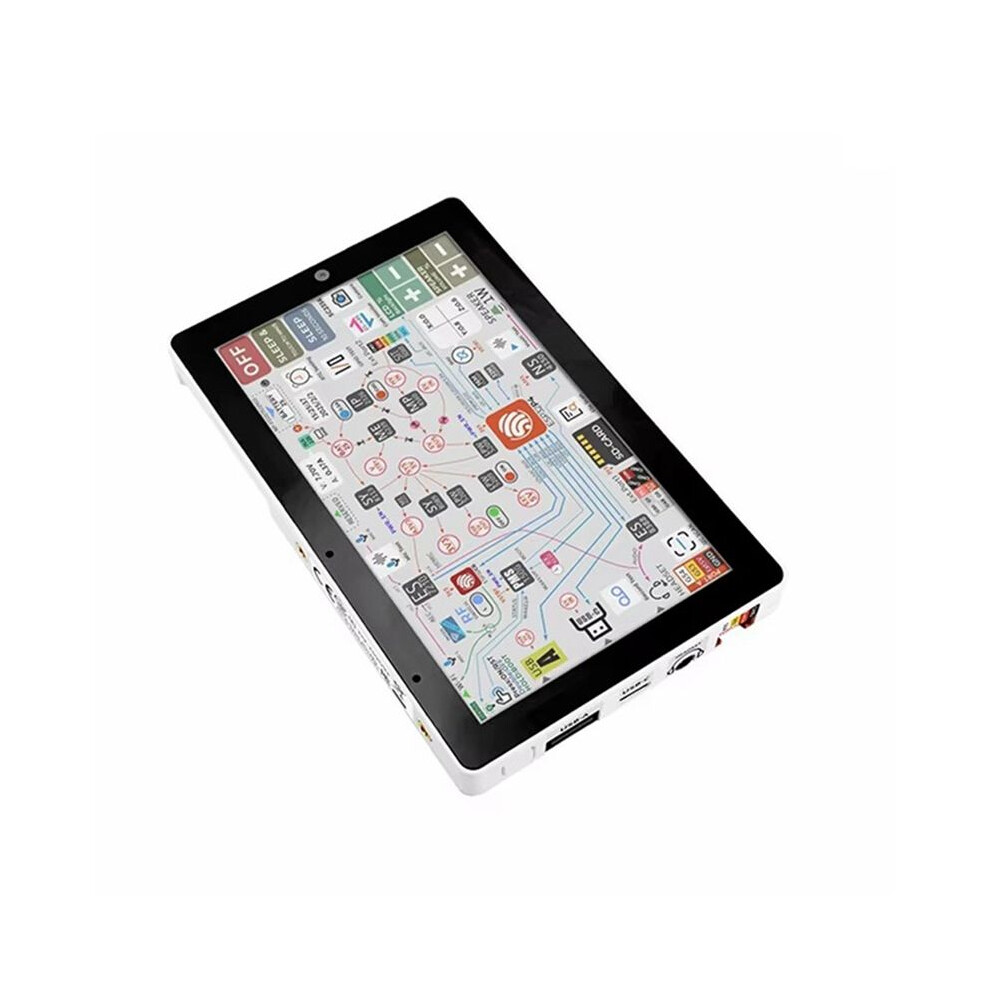

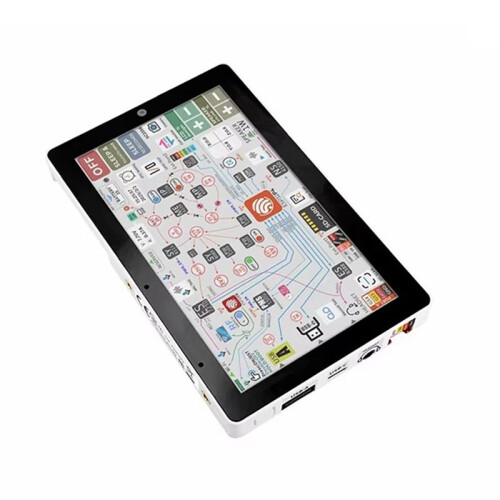

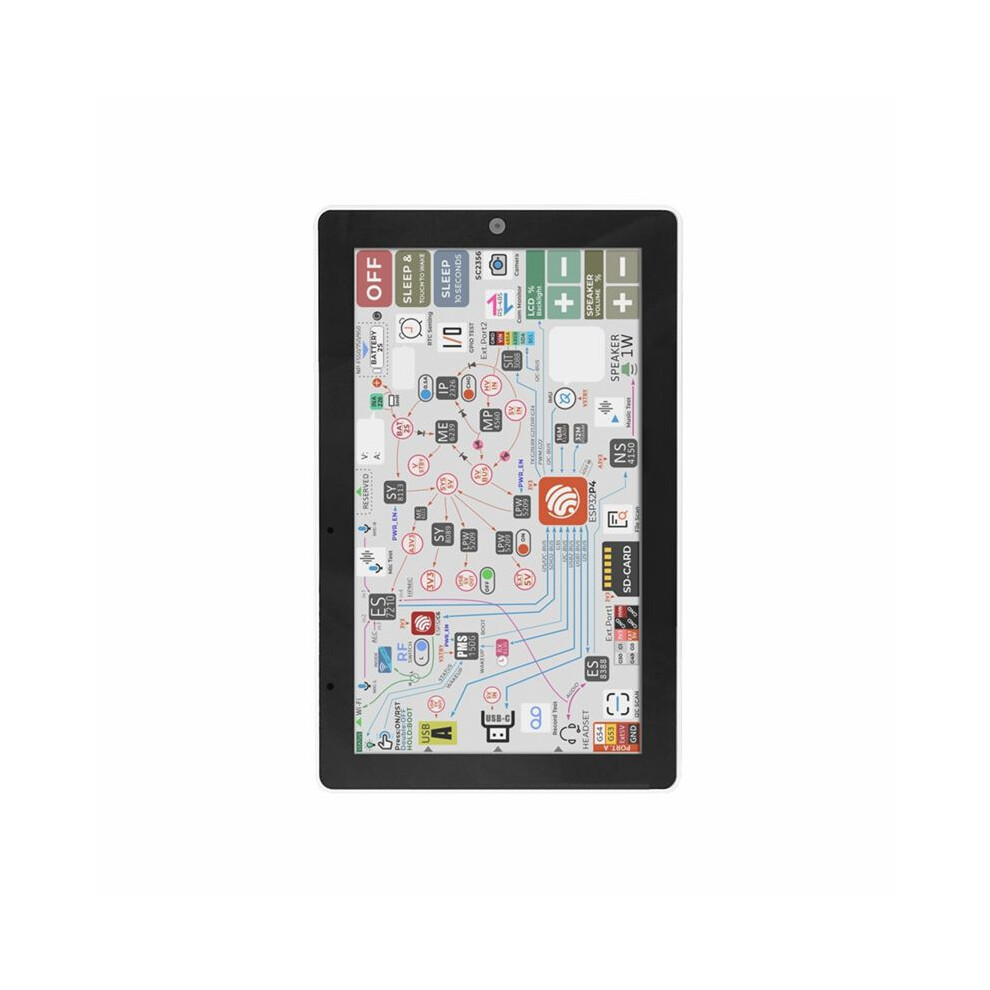

For visuals and interaction, Tab5 features a 5inch 1280x720 IPS TFT display driven over MIPI-, with touch input handled by the GT911 multi-touch controller (I²C) for smooth, precise response. A MIPI-CSI-connected SC2356 2 MP camera (1600x1200) enables HD video capture, image processing, and AI applications (e.g., face recognition, object tracking).

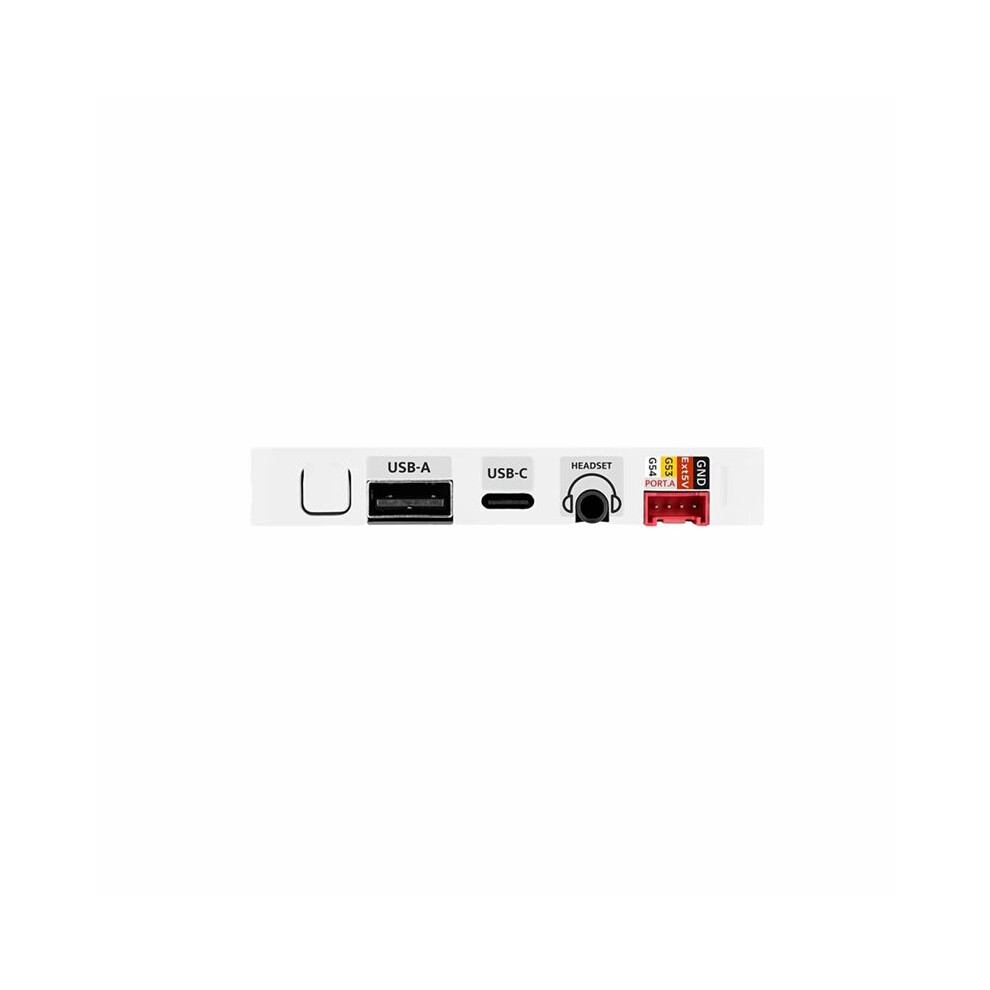

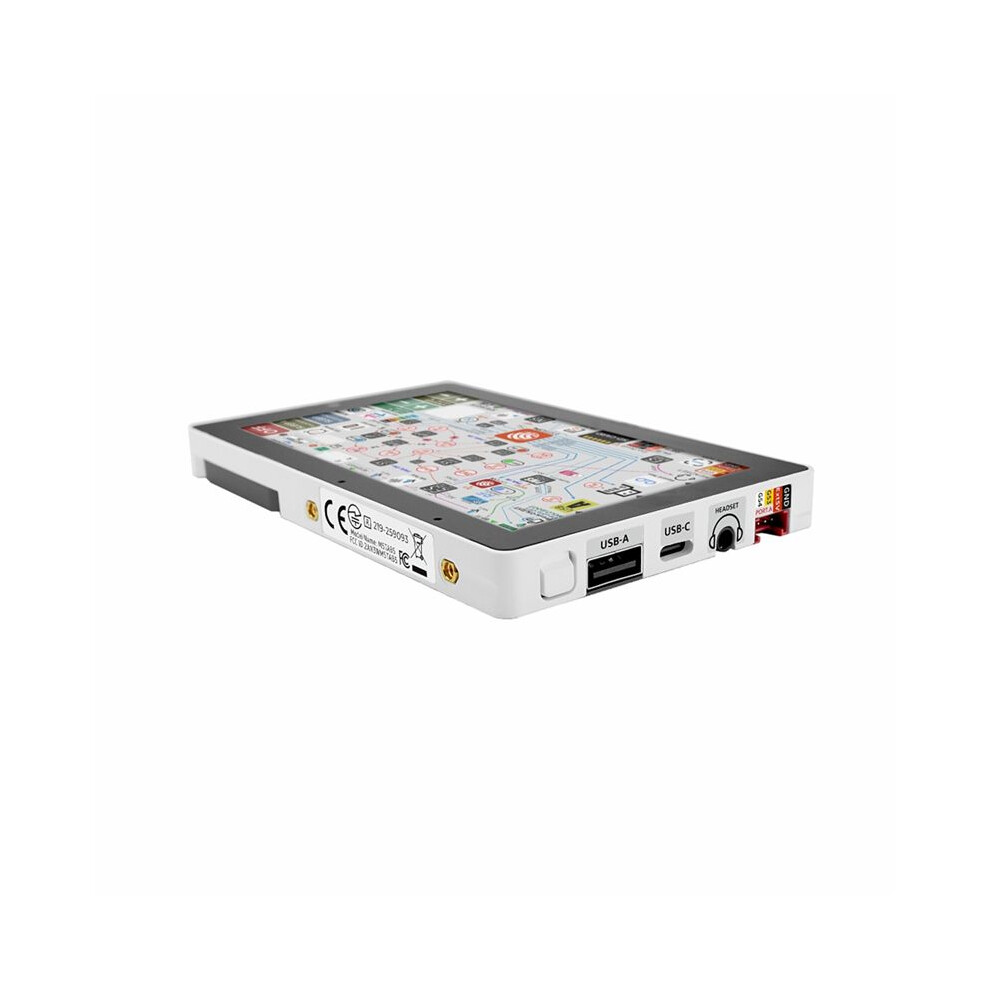

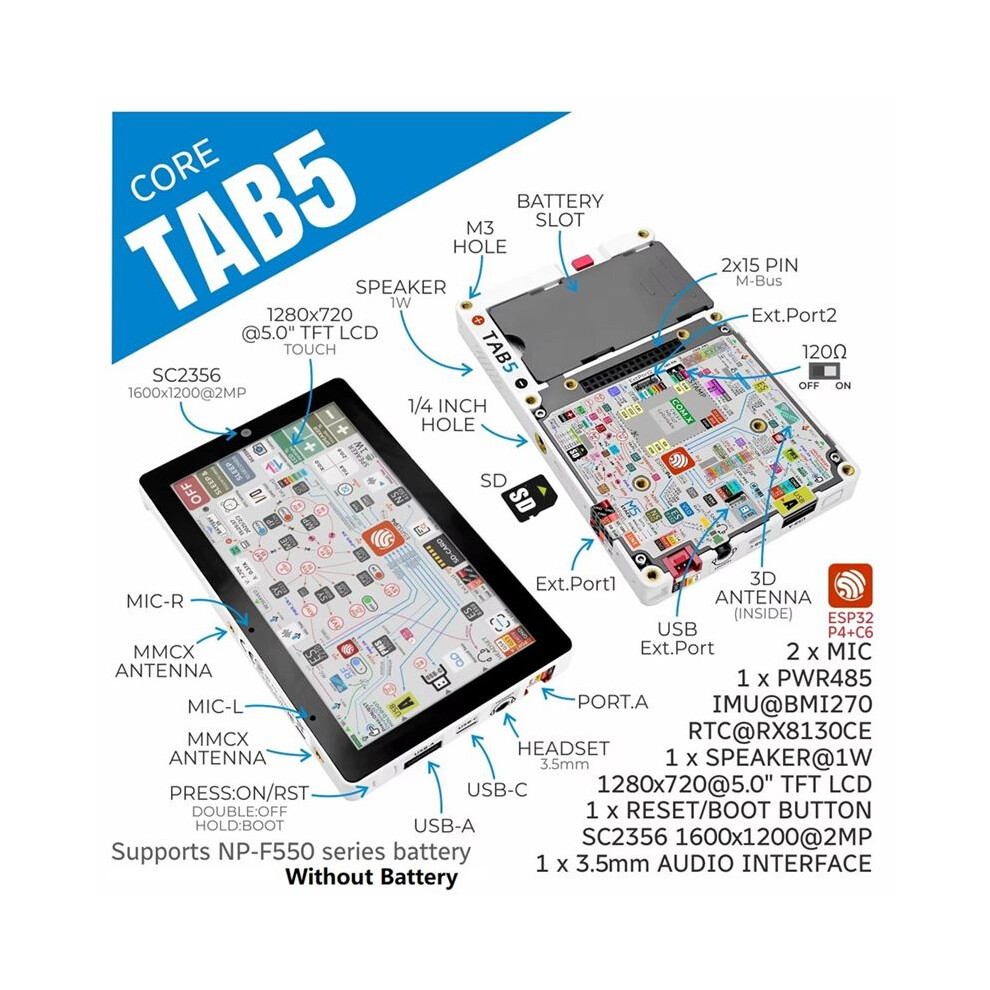

I/O and expansion include USB-A (Host) and USB-C (USB 2.0 OTG) for traditional peripherals; industrial communication via -485 (SIT3088 with switchable 120 Ω termination); 1 x GROVE, 1 x M5BUS, GPIO_EXT header, and a Micro- slot; a STAMP solder-pad for Cat.M/NB-IoT/LoRaWAN modules. A Reset/Boot button allows quick reset and firmware flashing.
Audio/video uses an ES8388 audio codec with ES7210 AEC front end, dual-mic array, 3.5 mm jack, and 1 W 8 Ω NS4150B speaker for high-fidelity recording and playback. The onboard BMI270 six-axis sensor (accel+gyro, interrupt wakeup) can trigger MCU wakeup motion.

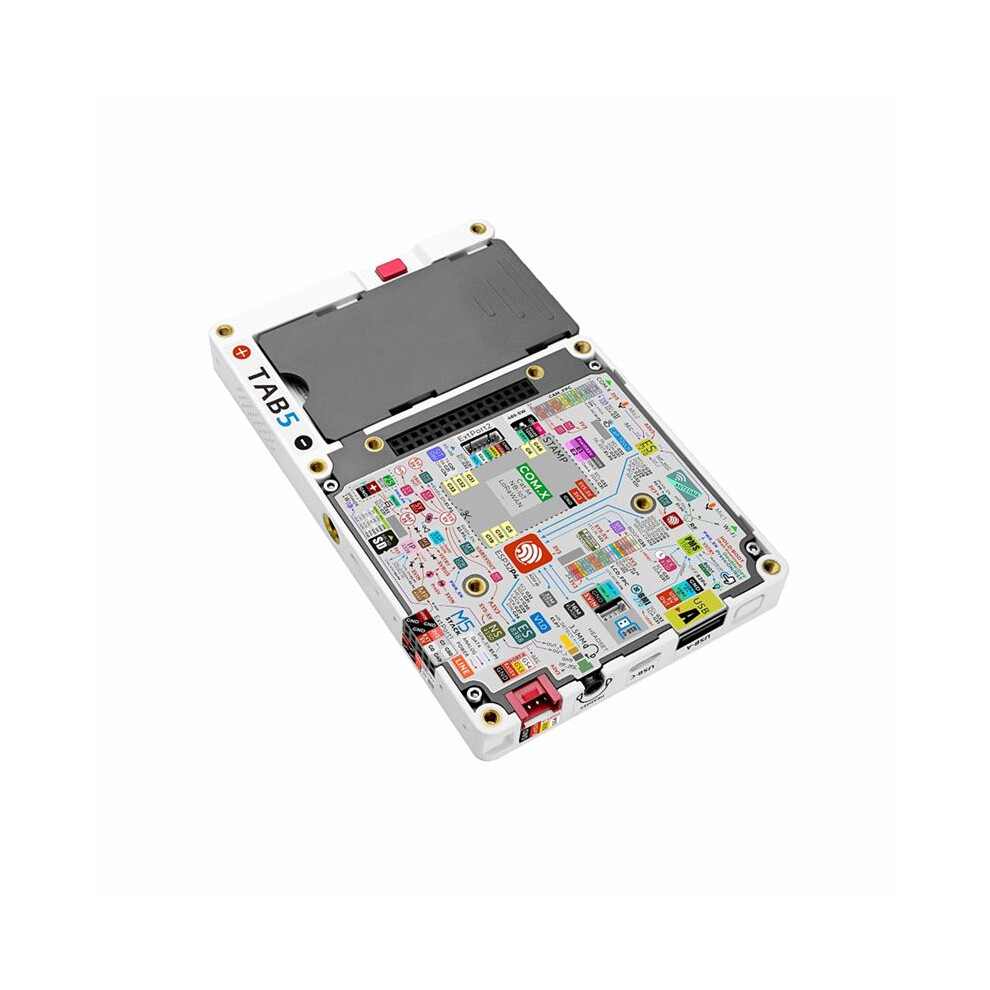

and power management integrate an RX8130CE real- clock (interrupt wakeup); a 2S NP-F550 removable Li-ion battery(without); and IP2326 charging, MP4560 buck-boost, and INA226 real- monitoring circuits to ensure stable operation without external power. A side-mounted Power button provides one-touch /off.
(Different batches may result in different printing screens, which will not affect the use)
Color: White
