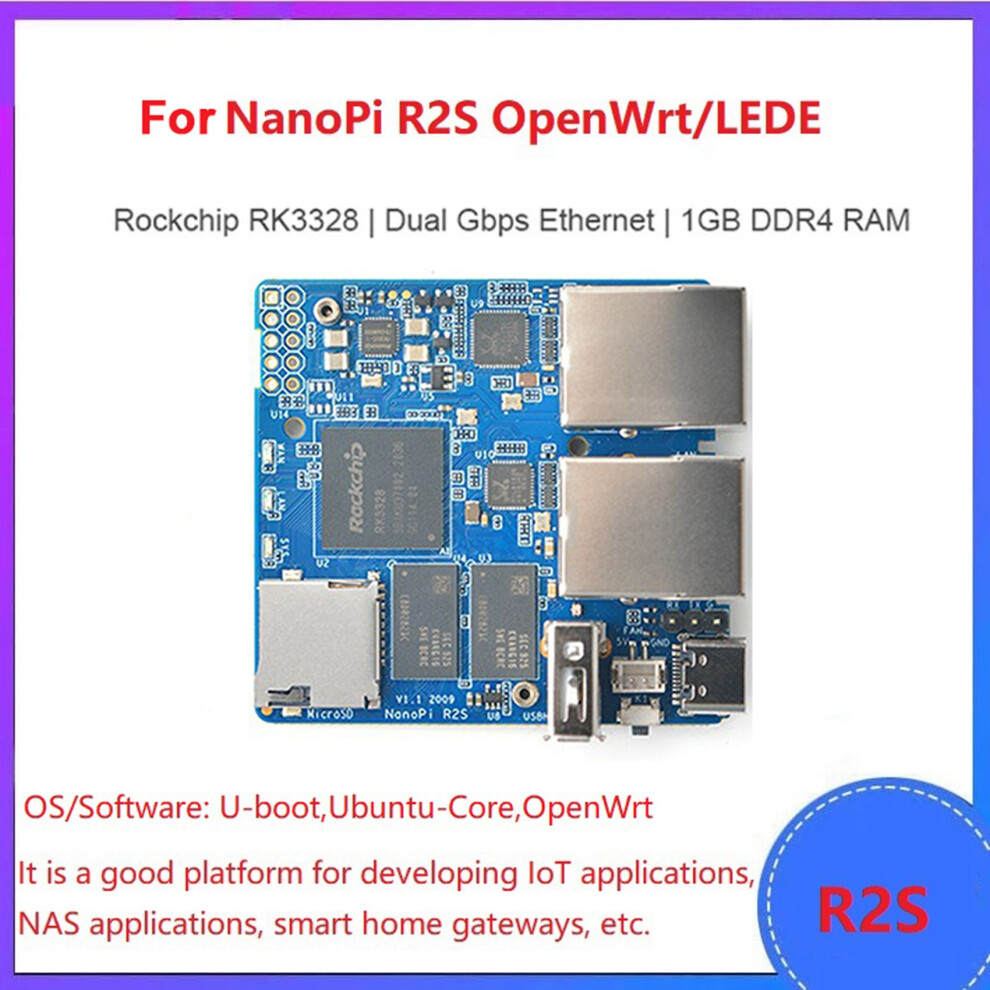

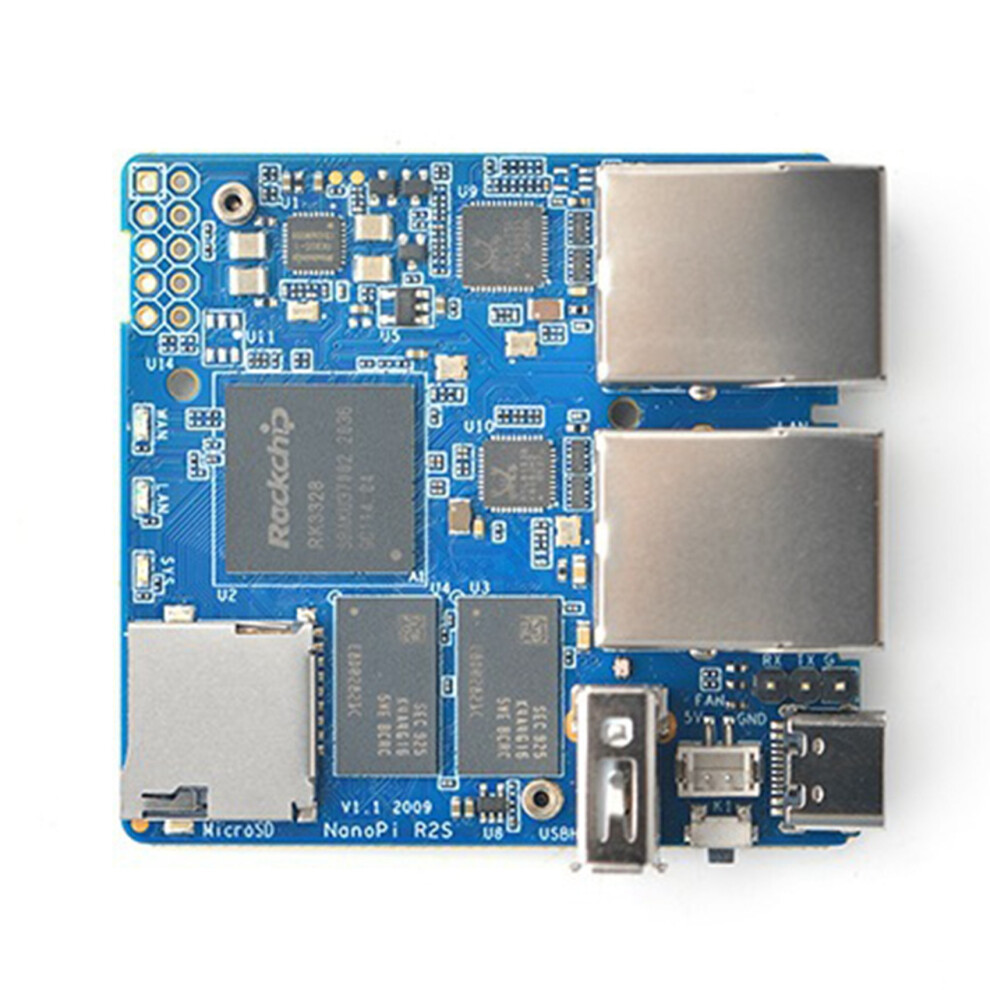

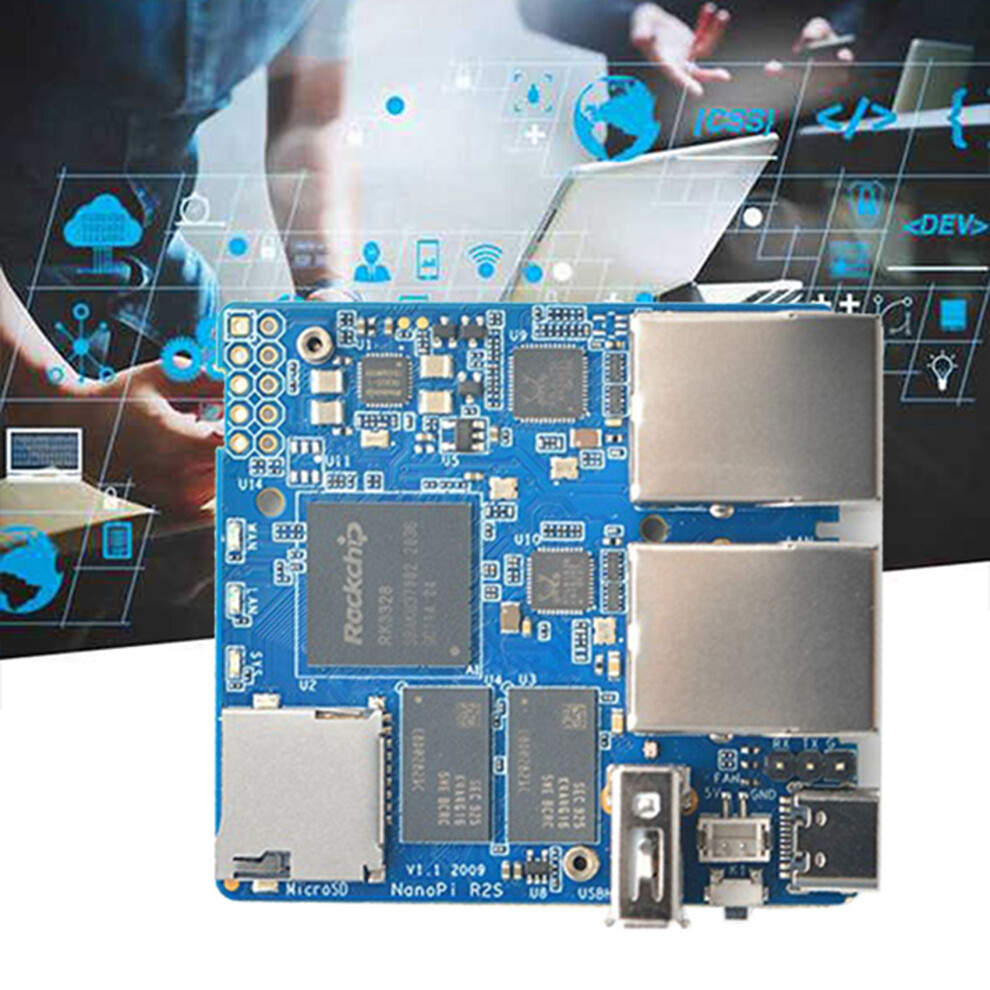

For NanoPi R2S Router Single Board Rockchip RK3328 Quad-Core Cortex-A53 Gigabit Ethernet Development Board

For NanoPi R2S Router Single Board Rockchip RK3328 Quad-Core Cortex-A53 Gigabit Ethernet Development Board Beskrivelse

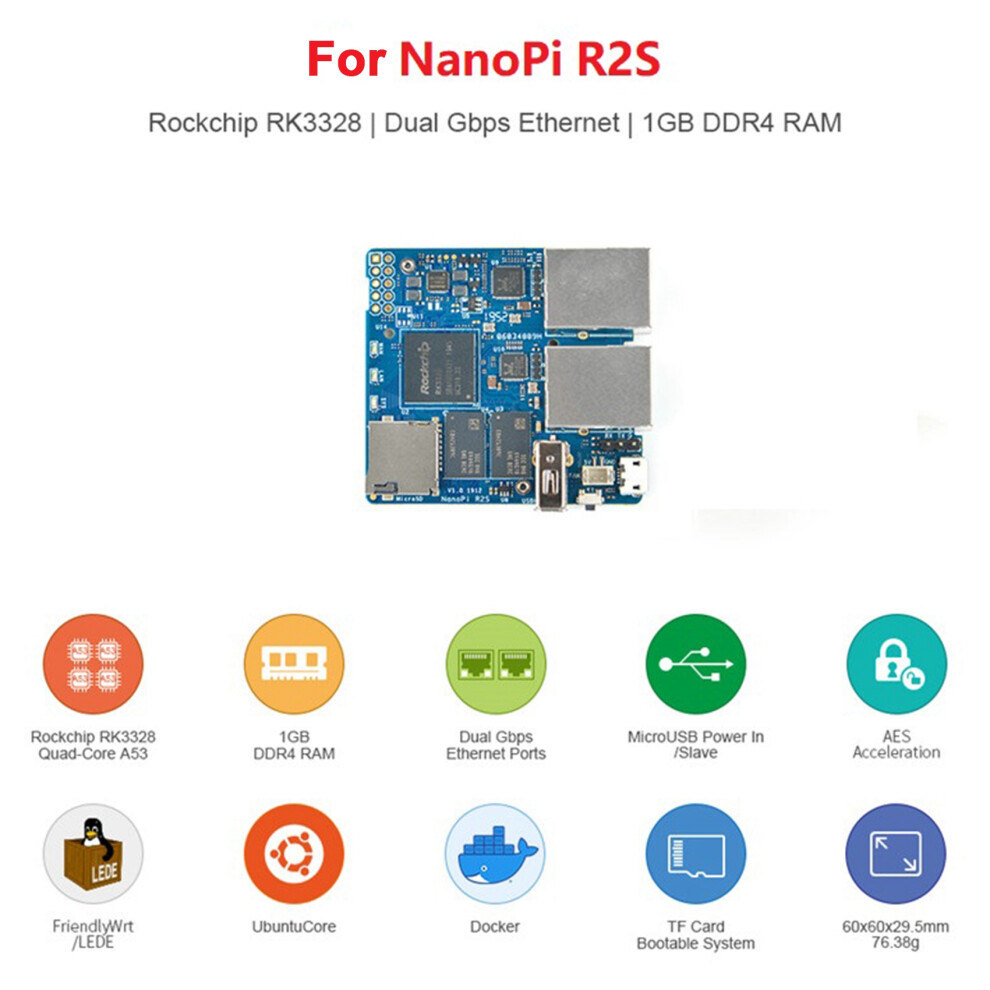

1. For NanoPi R2S is an open source platform with dual Gbps Ethernet designed and developed for IoT applications.
2. For NanoPi R2S use RK3328 SoC. It has two Gbps Ethernet and 1G DDR4 RAM.
3. An OpenWrt system has been transplanted for NanoPi R2S.
4. It works with Docker CE.
5. It is a good platform for developing IoT applications, NAS applications, home gateways, etc.

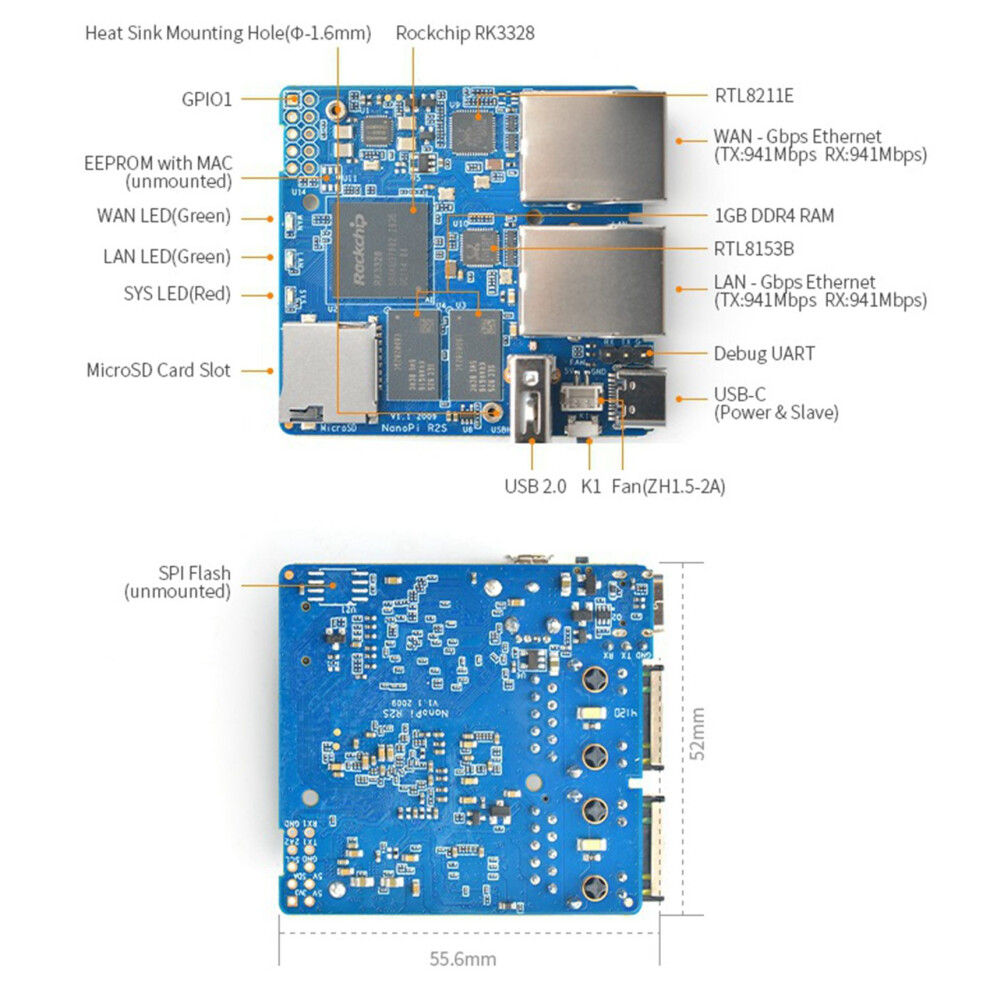

Hardware Specifications:
Product Name: Router Development Board
Model: for NanoPi R2S

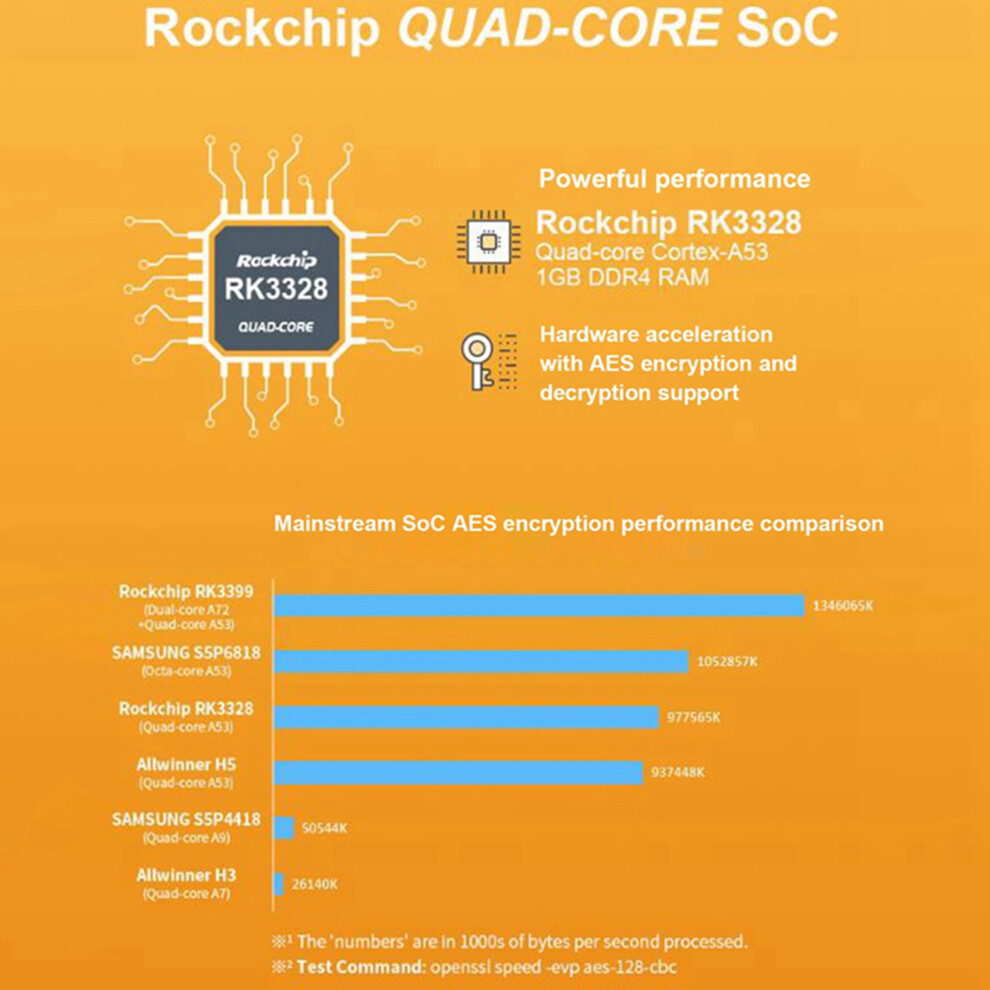

CPU: Rockchip RK3328, Quad-core Cortex-A53

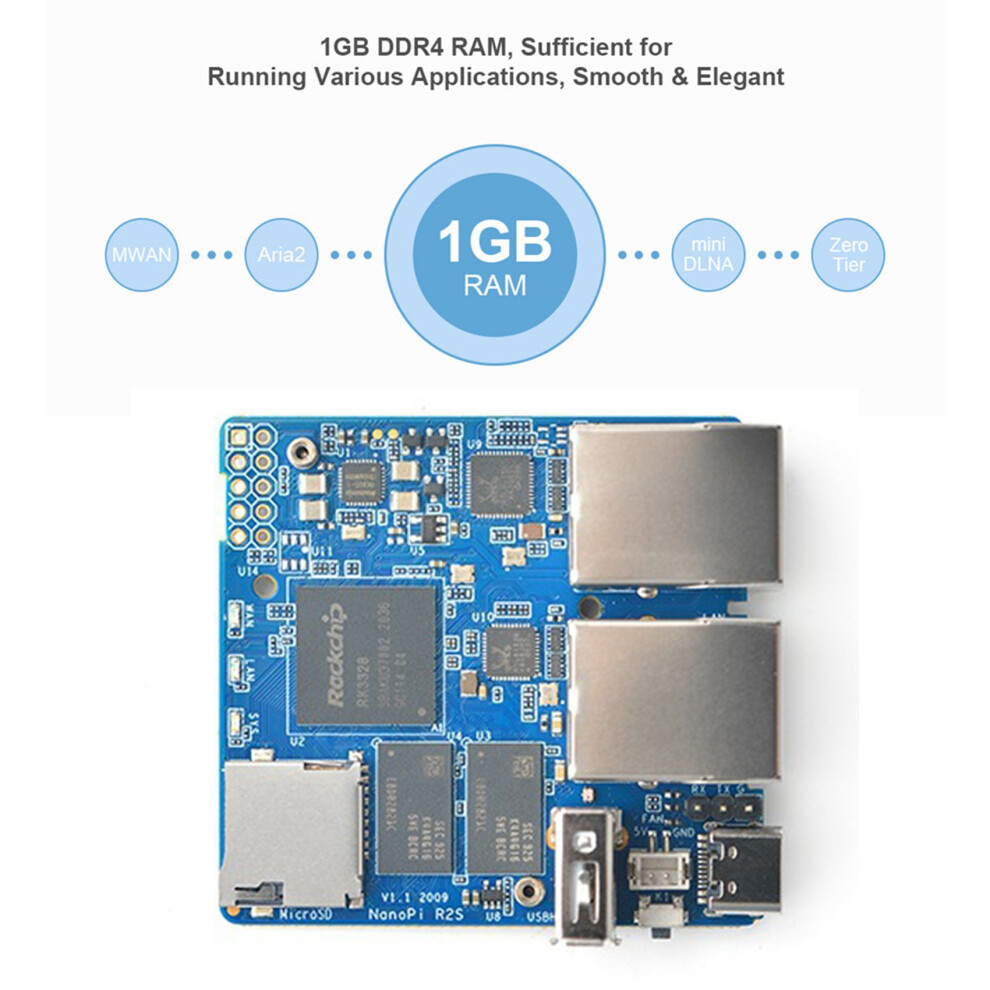

DDR4 RAM: 1GB

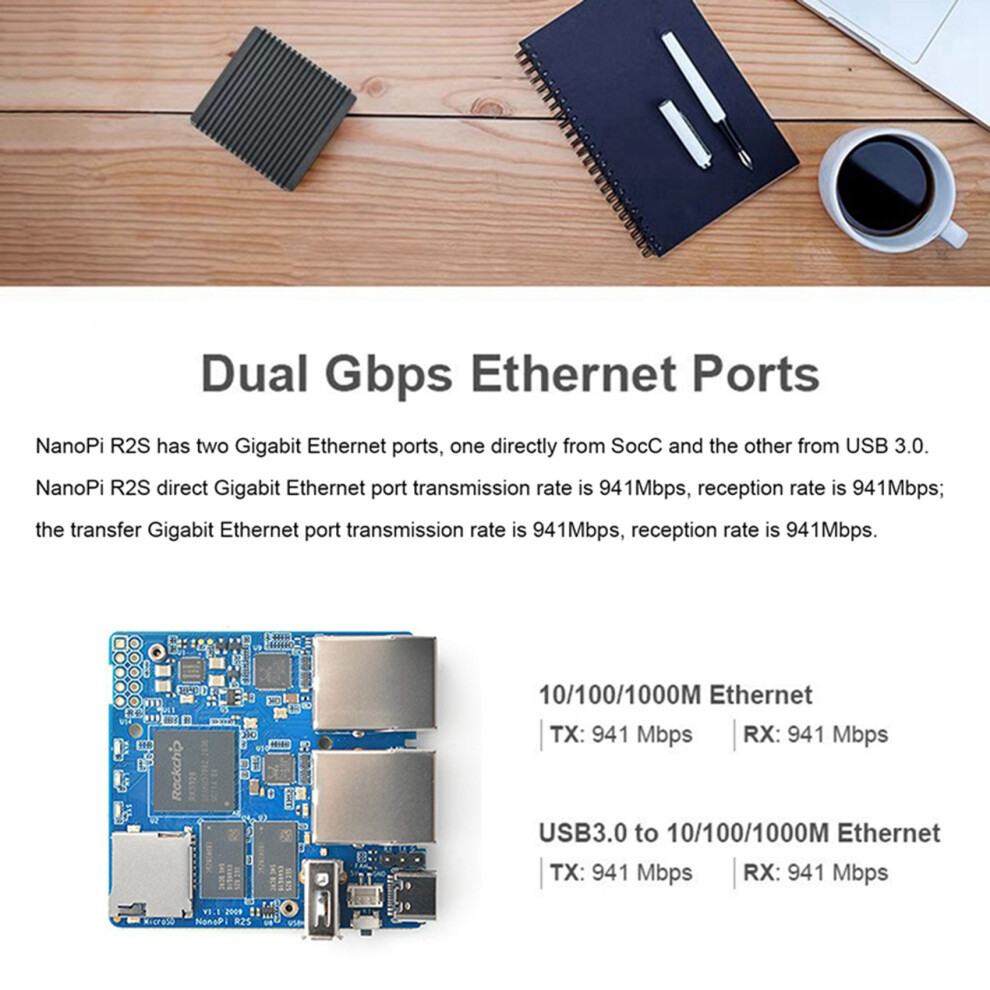

Network:
Internal 10/100/1000M Ethernet Port * 1
USB3.0 converted 10/100/1000M Ethernet Port * 1
USB2.0 Host: Type-A * 1
MicroSD Slot*1
MicroUSB: power input and USB Slave
Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector, 1500000 bauds
LED: LED * 3
KEY: KEY * 1 programmable
PC Size: 55.6 x 52mm
Power Supply: 5V/2A
Temperature measuring range: 0 to 80
OS/Software: U-boot,Ubuntu-Core,OpenWrt
color:
Material:PCB+Metal

Package Contents:
1 x for NanoPi R2S development board
