For Raspberry Pi5 SSD Expansion Board for Raspberry Pi5 PCIE to M.2 NVME SSD Interface Expansion Board Module,C

For Raspberry Pi5 SSD Expansion Board for Raspberry Pi5 PCIE to M.2 NVME SSD Interface Expansion Board Module,C Beskrivelse

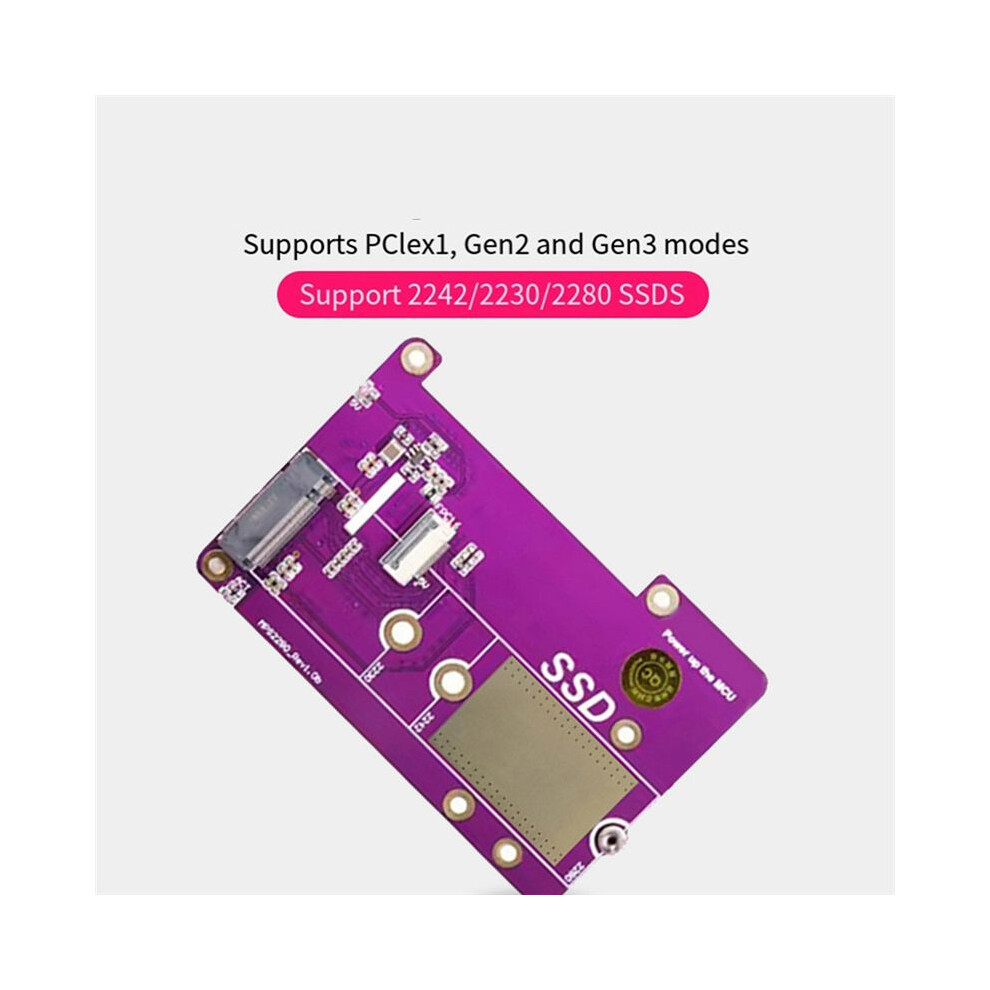

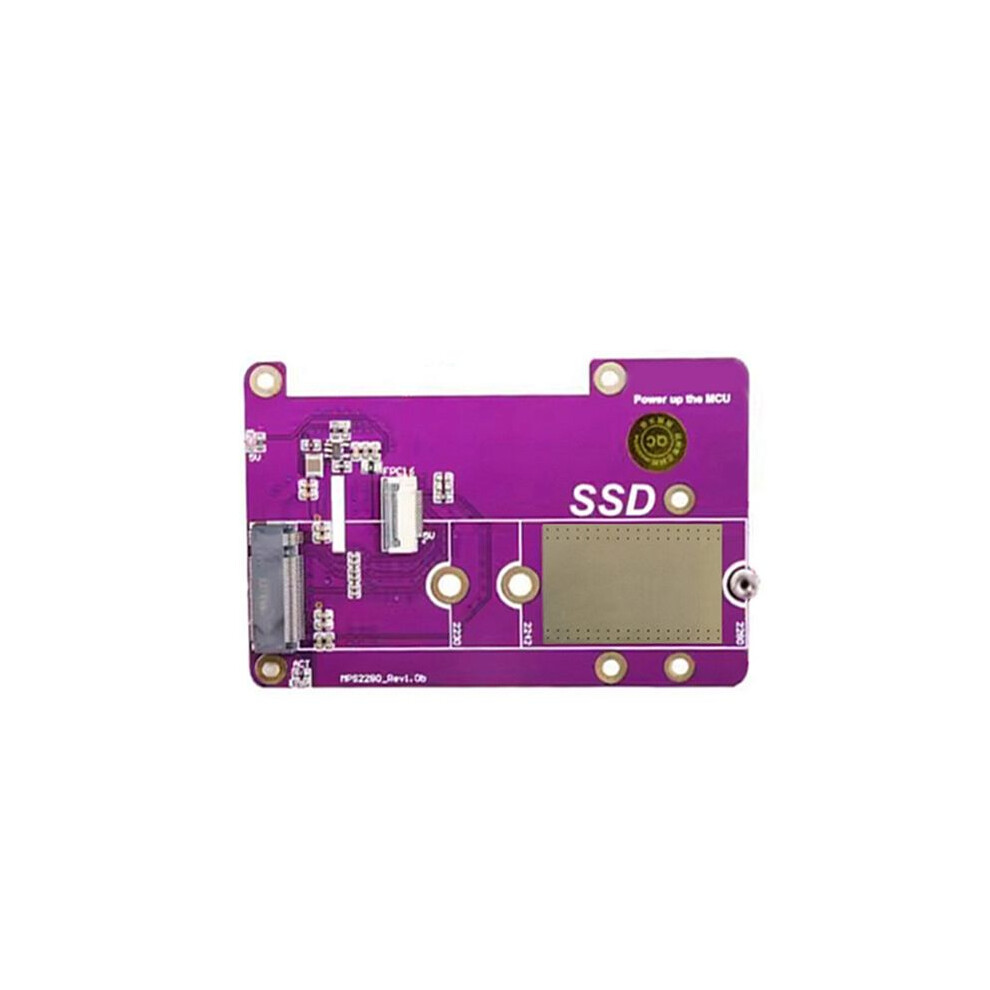

1. For Raspberry Pi PCIE to M.2 SSD expansion board, supports PCle x1, supports Gen2 and Gen3 modes, supports 2242/2230/2280 specification SSD, supports booting from NVMe solid state drives and storage expansion
2. SSD can also be used for storage expansion alone, and the system is booted from a TF card; the for Raspberry Pi 5 motherboard has a built-in PCIE expansion interface, and this product is suitable for PCIE external M.2 solid-state drive expansion.
3. Support 2242/2230 size SSD
4. I support PCle x1, Gen2 and Gen3 modes
5. Onboard power indicator (PWR) and M.2SSD activity indicator (ACT)

Model:PCIE to M.2 NVME
Purpose:for Raspberry Pi 5th generation solid state drive expansion board
Expansion board usage instructions:
1. The power circuit of the expansion board adopts a 2A current design. It is limited by the current limit of the PCle interface of the for Raspberry Pi 5 (5V1A) and can provide an output of more than 3.3V1.5A to the solid state drive.
2. Normally the rated current of an SSD can be 2.5A, 2.7A or even 3A, but these currents correspond to the limits of X4 mode
3. Since for Raspberry Pi 5 only supports X1 mode, the actual current used is much less than the rated current. Our design meets the needs of most hard drives.
Note:Due to different production batches, the color of the motherboard will be different, and the appearance, color, and printing of the product will be different, which does not affect the use.
Type:C:Version 2230
Colour:Random Color(Color is random and cannot be specified)
Material:PCB

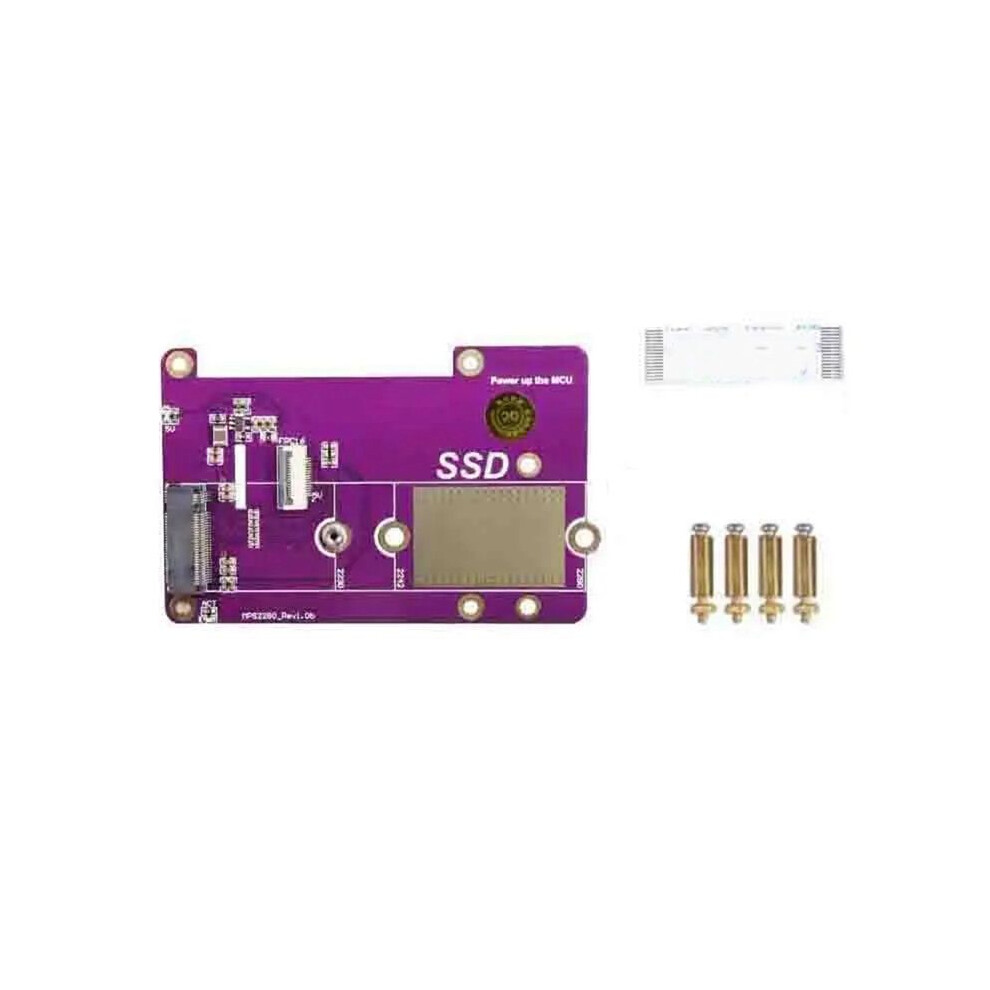

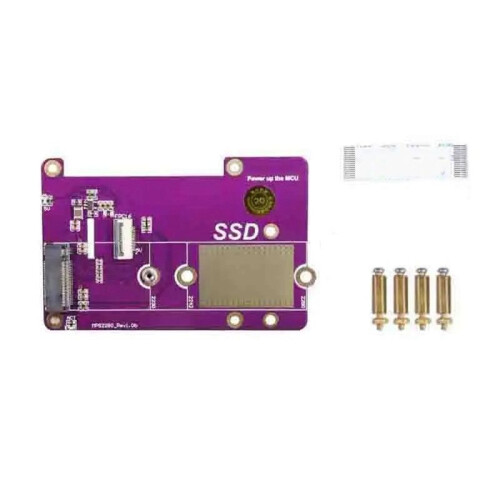

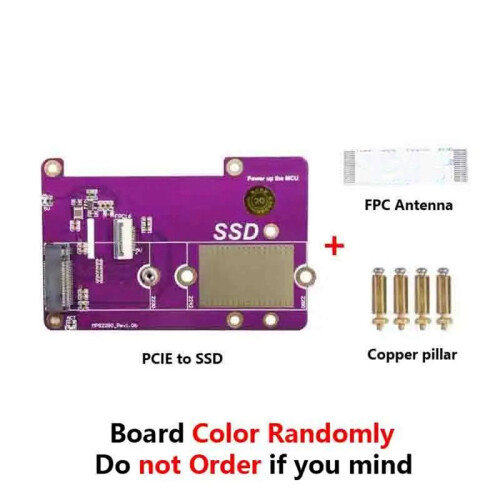

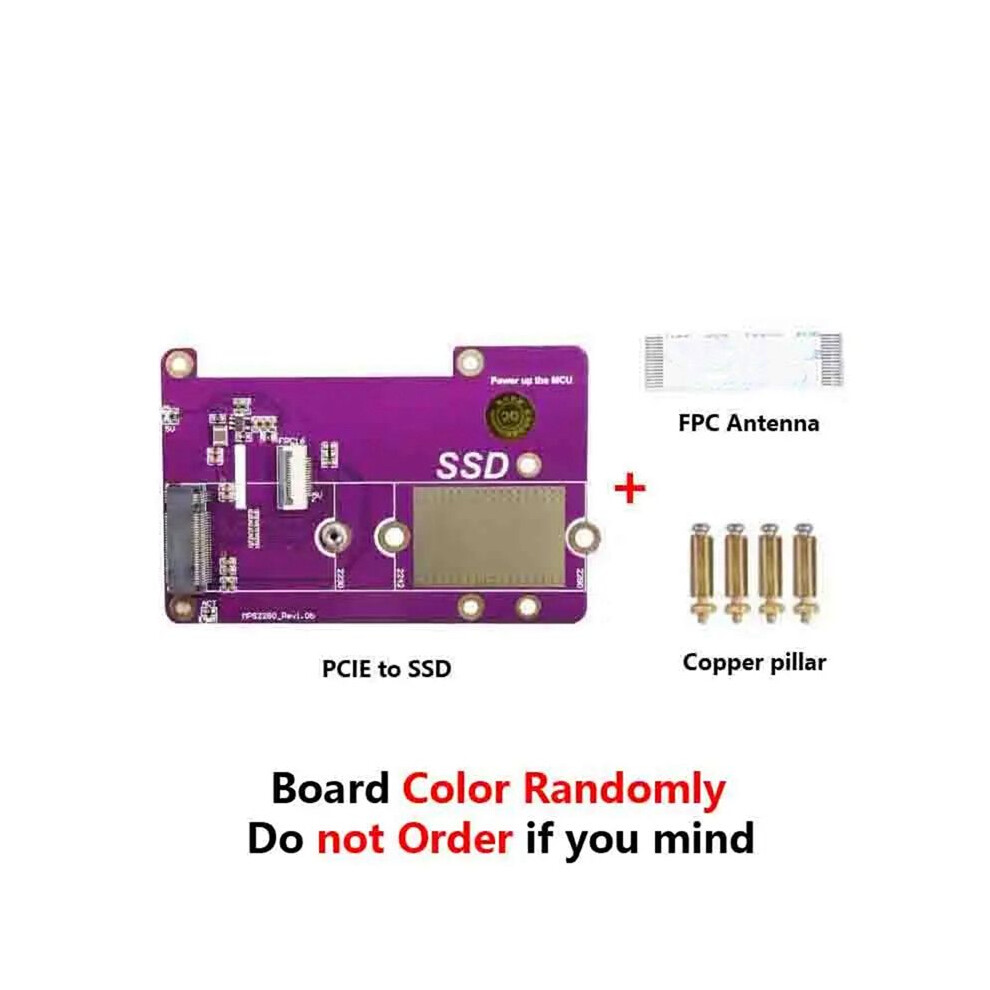

Package Contents:
1 * Expansion Board
1 * Connecting Cable
4 * Fixed Copper Pillars
