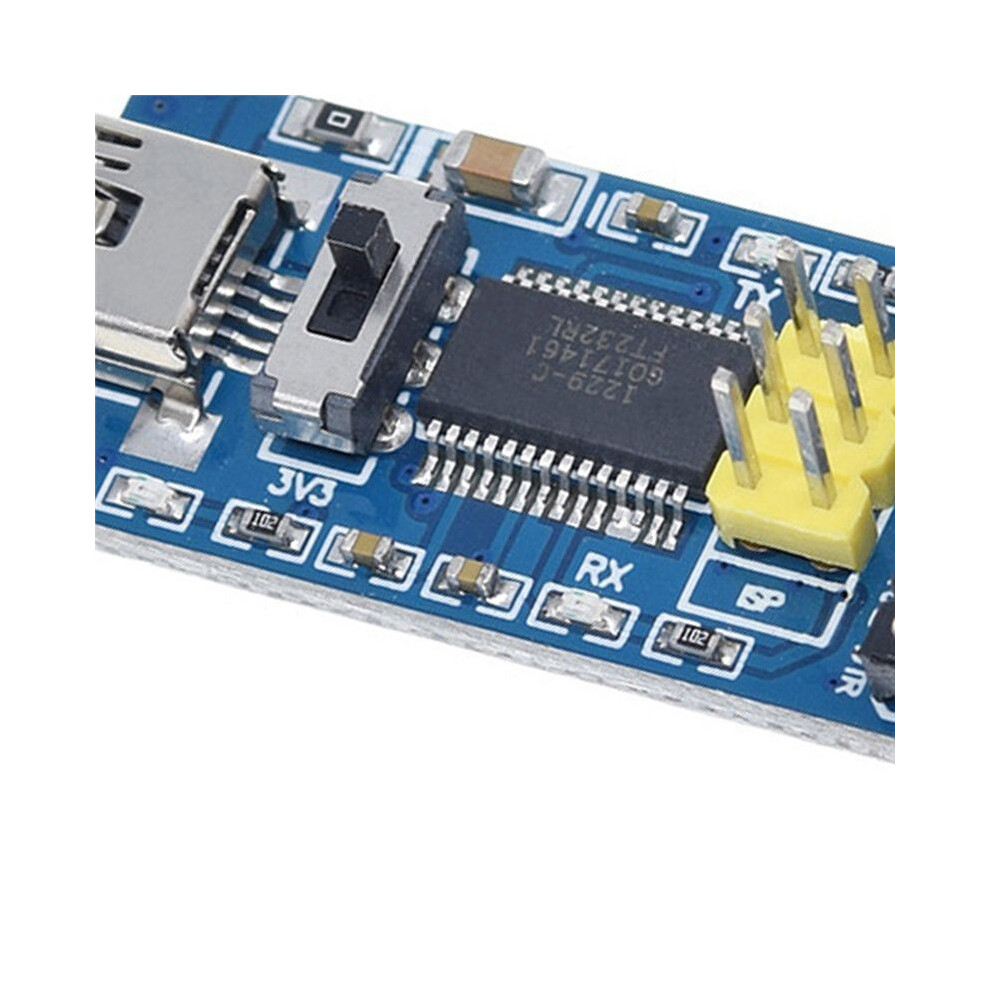

FT232RL Module FTDI USB TO TTL 5V 3.3V Debugger Download Cable to Serial Adapter Module for , FT232RL

FT232RL Module FTDI USB TO TTL 5V 3.3V Debugger Download Cable to Serial Adapter Module for , FT232RL Beskrivelse

Support windows8. TXD, RXD, RTS#, CTS#: Use curved pin header to lead.
FT232R introduction: With the development of computer technology, parallel and serial have slowly disappeared PCs. Nowadays, even desktop computers have few parallel . But for engineers, both parallel and serial are essential interfaces, especially serial . For computers without a serial port, a convenient solution is to use a USB-to-serial chip to virtualize a serial port.
Many manufacturers produce such chips, such as CP210x series from silicon LABS, TUSB3410 from TI, CH34x series from Nanjing Qinheng, and FTDI FT232 series, Prolific PL230x series, ARK3116, etc. From the perspective of stability, the FT232 series is still reliable, and you can use it to debug the program without worrying about the screen.
The FT232R chip is a single-chip solution. Generally, peripherals are not required for general use. Even the crystal oscillator, USB matching resistor, and EEPROM for product information have been integrated inside. FT232R also has some more useful functions.

Hardware introduction:
Adopt FT232RL chip of FTDI Company
Lead out all signal of FT232RL chip, TTL/CMOS level
RXD/TXD transceiver communication indicator
USB power supply, optional 5V or 3.3V interface level (if other levels are needed, you can directly provide the target voltage the VCC and GND pins)
Type:Logic ICs
Model Number:FT232RL FT232
color:
Material:PCB + electronic accessories

Package Contents:
1 x FT232RL Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
