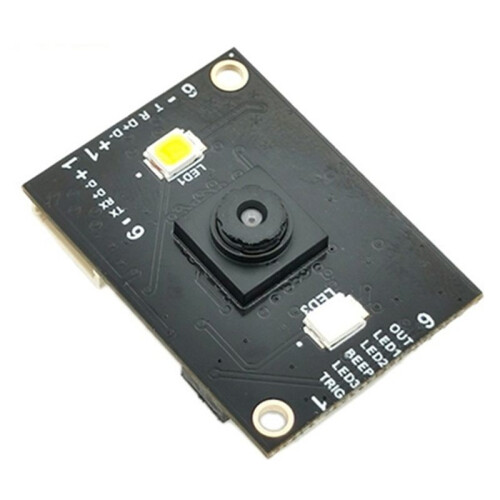

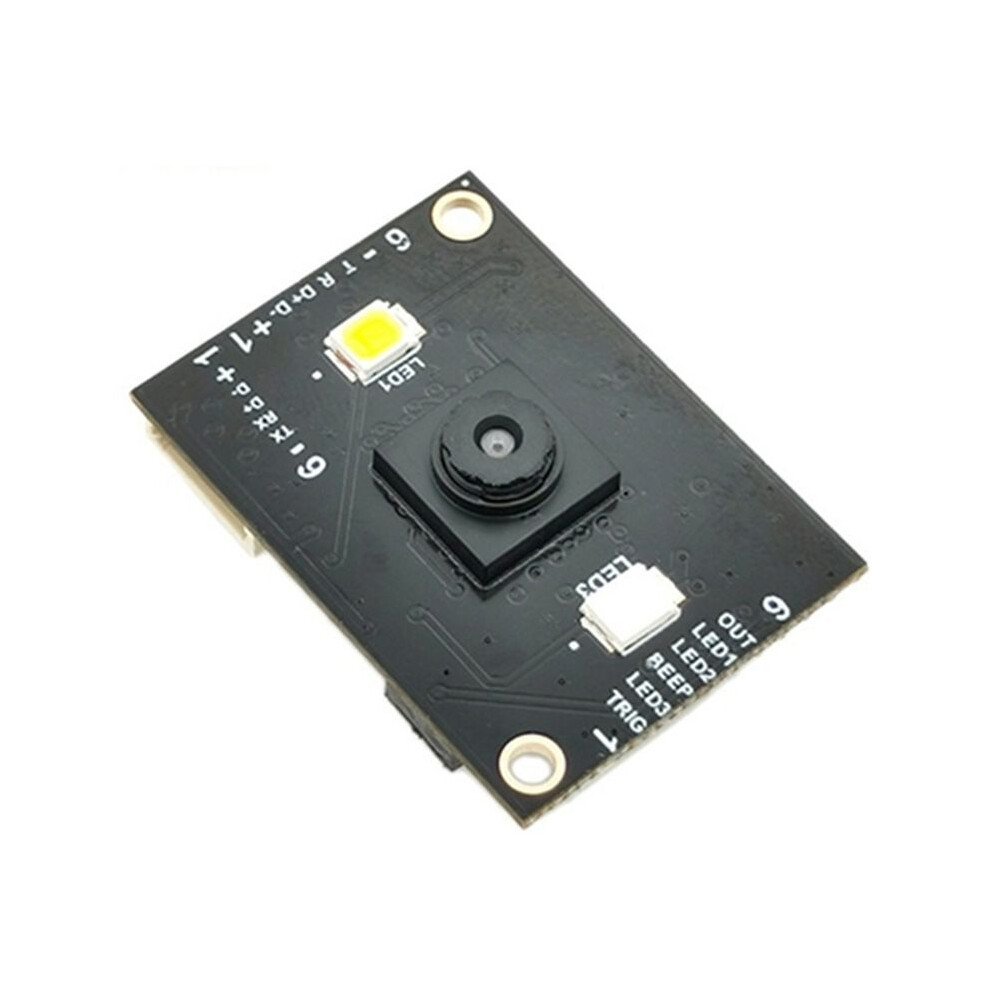

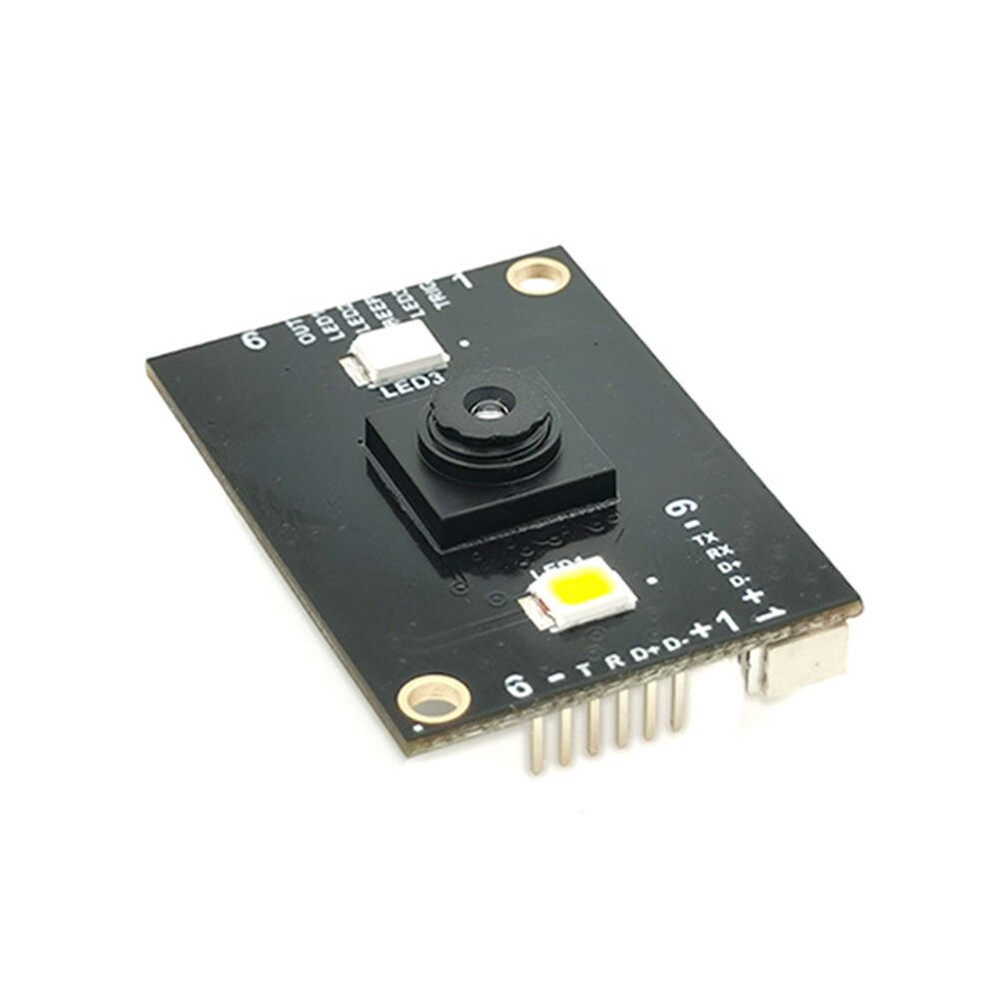

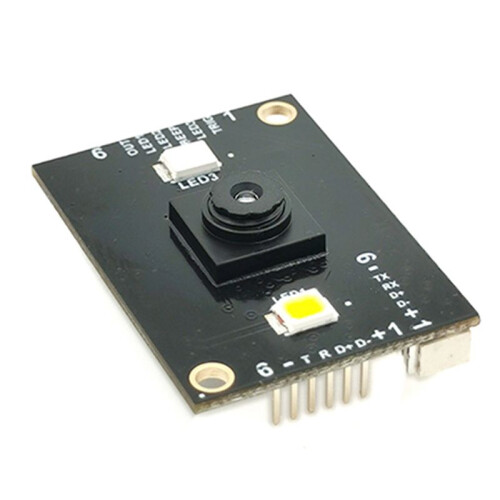

GM805-L Series UART USB DC5V Barcode Scanner Reader Module 1D/2D QR Bar Code Reader for Android (7-70cm)

GM805-L Series UART USB DC5V Barcode Scanner Reader Module 1D/2D QR Bar Code Reader for Android (7-70cm) Beskrivelse

GM805 barcode reading module is a GM80X series integrated small product, which has two interfaces: row-inserting and horizontal-inserting, and can be directly output, which is convenient for users to develop and apply.
Adhering to the excellent scanning engine of GM80X series products, it can not only easily read all kinds of one-dimensional barcodes, but also read two-dimensional barcodes at high speed, with a very high scanning rate for linear barcodes, and can also easily scan paper barcodes and barcodes display screens.

Image sensor:CMOS
Pixel:640*480
Symbol contrast:Greater than 25%
Reading angle:360 rotation, 65 deflection and 65 inclination.
Scanning angle:67(horizontal),53(vertical)
Reading accuracy:greater than equal 10mil
Communication interface:TTL-232, USB
Circuit board size:20x28mm
Weight:2.1g
Prompting mode:buzzer, LED indication
Operating voltage: 5V
Operating current:Less than 70mA
Dormant current:less than equal 6mA (typical)
Start- :less than equal 250mS (typical)
Colour:Black
Material:ABS

Package Contents:
1 * Integrated barcode module
