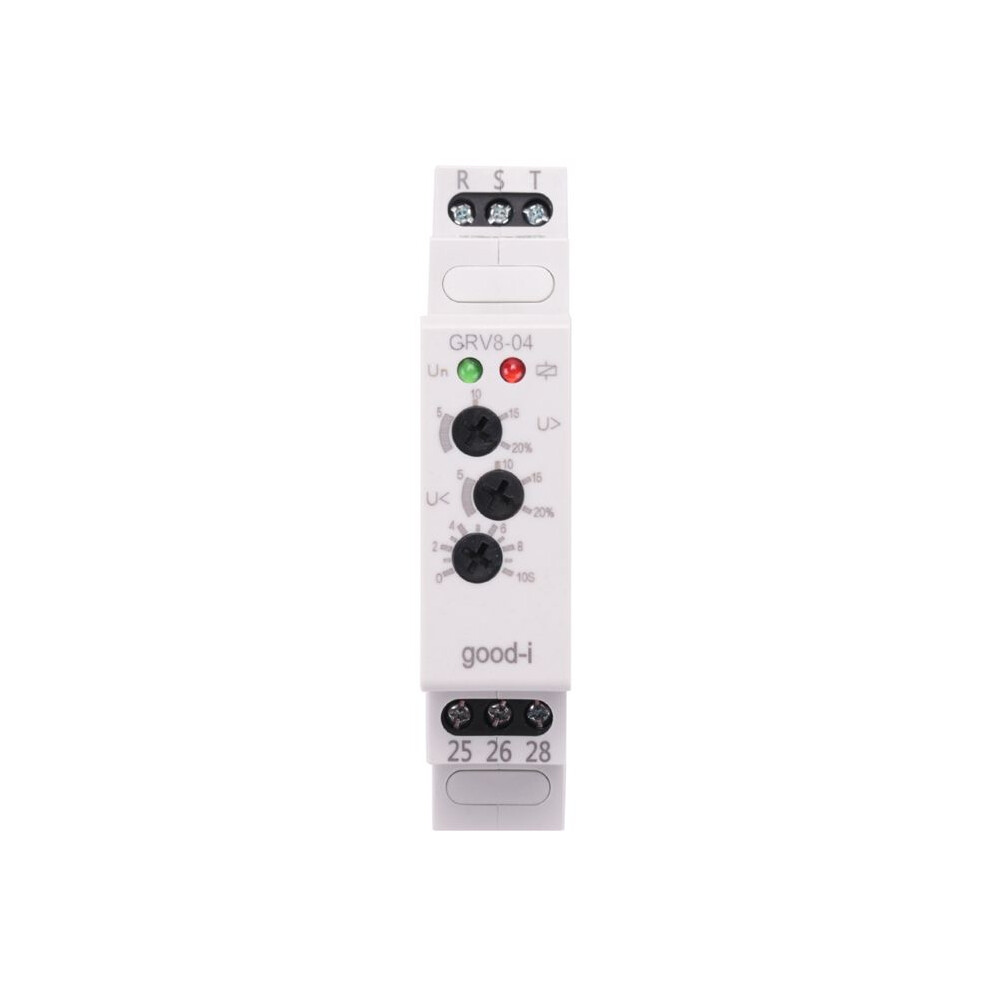

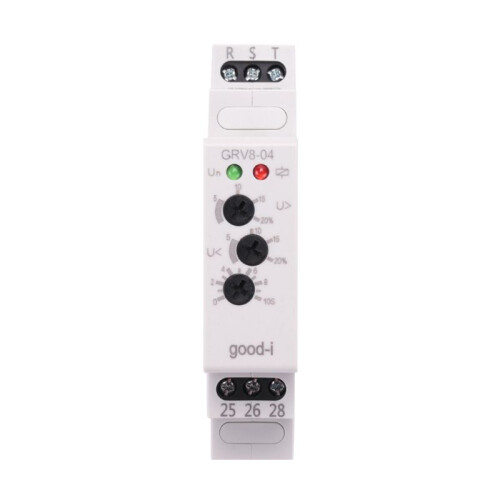

GRV8-04 M460 3-Phase Voltage Monitoring Relay Phase Sequence Phase Failure Protection Voltage Control Relay
Skynd dig – kun 1 tilbage på lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 137,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (32,99 kr.) | man. 16. - lør. 21. nov.
Solgt af: GSbuy
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- 1. This relay can monitor own working voltage (true RMS measurement).
- 2. 8 kinds of adjustable rated voltage.
- 3. Voltage measurement accuracy is not more than 1%.
- 4. Relay working status is indicated by LED indicators.
- 5. With super small volume, this relay can be mounted on 35mm DIN rail.
GRV8-04 M460 3-Phase Voltage Monitoring Relay Phase Sequence Phase Failure Protection Voltage Control Relay Beskrivelse
1. This relay can monitor own working voltage (true RMS measurement).
2. 8 kinds of adjustable rated voltage.
3. Voltage measurement accuracy is not more than 1%.
4. Relay working status is indicated by LED indicators.
5. With super small volume, this relay can be mounted 35mm DIN rail.
Application: Equipment protection and control( crane, elevator, agriculture equipment, refrigerated trucks); Protect equipment from reverse running; Normal/emergency power supply ; Protect against phase failure of a dynamic load.
Function: Monitor L-L voltage (3-phase 3-wire system)
Monitoring terminal: L1-L2-
Power: L1-L2
Rated working voltage: 220-230-240-380-400-415-440-460(P-P)
Rated power frequency: 45Hz-65Hz
Measuring range: 176V-552V
Voltage threshold range: 2%-20% (rated voltage)
Voltage fixed lag rate: 2%
Voltage measurement error: less than equal 1%
Power- delay : 0.5s
Knob setting accuracy: 10%
Reset : 1s
Temperature fluctuation error: 0.05%/C, at=20C
Output: 1 x SPDT; 10A/ AC1; 250VAC/24VDC
Minimum switching power: 500mW
Overvoltage: 2%-20%
Undervoltage: -20%-2%
Action delay : 0.1-10s adjustable
Phase sequence protection: Yes
Phase failure protection: Yes
Power indicator: Green LED
Output relay indication: Red LED
Mechanical life: 1x107
Mounting method: 35mm DIN rail mounting
Mount altitude: less than equal 2000m
Weight: Approx. 78g/2.7oz
size:95*18*64mm
colour:white
Material:plastic
Package Contents:
1 * Voltage Monitoring Relay
1 * Instructions
Detaljer
| OPC | PYMBYK2 |
|---|---|
| Koder | 6033279457873 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 4cm |
|---|---|
| Width | 7.5cm |
| Length | 9.5cm |
| Weight | 0.082kg |
| Colour | white |
| Material | plastic |
