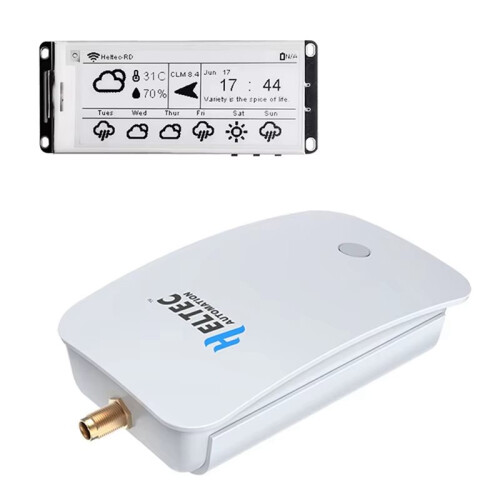

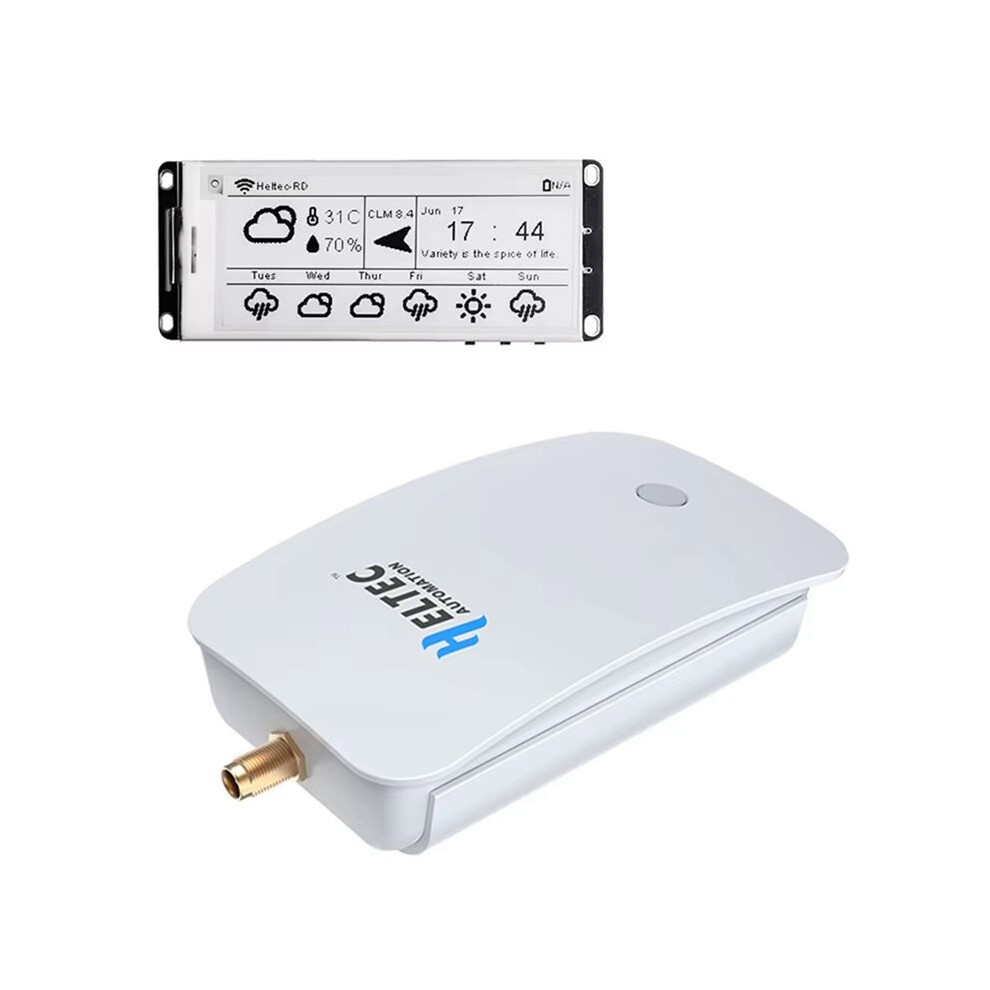

H ELTEC AUTOMATION HT-M7603 Gateway Router Vision Master E290 SX1262 ESP32 LoRaWAN Support Ethernet WiFi BLE IOT 868MHz EU PLUG

H ELTEC AUTOMATION HT-M7603 Gateway Router Vision Master E290 SX1262 ESP32 LoRaWAN Support Ethernet WiFi BLE IOT 868MHz EU PLUG Beskrivelse

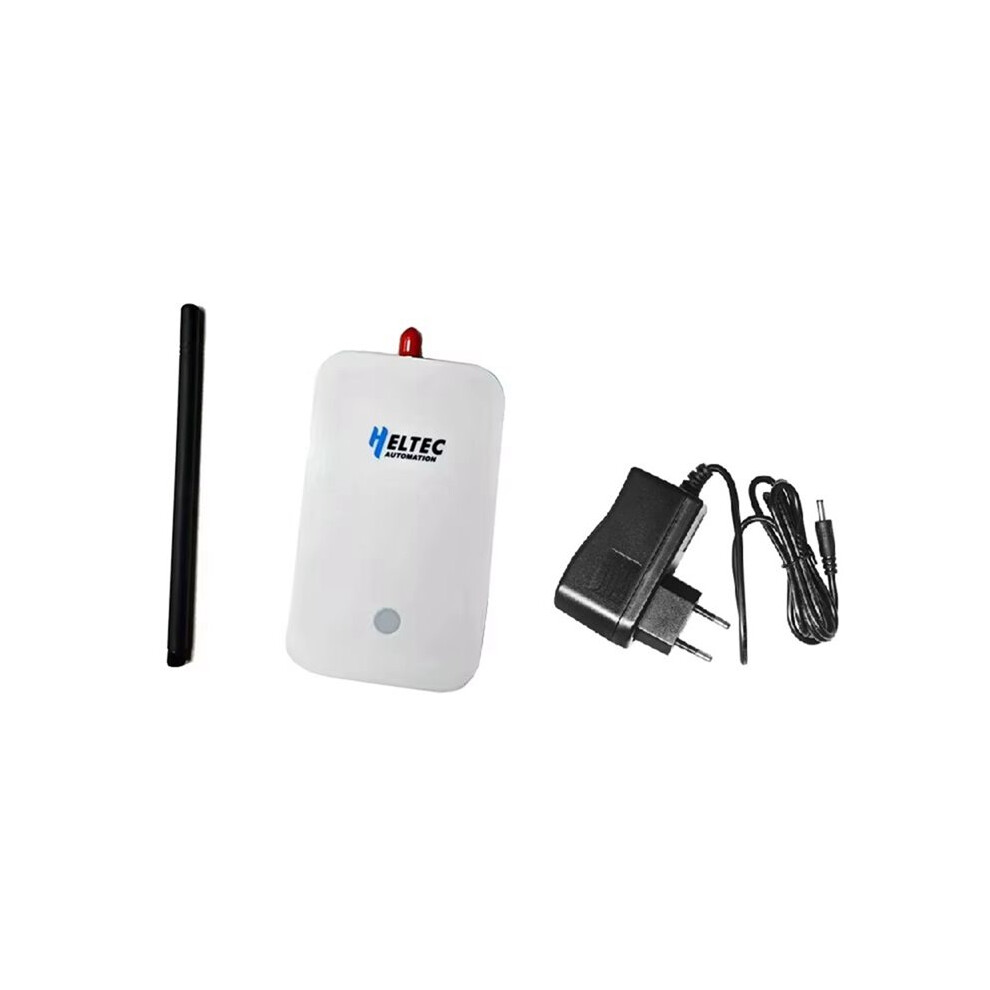

HT-M7603 is a high cost-effective indoor standard LoRaWAN gateway, which can be used independently or as a blind filling gateway. With simple configuration, it allows you to bridge LoRa wireless networks to IP networks and different network servers via Wi-Fi or Ethernet.This gateway has a sleek, contemporary design.

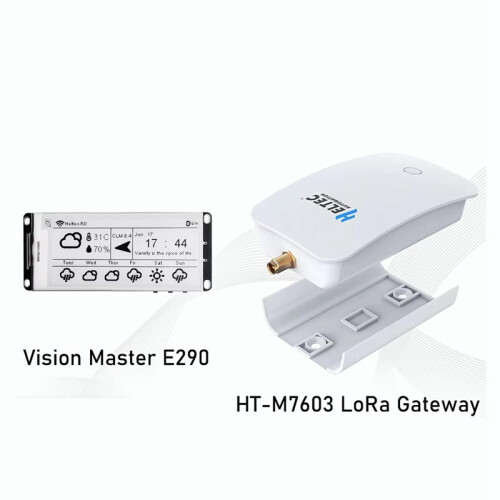

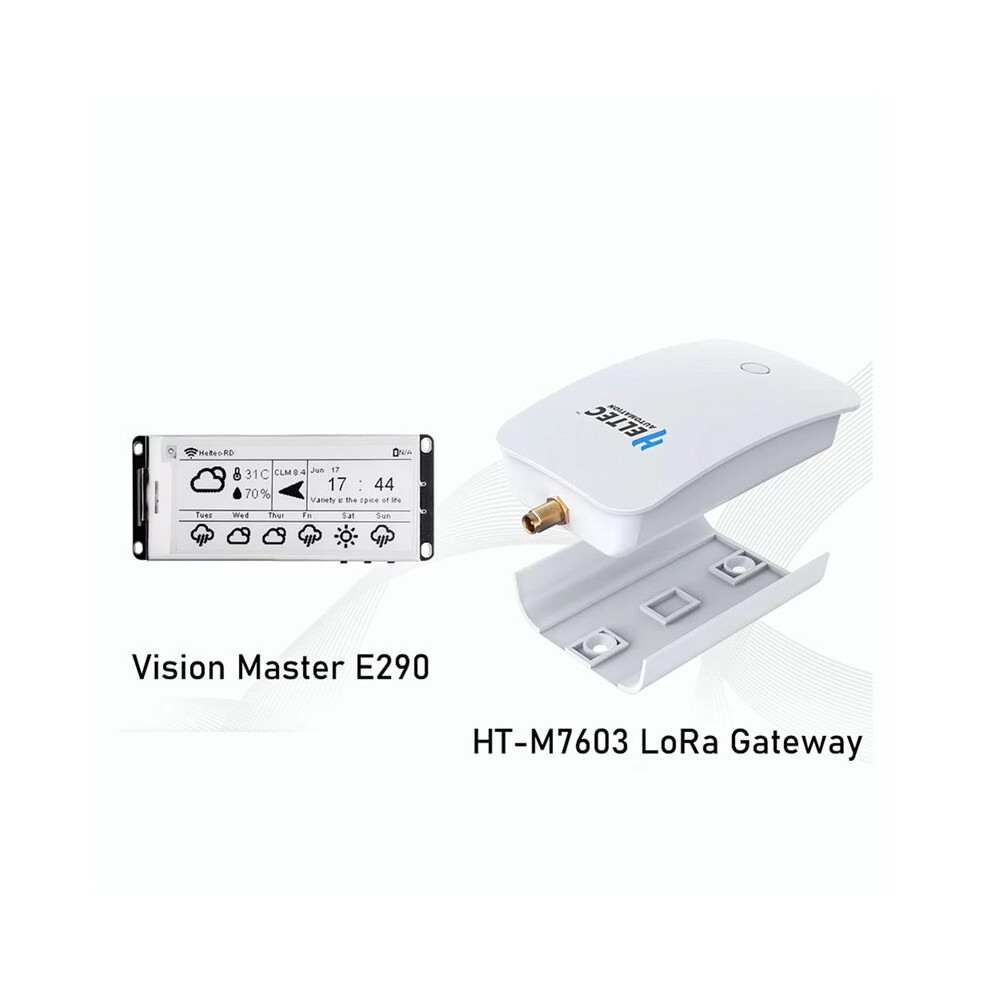

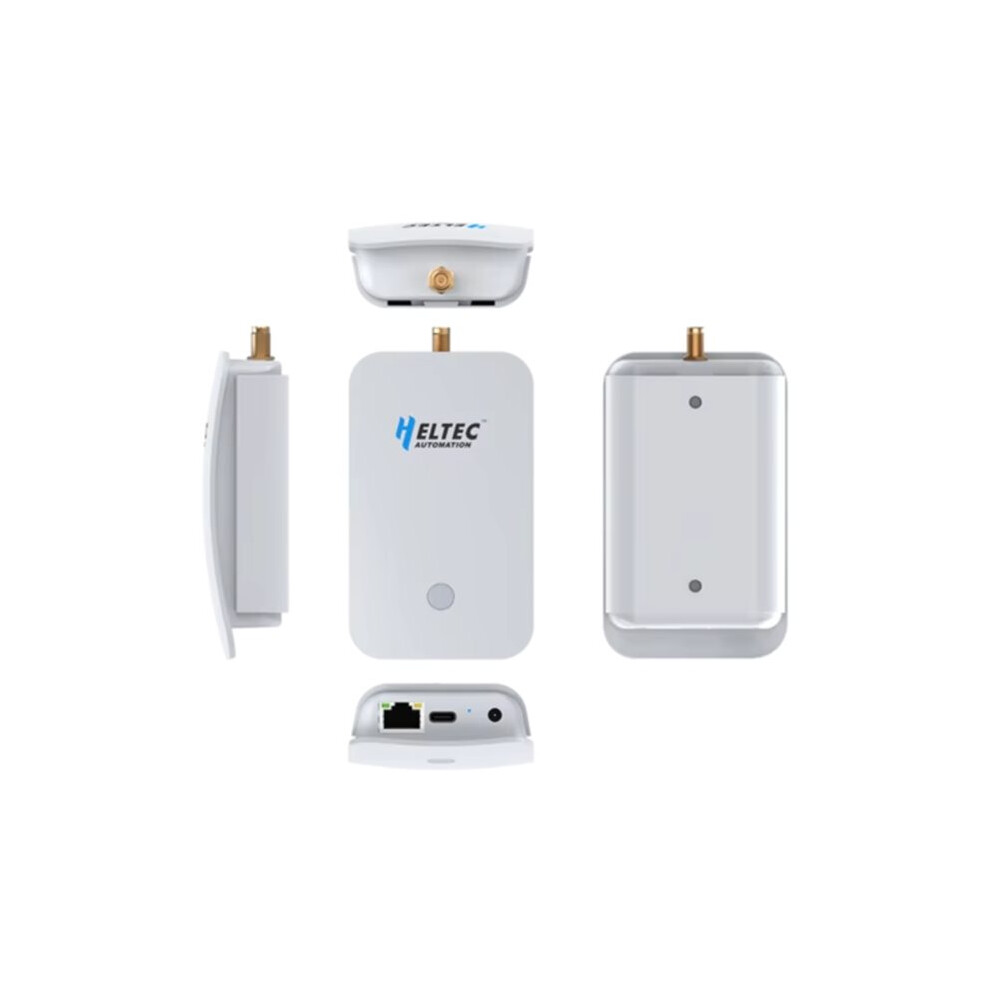

It is wall-mounted, can be easily placed anywhere indoor to ensure that it provides adequate signal coverage.
Supports standards LoRaWAN and custom MQTT: By selecting Gateway Mode, the M7603 can working modes, supporting bothLoRaWAN and custom MQTT.

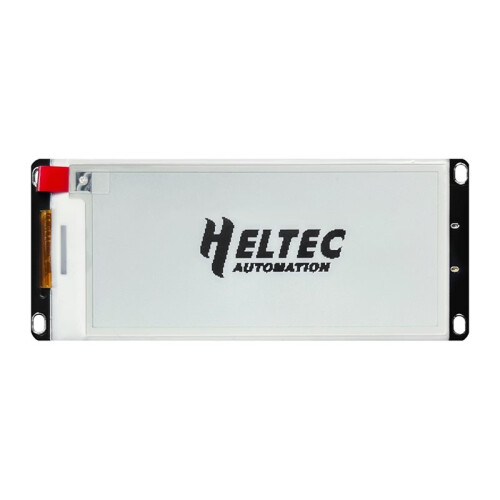

Vision Master E290 (HT-VME290) is an E-Ink development kit with multiple wireless drive methods. Collaborate with the sample programs and development tools we provide, users can operate the display via , Wi-Fi and LoRa.

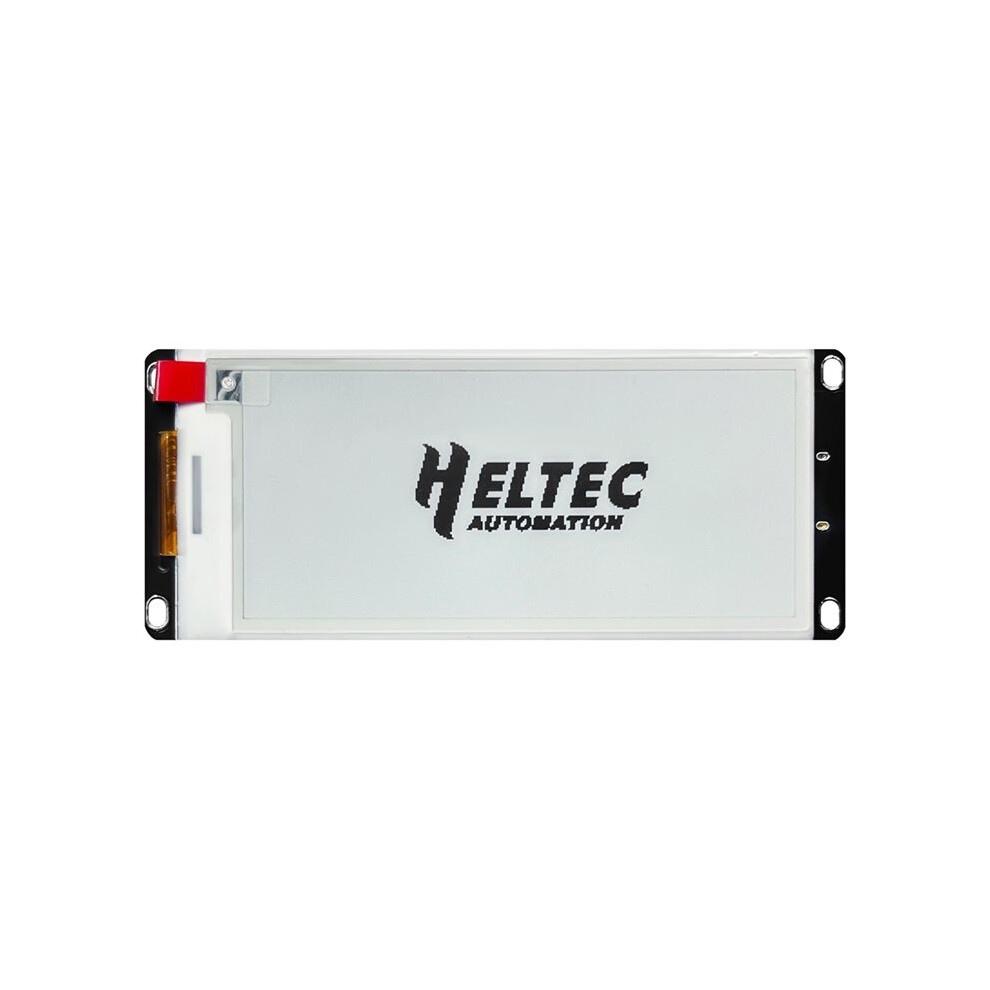

This board equipped with 2.90-inch black-white E-Ink display screen, continuous display for 180 days after power outage. It is compatible for , PlatformIO, Micpython and other development frameworks, can be used to develop applications such as electronic tags and identity tags, it is also possible to run open source projects like Meshtastic.

HT-M7603 Gateway Main Features
MT7628 MCU, SX1303 + SX1250 Chip
Wi-Fi and Ethernet supported
Maximum output: 27 2dBm
The power supply voltage:5V
Support LoRaWAN Class A, Class C, custom MQTT protocols

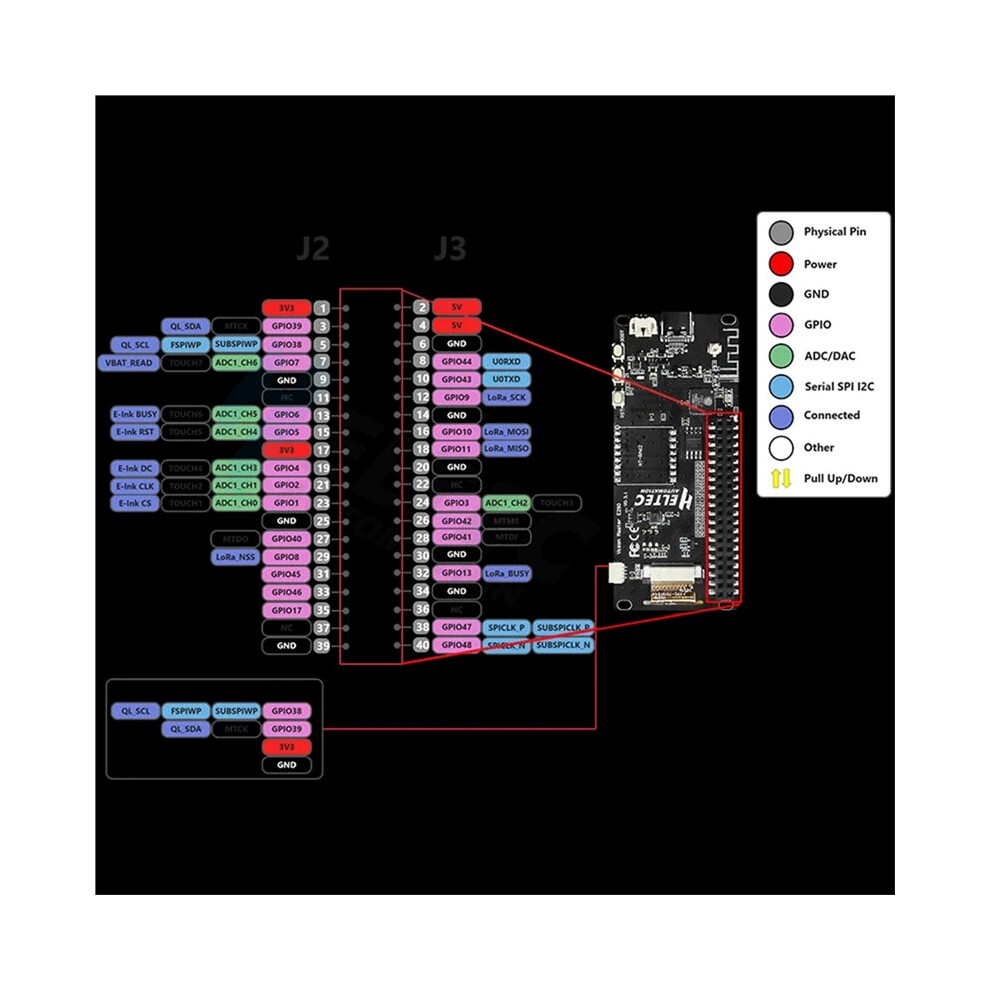

2.90-inch black-white E-Ink Main Features
ESP32-S3R8 MCU, support Wi-Fi and BLE.
LoRa module is optional, compatible with Mashtastic.
Low power consumption, 18uA in deep sleep, continuous display for 180 days after power outage.
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
Onboard 2.90 inc
