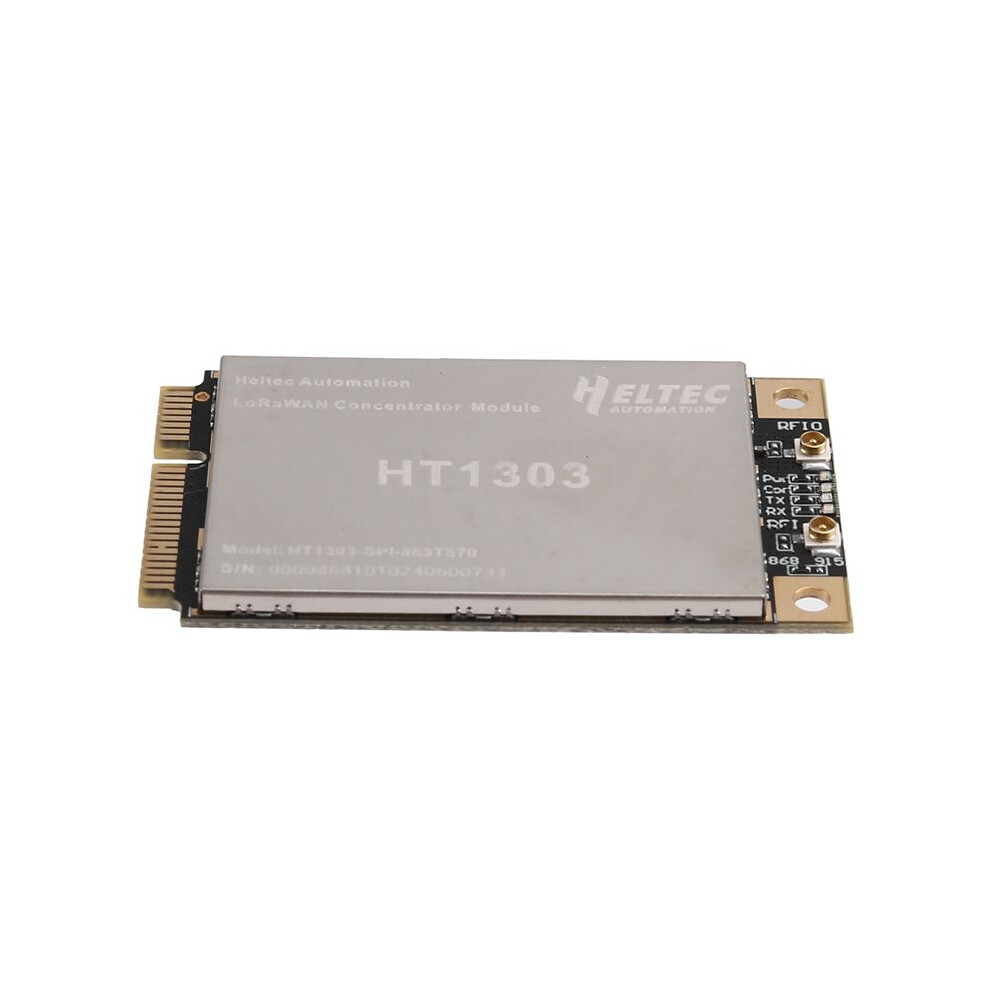

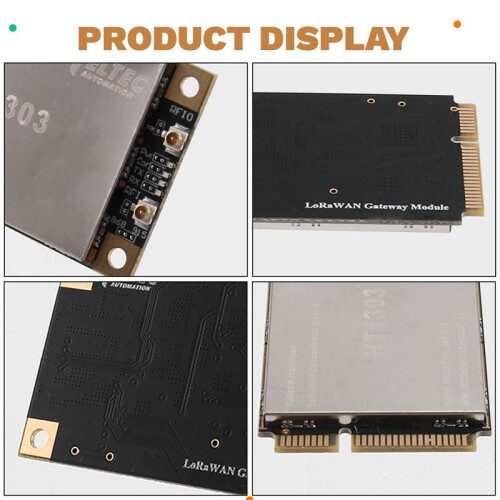

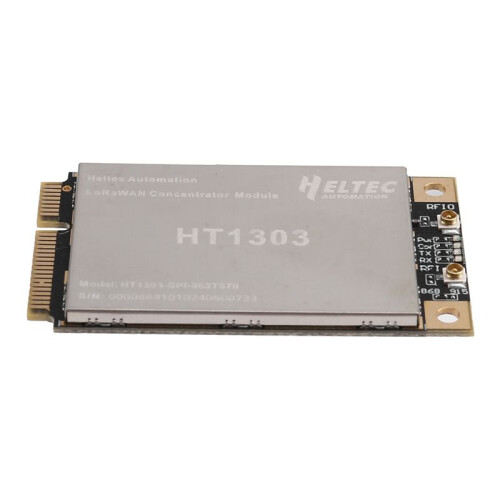

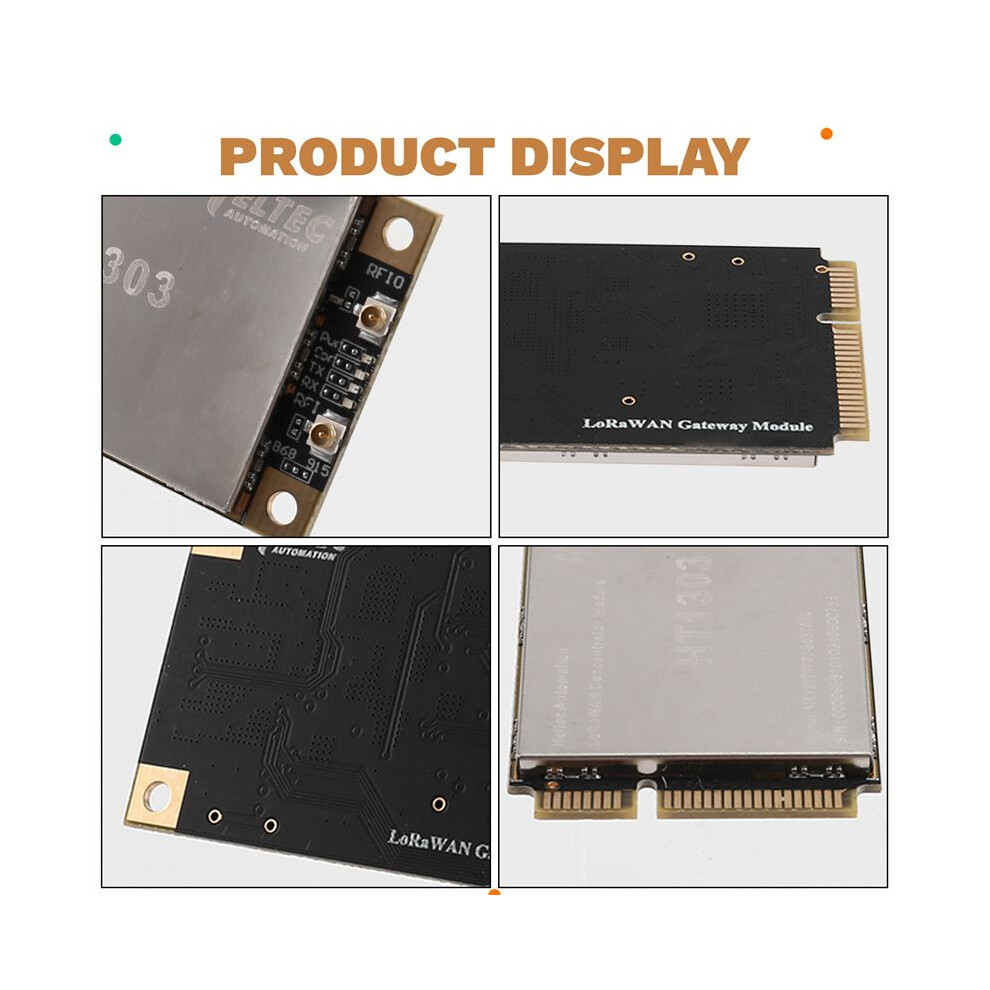

H ELTEC AUTOMATION HT1303 LoRaWAN Concentrator Module SX1302 SX1250 Chip LoRa Gateway Base Station Module 868MHz SPI Version

H ELTEC AUTOMATION HT1303 LoRaWAN Concentrator Module SX1302 SX1250 Chip LoRa Gateway Base Station Module 868MHz SPI Version Beskrivelse

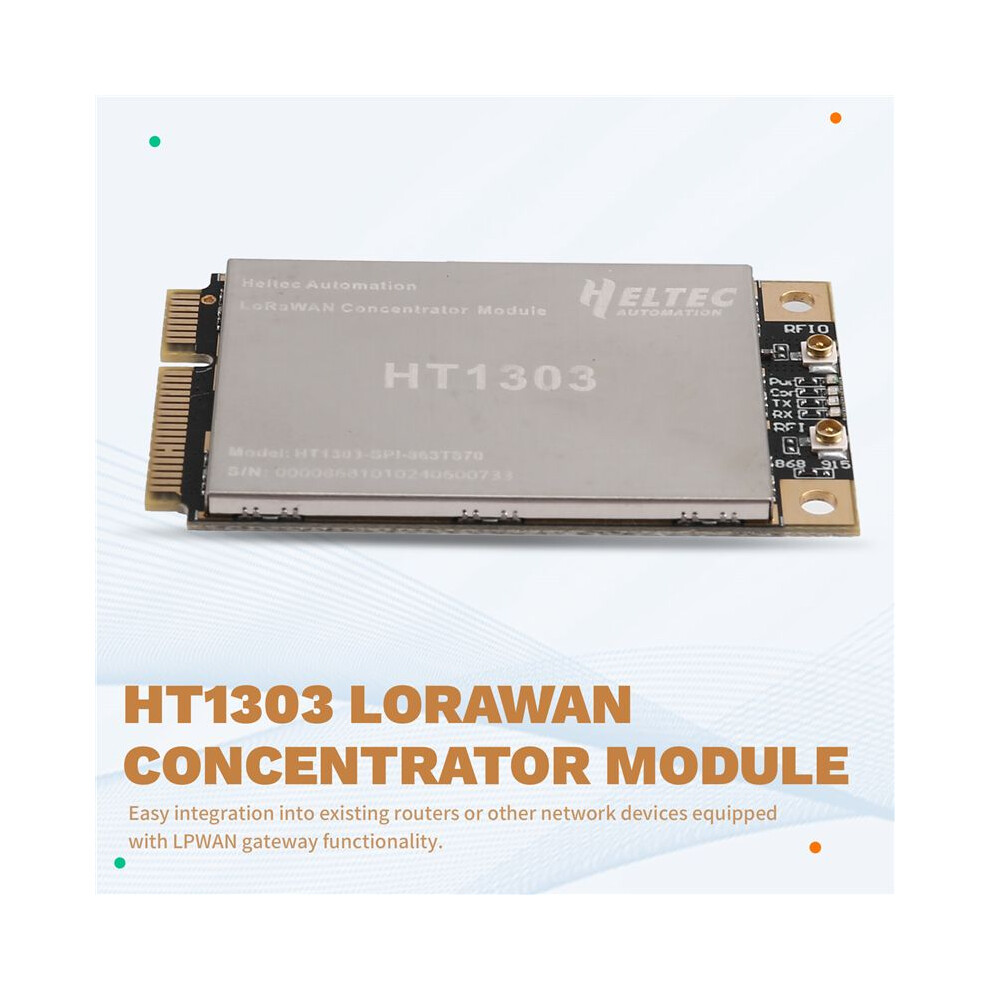

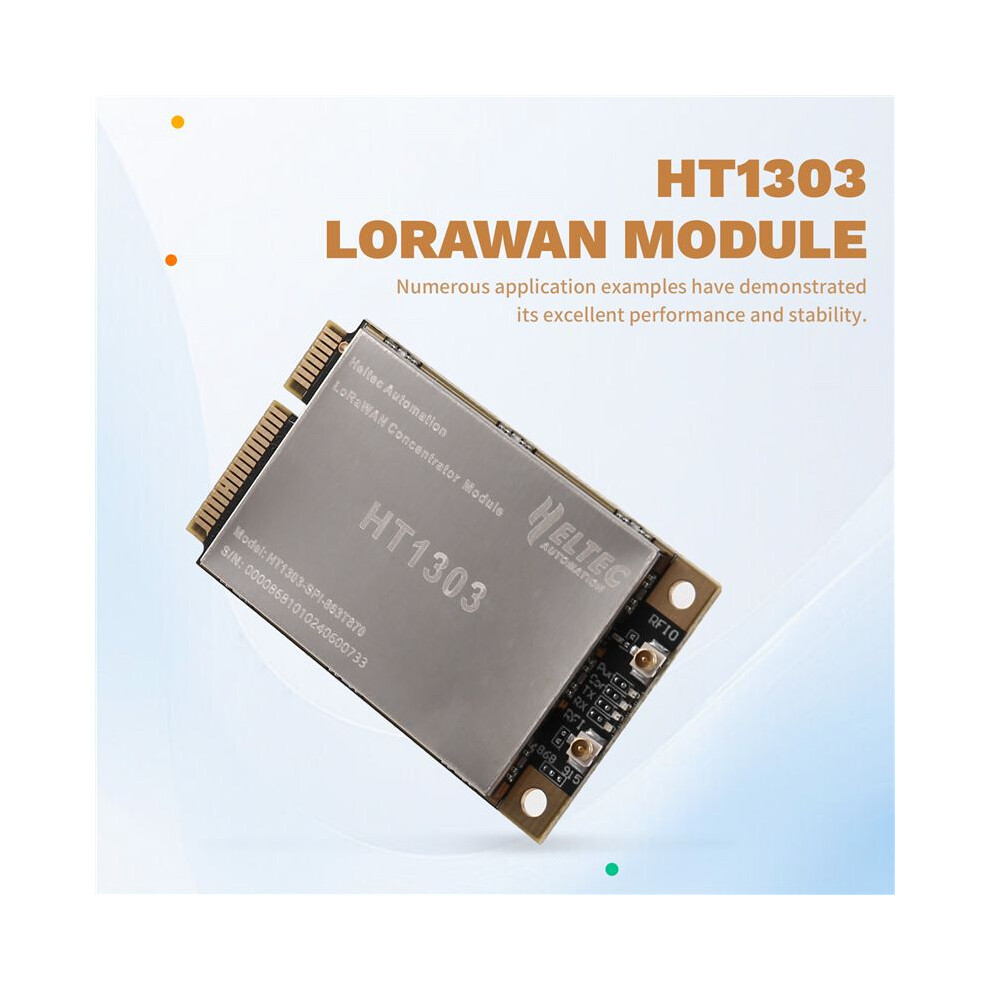

HT1303 LoRaWAN concentrator is a -PCIe-based LPWAN concentrator module based the Semtech SX1302, which enables easy integration into existing routers or other network equipment equipped with LPWAN Gateway capabilities.

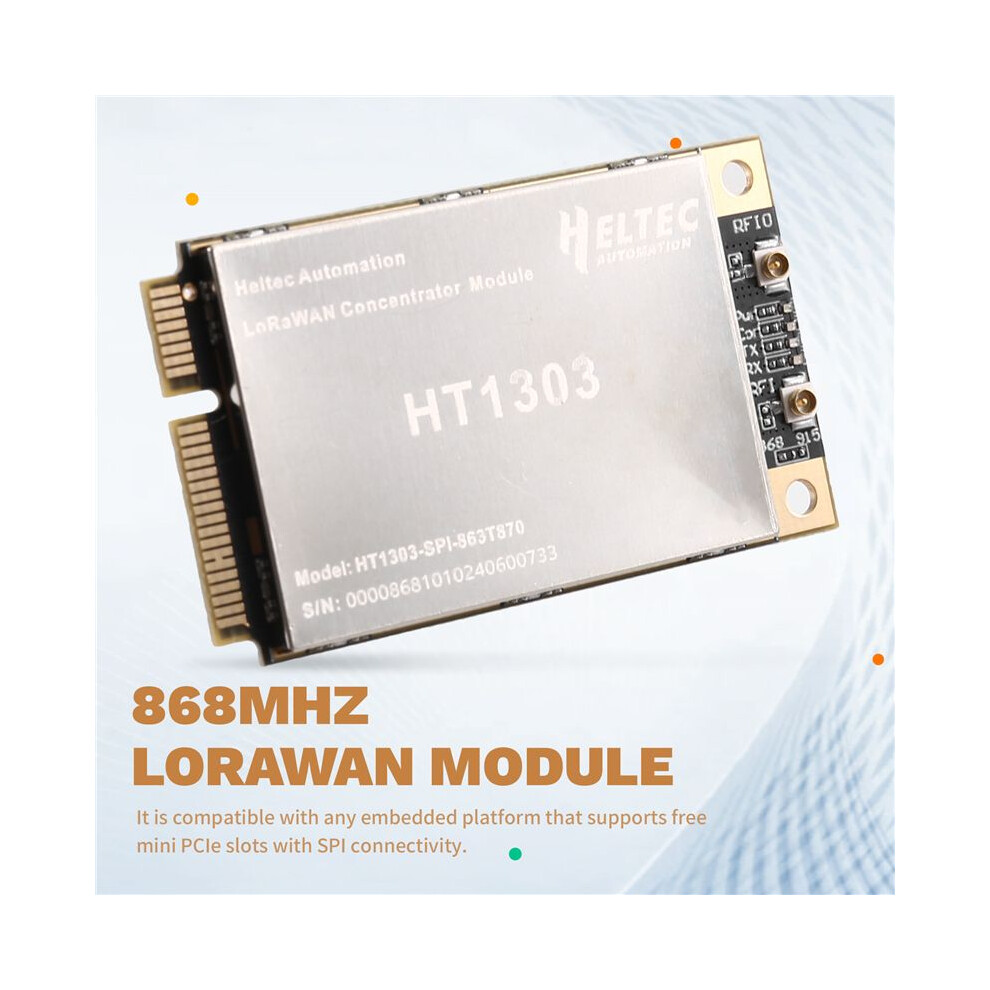

It is compatible with any embedded platform that supports a free -PCIe slot with SPI connectivity.
Cooperate with suitable driver hardware and Linux operating system (such as for Raspberry Pi), then it can work as a LoRa gateway.
Good performance and stability: This module has been widely used in our HT-MO1S, HT-MO2, HT-M7603, HT-M2802 and other products, and a large number ofapplication examples have proven its good performance and stability.

HT-1303 is compatible with the following open-source projects:
Disaster Radio
Meshtastic
Tiny GS
Main Features:
SX1302 digital baseband chip
Emulates 49x LoRa demodulators and 1x (G)FSK demodulator
10 programmable parallel demodulation paths
Dynamic data-rate adaptation (ADR)
Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
Maximum output: 27 2dBm
to -141dBm sensitivity with SX1250 Tx/Rx front-end
The power supply voltage:3.3V
Support for LoRaWAN Class A, Class C protocols
Operating temperature range:-40-85
Specifications:

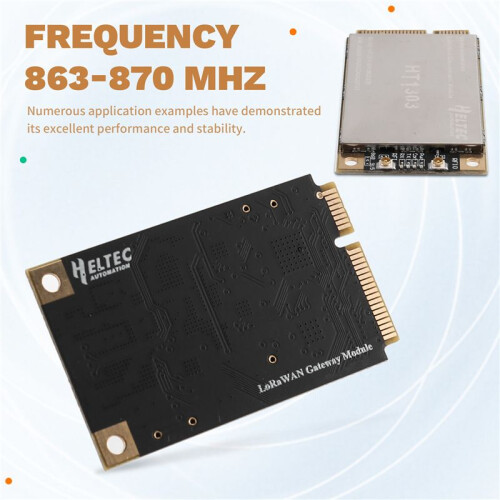

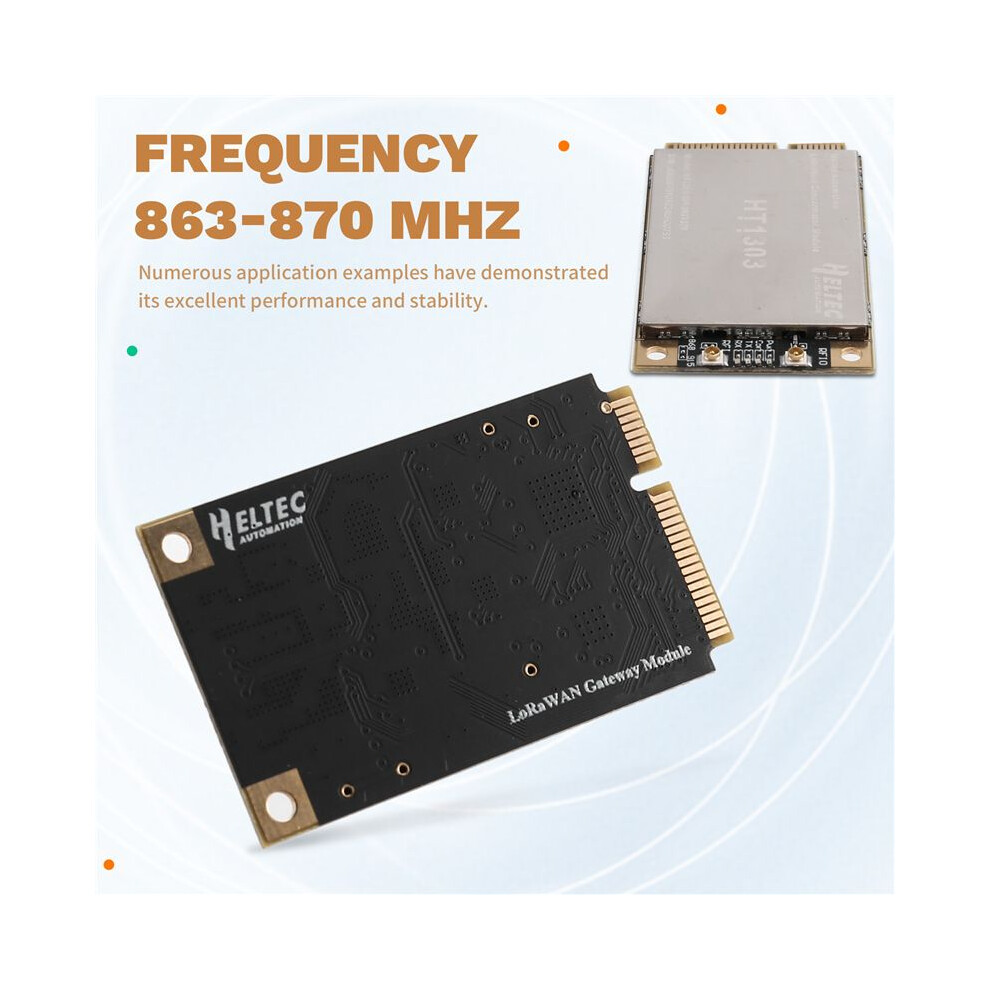

Frequency:863-870 MHz
Sensitivity: -125dBm @125KHz/SF7, -139dBm @125KHz/SF12
LoRa Chipset: SX1302 + SX1250

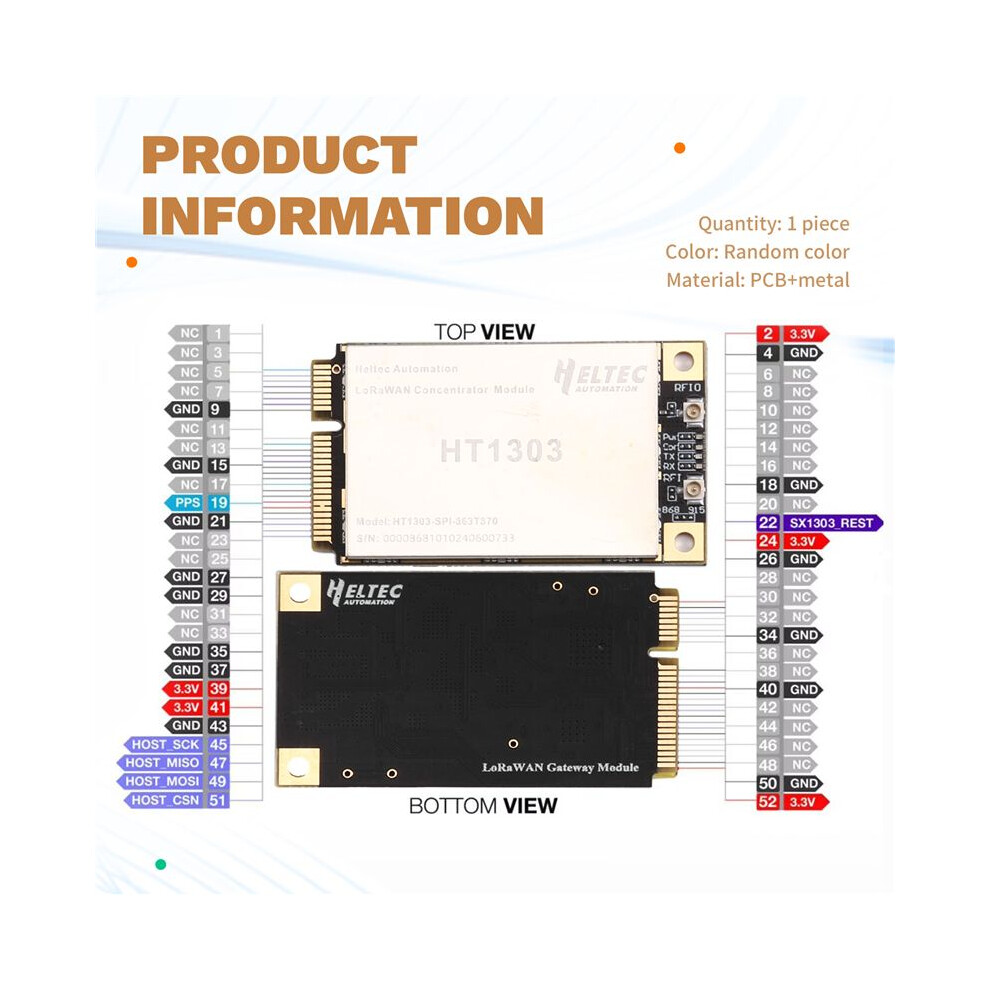

Connector: PCIe, 52 pins Golden Finger, SPI bus
Power Consumption (SPI)
Standby:7.8 mA
TX maximum power:407 mA
RX:40 mA
Antenna Socket:IPEX 1.0 (also called U.FL)
Color:Random Color(The color is random, and the designation is not accepted)
Material:PCB+Metal

Package Contents:
1 * HT1303 LoRaWAN Concentrator Module
