Heltec HT-HC01P V2 Wi-Fi HaLow Module PCIe Interface 16dBm 863-870MHz and for Raspberry Pi HAT Baseplate for IoT

Heltec HT-HC01P V2 Wi-Fi HaLow Module PCIe Interface 16dBm 863-870MHz and for Raspberry Pi HAT Baseplate for IoT Beskrivelse

HT-HC01P-V2 is a Wi-Fi HaLow module with PCIe interface, which operates in 863-870MHz, to 1-2km transmission range. Note: 868MHz only offers 1MHz bandwidth and a maximum transmit power of 16dBm.
HC01P V2 meets IEEE 802.11ah standard, which is specifically designed for battery-operated devices, allowing them to remain in longer sleep and idle states without frequent wake-ups. This significantly reduces power consumption and extends the device's battery life.

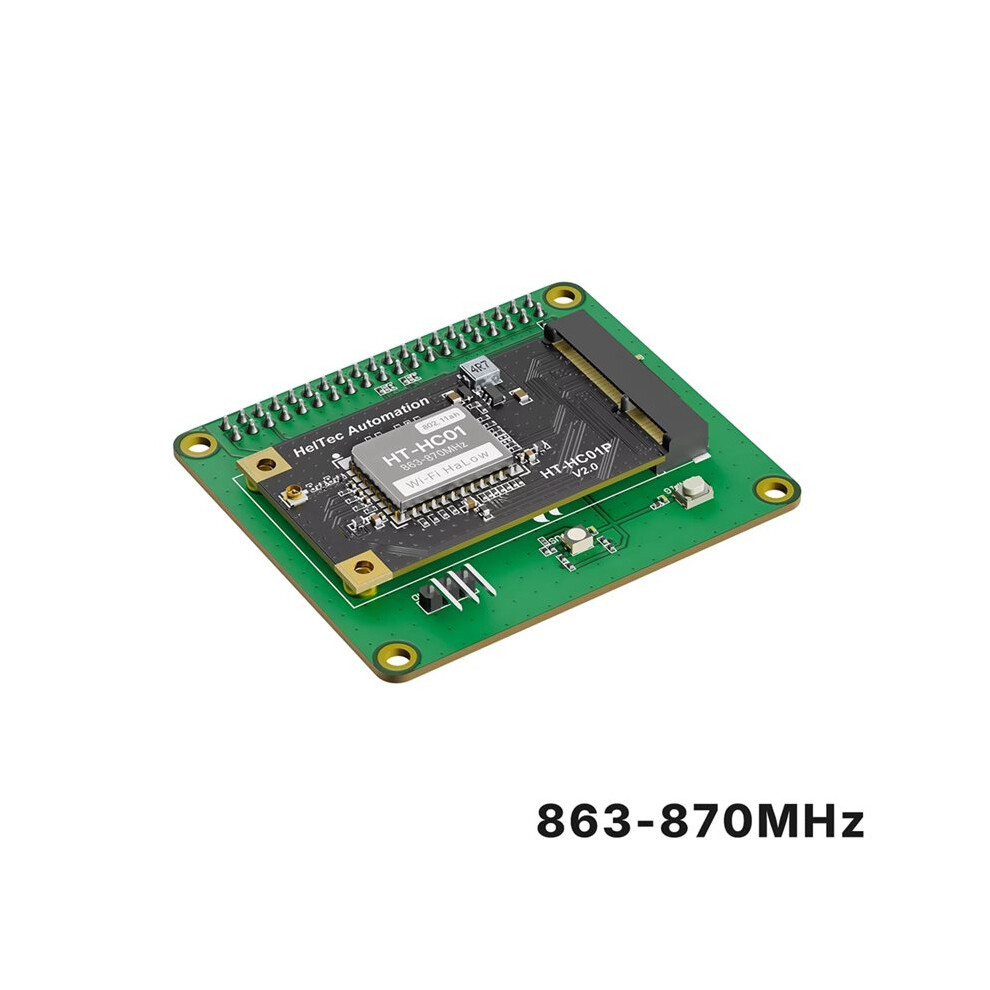

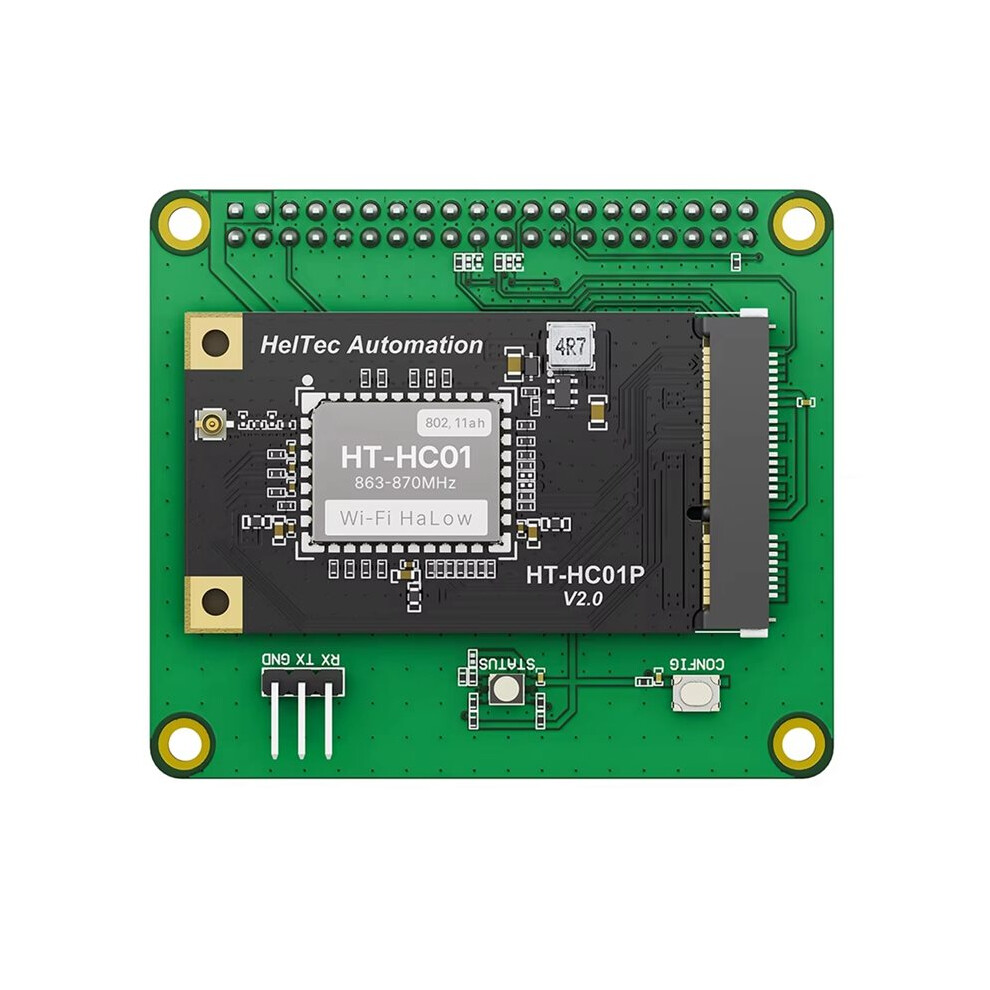

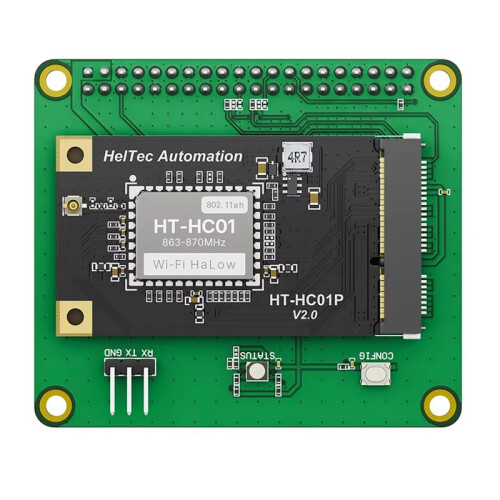

We designed the for Raspberry Pi HAT specifically for the HC01P WiFi HaLow Module PCIe Interface, avoiding the use of a jumper and making the combination of the two more simple and beautiful.
Baseplate Support multiple splice extensions. Baseplate Perfect fit for HC01P and HC01P_V2.
Application: Wi-Fi HaLow can seamlessly integrate with traditional Wi-Fi or Ethernet networks and is suitable for most IoT scenarios, especially those requiring long-range high-speed transmission.

HC01P V2 Main Features:
Long-range transmission, to 1km or and further within the visual distance.
Channel bandwidth options of 1 MHz.
Support frequency bands: 863-870 MHz.
Max output power: 16dBm.
Hibernate mode (internal / external wake).
802. 11ah OFDM PHY supporting WFA HaLow certification.
802. 11ah supporting WFA HaLow certification.
High data rate, single-stream max. data rate of 32.5 Mbps @ 8 MHz or 15 Mbps @ 4 MHz channel.
Wide spectrum of security features.

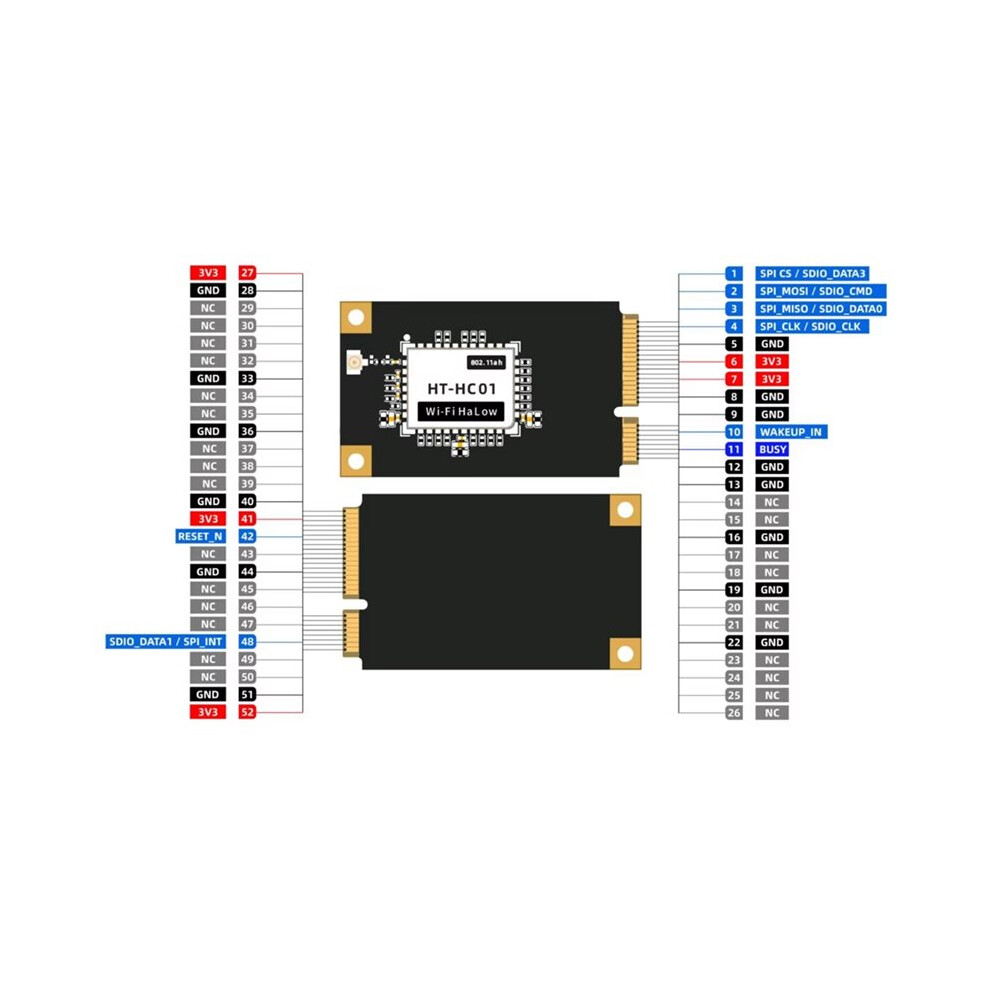

HC01P V2 Specifications:
Main Chip: MM6108IQ
Power Supply: 3.3V
HaLow Standard: IEEE 802.11ah
Band Width: 1MHz
Interface: PCIe
Operating temperature: -40 ~ 85
Operating humidity: 10%~90%, no-condensing
Max. Data Rate: 32.5 Mbps

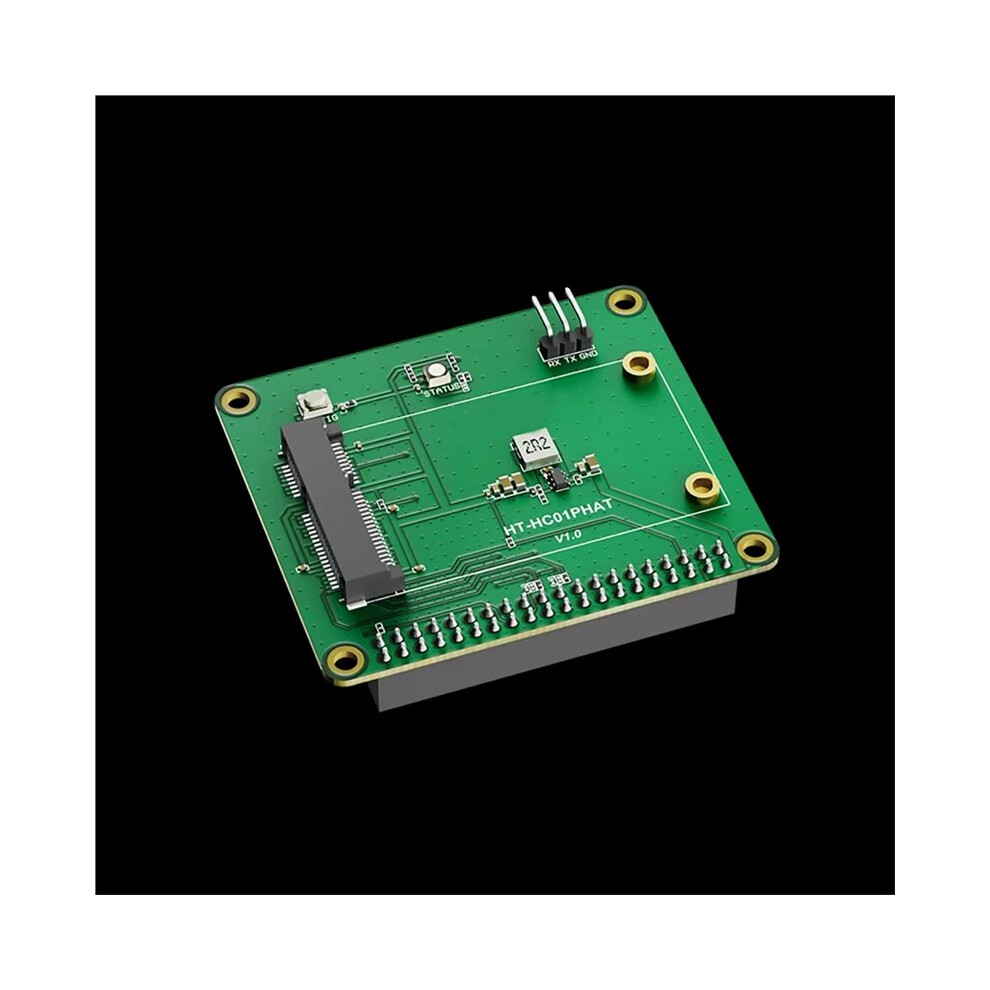

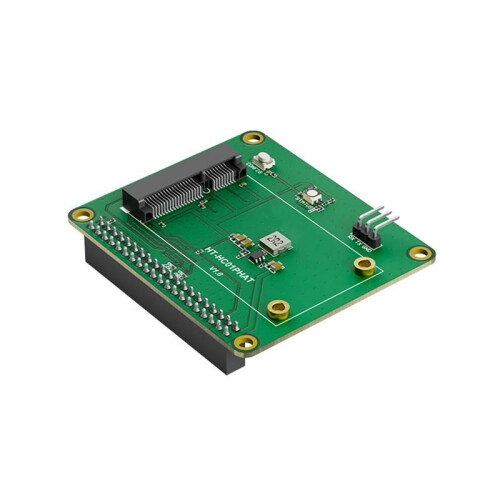

HT-HC01PHAT Baseplate Specifications:
Interface: -PCIE, Female Header Pin (Fully com
