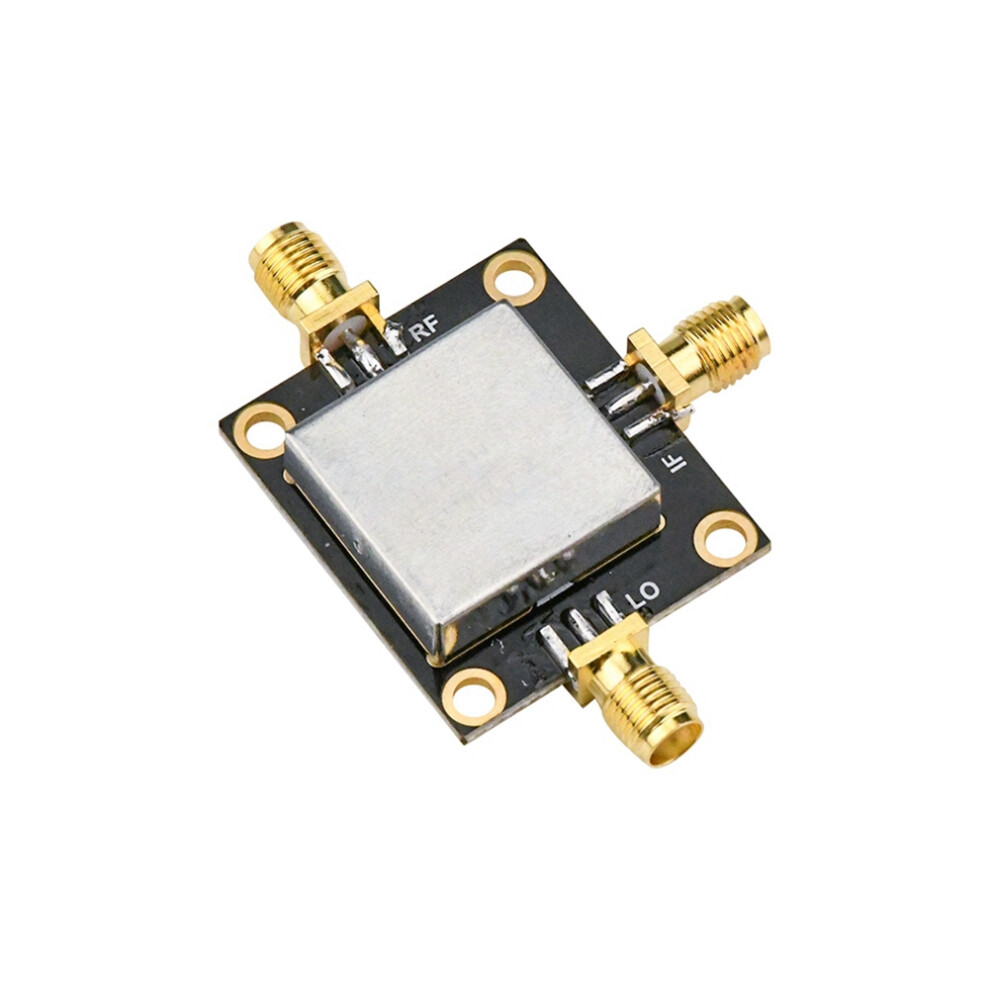

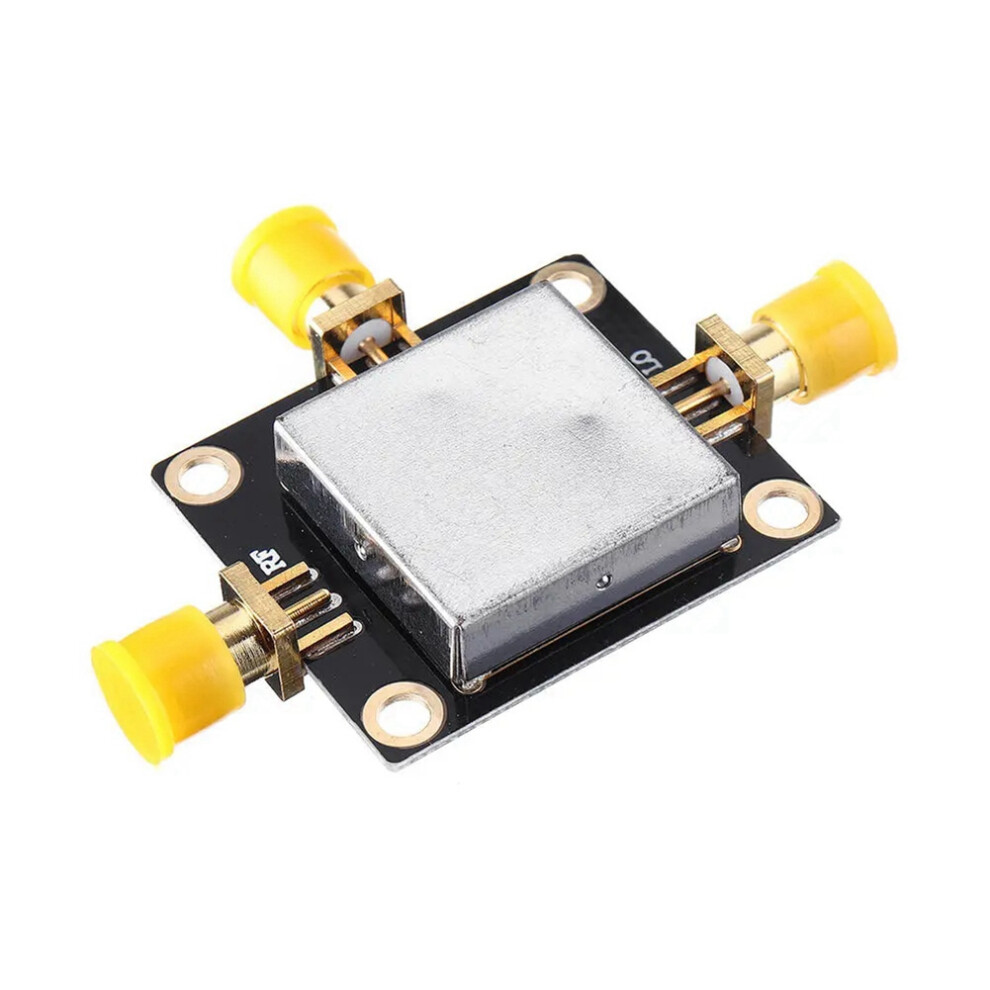

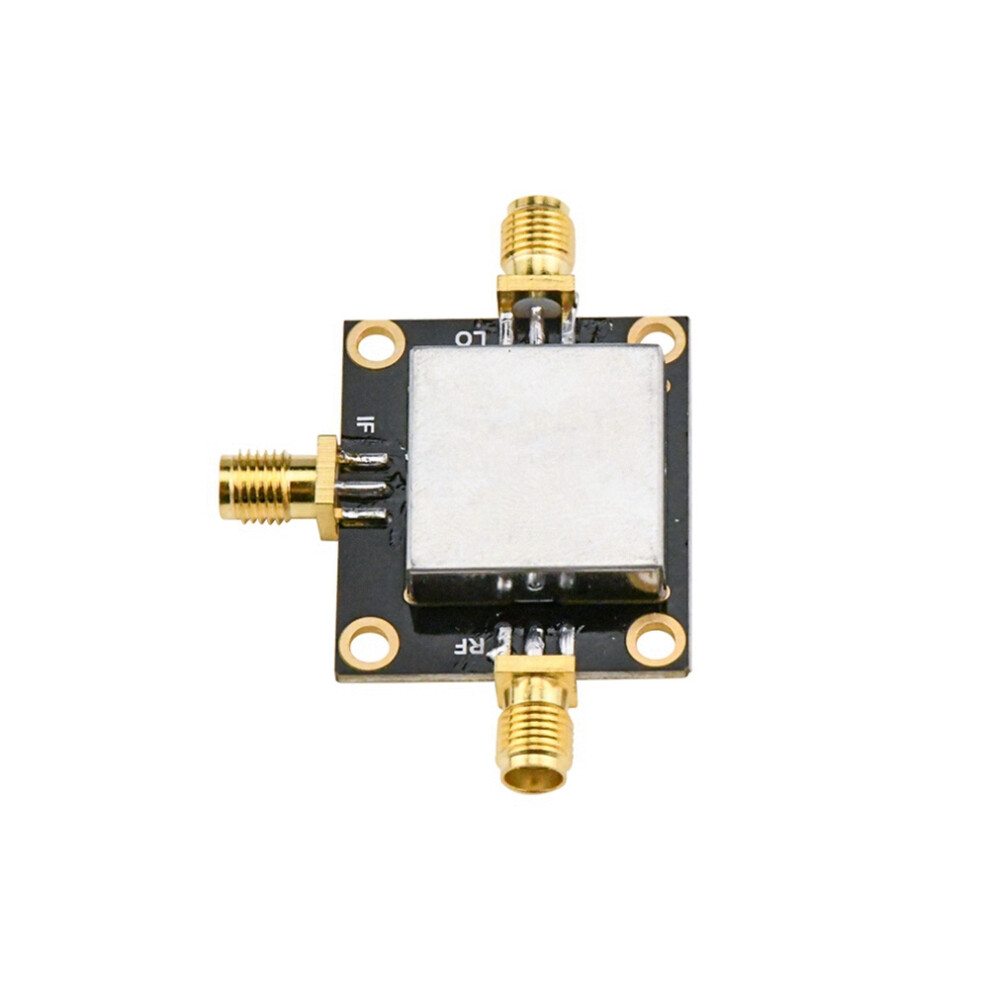

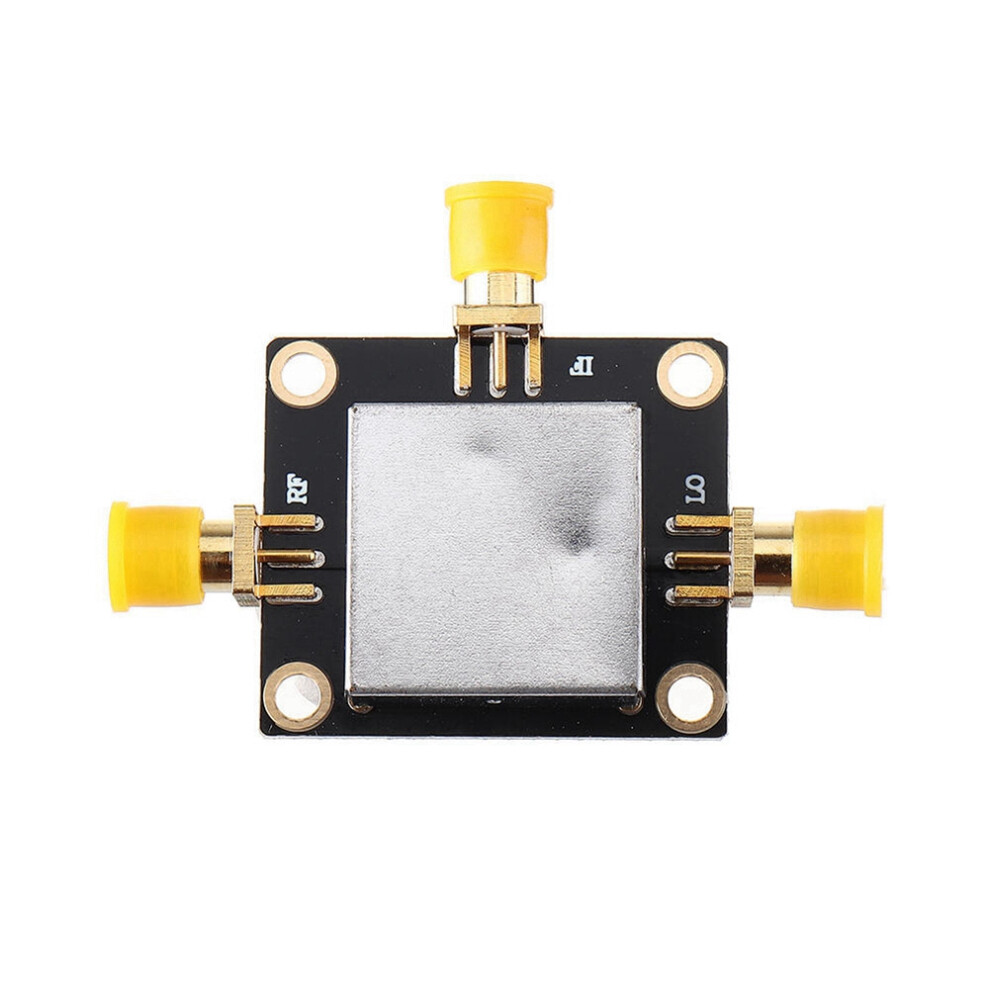

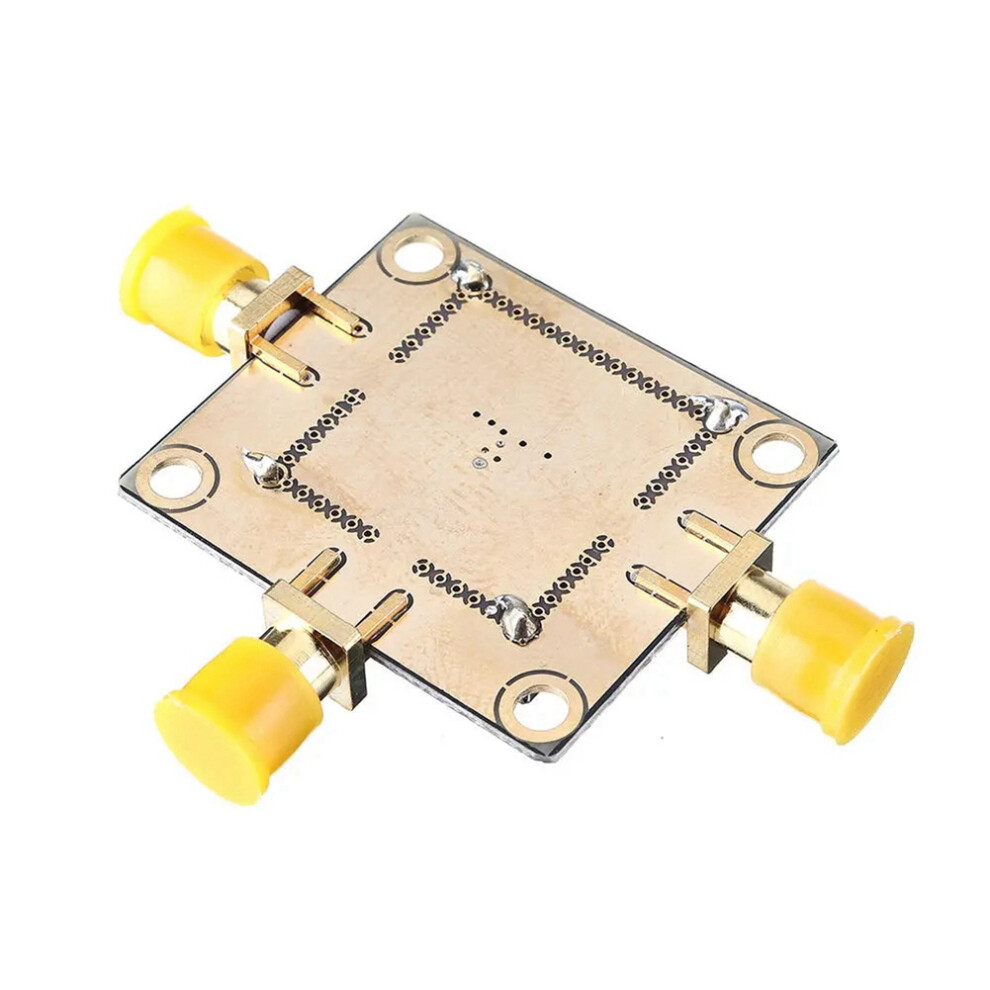

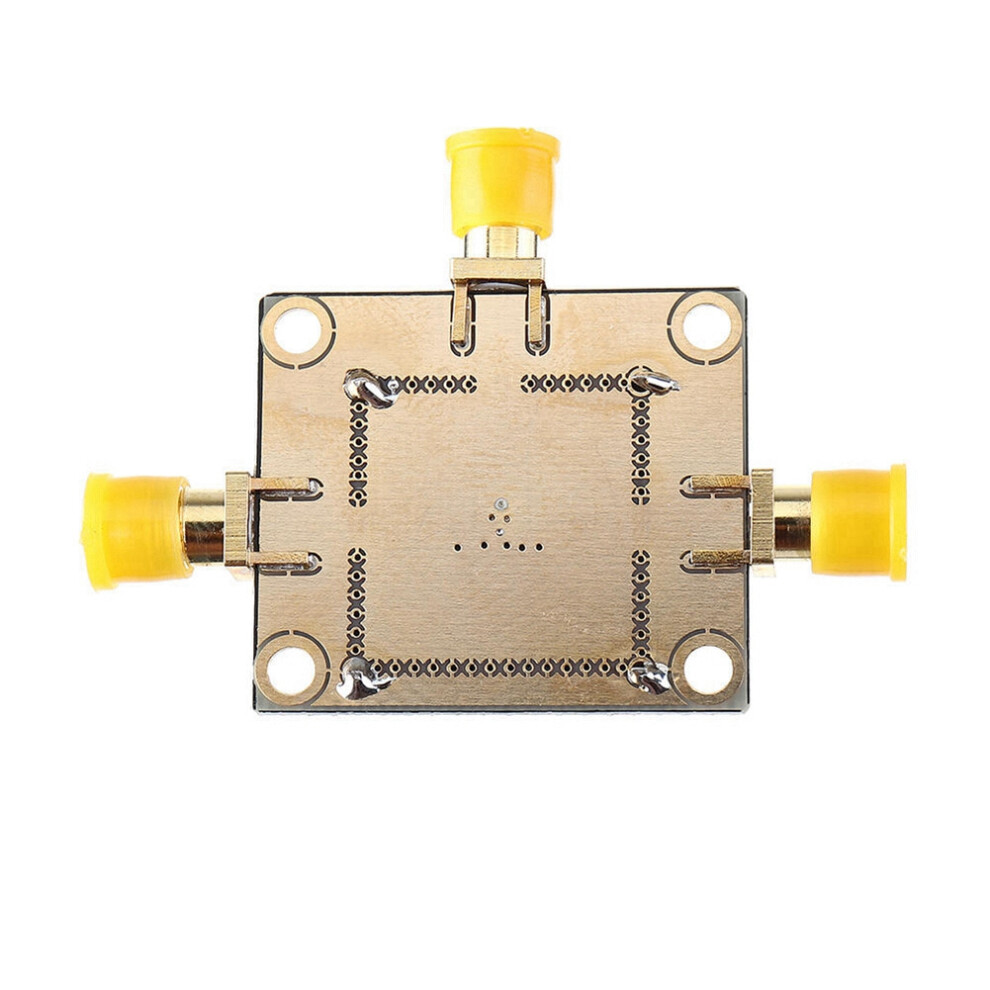

HMC412 9-15G Low Noise Double Balanced Mixer and Down RF Frequency Conversion Passive Mixer Module

HMC412 9-15G Low Noise Double Balanced Mixer and Down RF Frequency Conversion Passive Mixer Module Beskrivelse

Passive double balanced mixer in an 8-pin surface mount plastic package (MsOP).
The passive MMiC mixer uses a GaAs Schottky diode and a novel transformer -chip balun structure.
This type of device can be used as an upconverter, downconverter, biphase modulator and demodulator or phase comparator.

Module features:
DIY Supplies:ELECTRICAL
Type:Passive mixer module
Conversion Loss: 8 dB
LO to RF Isolation: 25 dB
LO to IF Isolation: 25dB
Frequency Range, RF & LO: 9-15G
Frequency Range, IF: -2.5G
Noise Figure (SSB): 8dB
1 dB Gain Compression (Input): 9.5dBm
IP3 (Input): 17dBm
ParameterIF: 1.45 GHz
LO: +13dBmUnits
Min.Typ.Max.
Frequency range, RF&LO9.0-15.0GHz
Frequency range, IFDC-2.5GHz
Conversion Loss: 811dB
Noise Figure(SSB): 811dB
LO to RF Isolation: 3040-50 dB
LO to IF Isolation: 3340-50 dB
RF to IF Isolation: 817 dB
IP3 (Input): 1417 dBm
1dB Compression (Input): 79.5 dBm
RF/IF Input (Vdd: +3V)+27dBm
LO Drive (Vdd: +3V)+27dBm
IF Current+-4mA
Storage Temperature: -65 to +150
Operating Temperature: -55 to +85
colour: as shown
Material: plastic

Package Contents:
1 x Low Noise Double Balanced Mixer
