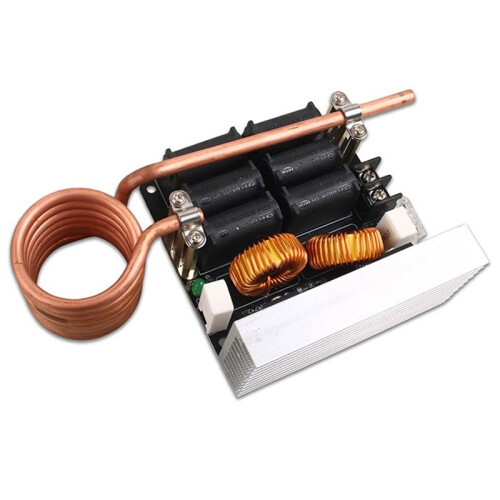

Induction Heater Kit, 12-48V Low Voltage Flyback Driver Board with Cooling System for Metal Melting, DIY Heater Module

Induction Heater Kit, 12-48V Low Voltage Flyback Driver Board with Cooling System for Metal Melting, DIY Heater Module Beskrivelse

[1] The heating plate is made of 100*100mm military-grade PCB, ensuring stable performance;
[2] The power features a windowed design, allowing for tin plating to increase current and reduce heat generation;
[3] It uses an extra-large, high-power heatsink for better heat dissipation;
[4] The output end uses three M4 copper pillars connected in parallel, which can be connected to high-voltage and other outputs;

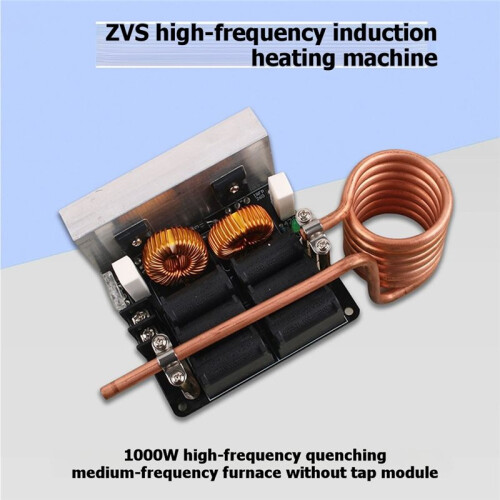

ZVS induction heating products feature an extra-large PCB layout and heat sink, ensuring excellent heat dissipation and high power output. They also include a built-in cooling fan interface and can be used for discharge, Max Planck generators, and high-voltage inverters.

This induction heating circuit uses a 12-48V low-voltage power supply, with a maximum current of 20A and a maximum power of 1000W. Its moderate power makes it suitable for DIY enthusiasts to perform heat treatments such as quenching and annealing small parts. It can also be used with a graphite crucible to melt metals such as gold, silver, copper, and aluminum, providing uniform and rapid heating, making it very convenient.

[Product Parameters]

Product Dimensions: 100mm * 100mm

Input Voltage: 12V-48V, 36V recommended

Power Supply Requirements: Less than 12V 10A, 15V and above 15A

For induction heating, a 36V 20A or higher switching power supply is recommended. For 36V power, a power supply with 20A or higher is required. Higher voltage results in higher current, greater heating power, and faster heating speed.
Color: As Shown
Material: Metal + Electronic Components

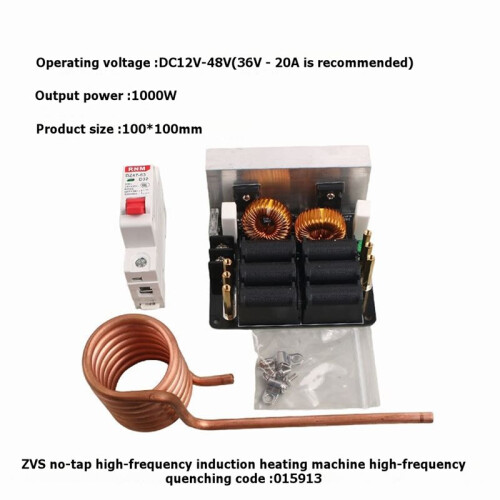

Package Contents:
1*Quenching machine heating plate module
1 set of accessories
